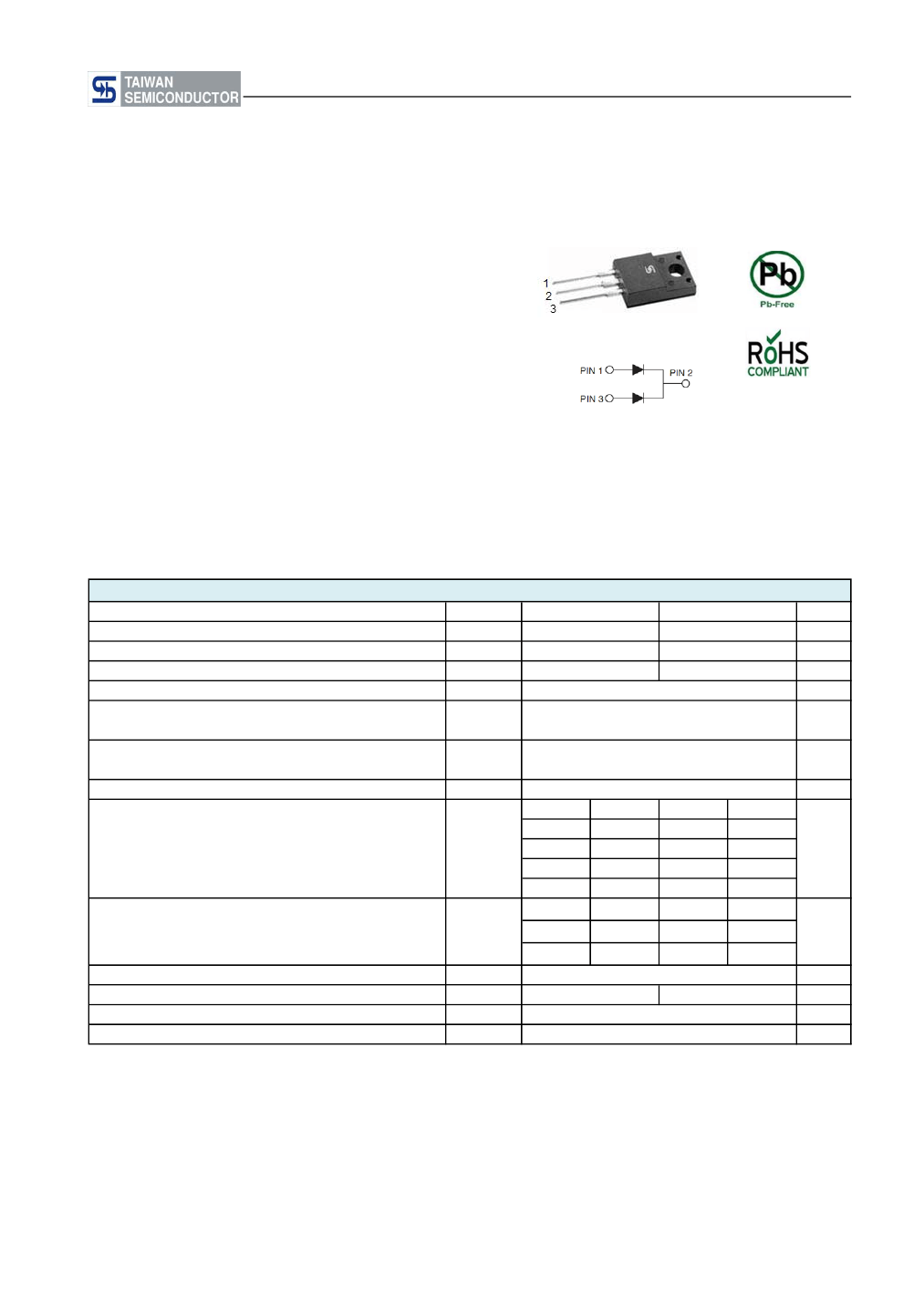

MBRF20L100CT thru MBRF20L120CT
Taiwan Semiconductor
CREAT BY ART
FEATURES
Dual Common Cathode Schottky Rectifier
- UL Recognized File # E-326243
- Low power loss, high efficiency
- Guardring for overvoltage protection
- High surge current capability
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
ITO-220AB
MECHANICAL DATA
Case：ITO-220AB
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - halogen-free, RoHS compliant
Base P/N with prefix "H" on packing code - AEC-Q101 qualified
Terminal：Matte
tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test,
with prefix "H" on packing code meet JESD 201 class 2 whisker test
Polarity：As
marked
Mounting torque：5
in-lbs maximum
Weight：1.7
gram (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERSTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak Repetitive Forward Current
(Rated VR, Square Wave, 20KHz)
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Peak Repetitive Reverse Surge Current (Note 1)
Maximum Instantaneous Forward Voltage (Note 2)
IF= 10 A, TA=25℃
IF= 10 A, TA=125℃
IF= 20 A, TA=25℃
IF= 20 A, TA=125℃
Maximum reverse current @ rated VR
T
A
=25
℃
T
A
=125
℃
Voltage rate of change (Rated V
R
)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1： tp = 2.0
μs,
1.0KHz
Note 2：Pulse test with PW=300u sec, 1% duty cycle
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FRM
I
FSM
I
RRM
TYP
0.72
V
F
0.58
0.81
0.67
TYP
I
R
dV/dt
R
θJC
T
J
T
STG
5.5
- 55 to + 150
- 55 to + 150
1.1
1.2
MAX
0.75
0.68
0.85
0.75
MAX
20
15
10000
5
MBRF20L100CT
100
70
100
20
20
150
1
TYP
0.78
0.63
0.86
0.73
TYP
1
1.4
MAX
0.83
0.72
0.9
0.8
MAX
20
10
uA
mA
V/us
O
MBRF20L120CT
120
84
120
UNIT
V
V
V
A
A
A
A
V
C/W
O
O
C
C
Document Number：D1308016
Version:F13
MBRF20L100CT thru MBRF20L120CT
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
MBRF20L1xxCT
(Note 1)
AEC-Q101
QUALIFIED
Prefix "H"
PACKING
CODE
C0
GREEN COMPOUND
CODE
Suffix "G"
ITO-220AB
50 / Tube
PACKAGE
PACKING
Note 1: "xx" defines voltage from 100V (MBRF20L100CT) to 120V (MBRF20L120CT)
EXAMPLE
PREFERRED P/N
MBRF20L100CT C0
MBRF20L100CT C0G
MBRF20L100CTHC0
PART NO.
MBRF20L100CT
MBRF20L100CT
MBRF20L100CT
H
AEC-Q101
QUALIFIED
PACKING CODE
C0
C0
C0
G
Green compound
AEC-Q101 qualified
GREEN COMPOUND
CODE
DESCRIPTION

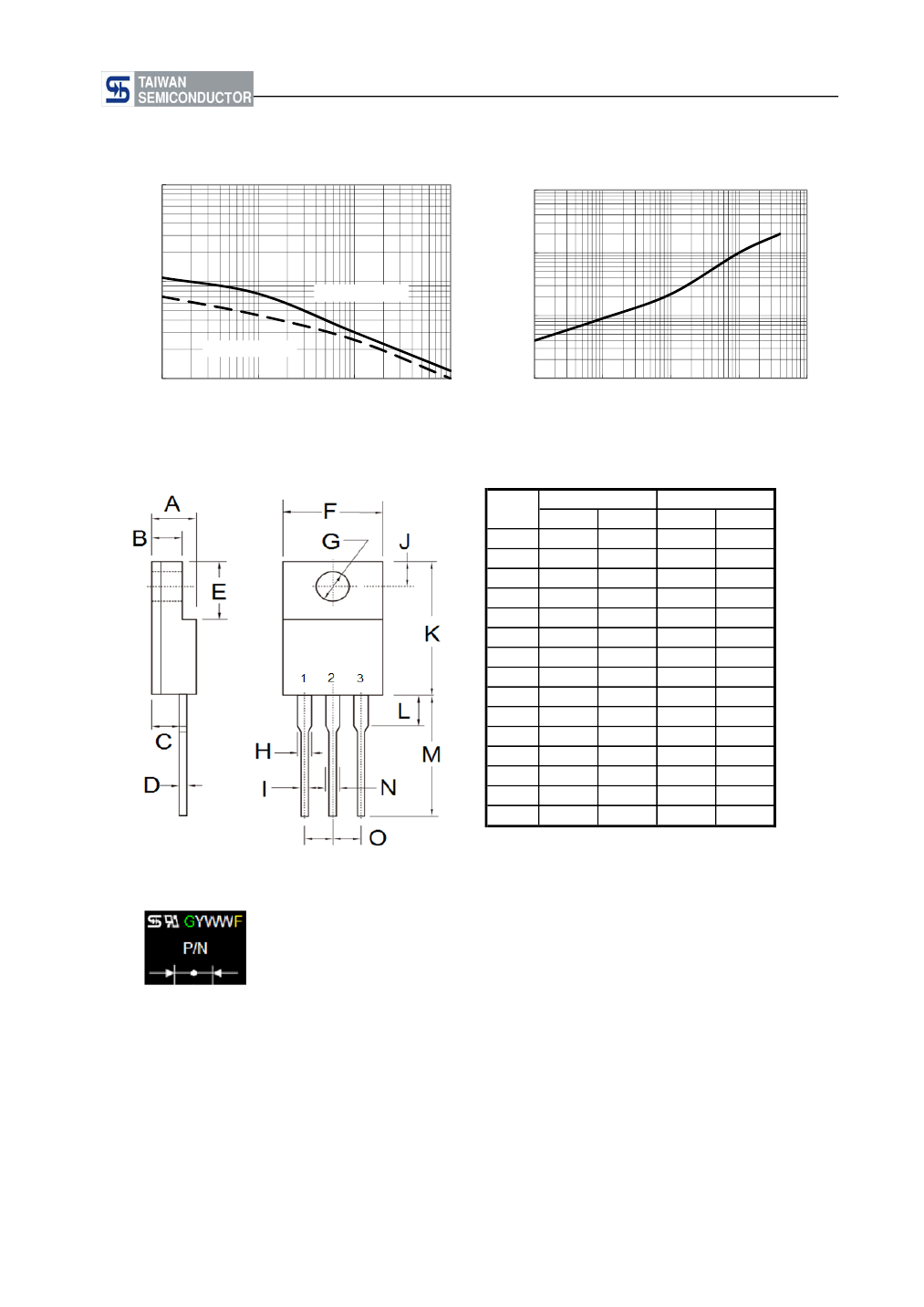

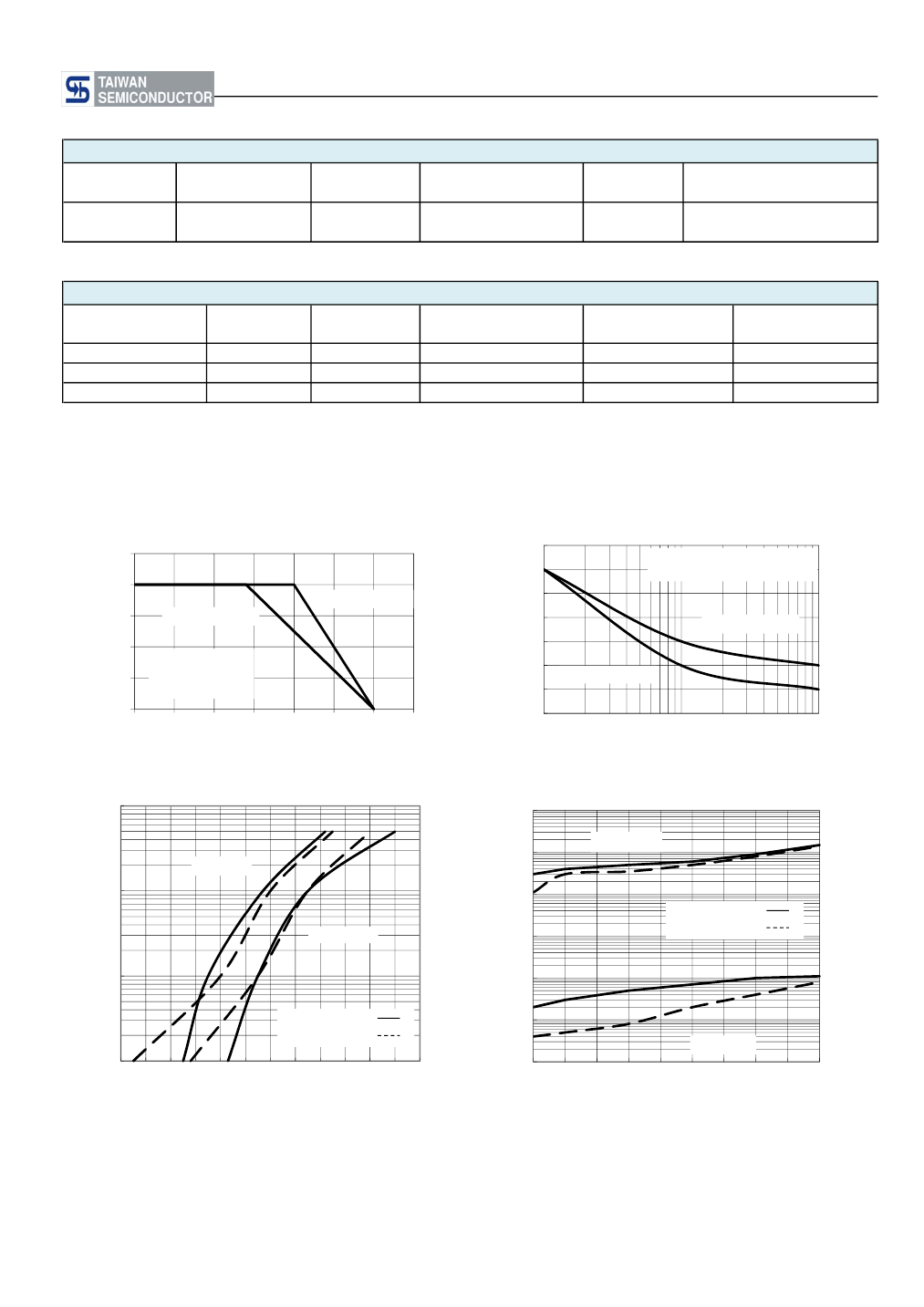

RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
PEAK FORWARD SURGE CURRENT(A)
FIG.1 MAXIMUM FORWARD CURRENT
DERATING CURVE
AVERAGE FORWARD CURRENT (A)
FIG. 2 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT PER LEG
175
150
125
100
75
50
25
0
1
10
NUMBER OF CYCLES AT 60 Hz
25
20
MBRF20L100CT
8.3ms Single Half Sine Wave
JEDEC Method
15
10
5
0
0
MBRF20L120CT
MBRF20L100CT
RESISTER OR
INDUCTIVE LOAD
WITH HEATSINK
MBRF20L120CT
25
50
75
100
125
150
175
100
CASE TEMPERATURE (℃)
FIG. 3 TYPICAL FORWARD CHARACTERISTICS
PER LEG
100
INSTANTANEOUS FORWARD CURRENT (A)
FIG. 4 TYPICAL REVERSE CHARACTERISTICS
PER LEG
10000
INSTANTANEOUS REVERSE CURRENT(uA)
1000
100
10
1
0.1
TA=125℃
TA=125℃
10
TA=25℃
1
MBRF20L100CT
MBRF20L120CT
MBRF20L100CT
MBRF20L120CT
0.1
0
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9
FORWARD VOLTAGE (V)
TA=25℃
1
1.1 1.2
0.01
10
20
30
40
50
60
70
80
90
100
PERCENT OF VR (%)
Document Number：D1308016
Version:F13
