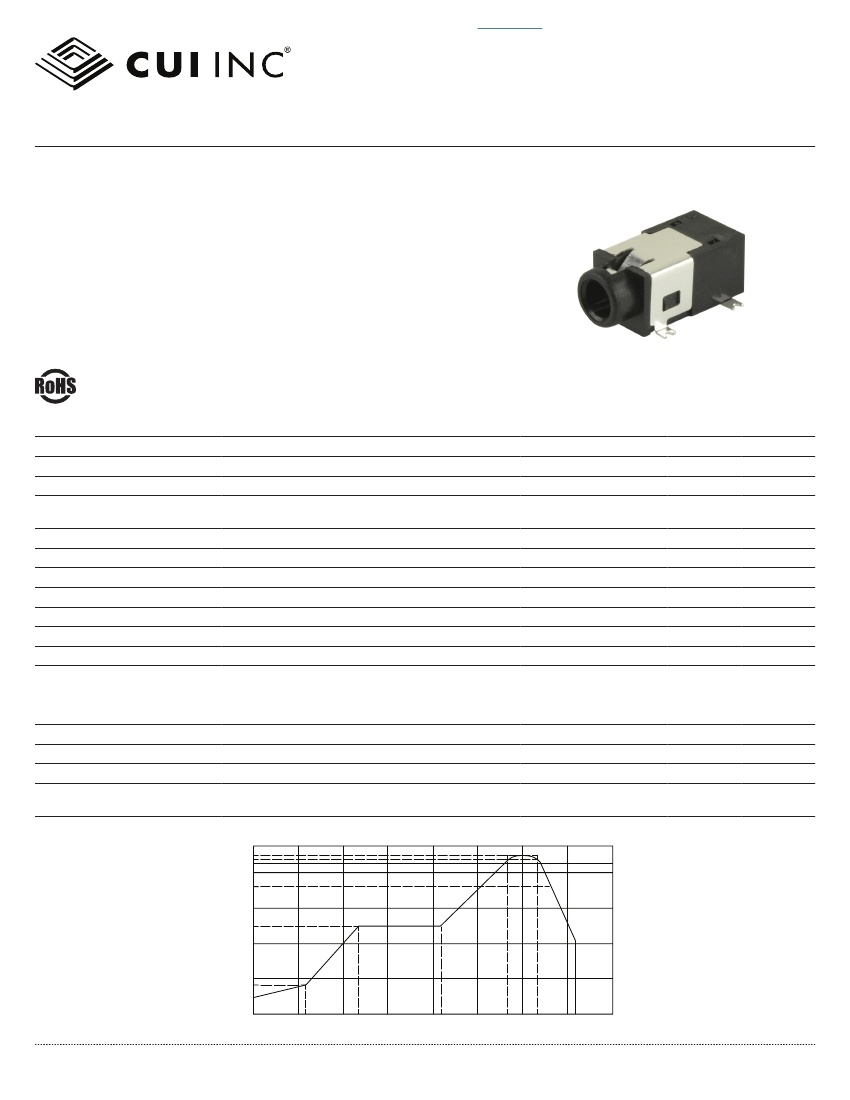

1. When measured at a current of less than 100 mA/1 kHz
2. All specifications measured at 10~35°C, humidity at 45~85%, under standard atmospheric pressure, unless otherwise noted.
SOLDERABILITY
parameter
reel storage
reflow soldering
3
drying conditions
4
Note:
conditions/description
at relative humidity <80%
see reflow profile
min
255
typ
260
max
40
265
units
°C
°C
parts in reel: bake at 40°C ±5°C for 72 hours
parts removed from reel: bake at 40°C ±5°C for 10 hours
3. Must reflow solder within 72 hours from opening vacuum packaging at a temperature <30°C & relative humidity <60%.
4. When exceeding floor life by >72 hours.
270
260
250
240
Temperature (°C)
217
180
150
120
60
50
70
60
120
140
180
240
250
300
340
360
380
420
430
480
Time (sec)
cui.com
For more information, please visit the
product page.
CUI Inc
│
MODEL:
SJ2-2503A-SMT-TR
│
DESCRIPTION:
AUDIO JACK
date
06/07/2017│
page
2 of 4

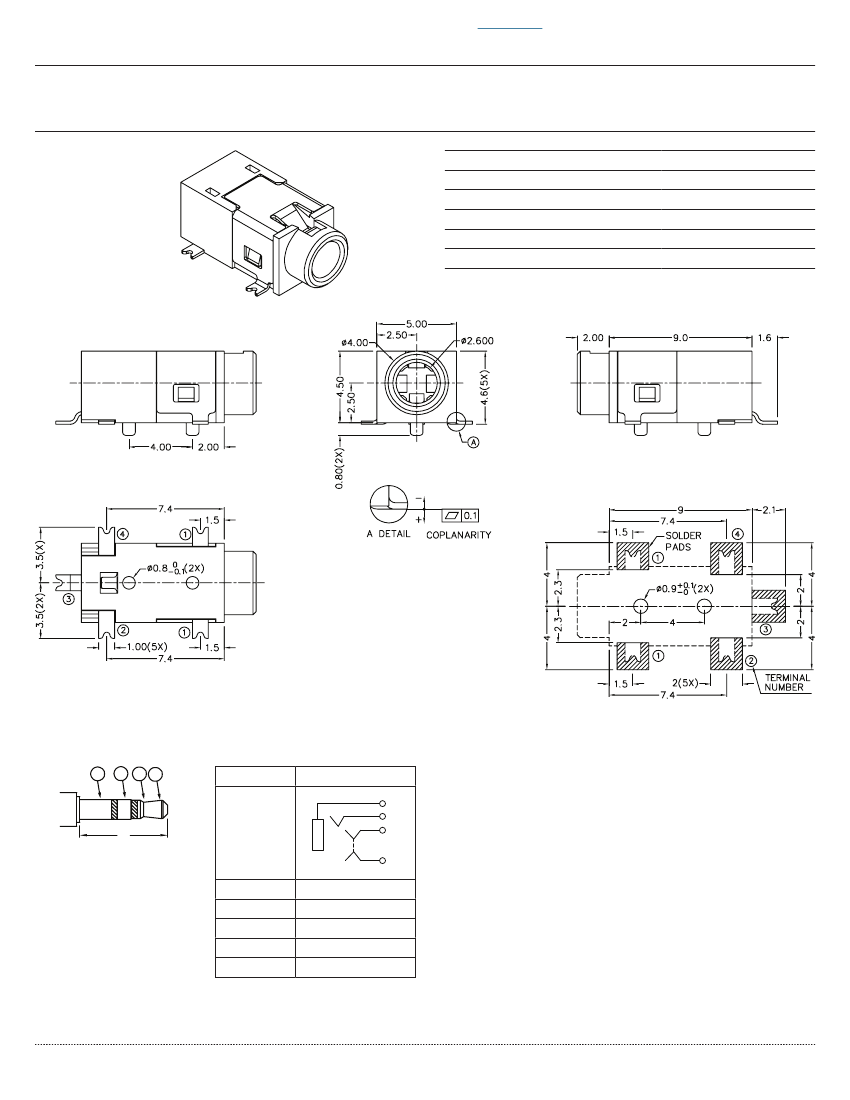

MECHANICAL DRAWING
units: mm
tolerance:
X.X ±0.2 mm
X.XX ±0.10 mm
X.XXX ±0.050 mm
PCB: ±0.05 mm
MATERIAL
terminal 1
terminal 2
terminal 3
terminal 4
plastic
copper alloy
copper alloy
copper alloy
copper alloy
PA10T
PLATING
silver
silver
silver
silver
Recommended PCB Layout
Top View
1
3 4 2
Model No.
SJ2-2503A-SMT-TR
11
Ø2.5 MATING PLUG
Schematic
1
3
4
2
PIN
1
2
3
4
sleeve
tip
ring
tip
cui.com
For more information, please visit the
product page.
CUI Inc
│
MODEL:
SJ2-2503A-SMT-TR
│
DESCRIPTION:
AUDIO JACK
date
06/07/2017│
page
3 of 4

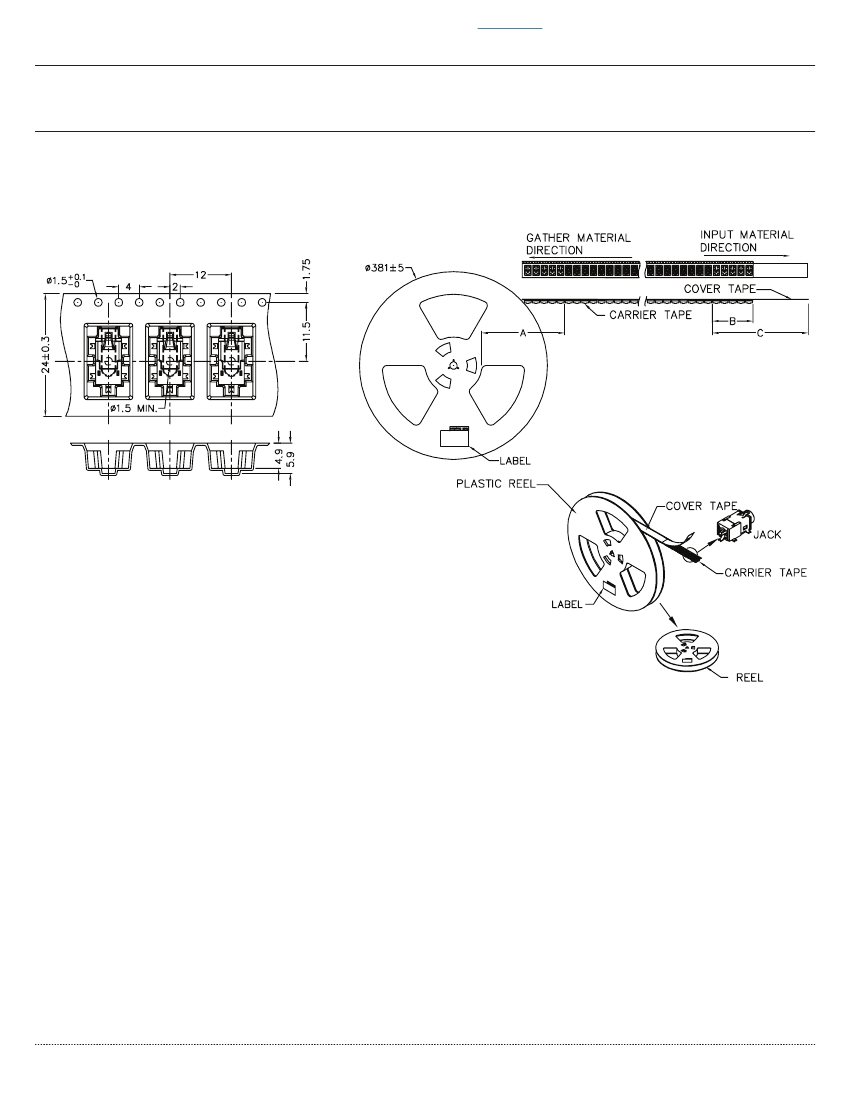

PACKAGING
units: mm
Reel Size: Ø381 mm
Reel QTY: 1,300 pcs per reel
A: Empty 160 mm min.
B: Empty 100 mm min.
C: Cover 400 mm min.
cui.com
For more information, please visit the
product page.
CUI Inc
│
MODEL:
SJ2-2503A-SMT-TR
│
DESCRIPTION:
AUDIO JACK
date
06/07/2017│
page
4 of 4
REVISION HISTORY
rev.
1.0
1.01
description
initial release
added storage and drying conditions
date
12/07/2016
06/07/2017
The revision history provided is for informational purposes only and is believed to be accurate.
Headquarters
20050 SW 112th Ave.
Tualatin, OR 97062
800.275.4899
CUI offers a one (1) year limited warranty. Complete warranty information is listed on our website.
Fax 503.612.2383
cui.com
techsupport@cui.com
CUI reserves the right to make changes to the product at any time without notice. Information provided by CUI is believed to be accurate and reliable. However, no responsibility is
assumed by CUI for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
CUI products are not authorized or warranted for use as critical components in equipment that requires an extremely high level of reliability. A critical component is any component of a
life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.
