CZT4033
SURFACE MOUNT SILICON
PNP TRANSISTOR
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CZT4033 is a PNP
silicon transistor manufactured by the epitaxial planar
process, epoxy molded in a surface mount package,
designed for high current general purpose amplifier
applications.
MARKING: FULL PART NUMBER

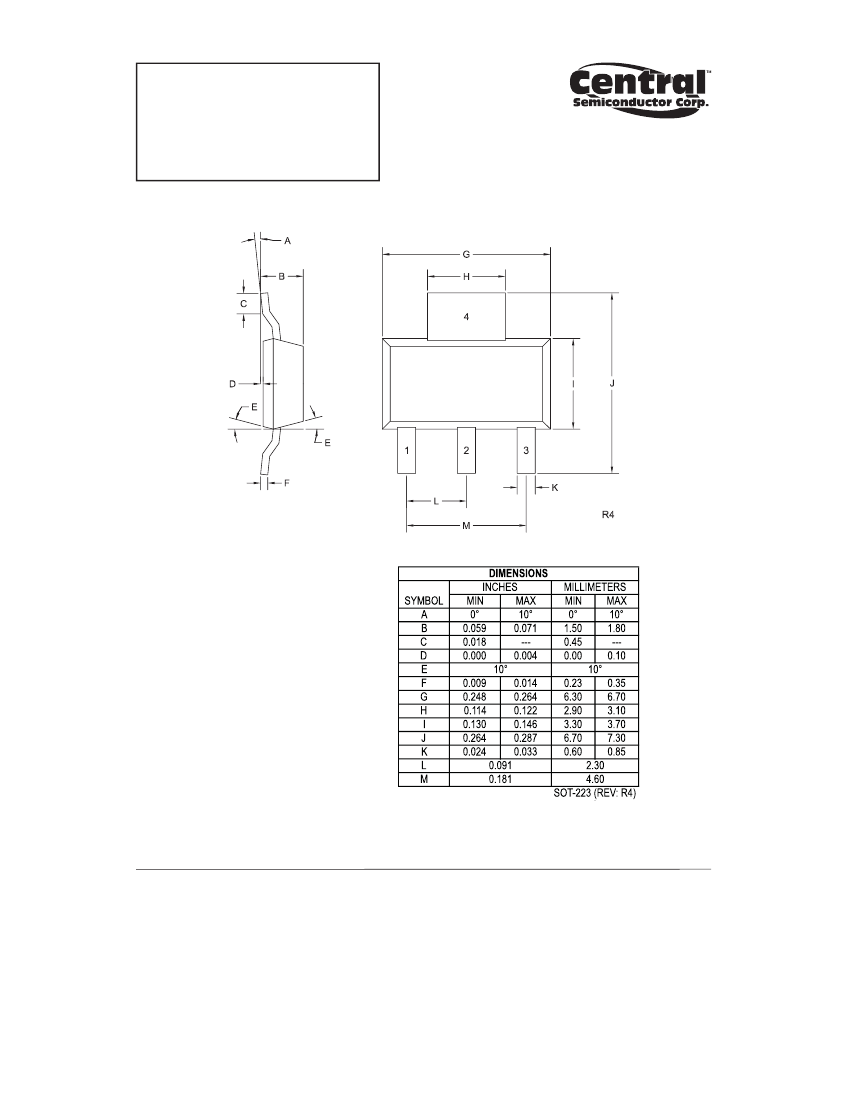

SOT-223 CASE
MAXIMUM RATINGS:
(TA=25°C)
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Continuous Collector Current
Peak Collector Current
Power Dissipation
Operating and Storage Junction Temperature
Thermal Resistance
SYMBOL
VCBO
VCEO
VEBO
IC
ICM
PD
TJ, Tstg
Θ
JA
80
80
5.0
1.0
1.5
2.0
-65 to +150
62.5
UNITS
V
V
V
A
A
W
°C
°C/W
ELECTRICAL CHARACTERISTICS:
(TA=25°C unless otherwise noted)
SYMBOL
TEST CONDITIONS
MIN
ICBO
IEBO
BVCBO
BVCEO
BVEBO
VCE(SAT)
VCE(SAT)
VBE(SAT)
VBE(SAT)
hFE
hFE
hFE
hFE
fT
Cob
Cib
VCB=60V
VEB=5.0V
IC=10µA
IC=10mA
IE=10µA
IC=150mA, IB=15mA
IC=500mA, IB=50mA
IC=150mA, IB=15mA
IC=500mA, IB=50mA
VCE=5.0V,
VCE=5.0V,
IC=0.1mA
IC=100mA
MAX
50
10
UNITS
nA
nA
V
V
V
V
V
V
V
80
80
5.0
0.15
0.50
0.90
1.10
75
100
70
25
100
300
VCE=5.0V, IC=500mA
VCE=5.0V, IC=1.0A
VCE=10V, IC=50mA, f=1.0MHz
VCB=10V, IE=0, f=1.0MHz
VEB=0.5V, IC=0, f=1.0MHz
MHz
20
110
pF
pF
