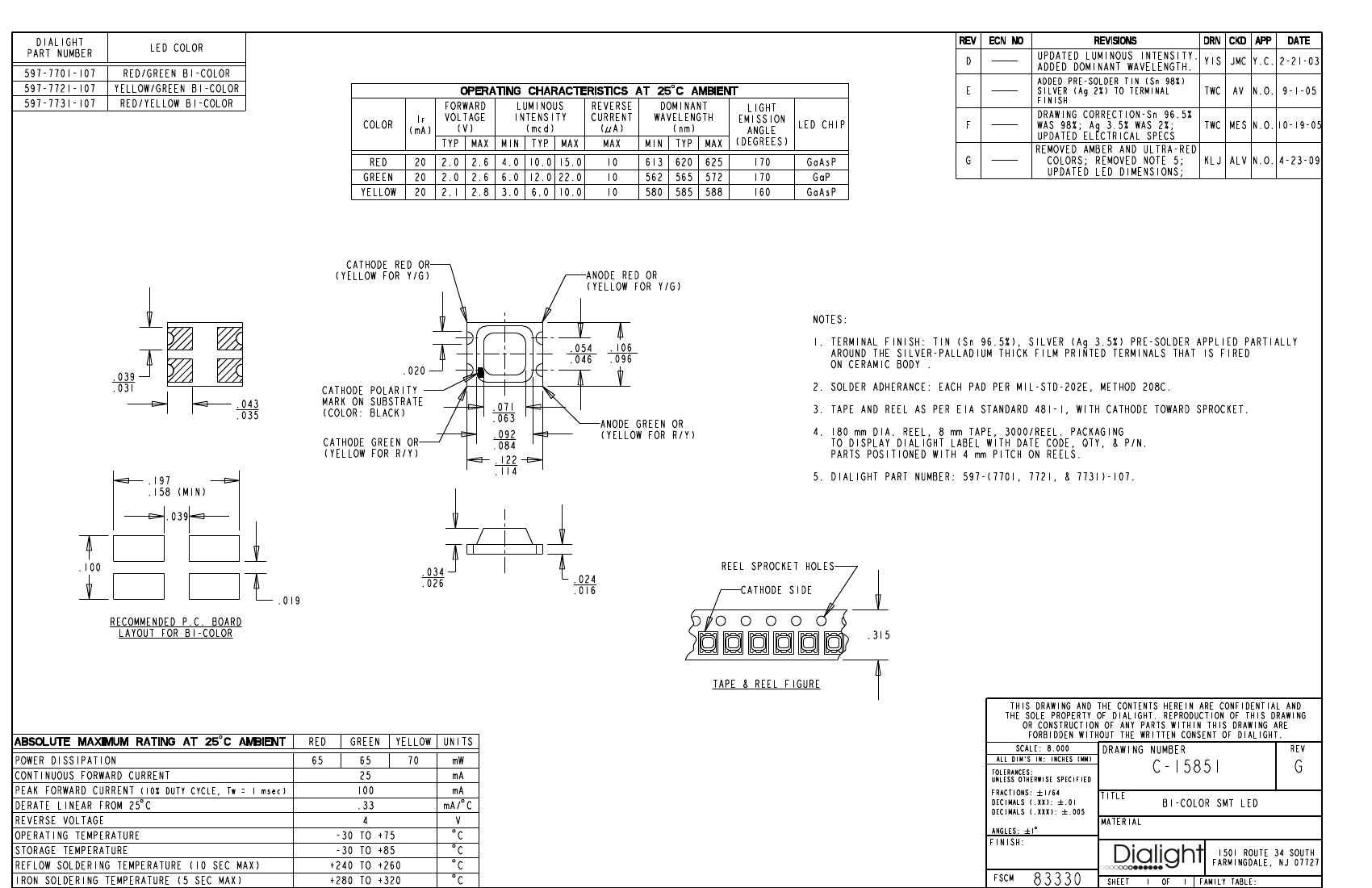

Preview

5977721107F: DescriptionLED GREEN/YELLOW CLEAR 4SMD; CategoryLED optoelectronic/LED; File Size95KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5977721107F Overview

LED GREEN/YELLOW CLEAR 4SMD

5977721107F Parametric

Parameter Name	Attribute value
color	green,yellow
Configuration	Detached
Lens color	colorless
Lens transparency	transparent
millicandela level	12mcd green, 8mcd yellow
Lens style/size	Rectangular, with flat top, 1.65mm x 1.27mm
Voltage - Forward (Vf) (Typical)	2V green, 2.1V yellow
Current - Test	20mA green, 20mA yellow
perspective	170°
Installation type	surface mount
Wavelength - Main	565nm green, 585nm yellow
Wavelength - Peak	565nm green, 585nm yellow
characteristic	-
Package/casing	4-SMD, no leads
Supplier device packaging	4-SMD
size/dimensions	3.00mm length x 2.54mm width
Height (maximum value)	1.47mm

Preview

Download Datasheet

View All

5977721107F Related Products

	5977721107F	5977701107	5977721107	5977731107	5977701107F	5977731107F
Description	LED GREEN/YELLOW CLEAR 4SMD	LED GREEN/RED CLEAR 4SMD	LED GREEN/YELLOW CLEAR 4SMD	LED RED/YELLOW CLEAR 4SMD	LED GREEN/RED CLEAR 4SMD	LED RED/YELLOW CLEAR 4SMD
color	green,yellow	green red	green,yellow	red,yellow	green red	red,yellow
Configuration	Detached	Detached	Detached	Detached	Detached	Detached
Lens color	colorless	colorless	colorless	colorless	colorless	colorless
Lens transparency	transparent	transparent	transparent	transparent	transparent	transparent
millicandela level	12mcd green, 8mcd yellow	12mcd green, 4mcd red	12mcd green, 8mcd yellow	4mcd red, 8mcd yellow	12mcd green, 4mcd red	4mcd red, 8mcd yellow
Lens style/size	Rectangular, with flat top, 1.65mm x 1.27mm	Rectangular, with flat top, 1.65mm x 1.27mm	Rectangular, with flat top, 1.65mm x 1.27mm	Rectangular, with flat top, 1.65mm x 1.27mm	Rectangular, with flat top, 1.65mm x 1.27mm	Rectangular, with flat top, 1.65mm x 1.27mm
Voltage - Forward (Vf) (Typical)	2V green, 2.1V yellow	2V green, 2V red	2V green, 2.1V yellow	2V red, 2.1V yellow	2V green, 2V red	2V red, 2.1V yellow
Current - Test	20mA green, 20mA yellow	20mA green, 20mA red	20mA green, 20mA yellow	20mA red, 20mA yellow	20mA green, 20mA red	20mA red, 20mA yellow
perspective	170°	170°	170°	170°	170°	170°
Installation type	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount
Wavelength - Main	565nm green, 585nm yellow	565nm green, 620nm red	565nm green, 585nm yellow	620nm red, 585nm yellow	565nm green, 620nm red	620nm red, 585nm yellow
Wavelength - Peak	565nm green, 585nm yellow	565nm green, 630nm red	565nm green, 585nm yellow	630nm red, 585nm yellow	565nm green, 630nm red	630nm red, 585nm yellow
Package/casing	4-SMD, no leads	4-SMD, no leads	4-SMD, no leads	4-SMD, no leads	4-SMD, no leads	4-SMD, no leads
Supplier device packaging	4-SMD	4-SMD	4-SMD	4-SMD	4-SMD	4-SMD
size/dimensions	3.00mm length x 2.54mm width	3.00mm length x 2.54mm width	3.00mm length x 2.54mm width	3.00mm length x 2.54mm width	3.00mm length x 2.54mm width	3.00mm length x 2.54mm width
Height (maximum value)	1.47mm	1.47mm	1.47mm	1.47mm	1.47mm	1.47mm
