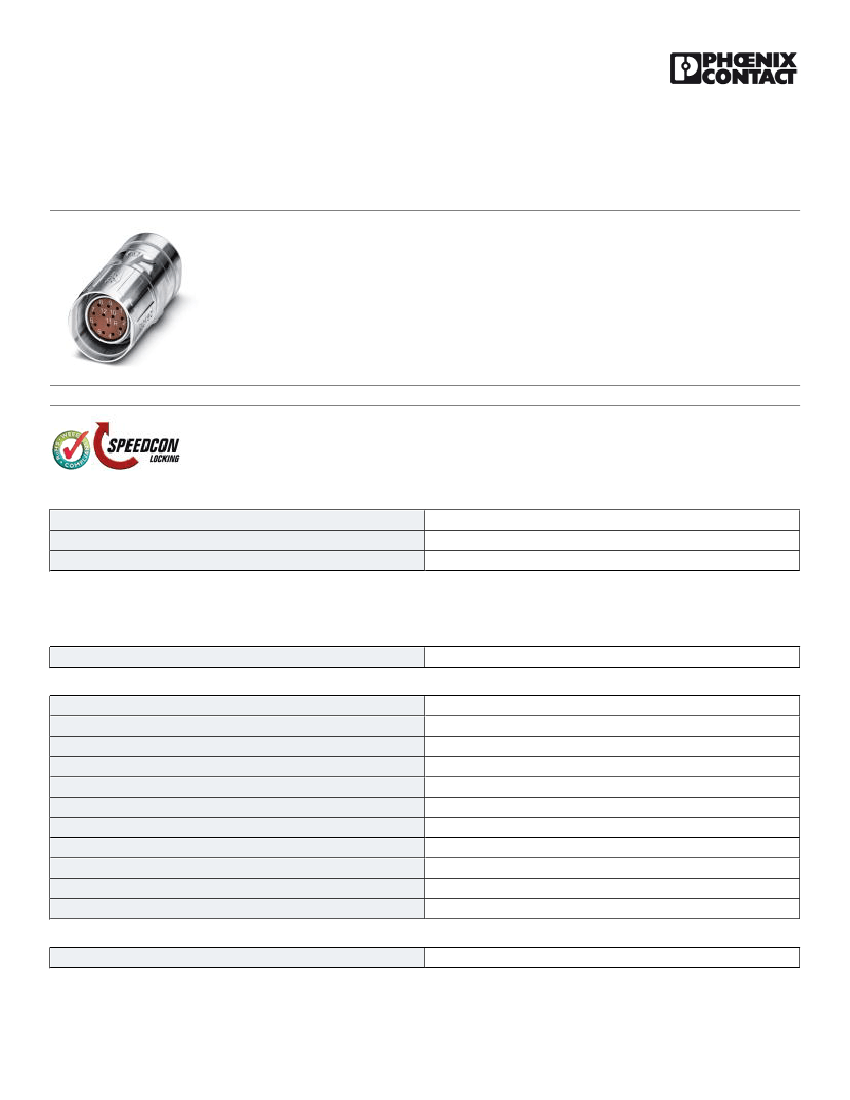

Cable connector - CA-12F1N8A85DUS - 1619472
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Cable connector, straight, shielded: yes, SPEEDCON locking, M23, Number of positions: 12, Type of contact:
Socket, Crimp connection, Cable diameter: 3 mm ... 14.5 mm
Key Commercial Data
Packing unit
Custom tariff number
Country of origin
1 pc
85366990
Germany
Technical data
Temperature range
Ambient temperature (operation)
-40 °C ... 125 °C
Data of the insulating body
Note
Coding
Insulator material
Contact connection method
Type of contacts
Number of positions
Contact diameter of power contacts
Nominal current per power contact at 25°C
Nominal voltage, power contact
Overvoltage category
Degree of pollution
Order information Order crimp contacts Ø 1 mm separately
N
PA 66
Crimp connection
Socket
12
1 mm
8A
150 V
III
3
Housing data
Housing material
Metal
03/23/2016 Page 1 / 3
https://www.phoenixcontact.com/us/products/1619472
Cable connector - CA-12F1N8A85DUS - 1619472
Technical data
Housing data
Type of locking
Degree of protection (when plugged in)
Thread type
SPEEDCON locking
IP67
M23
Cable seal data
Min. cable diameter
Max. cable diameter
Sealing material
3 mm
14.5 mm
FPM
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
272607xx
272607xx
27260701
27260701
27260702
27440102
27440102
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002635
EC002635
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
43172015
43201404
43172015
43201404
43201404
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / EAC
03/23/2016 Page 2 / 3
https://www.phoenixcontact.com/us/products/1619472
Cable connector - CA-12F1N8A85DUS - 1619472
Approvals
Ex Approvals
Approvals submitted
Approval details
UL Recognized
cUL Recognized
EAC
Drawings
Schematic diagram
9 8
10 12 7
11
3
4
L
Dimensional drawing
58,9
1
2
6
5
Ø26,4
Contact chamber numbering (view of plug-in side),
standard socket
Phoenix Contact 2016 © - all rights reserved
