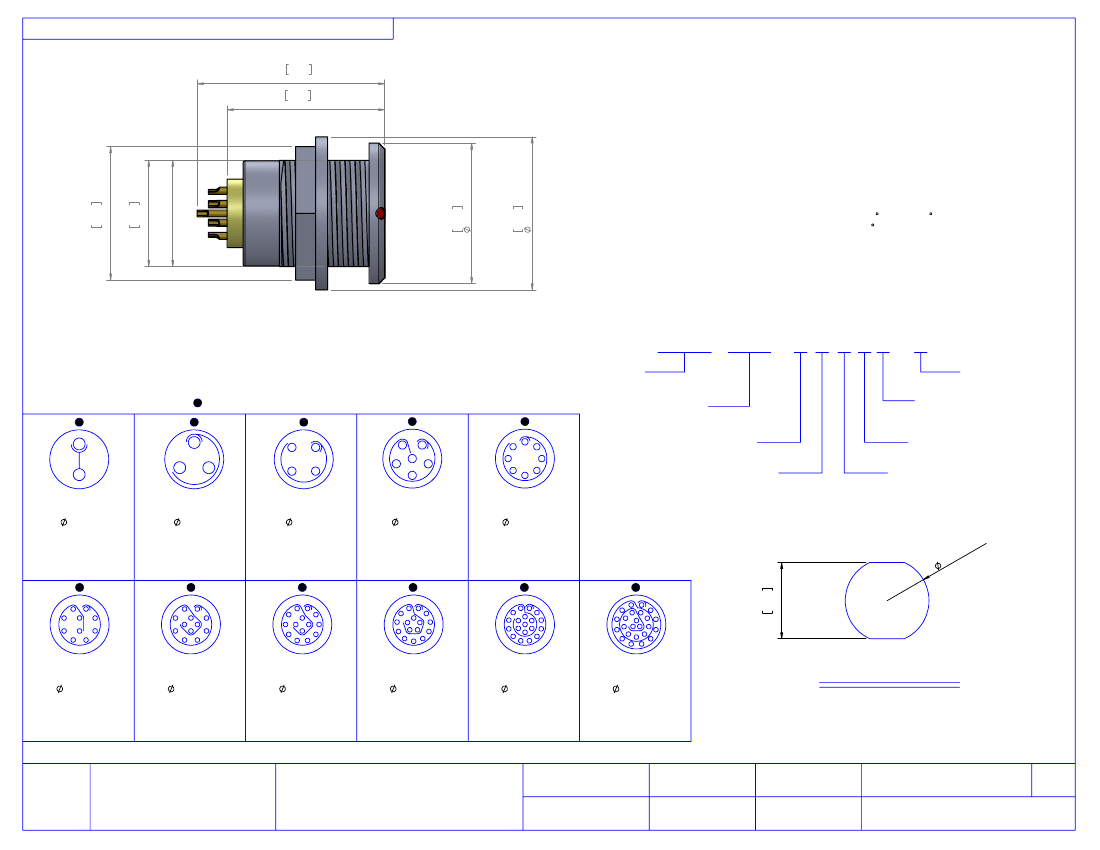

DESCRIPTION: QUIK-LOQ - FEMALE - SOLDER CUP - PANEL MOUNT
UNITS = MM [INCHES]
CHARACTERISSTICS
MATERIALS
SHELL : BRASS
SHELL PLATING : NICKEL
NUT : BRASS
NUT PLATING : NICKEL
LATCH SLEEVE : BRASS
LATCH SLEEVE PLATING : NICKEL
CONTACTS : COPPER ALLOY
CONTACT PLATING : 7µ" GOLD PLATED OVER 196µ" NICKEL MIN.
INSULATOR : PPS (HIGH TEMPERATURE)
MECHANICAL
DURABILITY: 5000 CYCLES
OPERATING TEMP. RANGE: -40 C ~ +200 C
PROCESS TEMPERATURE : 260 C FOR 5 SECONDS
MAX. TORQUE VALUE : 6.0 Nm [53 IN/lbs]
SHIELDING: 75dB @ 10MHz
40dB @ 1GHz
IP RATING: 50
0.937
23.81
0.787
20.00
0.531
13.49
(ACCROS FLATS)
M15*1.0
0.703
17.86
0.765
19.43
0.667
16.94
822B YYY - 2 0 3 R F0 1
CHART A
1
1
= KEY LOCATION
1
**VIEW FROM TERMINATION END**
1
1
SERIES
15.00 [0.591]
# OF POSITIONS
(Ex. 002)
**SEE CHART A**
2 = FEMALE
SOLDER CUP (PANEL MOUNT)
1 = GOLD FLASH
FIXED FRONT NUT
RoHS COMPLIANT
NICKEL/CHROME PLATED SHELL
2 POSITION
14 AWG MAX.
30 AMP MAX.
PIN
= 2.00 [0.079]
CONTACT
RESISTANCE
= 3 mΩ
TEST VOLTAGE
= 2100V
WORKING VOLTAGE
= 700V
3 POSITION
18 AWG MAX.
17 AMP MAX.
PIN
= 1.60 [0.063]
CONTACT
RESISTANCE
= 4 mΩ
TEST VOLTAGE
= 2400V
WORKING VOLTAGE
= 800V
4 POSITION
20 AWG MAX.
15 AMP MAX.
PIN
= 1.30 [0.051]
CONTACT
RESISTANCE
= 5 mΩ
TEST VOLTAGE
= 1850V
WORKING VOLTAGE
= 610V
6 POSITION
20 AWG MAX.
12 AMP MAX.
PIN
= 1.30 [0.051]
CONTACT
RESISTANCE
= 5 mΩ
TEST VOLTAGE
= 1350V
WORKING VOLTAGE
= 450V
8 POSITION
22 AWG MAX.
10 AMP MAX.
PIN
= 0.90 [0.035]
CONTACT
RESISTANCE
= 6 mΩ
TEST VOLTAGE
= 1500V
WORKING VOLTAGE
= 500V
.
15
0.
1[
59
4]
1
1
1
1
1
1
0.535
13.60
10 POSITION
22 AWG MAX.
8 AMP MAX.
= 0.90 [0.035]
PIN
CONTACT
RESISTANCE
= 6 mΩ
TEST VOLTAGE
= 1450V
WORKING VOLTAGE
= 500V
12 POSITION
24 AWG MAX.
7 AMP MAX.
PIN
= 0.70 [0.028]
CONTACT
RESISTANCE
= 7.5 mΩ
TEST VOLTAGE
= 1250V
WORKING VOLTAGE
= 480V
14 POSITION
24 AWG MAX.
6.5 AMP MAX.
PIN
= 0.70 [0.028]
CONTACT
RESISTANCE
= 7.5 mΩ
TEST VOLTAGE
= 1150V
WORKING VOLTAGE
= 380V
16 POSITION
24 AWG MAX.
6 AMP MAX.
PIN
= 0.70 [0.028]
CONTACT
RESISTANCE
= 7.5 mΩ
TEST VOLTAGE
= 950V
WORKING VOLTAGE
= 315V
19 POSITION
24 AWG MAX.
5 AMP MAX.
PIN
= 0.70 [0.028]
CONTACT
RESISTANCE
= 7.5 mΩ
TEST VOLTAGE
= 850V
WORKING VOLTAGE
= 280V
26 POSITION
28 AWG MAX.
2 AMP MAX.
PIN
= 0.50 [0.020]
CONTACT
RESISTANCE
= 10 mΩ
TEST VOLTAGE
= 950V
WORKING VOLTAGE
= 315V
PANEL CUTOUT
TOLERANCE = +0.10, -0.0
[+0.004, -0.00]
N
C
RoHS COMPLIANT
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF NorComp AND
SHALL NOT BE REPRODUCED, COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
NorComp
DRAWN:
B. BRIDGES
DATE:
12/05/2017
SCALE:
N.T.S.
SHEET
1
OF
1
REV:
1
CHECKED:
DATE:
DWG NO.
822BYYY-203RF01
