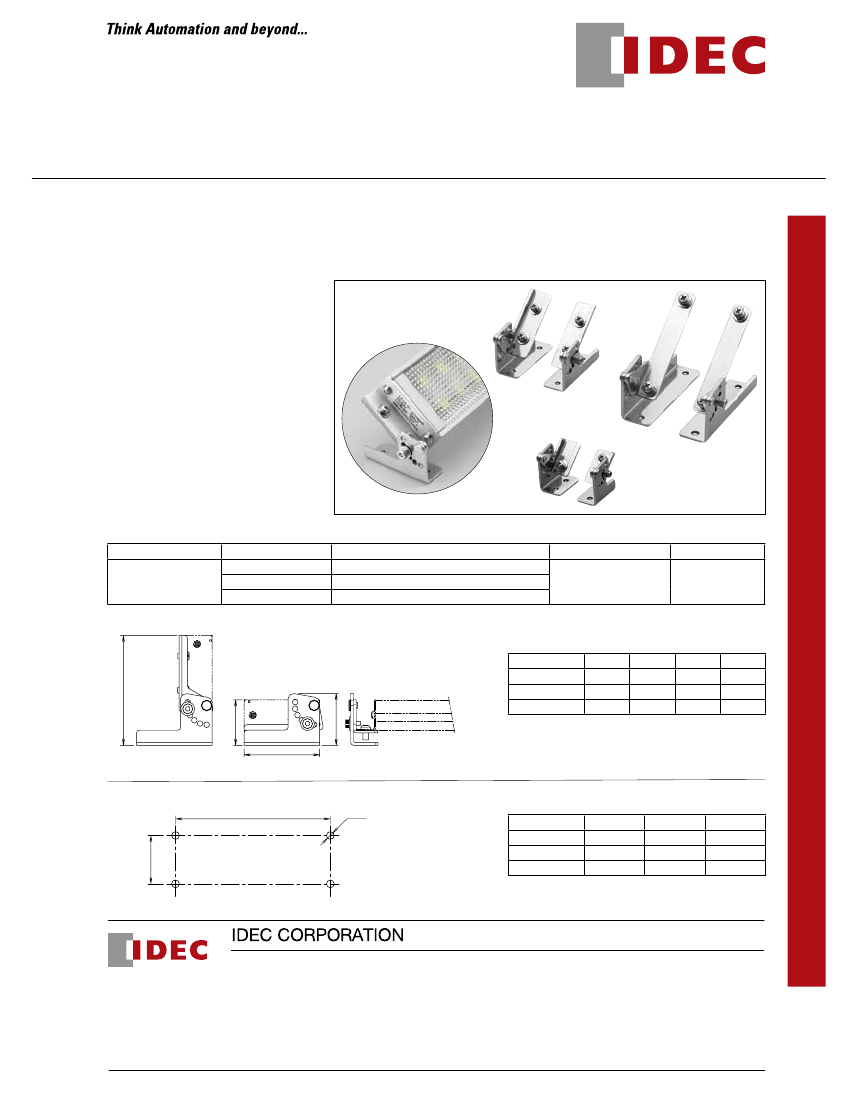

LF1
Series
Adjustable Supports
LED Illumination Units
Adjustable mounting angle 0° to 90° in 10° increments
Flexible mounting on machines
•
The adjustable supports hold the
LED illumination unit at a required
angle.
•
In an application for inspection, the
angle of the LED illumination unit
can be adjusted for the convenience
of the inspector.
Application Examples
Internal illumination for machine tools,
metal processing machines, semicon-
ductor production equipment, printing
presses, chip mounters, and automat-
ic production machines; illumination
for visual inspection, etc.
Mounting Example
LF9Z-1MA1
LF9Z-1MAD1
LF9Z-1MB1
Types
Name
Adjustable Support
for LF1 Series
Ordering Type No.
LF9Z-1MB1
LF9Z-1MA1
LF9Z-1MAD1
Applicable LED Illumination Unit
LF1B-A, -B, and -C (-D not applicable)
LF1A-A, -B, and -D
LF1A-D2F
Package Quantity
1 pair (right and left)
Material
Stainless steel
Dimensions
•
Dimensions (mm)
Type No.
LF9Z-1MB1
LF9Z-1MA1
LF9Z-1MAD1
LED Illumination Unit
C
B
A
27.5
55
88
B
35.2
37.9
43.2
C
27
33
37
D
50.5
80
121
D
(Mounted at 90°)
A
The angle is adjusted using hex socket bolts.
Applicable environment and mechanical strength
depend on the LED illumination unit.
The above figure illustrates the LF9Z-1MA1.
Mounting Hole Layout
F
G
•
Dimensions (mm)
Type No.
LF9Z-1MB1
LF9Z-1MA1
LF9Z-1MAD1
E
14
25
74
F
(Note)
(Note)
231
G
4-ø4.2
4-ø4.2
4-ø5.5
E
Note: Same as the LED illumination unit.
Specifications and other descriptions in this leaflet are subject to change without notice.
