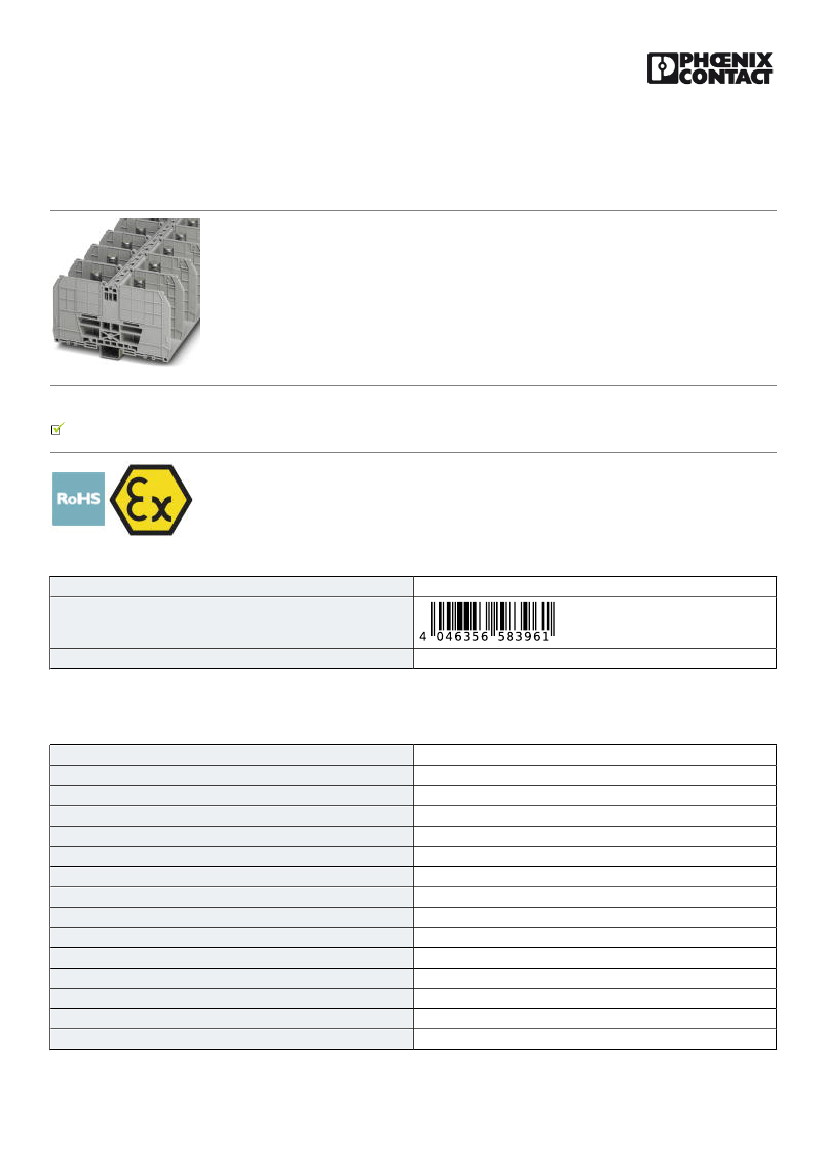

Bolt connection terminal block - RBO 16 - 3244630
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Bolt connection terminal block, nom. voltage: 1000 V, nominal current: 520 A, connection method: Bolt
connection, number of connections: 2, number of positions: 1, width: 54.8 mm, color: gray, mounting type: NS
35/7,5, NS 35/15
Your advantages
Tested for railway applications
Key Commercial Data
Packing unit
GTIN
GTIN
4046356583961
5 pc
Technical data
General
Number of positions
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Area of application
1
1
2
1
300 mm²
gray
PA
V0
Railway industry
Machine building
Plant engineering
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
8 kV
3
III
I
10/23/2018 Page 1 / 5
https://www.phoenixcontact.com/pi/products/3244630
Bolt connection terminal block - RBO 16 - 3244630
Technical data
General
Maximum power dissipation for nominal condition
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
Result of surge voltage test
Surge voltage test setpoint
Result of power-frequency withstand voltage test
Power frequency withstand voltage setpoint
Result of the test for mechanical stability of terminal points (5 x
conductor connection)
Result of tight fit on support
Tight fit on carrier
Setpoint
Result of voltage-drop test
Requirements, voltage drop
Result of temperature-rise test
Short circuit stability result
Conductor cross section short circuit testing
Short-time current
Result of thermal test
Proof of thermal characteristics (needle flame) effective duration
Oscillation, broadband noise test result
Test specification, oscillation, broadband noise
Test spectrum
Test frequency
ASD level
Acceleration
Test duration per axis
Test directions
Shock test result
Test specification, shock test
Shock form
Acceleration
Shock duration
Number of shocks per direction
Test directions
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
16.22 W
520 A (At a conductor cross section of 300 mm²)
520 A
1000 V
No
Test passed
9.8 kV
Test passed
2.2 kV
Test passed
Test passed
NS 35
20 N
Test passed
≤ 3.2 mV
Test passed
Test passed
300 mm²
36 kA
Test passed
30 s
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Service life test category 1, class B, body mounted
f
1
= 5 Hz to f
2
= 150 Hz
1.857 (m/s ) /Hz
0,8 g
5h
X-, Y- and Z-axis
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Half-sine
5g
30 ms
3
X-, Y- and Z-axis (pos. and neg.)
130 °C
130 °C
-60 °C
10/23/2018 Page 2 / 5
2 2
https://www.phoenixcontact.com/pi/products/3244630
Bolt connection terminal block - RBO 16 - 3244630
Technical data
General
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
Pitch
54.8 mm
164 mm
91.8 mm
99.3 mm
54.8 mm
Connection data
Note
Connection method
Connection in acc. with standard
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Cable lug connection according to standard
Min. cross section for cable lug connection
Max. cross section for cable lug connection
Hole diameter, min.
Cable lug width, max.
Bolt diameter
Screw thread
Tightening torque, min
Tightening torque max
Cable lug connection according to standard
Min. cross section for cable lug connection
Max. cross section for cable lug connection
Hole diameter, min.
Connection bolts
Bolt connection
IEC 60947-7-1
25 mm²
300 mm²
4
600
DIN 46234
25 mm²
240 mm²
17 mm
38 mm
16 mm
M16
25 Nm
35 Nm
DIN 46235
50 mm²
300 mm²
17 mm
10/23/2018 Page 3 / 5
https://www.phoenixcontact.com/pi/products/3244630
Bolt connection terminal block - RBO 16 - 3244630
Technical data
Connection data
Cable lug width, max.
Bolt diameter
Screw thread
Tightening torque, min
Tightening torque max
Screw thread
Tightening torque, min
Tightening torque max
48 mm
16 mm
M16
25 Nm
35 Nm
M16
25 Nm
35 Nm
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
CSA
IEC 60947-7-1
V0
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

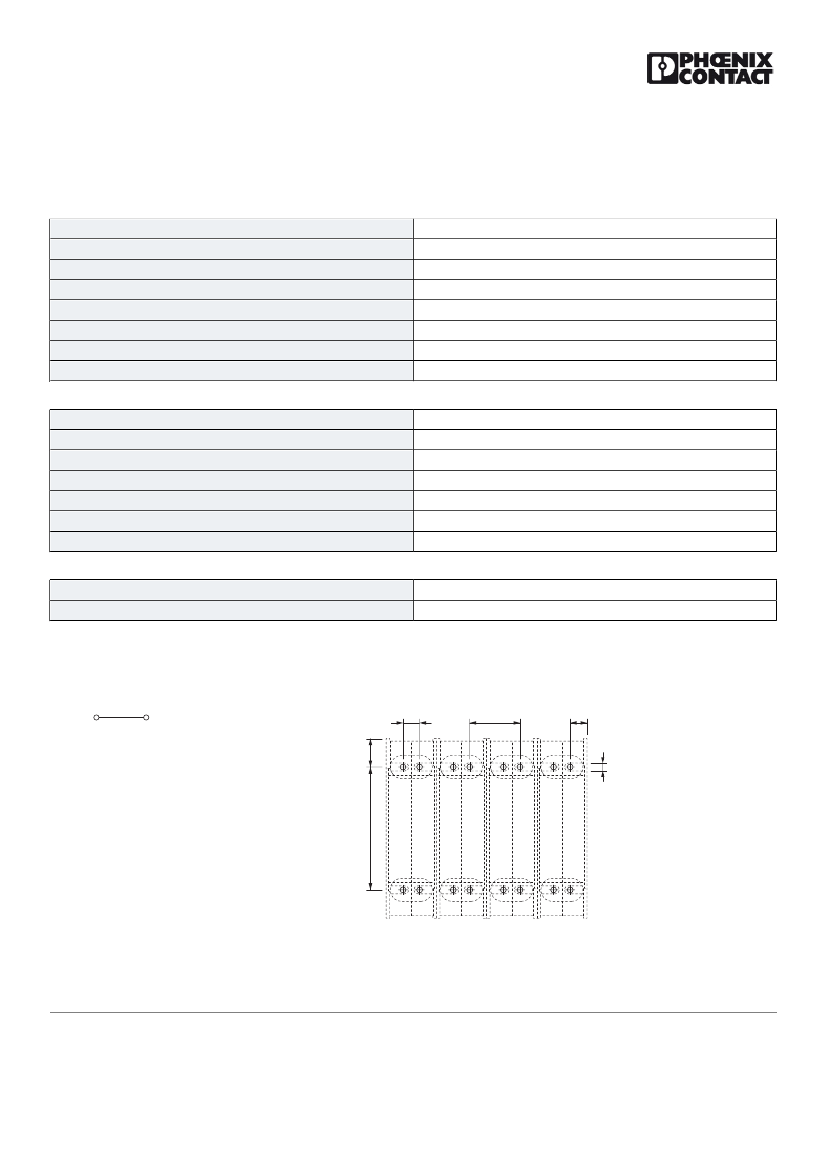

Drawings
Circuit diagram
27,3
Dimensional drawing
54,8
14
Approvals
Approvals
100
28
Ø 6,4
10/23/2018 Page 4 / 5
https://www.phoenixcontact.com/pi/products/3244630
Bolt connection terminal block - RBO 16 - 3244630
Approvals
Approvals
UL Recognized / CSA / EAC
Ex Approvals
IECEx / ATEX / EAC Ex
Approval details
UL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
1000 V
540 A
4-1000
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
B
600 V
540 A
4-1000
C
600 V
540 A
4-1000
FILE E 60425
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www.csagroup.org/services-industries/product-listing/
C
1000 V
540 A
4-1000
13631
EAC
EAC-Zulassung
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
10/23/2018 Page 5 / 5
