1200660277: DescriptionCORD 4POS FEMALE/MALE M12 3M; CategoryWire/cable; File Size118KB，1 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

1200660277 Overview

CORD 4POS FEMALE/MALE M12 3M

1200660277 Parametric

Parameter Name	Attribute value
first connector	M12 female connector
1st Connector Number of Positions	5
1st Connector Number of Positions Loaded	4
Second connector	M12 male connector
2nd Connector Number of Positions	4
2nd Connector Number of Positions Loaded	4
length	9.84'（3.00m）
Cable type	round
color	yellow
shield	No shielding
use	Industrial environment - IP67

Preview

Download Datasheet

View All

13

12

11

10

9

8

7

6

5

4

3

2

1

J

MATERIAL

NUMBER

OLD PART

NUMBER

FINISHED LENGTH

J

I

H

G

F

E

D

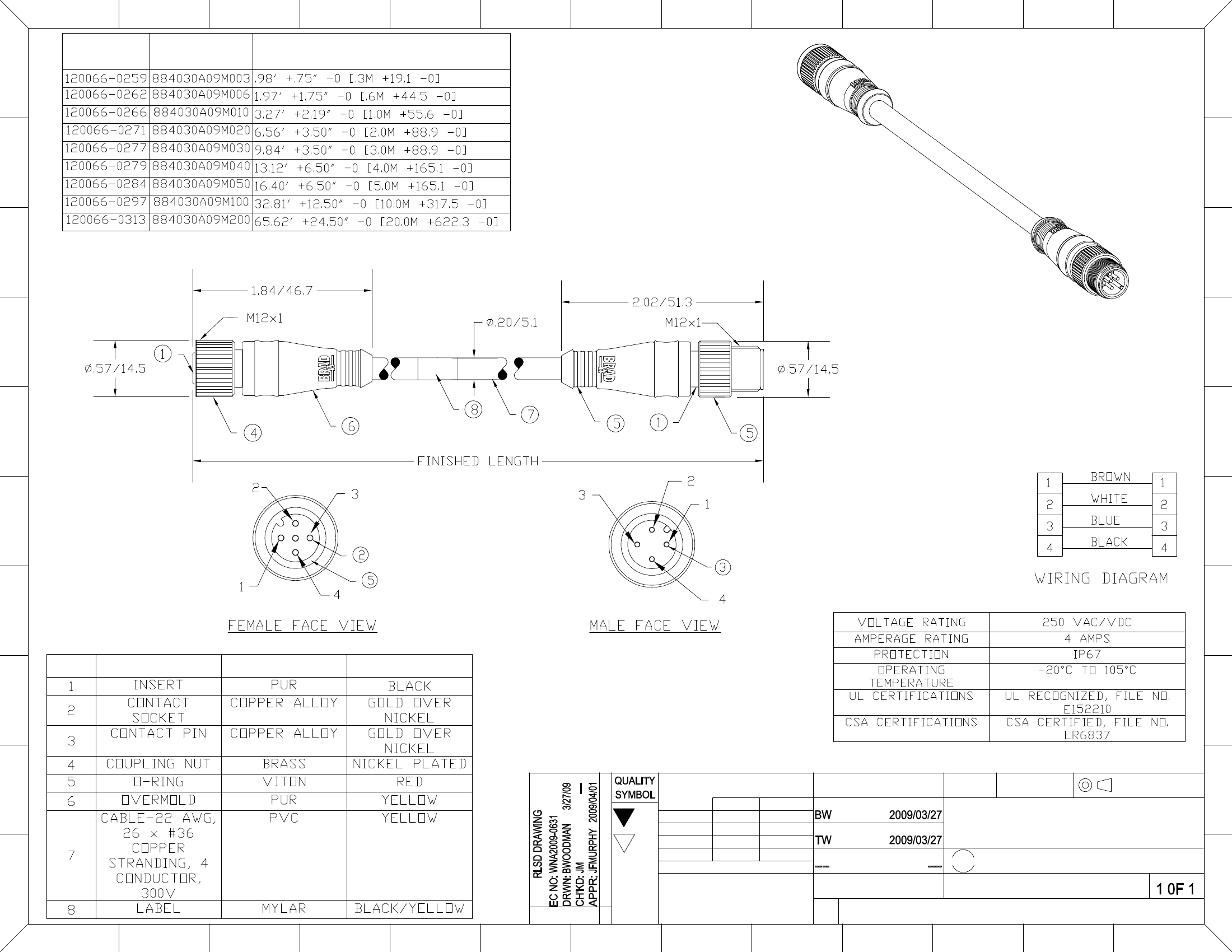

ITEM COMPONENT

C

MATERIAL

FINISH

C

B

DESCRIPTION

GENERAL TOLERANCES

(UNLESS SPECIFIED)

DIMENSION STYLE

SCALE

DESIGN UNITS

IN/MM

DRAWN BY

DATE

TITLE

CHECKED BY

DATE

---

----

THIRD ANGLE

PROJECTION

B

=

0

C

mm

INCH

=

0

4 PLACES ±----

±---

3 PLACES ±----

±---

±.01

2 PLACES ±----

±0.3

±---

1 PLACE

ANGULAR ±---°

APPROVED BY

DATE

molex

MICRO-CHANGE CORDSET

4 POLE MALE/FEMALE

PVC CABLE

MOLEX INCORPORATED

SHEET NO.

A

REV

A

13

12

11

10

9

8

DRAFT WHERE

APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

7

6

5

MATERIAL NO.

DOCUMENT NO.

SEE CHART

SIZE

A

SD-120066-005

3

2

1

C

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX

INCORPORATED AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

4

1200660277 Related Products

	1200660277	1200660259	1200660262	1200660313	1200660297	1200660271	1200660284
Description	CORD 4POS FEMALE/MALE M12 3M	CORD 4POS FEMALE/MALE M12 .3M	CORD 4POS FEMALE/MALE M12 .6M	CORD 4POS FEMALE/MALE M12 20M	CORD 4POS FEMALE/MALE M12 10M	CORD 4POS FEMALE/MALE M12 2M	CORD 4POS FEMALE/MALE M12 5M
first connector	M12 female connector	M12 female connector	M12 female connector	M12 female connector	M12 female connector	M12 female connector	M12 female connector
Second connector	M12 male connector	M12 male connector	M12 male connector	M12 male connector	M12 male connector	M12 male connector	M12 male connector
length	9.84'（3.00m）	0.98'（300.00mm）	1.97'（600.00mm）	20.0'（6.10m）	32.8'（10.00m）	6.56'（2.00m）	16.40'（5.00m）
Cable type	round	round	round	round	round	round	round
color	yellow	yellow	yellow	yellow	yellow	yellow	yellow
shield	No shielding	No shielding	No shielding	No shielding	No shielding	No shielding	No shielding
use	Industrial environment - IP67	Industrial environment - IP67	Industrial environment - IP67	Industrial environment - IP67	Industrial environment - IP67	Industrial environment - IP68	Industrial environment - IP68
1st Connector Number of Positions	5	4	-	4	4	5	5
1st Connector Number of Positions Loaded	4	all	-	all	all	4	all
2nd Connector Number of Positions	4	4	-	4	4	4	4
2nd Connector Number of Positions Loaded	4	all	-	all	all	4	all
