17001214A: DescriptionSTD24B3-E3; CategoryThermal management products; File Size172KB，2 Pages; ManufacturerComair Rotron; Environmental Compliance

Download Datasheet Parametric View All

17001214A Overview

STD24B3-E3

17001214A Parametric

Parameter Name	Attribute value
Voltage - Rated	24VDC
size/dimensions	Square - 80mm length x 80mm height
width	32.00mm
airflow	32.0 CFM（0.896m³/min）
static pressure	-
Bearing type	ball
Fan type	Tube shaft type
characteristic	Automatic restart, rotor lock protection
noise	40.9 dB（A）
Power (W)	3.3W
RPM	3400 RPM
Termination	2 leads
Intrusion protection	IP68 - dust and water resistant
Operating temperature	14 ~ 158°F （-10 ~ 70°C）
Approval	CE，cUL，UL
weight	-
Rated current	0.140A
voltage range	16 ~ 32VDC
Material - Frame	plastic
Material - Blade	Polypropylene (PP)
Service life at different temperatures	45,000 hours at 70°C

Preview

Download Datasheet

View All

SPECIFICATIONS

Model Number

Part Number:

STD24B3-E3

17001214A

Version: 00

Jun 13, 2018

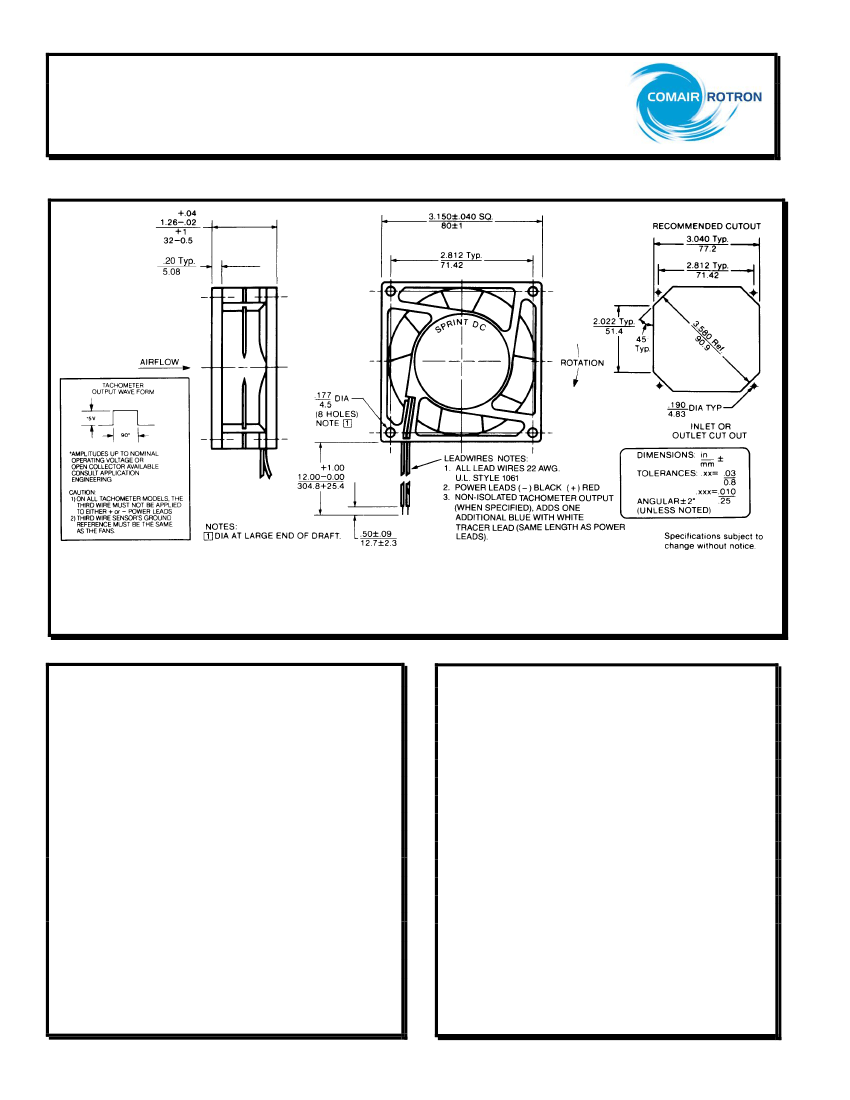

Mechanical Drawing:

Motor:

Nominal Voltage

Operating Voltage Range

Nominal Running Current

Max. Locked Rotor Current

Running Power

Average Speed

Bearings

Air Flow

Acoustic

= 24 vdc

= 16 - 32 vdc

= 0.140 amps

= 0.400 amps

= 3.3 watts

= 3400 RPM

= Ball

= 32 CFM

= 40.9 dBA

Additional Features:

Brushless DC Motor

Electronic Locked Rotor Protection

Polarity Protected

Automatic Restart Capability

Operating Temperature:

-10° to 70°

C

Storage Temperature:

-40° to 85°

C

Environmental Protection:

Type 3(IP68)

Termination:

12” Lead wires, AWG 22, UL 1061

Red

= Power (+)

Black = Return (-)

Construction:

Venturi: Plastic, Black, UL 94V-0.

Propeller: Polypropylene, Black, UL 94V-0

Agency Approvals:

UL, CUL, CE

Life Expectancy:

This fan is designed for continuous duty life of 45,000

hours at 70C.
