ASG12X12X6NK

Description
JUNCTION BOX STEEL 12"L X 12"W
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size979KB，8 Pages
ManufacturerHoffman Enclosures Inc.
Environmental Compliance
Download Datasheet Parametric View All

ASG12X12X6NK Overview

JUNCTION BOX STEEL 12"L X 12"W

ASG12X12X6NK Parametric

Parameter NameAttribute value
Container typeJunction Box
size/dimensions12.008" long x 12.008" wide (305.00mm x 305.00mm)
high5.984"（152.00mm）
Area (L x W)144 in²（929 cm²）
designCover included
MaterialMetal - Steel
colorgrey
thickness-
characteristicWall mounting
gradeIP30，NEMA 1，UL-50，50E
Material flammability rating-
delivery informationShipping from Digi-Key
weight11 pounds (5kg)

Preview

Download Datasheet

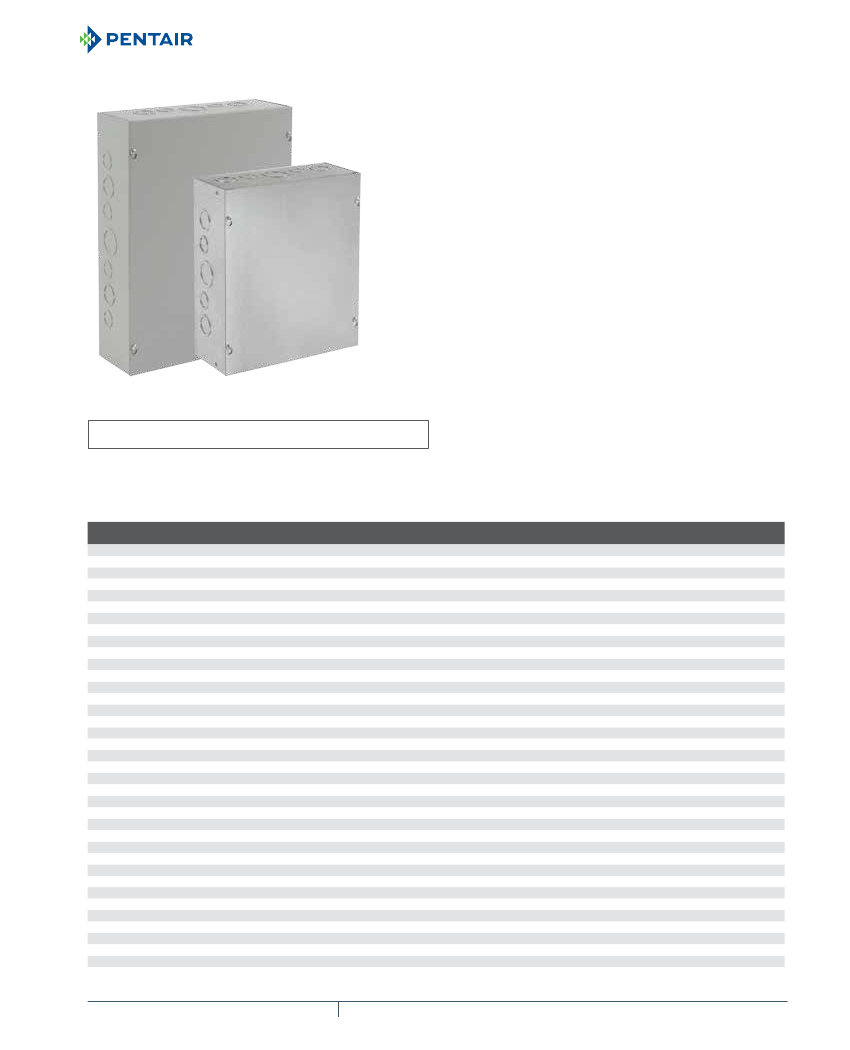

Type 1 Boxes and enclosures
Screw-cover Type 1 pull BoxeS and acceSSorieS
Spec-00258
screw-cover, Type 1
Use this enclosure in commercial and general industrial
applications that require a junction or pull box. For flush
installations, order flush covers and door frames separately.
applicaTion
FeaTures
•
•
•
•
•
•
•
Unique keyhole screw slots in the cover
available with or without knockouts. Various sizes of easy-to-
remove concentric knockouts on all four sides of standard boxes
with knockouts.
Optional flush-mounted door frame available
Optional flush covers
Flat, removable covers fastened with plated steel screws
Provision for grounding
Mounting holes on back of box
16, 14 or 12 gauge steel or plated steel
speciFicaTions
•
anSi 61 gray polyester powder paint finish inside and out. Unless
otherwise specified, all custom pull boxes are finished with anSi 61
gray polyester powder paint.

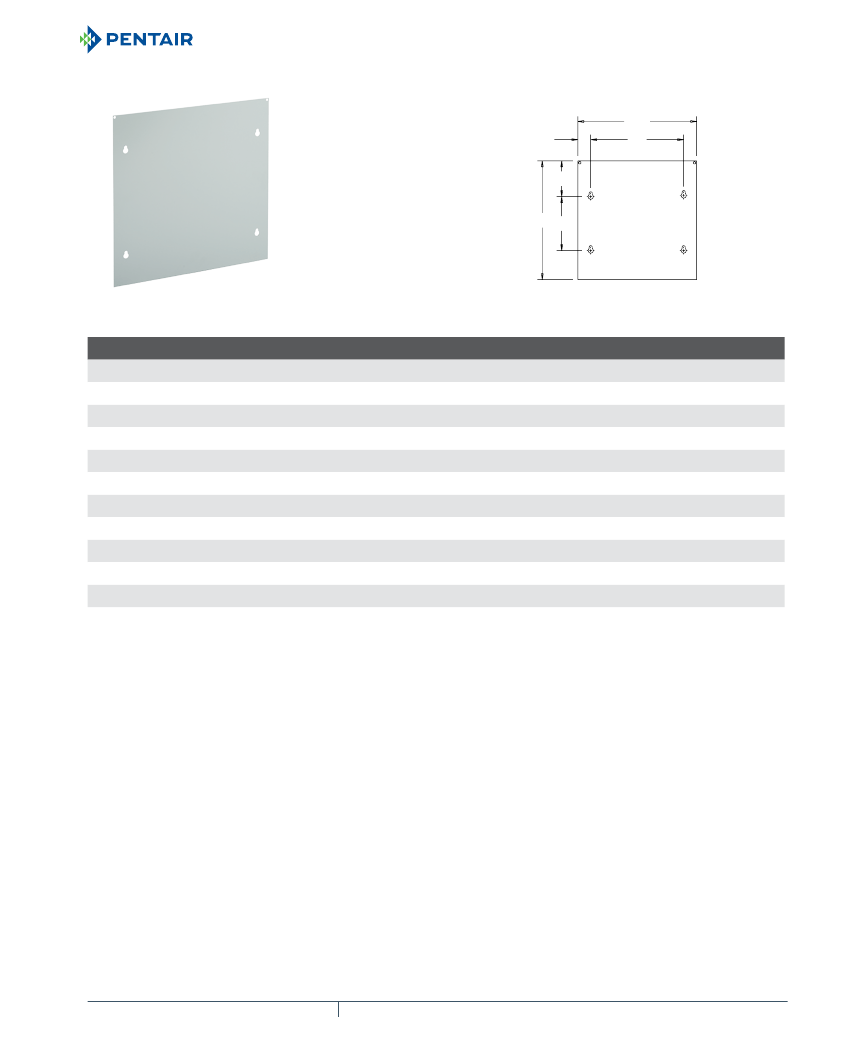

Flush covers
Flush-Mount Door Frames
Grounding Device
type 1 locking Window Pull Box accessory
touch-Up Paint
Bulletin: A90p1
FinisH
accessories
indusTry sTandards
Ul 50, 50e listed; type 1; File no. e27525
cUl listed per cSa c22.2 no 40; type 1; File no. e27525
neMa/eeMac type 1
iec 60529, iP30
Standard Product
screw-cover Type 1 pull Boxes with Knockouts
Catalog Number
ASE4X4X3
ASG4X4X3
ASE6X6X3
ASG6X6X3
ASE8X6X3
ASG8X6X3
ASE16X14X3
ASE18X14X3
ASE4X4X4
ASG4X4X4
ASE6X4X4
ASG6X4X4
ASE6X6X4
ASG6X6X4
ASE8X6X4
ASG8X6X4
ASE8X8X4
ASG8X8X4
ASE10X8X4
ASG10X8X4
ASE10X10X4
ASG10X10X4
ASE12X8X4
ASG12X8X4
ASE12X10X4
ASG12X10X4
ASE12X12X4
ASG12X12X4
ASE16X12X4
ASG16X12X4
ASE18X12X4
ASG18X12X4
ASE18X18X4
ASG18X18X4
ASE24X12X4
ASE24X24X4
ASG24X24X4
ASE30X24X4
1
commercial
AxBxC in.
4.00 x 4.00 x 3.00
4.00 x 4.00 x 3.00
6.00 x 6.00 x 3.00
6.00 x 6.00 x 3.00
8.00 x 6.00 x 3.00
8.00 x 6.00 x 3.00
16.00 x 14.00 x 3.00
18.00 x 14.00 x 3.00
4.00 x 4.00 x 4.00
4.00 x 4.00 x 4.00
6.00 x 4.00 x 4.00
6.00 x 4.00 x 4.00
6.00 x 6.00 x 4.00
6.00 x 6.00 x 4.00
8.00 x 6.00 x 4.00
8.00 x 6.00 x 4.00
8.00 x 8.00 x 4.00
8.00 x 8.00 x 4.00
10.00 x 8.00 x 4.00
10.00 x 8.00 x 4.00
10.00 x 10.00 x 4.00
10.00 x 10.00 x 4.00
12.00 x 8.00 x 4.00
12.00 x 8.00 x 4.00
12.00 x 10.00 x 4.00
12.00 x 10.00 x 4.00
12.00 x 12.00 x 4.00
12.00 x 12.00 x 4.00
16.00 x 12.00 x 4.00
16.00 x 12.00 x 4.00
18.00 x 12.00 x 4.00
18.00 x 12.00 x 4.00
18.00 x 18.00 x 4.00
18.00 x 18.00 x 4.00
24.00 x 12.00 x 4.00
24.00 x 24.00 x 4.00
24.00 x 24.00 x 4.00
30.00 x 24.00 x 4.00
AxBxC mm
102 x 102 x 76
102 x 102 x 76
152 x 152 x 76
152 x 152 x 76
203 x 152 x 76
203 x 152 x 76
406 x 356 x 76
457 x 356 x 76
102 x 102 x 102
102 x 102 x 102
152 x 102 x 102
152 x 102 x 102
152 x 152 x 102
152 x 152 x 102
203 x 152 x 102
203 x 152 x 102
203 x 203 x 102
203 x 203 x 102
254 x 203 x 102
254 x 203 x 102
254 x 254 x 102
254 x 254 x 102
305 x 203 x 102
305 x 203 x 102
305 x 254 x 102
305 x 254 x 102
305 x 305 x 102
305 x 305 x 102
406 x 305 x 102
406 x 305 x 102
457 x 305 x 102
457 x 305 x 102
457 x 457 x 102
457 x 457 x 102
610 x 305 x 102
610 x 610 x 102
610 x 610 x 102
762 x 610 x 102
Style
Painted
Galvanized
Painted
Galvanized
Painted
Galvanized
Painted
Painted
Painted
Galvanized
Painted
Galvanized
Painted
Galvanized
Painted
Galvanized
Painted
Galvanized
Painted
Galvanized
Painted
Galvanized
Painted
Galvanized
Painted
Galvanized
Painted
Galvanized
Painted
Galvanized
Painted
Galvanized
Painted
Galvanized
Painted
Painted
Galvanized
Painted
Number of
Cover Screws
2
2
2
2
2
2
4
4
2
2
2
2
2
2
2
2
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
6

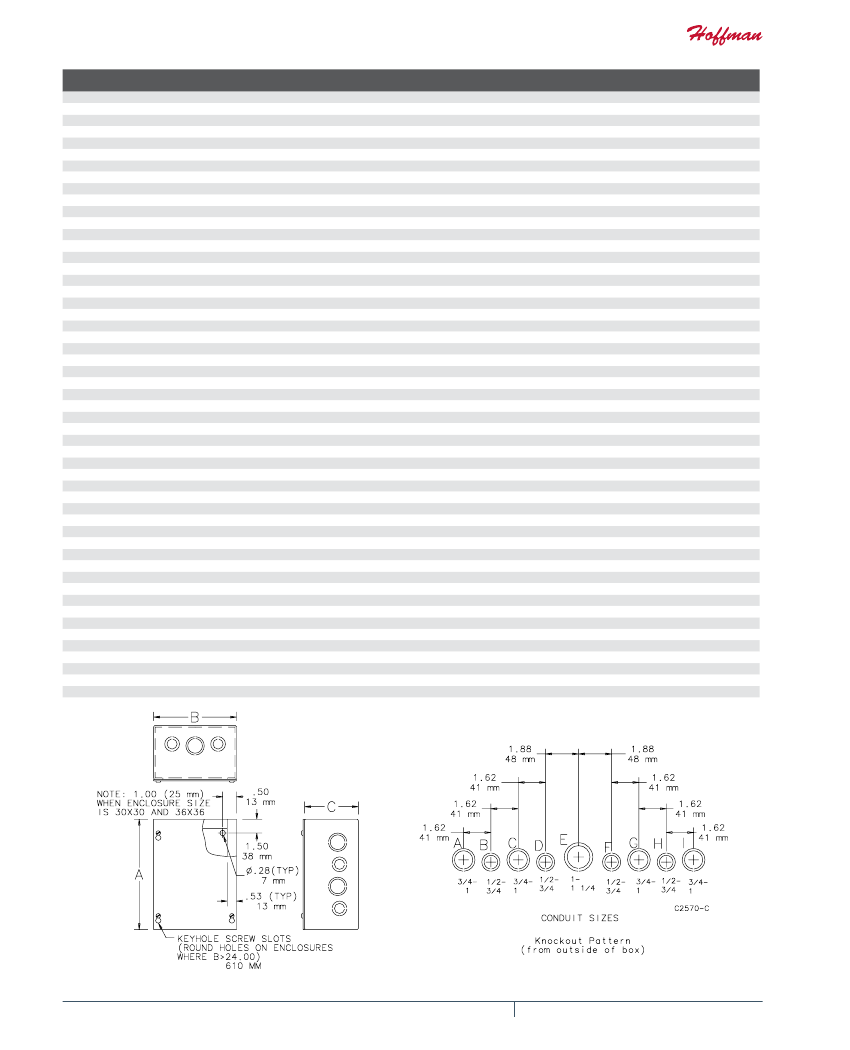

Knockout Pattern
Along “A” Sides
B-C
B-C
B-C-D
B-C-D
F-G-H-I
F-G-H-I
B-C-D-E-F-G-H
A-B-C-D-E-F-G-H-I
B-C
B-C
B-C-D
B-C-D
B-C-D
B-C-D
F-G-H-I
F-G-H-I
F-G-H-I
F-G-H-I
F-G-H-I
F-G-H-I
F-G-H-I
F-G-H-I
C-D-E-F-G
C-D-E-F-G
C-D-E-F-G
C-D-E-F-G
C-D-E-F-G
C-D-E-F-G
B-C-D-E-F-G-H
B-C-D-E-F-G-H
A-B-C-D-E-F-G-H-I
A-B-C-D-E-F-G-H-I
A-B-C-D-E-F-G-H-I
A-B-C-D-E-F-G-H-I
A-B-C-D-E-F-G-H-I
A-B-C-D-E-F-G-H-I
A-B-C-D-E-F-G-H-I
A-B-C-D-E-F-G-H-I
Knockout Pattern
Along “B” Sides
B-C
B-C
B-C-D
B-C-D
B-C-D
B-C-D
B-C-D-E-F-G-H
B-C-D-E-F-G-H
B-C
B-C
B-C
B-C
B-C-D
B-C-D
B-C-D
B-C-D
F-G-H-I
F-G-H-I
F-G-H-I
F-G-H-I
C-D-E-F-G
C-D-E-F-G
F-G-H-I
F-G-H-I
C-D-E-F-G
C-D-E-F-G
C-D-E-F-G
C-D-E-F-G
C-D-E-F-G
C-D-E-F-G
C-D-E-F-G
C-D-E-F-G
A-B-C-D-E-F-G-H-I
A-B-C-D-E-F-G-H-I
C-D-E-F-G
A-B-C-D-E-F-G-H-I
A-B-C-D-E-F-G-H-I
A-B-C-D-E-F-G-H-I
Pentair electrical
SUBJECT TO CHANGE WITHOUT NOTICE
Spec-00258 J
