1.30258.0010700 datasheet, PDF

Datasheet> All Categories > accessories> 1.30258.0010700

1.30258.0010700: DescriptionKNOB POTENTIOMETER DRIVE; Categoryaccessories; File Size94KB，1 Pages; ManufacturerRAFI USA; Environmental Compliance

Download Datasheet Parametric View All

1.30258.0010700 Overview

KNOB POTENTIOMETER DRIVE

1.30258.0010700 Parametric

Parameter Name	Attribute value
style	-
type	-
Shaft size	-
diameter	-
high	-
indicator light	-
Material	-
color	-
characteristic	-

Preview

Download Datasheet

View All

13.10.2016

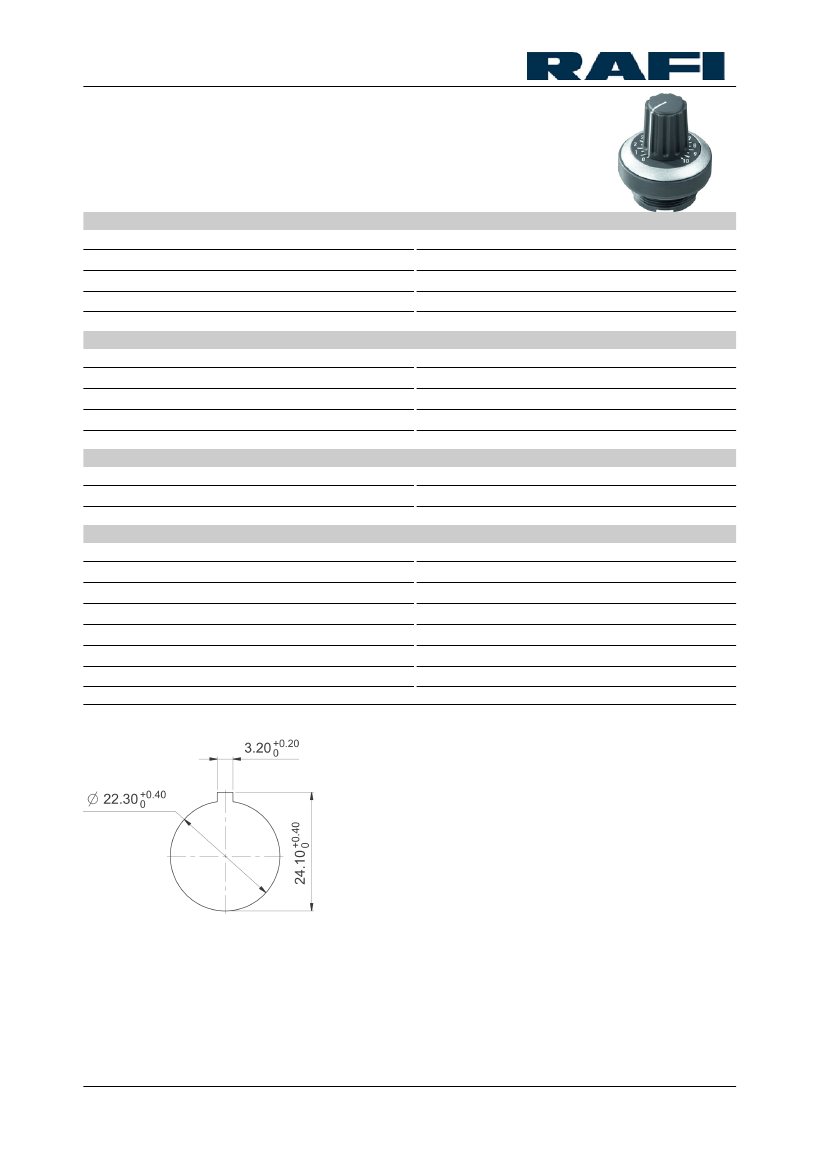

RAFIX 22 FS

- Potentiometer drive, round collar

1.30.258.001/0700

General information

Actuator

Color of knob

Front ring

Form of collar

Dimensions

Overall height

Mounting depth

Mounting hole

Key grid

Mechanical design

Mounting

Torque for nut ring

Other specifications

Degree of protection from front side

Storage temperature min.

Storage temperature max.

Environmental restistance

Salt spray

ROHS compliant

REACH compliant

Panel cut-out to IEC 60947-5-1

knob

opaque slate-grey

plastic slate-grey

round

26 mm

according to potentiometer

22.3 mm

according to potentiometer

ring nut

1.2 Nm

IP65 (DIN EN 60529)

-40 °C

+80 °C

acc. to IEC 60068-2-14, -30, -33 and -78

IEC 600 68-2-11

yes

Technical data are approximate and intended solely for general orientation in the selection of a product.

Subject to modifications and errors. Images and other graphics may only be similar.

For more information, refer to www.rafi.de chapter Imprint / Data Protection.
