Network cable - NBC-MSD/ 5,0-93G/R4AC SCO - 1407563
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

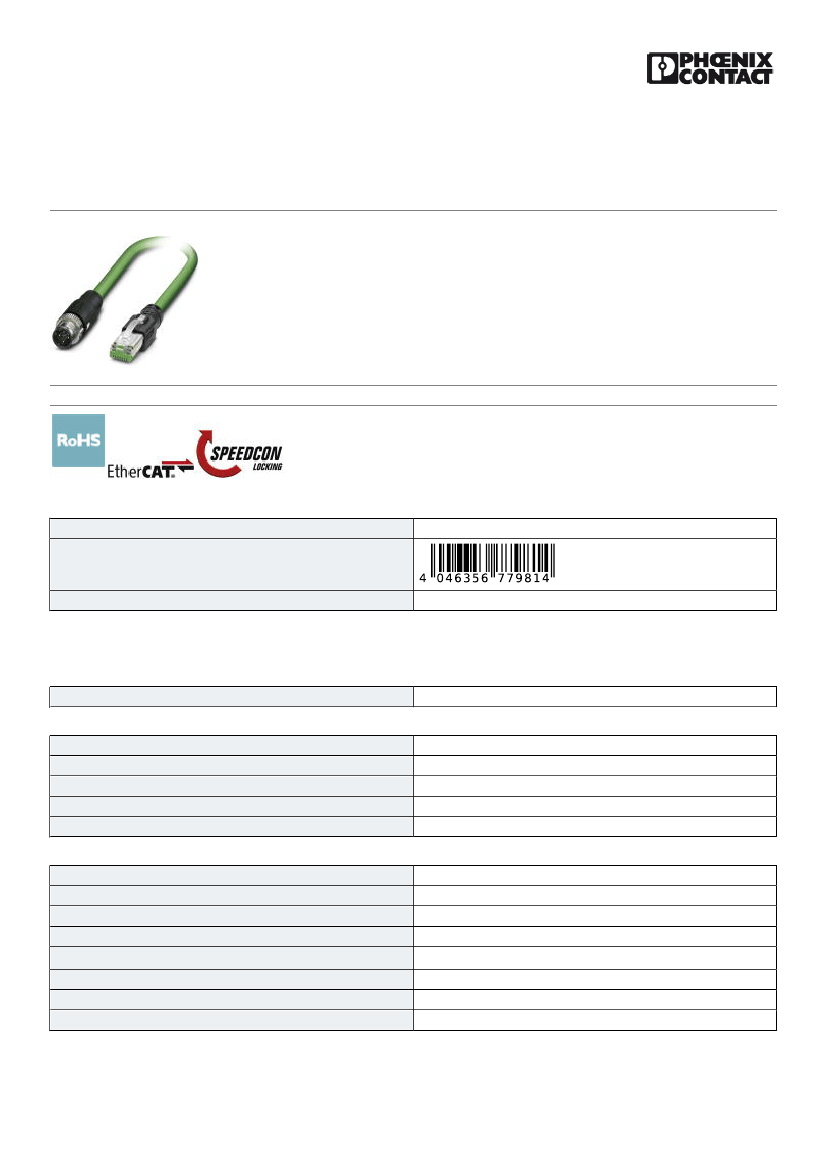

Network cable, EtherCAT CAT5 (100 Mbps), 4-position, PVC, green RAL 6018, shielded, Plug straight M12
SPEEDCON / IP67, coding: D, on Plug straight RJ45 / IP20, cable length: 5 m
®
Key Commercial Data
Packing unit
GTIN
GTIN
4046356779814
1 pc
Technical data
Dimensions
Length of cable
5m
Ambient conditions
Degree of protection
IP65 (M12 connector)
IP67 (M12 connector)
IP20 (RJ45 connector)
Ambient temperature (operation)
-25 °C ... 85 °C (M12 connector)
-25 °C ... 80 °C (RJ45 connector)
General data
Rated current at 40°C
Rated voltage
Number of positions
Signal type/category
Standards/regulations
Contact material
Contact carrier material
1A
48 V AC
60 V DC
4
EtherCAT CAT5 (IEC 11801), 100 Mbps
M12 connector IEC 61076-2-101
CuSn
TPU GF
10/22/2018 Page 1 / 5
®
https://www.phoenixcontact.com/pi/products/1407563
Network cable - NBC-MSD/ 5,0-93G/R4AC SCO - 1407563
Technical data
General data
Contact surface material
Housing material
Ni/Au
Plastic
Characteristics head 1
Head type
No. of positions (pin connector pattern)
Coding
Color
Material (component)
Plug straight M12 SPEEDCON / IP67
4
D (Data)
black
CuSn (Contact)
Ni/Au (Contact surface)
PA (Contact carriers)
TPU, hardly inflammable, self-extinguishing (Grip)
Zinc die-cast, nickel-plated (Screw connection)
Insulation resistance
Insertion/withdrawal cycles
Torque
Ambient temperature (operation)
≥ 100 MΩ
≥ 100
0.4 Nm
-25 °C ... 90 °C
Characteristics head 2
Head type
No. of positions (pin connector pattern)
Color
Material (component)
Plug straight RJ45 / IP20
4 (8)
black
black
CuSn (Contact)
Ni/Au (Contact surface)
PA (Contact carriers)
PA (Housing)
Insertion/withdrawal cycles
Ambient temperature (operation)
≥ 750
-25 °C ... 80 °C
Standards and Regulations
Standard designation
Standards/regulations
M12 connector
IEC 61076-2-101
Cable
Cable type
Cable type (abbreviation)
UL AWM style
Signal type/category
Cable structure
Conductor cross section
AWG signal line
Conductor structure signal line
EtherCAT
93G
21694
EtherCAT CAT5 (IEC 11801), 100 Mbps
1x4xAWG22/7; SF/TQ
4x 0.34 mm²
22
7x 0.25 mm
10/22/2018 Page 2 / 5
®
®
https://www.phoenixcontact.com/pi/products/1407563
Network cable - NBC-MSD/ 5,0-93G/R4AC SCO - 1407563
Technical data
Cable
Core diameter including insulation
Wire colors
Overall twist
Shielding
Optical shield covering
External sheath, color
Outer sheath thickness
External cable diameter D
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Cable weight
Outer sheath, material
Material, inner sheath
Material conductor insulation
Conductor material
Insulation resistance
Loop resistance
Wave impedance
Signal speed
Signal runtime
Coupling resistance
Nominal voltage, cable
Test voltage Core/Core
Test voltage Core/Shield
Flame resistance
Resistance to oil
Other resistance
Ambient temperature (operation)
Ambient temperature (installation)
Ambient temperature (storage/transport)
1.55 mm
White, yellow, blue, orange
Star quad
Aluminum-coated foil, tinned copper braided shield
85 %
green RAL 6018
approx. 0.9 mm
6.5 mm ±0.2 mm
3xD
7xD
67 kg/km
PVC
PVC
PE
Tin-plated Cu litz wires
≥ 500 MΩ*km
≤ (per km)
100 Ω ±15 Ω (at 100 MHz)
0.66 c
5.3 ns/m
≤ 20.00 mΩ/m (at 10 MHz)
600 V
2000 V (50 Hz, 1 min.)
2000 V (50 Hz, 1 min.)
According to UL 1685 (CSA FT 4)
Resistant to oil to a limited extent
UV resistant According to UL 1581, Section 1200
-40 °C ... 70 °C (cable, fixed installation)
-40 °C ... 70 °C (cable, flexible installation)
-20 °C ... 60 °C
-50 °C ... 70 °C
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
10/22/2018 Page 3 / 5
https://www.phoenixcontact.com/pi/products/1407563
Network cable - NBC-MSD/ 5,0-93G/R4AC SCO - 1407563

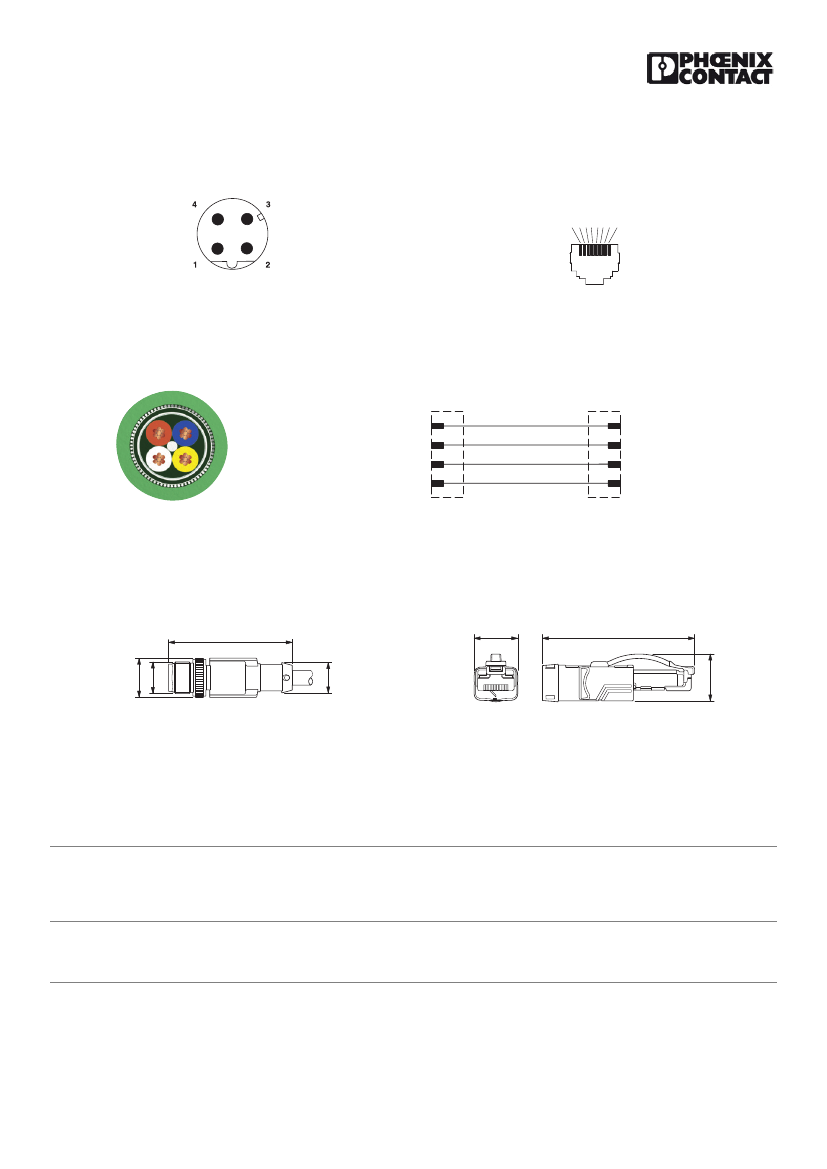

Schematic diagram
Schematic diagram
8 765 432 1
Pin assignment M12 male connector, 4-pos., D-coded, male side
Connector pin assignment plug RJ45
Cable cross section
Circuit diagram
1
3
2
4
1 YE
2 OG
3 WH
6 BU
EtherCAT [93G]
Contact assignment of the M12 and RJ45 plug
®
Dimensional drawing
Dimensional drawing
47,3
13,9
48,5
Ø14,8
M12
Plug, M12 x 1, straight, shielded
RJ45 connector, IP20
Approvals
Approvals
Approvals
UL Listed
Ex Approvals
Approval details
10/22/2018 Page 4 / 5
14,9
Ø12
https://www.phoenixcontact.com/pi/products/1407563
Network cable - NBC-MSD/ 5,0-93G/R4AC SCO - 1407563
Approvals
UL Listed
Nominal voltage UN
Nominal current IN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
60 V
0.5 A
FILE E 335024
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
10/22/2018 Page 5 / 5
