ElEctrical accEssoriEs
Lighting Packages

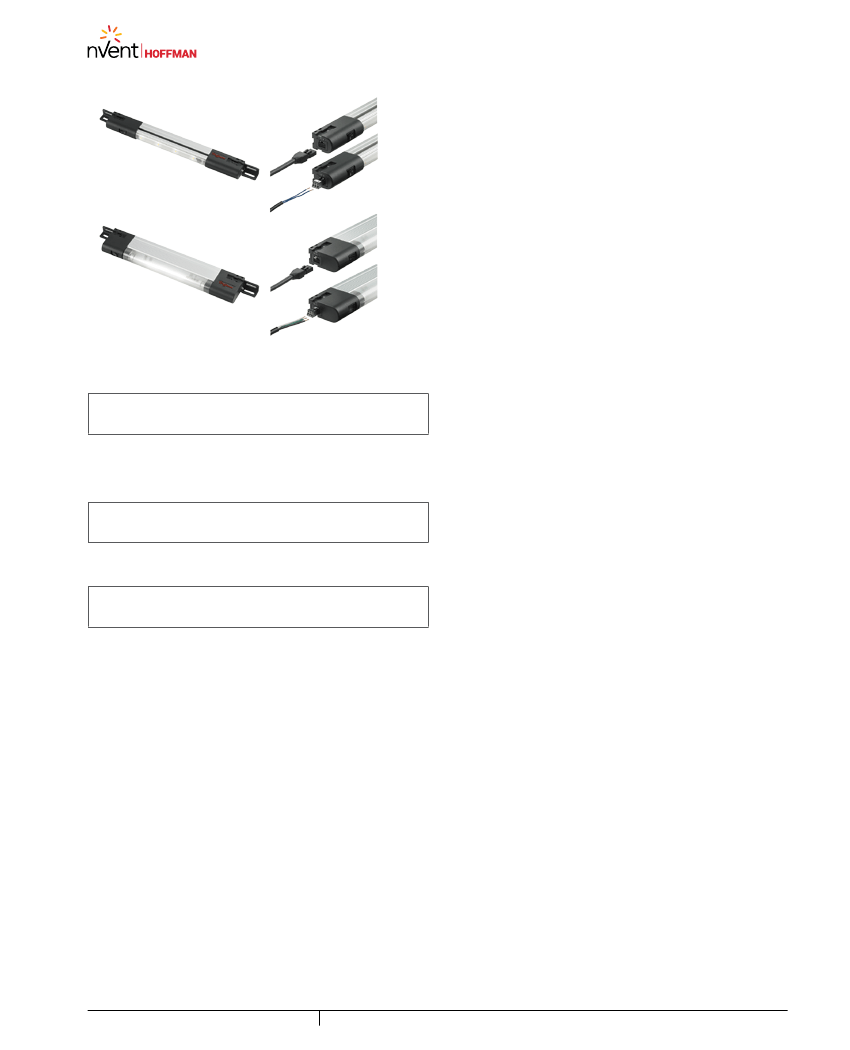

PaNElitE ENclosUrE liGHts
FEatUrEs
•
•
•
•
Slim profile allows light to be tucked out of the way for easy panel
installation
Versatile mounting allows the light to be positioned horizontally
or vertically; two-way mounting provides for ideal orientation
Includes mounting hardware for the following enclosure
installations: PROLINE Frame, Enclosure Top, Panel Mount and
Unistrut
On/off switch incorporated in light; optional remote door switch
accessory available to activate light when enclosure door is
opened (230 VAC Fluorescent Enclosure Light has switch or door-
activated sensor)
PaNElitE lED and Fluorescent Enclosure lights
UL 508A Component Recognized; File No. E61997
cUL Component Recognized per CSA C22.2 No 14; File No.
E61997
CSA File No. 42186
Maintains UL/CSA Type 4, 4X and 12 enclosure rating when properly
installed in a Hoffman enclosure.
230 Vac Fluorescent Enclosure light
UL 508A Component Recognized; File No. E234324
cUL Component Recognized per CSA C22.2 No 14; File No.
E61997
CE
lED light
UL 508A Component Recognized; File No. E234324
cUL Component Recognized per CSA C22.2 No 14; File No.
E234324
iNDUstrY staNDarDs
PaNElitE only:
•
Mounting tabs provide easy access point for attachment
hardware; light does not need to be disassembled for installation
•
Up to five lights can be daisy-chained together
•
Plug-and-play terminal connection system:
- Pre-wired connection sockets on both ends of light allow use
of Hoffman cable accessories
- optional terminal blocks snap into the connection sockets,
allowing customers to use their own wiring methods; two
terminal blocks provided with each light kit
- Power supply can be wired manually with Hoffman PaNElitE
Power cable with leads or with Hoffman optional PaNElitE
Power cord
- Ganging cables are available in 2-, 4- and 6-ft. lengths to
easily join up to five lights together using one power supply
- remote door switch for easy door activation eliminates need
to mount light in the exact location required to activate the
light
•
•
•
•
•
•
•
•
lED light only:
Mechanical screw- or magnetic mount (non-slip rubberized)
Protection Class II (double insulated)
Operating temperature -22 F to 140 F (-30 C to 60 C)
On / Off or motion-sensor activation
LED lights with 400 LM illumination; 120° angle of illumination
Low, 5-watt power requirement
Light-weight, all-composite construction
Input and output connectors included with light (16 AWG)
PaNElitE:
•
Extruded aluminum center support
CE
•
Black composite end caps
Ingress protection : IP 20
•
Black composite mounting tabs
Maintains enclosure type rating up to 4X when installed per
•
Each light fixture includes two mounting tabs, two pre-wired
instructions
connection sockets, two optional terminal blocks that snap into
the connection sockets and enclosure attachment hardware (bulb
aPPlicatioN
not included with fluorescent light)
Versatile, slim-profile LED and fluorescent lights provide mounting
230 Vac Fluorescent Enclosure light:
flexibility and are easy to install in any enclosure. Terminal blocks
•
Light gray composite construction – UL 94V-O material
allow for easy wiring. Accessories include ganging cables, power
•
Hardware kit provides fasteners to mount to PROLINE, NEMA (4,
cords and door switches, all provided with plug-and-play connectors
4X, 12, and 13), CONCEPT, FUSION and other cabinets
for easy connection to the terminal blocks with an innovative
•
Easy-access terminal block that accommodates up to 16 AWG
terminal connection system. LED version provides superior lighting
wires
performance with minimal power consumption.
•
Fluorescent light bulb included (2G7 Base)
lED light:
•
LED (Light Emitting Diode) low-power light kit
•
Screw mounting using included hardware kit (maintains
enclosure rating up to UL Type 4X)
•
No user-serviceable parts
•
Life expectancy of 60,000 hours at 68 F (20 C) under
specifications
•
Operating temperature: -22 to +140 F (-30 to +60 C) under
specifications
•
5-watt power consumption
•
Transparent, composite construction
sPEciFicatioNs
1
accEssoriEs
Spec-00581 O
SUBJECT TO CHANGE WITHOUT NOTICE
nVent.com/HOFFMAN
ElEctrical accEssoriEs
Lighting Packages

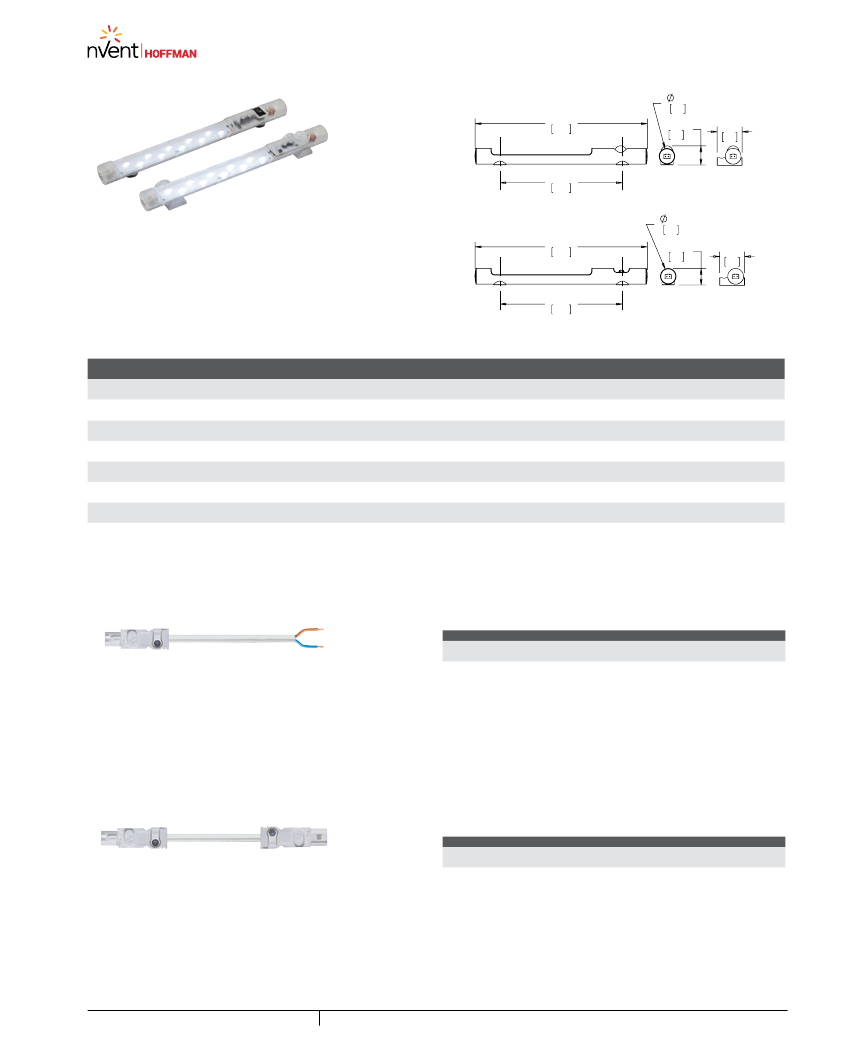

PaNElitE lED ENclosUrE liGHt
•
•
•
•
•
•
•
24 VDC operation for superior
lighting performance with minimal
power consumption
140-degree cone angle casts a
broad covering of neutral light
between 3500 and 4500K color
temperature
Center section rotates 120
degrees to redirect light where
needed
Long life; 70 percent of initial
luminance at 50,000 hours (at
25 C)
High power LED emitters produce
470 Lumens for superior lighting
performance
Can be wired using optional
PANELITE Cable Accessories or
can be hard-wired with terminal
blocks included in hardware kit
Up to five lights can be daisy-
chained together using hard-wired
connection to power supply or
catalog number LPC72 power
cable with leads
Catalog Number
LED24V15
Description
LED Light, 15 in.
VDC
24
Amps
.5
W
in./mm
15.00
381
X
in./mm
8.00
203
BULLETIN: A80LT
rEPlacEMENt HarDWarE Kit For PaNElitE lED
aND FlUorEscENt ENclosUrE liGHt
Relacement hardware kit is available for the replacement of lost or
damaged hardware supplied with the PANELITE LED or Fluorescent
Lights. Kit includes mounting brackets and all mounting hardware.
BULLETIN: A80LT
Catalog Number
LED24VHDWK
Description
Replacement hardware kit for PANELITE Enclosure Lights
PaNElitE FlUorEscENt ENclosUrE liGHt
•
•
•
•
120 VAC, 50/60 Hz operation
Can be wired using optional
PANELITE Cable Accessories or
can be hard-wired with terminal
blocks included in hardware kit
Available in 15-, 18- and 28-in.
lengths with ability to daisy chain
up to five lights together using one
power supply
Fluorescent bulb not included
Bulb
(purchase
separately)
F6T5
F8T5
F14T5
BULLETIN: A80LT
Catalog Number
LF120V15
LF120V18
LF120V28
Description
Fluorescent Light, 15 in.
Fluorescent Light, 18 in.
Fluorescent Light, 28 in.
VAC
120
120
120
Hz
50/60
50/60
50/60
Amps
.13
.13
.26
W
in./mm
14.50
368
17.50
445
27.75
705
X
in./mm
9.63
245
12.63
321
22.88
581
Replacement
Lens Cover
LFL15
LFL18
LFL28
nVent.com/HOFFMAN
PH 763.422.2211
Spec-00581 O
accEssoriEs
2
ElEctrical accEssoriEs
Lighting Packages

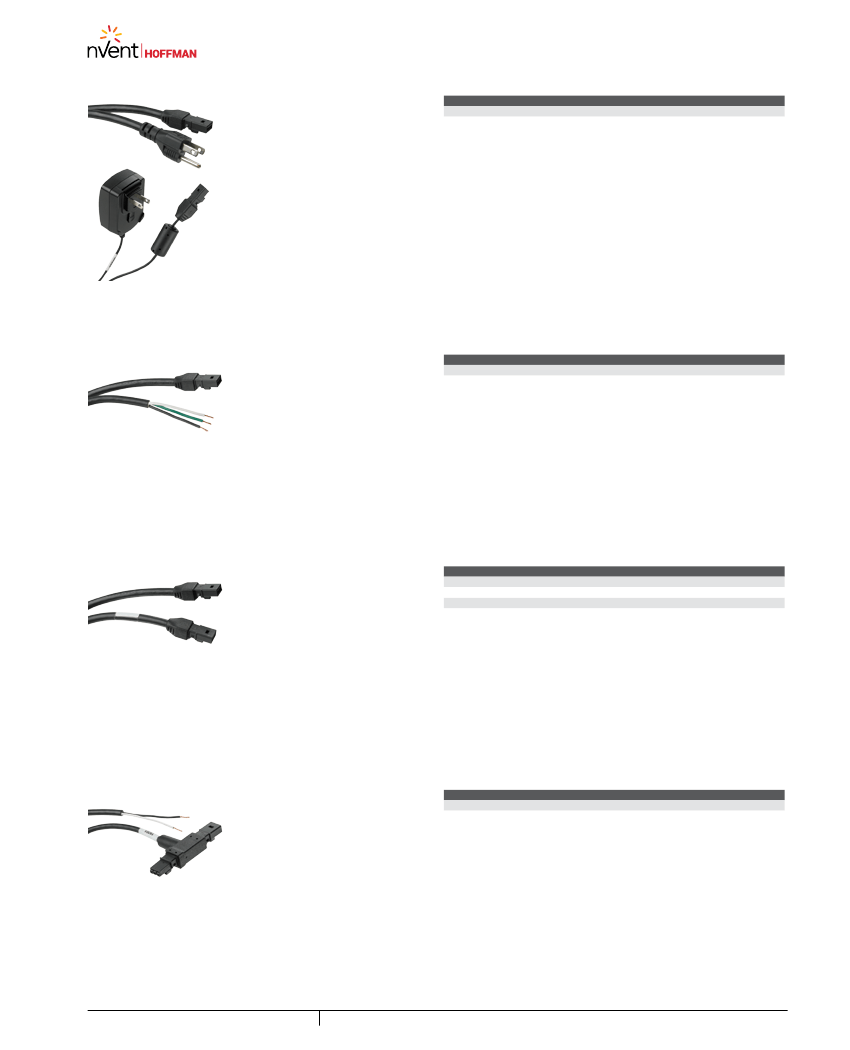

PaNElitE PoWEr corDs
•
Connects light to standard North
American wall socket
•
LF120VCORD is for 120 VAC
Fluorescent lights (up to five lights
can be daisy chained together
using one power cord)
•
LED24VCORD is for 24 VDC LED
lights and includes a transformer
to convert 100-240 VAC power
supply (capable of powering only
one LED light)
•
Plugs directly into a connection
socket on switch end of the light
•
Includes one cable
Power cord not required. Terminal
blocks are provided with each light
for wired connection to electric
supply.
BULLETIN: A80LT
Catalog Number
LF120VCORD
LED24VCORD
Description
Fluorescent Light Power Cord
LED Light Power Cord
Length
72 in.
60 in.
PaNElitE PoWEr caBlE WitH lEaDs
•
72-in. power cord provides
convenient connection to an
electrical supply
•
Eliminates need to run and tag
individual wires into the light
•
Compatible with PANELITE LED
and Fluorescent lights
•
Plugs directly into connection
socket on switch end of the light
•
Includes one 16 AWG cable, black
Power Cable not required. Terminal
blocks are provided with each light
for wired connection to electric
supply.
BULLETIN: A80LT
Catalog Number
LPC72
Length
72 in.
PaNElitE GaNGiNG caBlEs
•
Ganging Cables provide
convenient method for joining
up to five lights together while
utilizing one power supply
•
Available in 24-, 48- and 72-in.
lengths
•
Plugs directly into connection
socket on either end of the light
•
Compatible with PANELITE LED
and Fluorescent lights
•
Includes one 16 AWG cable, black
Ganging Cables not required.
Terminal blocks are provided
with each light for hard-wired
connections.
BULLETIN: A80LT
Catalog Number
LGCABLE24
LGCABLE48
LGCABLE72
Length
24 in.
48 in.
72 in.
PaNElitE Door sWitcH caBlE
•
Easily connects PANELITE LED
or Fluorescent Light to a Remote
Door Switch
•
T-connector allows the Door
Switch Cable to be connected with
a ganging cable or power supply
to the switch end of the light
•
Available in 18- and 72-in. lengths
•
Includes one 18 AWG cable, black
Door Switch Cables not required.
Terminal blocks are provided with
each light for hard-wired connection
to remote door switch.
BULLETIN: A80LT
Catalog Number
LDSWITCH18
LDSWITCH72
Length
18 in.
72 in.
3
accEssoriEs
Spec-00581 O
SUBJECT TO CHANGE WITHOUT NOTICE
nVent.com/HOFFMAN
ElEctrical accEssoriEs
Lighting Packages

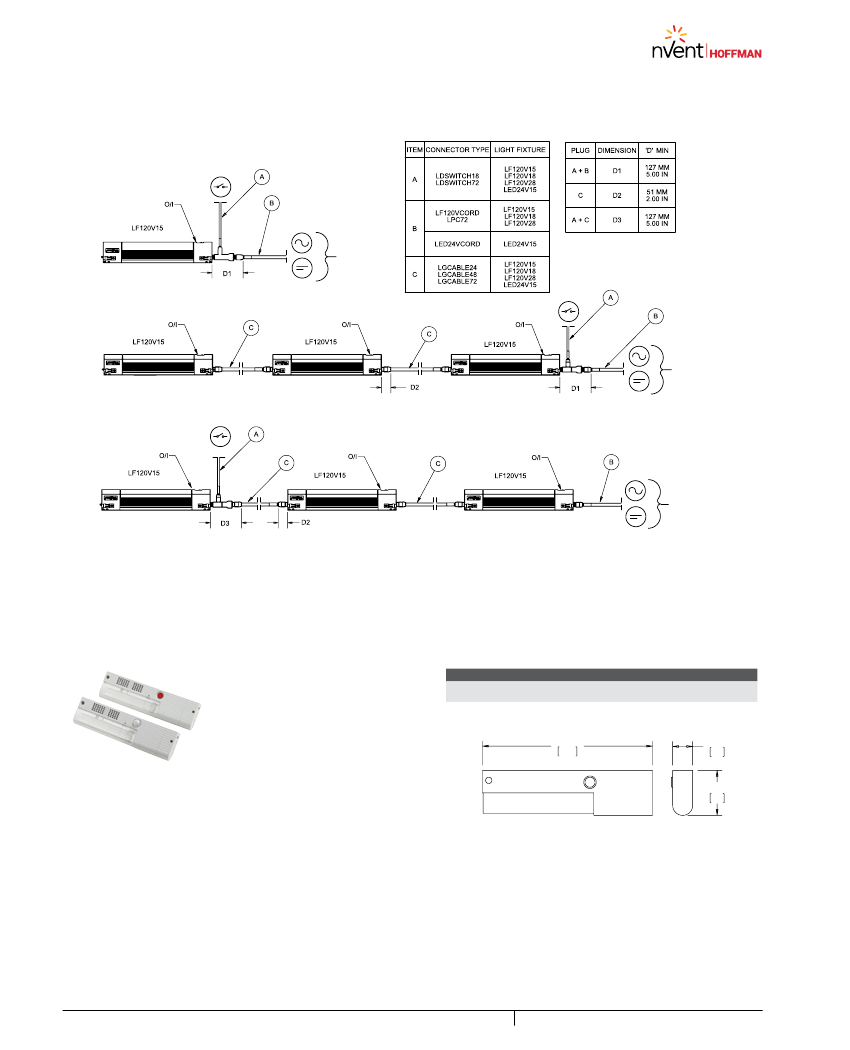

PaNElitE WiriNG oPtioNs
See the table on the drawing for cable clearance dimensions.
89046495
230 Vac FlUorEscENt ENclosUrE liGHt
•
•
•
•
•
•
230 VAC, 50/60 Hz operation with
electronic ballast
Compact light-gray plastic housing, UL
94V-0
Easy access to wiring terminals,
integral strain relief, 16 AWG max.
Versatile mounting to many enclosure
types
Complete assembly, long-life
fluorescent bulb included, Luminosity
900 LM
Switch and Door motion sensor offering
Catalog Number
LF230VM
LF230VD
AxBxC in./mm
1.57 x 13.58 x 3.58
40 x 345 x 91
1.57 x 13.58 x 3.58
40 x 345 x 91
Description
Light Kit, 230VAC, Manual switch
Light Kit, 230VAC, IR Motion Sensor
BULLETIN: A80LT
nVent.com/HOFFMAN
PH 763.422.2211
Spec-00581 O
accEssoriEs
4
ElEctrical accEssoriEs
Lighting Packages
lED liGHt Kit
BULLETIN: A80LT
LED light kits provide interior enclosure lighting. These light kits
are ideal for remote and darkened enclosure applications. The light
can be mechanically fastened with included hardware to maintain
enclosure UL listing (up to Type 4X), or can be magnetically attached
to flat steel surfaces. The lights have auto-sensing circuitry (AC
voltage 90 VAC to 265 VAC and DC voltage 20 VDC to 60 VDC). LED
lights are light-weight and in a small form factor while providing
400 LM of 6000-7000K light. Power consumption for all models is 5
watts.
Mounting
Style
Magnetic
Magnetic
Screw
Screw
Magnetic
Magnetic
Screw
Screw
Catalog Number
LEDA1M35
LEDA2M35
LEDA1S35
LEDA2S35
LEDD1M35
LEDD2M35
LEDD1S35
LEDD2S35
AxBxC in./mm
1.34 x 1.26 x 13.82
34 x 32 x 351
1.54 x 1.26 x 13.82
39 x 32 x 351
1.42 x 2.05 x 13.82
36 x 52 x 351
1.63 x 2.05 x 13.82
41 x 52 x 351
1.34 x 1.26 x 13.82
34 x 32 x 351
1.54 x 1.26 x 13.82
39 x 32 x 351
1.42 x 2.05 x 13.82
36 x 52 x 351
1.63 x 2.05 x 13.82
41 x 52 x 351
Weight (oz)
4.8
5.0
4.8
5.0
4.8
5.0
4.8
5.0
Weight (gm)
135
140
135
140
135
140
135
140
Power Source
AC
AC
AC
AC
DC
DC
DC
DC
Activation
On/off switch
IR Motion Sensor
On/off switch
IR Motion Sensor
On/off switch
IR Motion Sensor
On/off switch
IR Motion Sensor
Voltage
90 VAC-265 VAC
90 VAC-265 VAC
90 VAC-265 VAC
90 VAC-265 VAC
20 VDC-60 VDC
20 VDC-60 VDC
20 VDC-60 VDC
20 VDC-60 VDC
lED liGHt iNPUt coNNEctor/caBlE assEMBlY
with 78.7-in. (2000 mm) long cable whip. Cables are constructed of
16 AWG copper wire.
BULLETIN: A80LT
Catalog Number
LEDA20C
LEDD20C
A in./mm
78.74
2000
78.74
2000
Power Source
AC
DC
Use with
AC LED Lights
DC LED Lights
The input connector/cable assembly is used to provide supply
power to the LED light. Preassembled connector/cable assembly
lED liGHt EXtENsioN coNNEctor/caBlE
assEMBlY
The extension connector/cable assembly is used to connect
adjacent LED lights (daisy chain). Up to 10 LED lights can be ganged
or connected in series. Pre-assembled connector/cable assembly
with 39.4-in. (1000 mm) long cable between input and output
connectors. Cables are constructed of 16 AWG copper wire.
BULLETIN: A80LT
Catalog Number
LEDA10E
LEDD10E
A in./mm
39.37
1000
39.37
1000
Power Source
AC
DC
Use with
AC LED Lights
DC LED Lights
5
accEssoriEs
Spec-00581 O
SUBJECT TO CHANGE WITHOUT NOTICE
nVent.com/HOFFMAN
京公网安备 11010802033920号
EEWORLD
