17001171A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Thermal management products> 17001171A

17001171A: DescriptionFAN DC IP68 GLD24B3E2X-E3; CategoryThermal management products; File Size331KB，2 Pages; ManufacturerComair Rotron; Environmental Compliance

Download Datasheet Parametric View All

17001171A Overview

FAN DC IP68 GLD24B3E2X-E3

17001171A Parametric

Parameter Name	Attribute value
Voltage - Rated	24VDC
size/dimensions	Square - 127mm long x 127mm high
width	38.10mm
airflow	150.0 CFM（4.20m³/min）

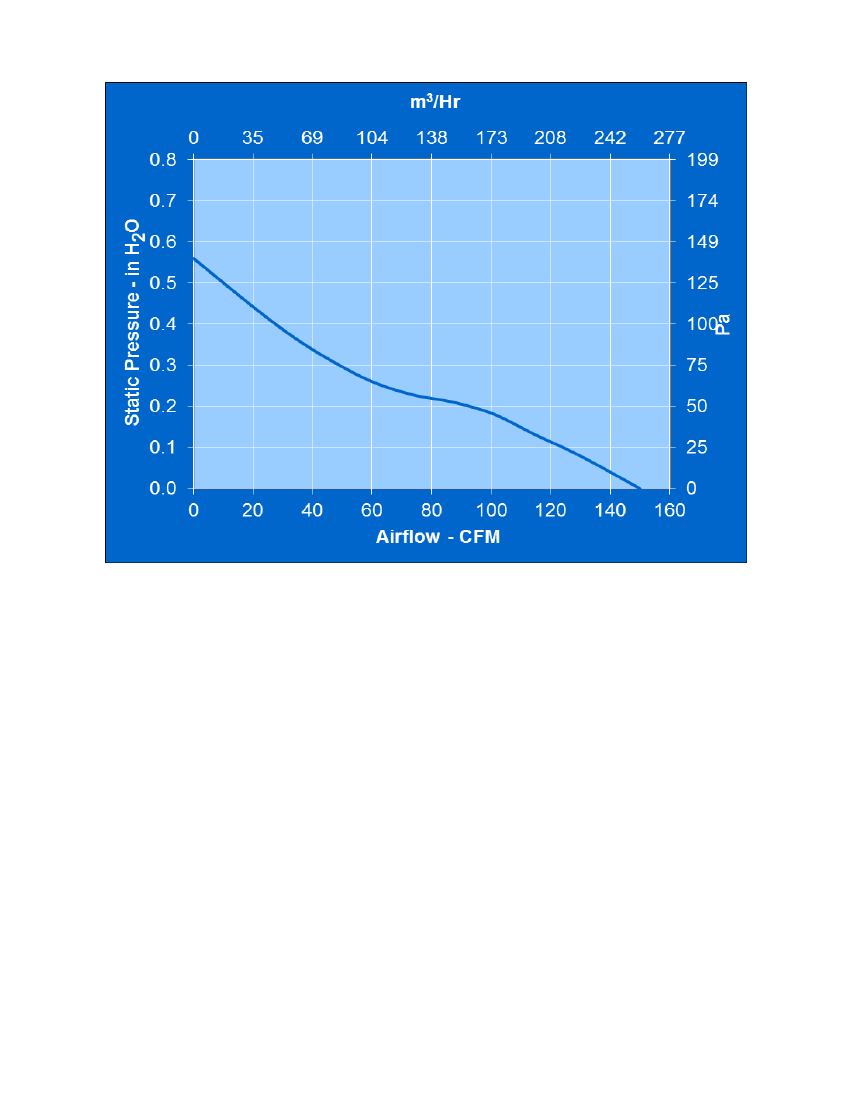

static pressure	-
Bearing type	ball
Fan type	Tube shaft type
characteristic	Automatic restart, rotor lock protection, PWM control, speed sensor (tachometer)
noise	53.6 dB（A）
Power (W)	15.1W
RPM	3300 RPM
Termination	4 leads
Intrusion protection	IP68 - dust and water resistant
Operating temperature	14 ~ 158°F （-10 ~ 70°C）
Approval	CE，cUL，UL
weight	-
Rated current	0.630A
voltage range	16 ~ 32VDC
Material - Frame	aluminum
Material - Blade	plastic
Service life at different temperatures	60,000 hours at 70°C

Preview

Download Datasheet

View All

SPECIFICATIONS

RoHS Compliant

Model Number:

Part Number:

Mechanical Drawing:

GLD24B3E2X-E3

17001171A

Rev：00

Jun. 12 2018

Motor:

Nominal Voltage

Operating Voltage Range

Nominal Running Current

Max. Locked Rotor Current

Running Power

Average Speed

Bearings

Air Flow

Acoustic

Construction:

Venturi:

Propeller:

= 24V DC

= 16 – 32V DC

= 0.63 Amps

= 1.35 Amps

= 15.1 Watts

= 3300 RPM

= Ball

= 150 CFM

= 53.6 dB(A)

Additional Features:

Brushless DC Motor

Solid State Circuitry

Electronic Locked Rotor Protected

Polarity Protection

Automatic Restart

Operating Temperature: -10

to +70

Storage Temperature:

-40

to +85

Environmental Protection:

Type 3(IP68)

TACHOMETER:

Output:

Ic:

Vcc:

Pulses per Revolution:

Isolated:

Open Collector

20 mA max.

32 Vdc max.

Die Cast Aluminum, Black.

Plastic, Black, UL 94V-0.

Life Expectancy:

This fan is designed for continuous duty life of 60,000

hours at 70C (L10).

Speed Control:

PWM: 200 ~ 2 KHz, Open Collector

<10% Duty: Off

10%~95% Duty: Linear Ramp

>95% Duty or Open Lead Wire: Full Speed

Agency Approvals:

UL, CUL,CE

Termination:

12”±1”(304.8±25.4mm) 22AWG UL1061 Leadwires

Red

= Power(+)

Black

= Return(-)

Blue/White = Tach output

Yellow

= PWM control
