TFT LCD Module
Product Specification
DT070CTFT
7.0” (800(RGB) x 480 DOTS) TFT Module
January 2, 2018
Remark:
Contents in this document are subject to change without notice. No part of this document
may be reproduced or transmitted in any form or by any means, electronic or mechanical,
for any purpose, without the express written permission of Displaytech Ltd.
Displaytech Ltd.
Tel: (852) 2311 2080 ; Fax: (852) 2722 6998 ; Email:
sales@displaytech.com.hk
Address: 31E Billion Plaza 2, No. 10 Cheung Yue Street, Cheung Sha Wan, Kowloon,
Hong Kong.
Website:
http://www.displaytech.com.hk
Displaytech Ltd.
DT070CTFT
Rev 1.0
Table of Content
Revision Record
............................................................................. 1
1.
Scope
......................................................................................... 3
2.
Application
................................................................................ 3
3.
General Information
.................................................................. 3
4.

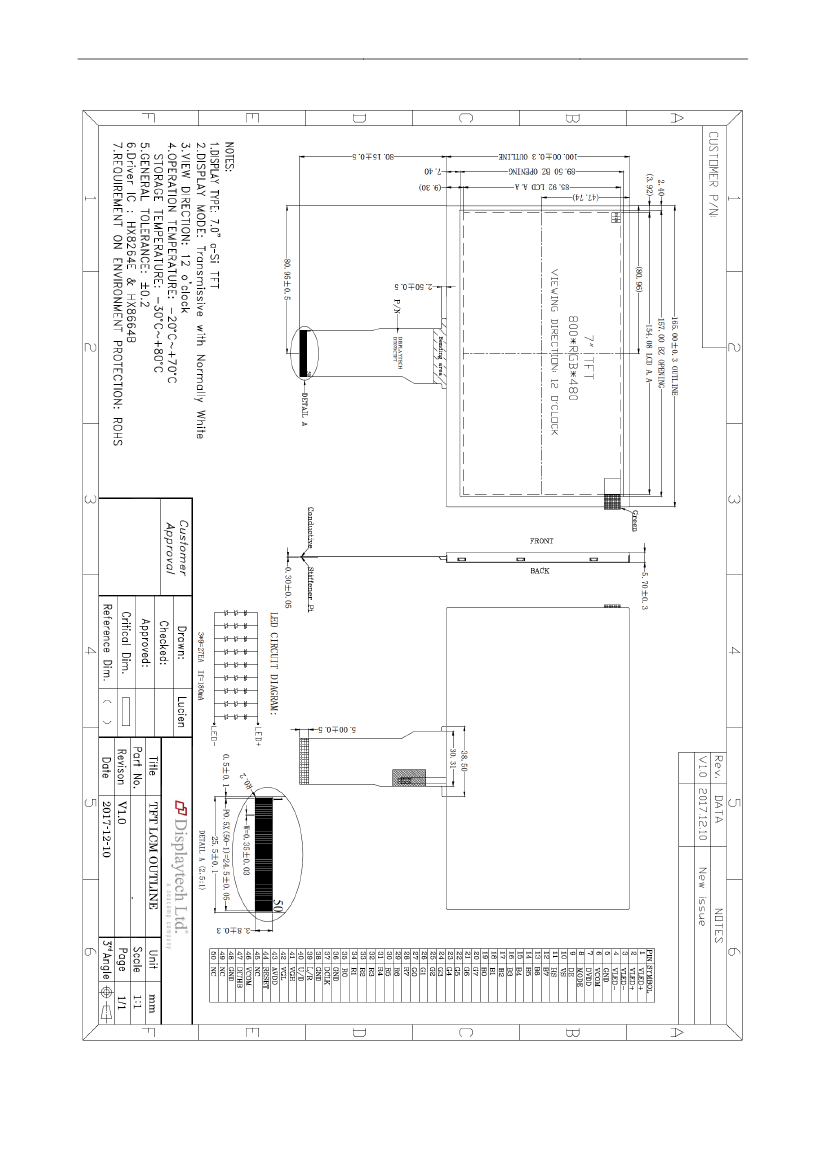

Outline Drawing
........................................................................ 4
5.
Interface Signals
....................................................................... 5
6.
Absolute Maximum Ratings
..................................................... 6
6.1 Electrical absolute maximum ratings .............................................. 6
6.2 Environment conditions .................................................................... 6
7.
Electrical Specifications
.......................................................... 7
7.1 Electrical characteristics .................................................................. 7
7.2 Current consumption ........................................................................ 7
7.3 LED backlight ..................................................................................... 7
8.
Command / AC Timing
............................................................. 7
8.1
8.2
8.3
8.4
8.5
AC Electrical Characteristics.......................................................... 7
Input Clock and Data Timing Diagram ........................................... 8
Timing ............................................................................................... 8
Data Input Format ............................................................................ 8
Power ON/OFF Sequence ............................................................... 9
9.
Optical Specification
.............................................................. 10
10.
Environmental / Reliability Tests
......................................... 12
11.
Precautions for Use of LCD Modules
.................................. 12
11.1 Safety .............................................................................................. 12
11.2 Handling ......................................................................................... 12
11.3 Static electricity ............................................................................. 13
11.4 Storage ........................................................................................... 13
11.5 Cleaning .......................................................................................... 13
11.6 Cautions for installing and assembling ....................................... 13
2
Displaytech Ltd.
DT070CTFT
Rev 1.0
1. Scope
This data sheet is to introduce the specification of DT070CTFT, active matrix TFT
module. It is composed of a color TFT-LCD panel, driver ICs, FPC and a backlight unit.
The 7.0” display area contains 800(RGB) x 480 pixels.
2. Application
Digital equipment which need color display, mobile navigator/video systems.
3. General Information
Item
Size
Resolution
Interface
Technology Type
Pixel Pitch
Pixel Configuration
Outline Dimension (W x H x D)
Active Area
Display Mode
Viewing Direction
Backlight Type
Controller/ driver
7.0
800(RGB) x 480
RGB 24-bit
a-Si TFT
0.1926 x 0.1790
R.G.B. Stripe
165.0 x 100.0 x 5.7
154.08 x 85.92
Transmissive, Normally White
12
LED
HX8264E & HX8664B
mm
mm
/
O’clock
/
Contents
Unit
inch
/
/
/
mm
3
stm32/stm8
