17001191A: DescriptionFAN DC IP68 PQD24B3E2X-E3; CategoryThermal management products; File Size218KB，2 Pages; ManufacturerComair Rotron; Environmental Compliance

Download Datasheet Parametric View All

17001191A Overview

FAN DC IP68 PQD24B3E2X-E3

17001191A Parametric

Parameter Name	Attribute value
Voltage - Rated	24VDC
size/dimensions	Round - 171.4mm diameter
width	50.80mm
airflow	235.0 CFM（6.58m³/min）
static pressure	-
Bearing type	ball
Fan type	Tube shaft type
characteristic	Automatic restart, rotor lock protection, PWM control, speed sensor (tachometer)
noise	54.3 dB（A）
Power (W)	24W
RPM	3400 RPM
Termination	4 leads
Intrusion protection	IP68 - dust and water resistant
Operating temperature	14 ~ 158°F （-10 ~ 70°C）
Approval	CE，cUL，UL
weight	-
Rated current	1.00A
voltage range	16 ~ 32VDC
Material - Frame	aluminum
Material - Blade	plastic
Service life at different temperatures	58,000 hours at 70°C

Preview

Download Datasheet

View All

SPECIFICATIONS

Model Number:

Part Number:

PQ24B3E2X-E3

17001191A

(RoHS Compliant)

Rev:00

Jun 12, 2018

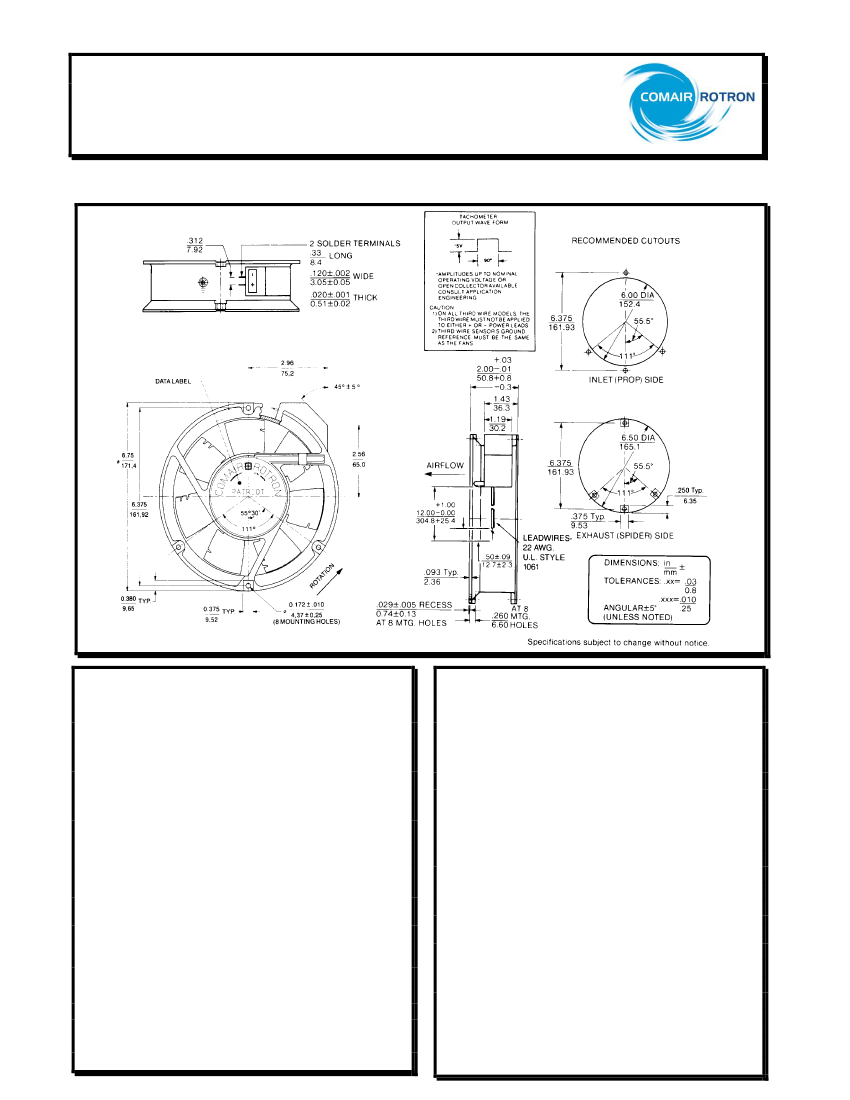

Mechanical Drawing:

Motor:

Nominal Voltage

Operating Voltage Range

Nominal Running Current

Locked Rotor Current

Running Power

Average Speed

Bearings

Air Flow

Acoustic

= 24 vdc

= 16 – 32 vdc

= 1.0 amps

= 2.00 amps

= 24 watts

= 3400 RPM

= Ball

= 235 CFM

= 54.3 dBA

Additional Features:

Brushless DC Motor

Polarity Protected

Locked Rotor Protection

Automatic Restart Capability

Operating Temperature:

Storage Temperature:

Environmental Protection:

-10C to 70C

-40C to 85C

Type 3(IP68)

TACHOMETER:

Output:

Ic:

Vcc:

Pulses per Revolution:

Isolated:

Open Collector

20 mA max.

32 Vdc max.

2

No

Construction:

Venturi: Single piece, die-cast aluminum, Black

Propeller: Plastic, Black, UL 94V-0

Life Expectancy:

This fan is designed for continuous duty life of 58,000

hours at 70C.

Speed Control:

PWM: 200 ~ 2 KHz, Open Collector

<10% Duty: Off

10%~95% Duty: Linear Ramp

>95% Duty or Open Lead Wire: Full Speed

Termination:

12”±1”(304.8±25.4mm) 22AWG UL1061 Leadwires

Red

= Power(+)

Black

= Return(-)

Blue/White = Tach output

Yellow

= PWM control

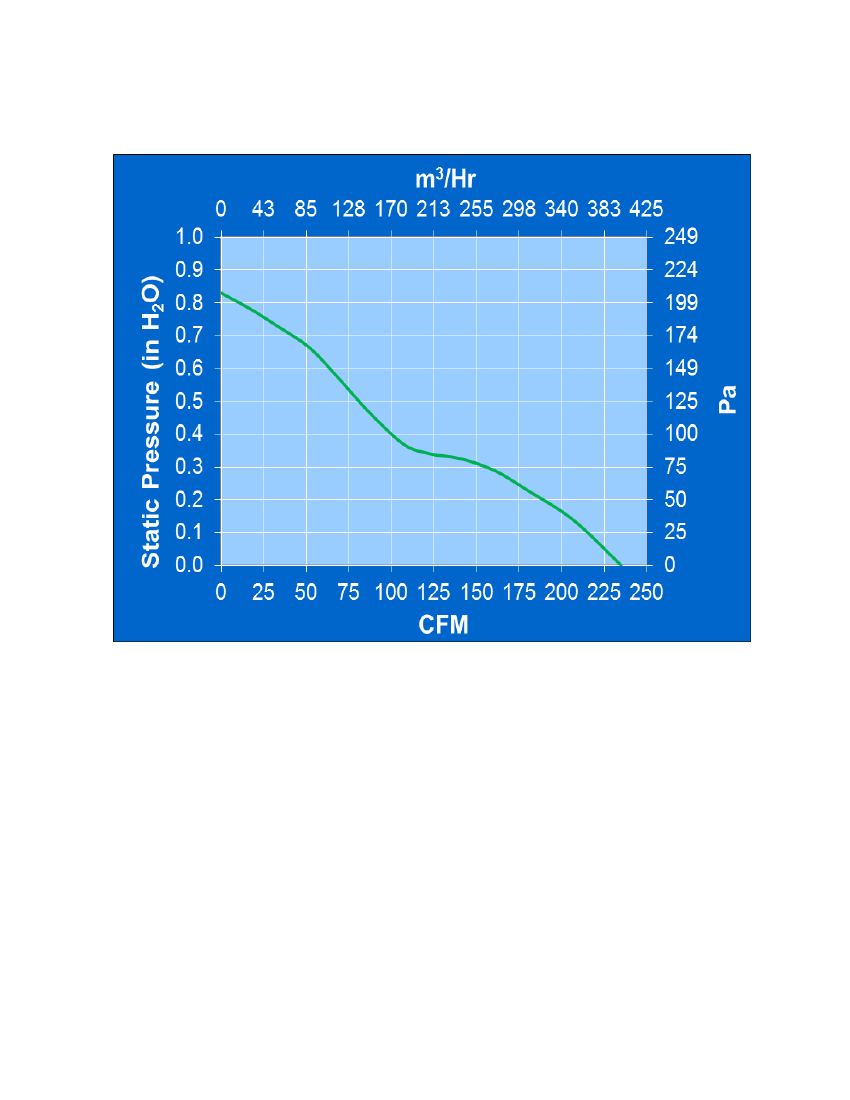

Agency Approvals:

UL, CUL，CE
