17001206A: DescriptionPQD48B3-E3; CategoryThermal management products; File Size210KB，2 Pages; ManufacturerComair Rotron; Environmental Compliance

Download Datasheet Parametric View All

17001206A Overview

PQD48B3-E3

17001206A Parametric

Parameter Name	Attribute value
Voltage - Rated	48VDC
size/dimensions	Round - 171.4mm diameter
width	50.80mm
airflow	235.0 CFM（6.58m³/min）
static pressure	-
Bearing type	ball
Fan type	Tube shaft type
characteristic	Automatic restart, rotor lock protection
noise	54.3 dB（A）
Power (W)	22.1W
RPM	3400 RPM
Termination	2 leads
Intrusion protection	IP68 - dust and water resistant
Operating temperature	14 ~ 158°F （-10 ~ 70°C）
Approval	CE，cUL，UL
weight	-
Rated current	1.00A
voltage range	36 ~ 60VDC
Material - Frame	aluminum
Material - Blade	plastic
Service life at different temperatures	58,000 hours at 70°C

Preview

Download Datasheet

View All

SPECIFICATIONS

Model Number:

Part Number:

PQD48B3-E3

17001206A

(RoHS Compliant)

Version: 00

Jun 13, 2018

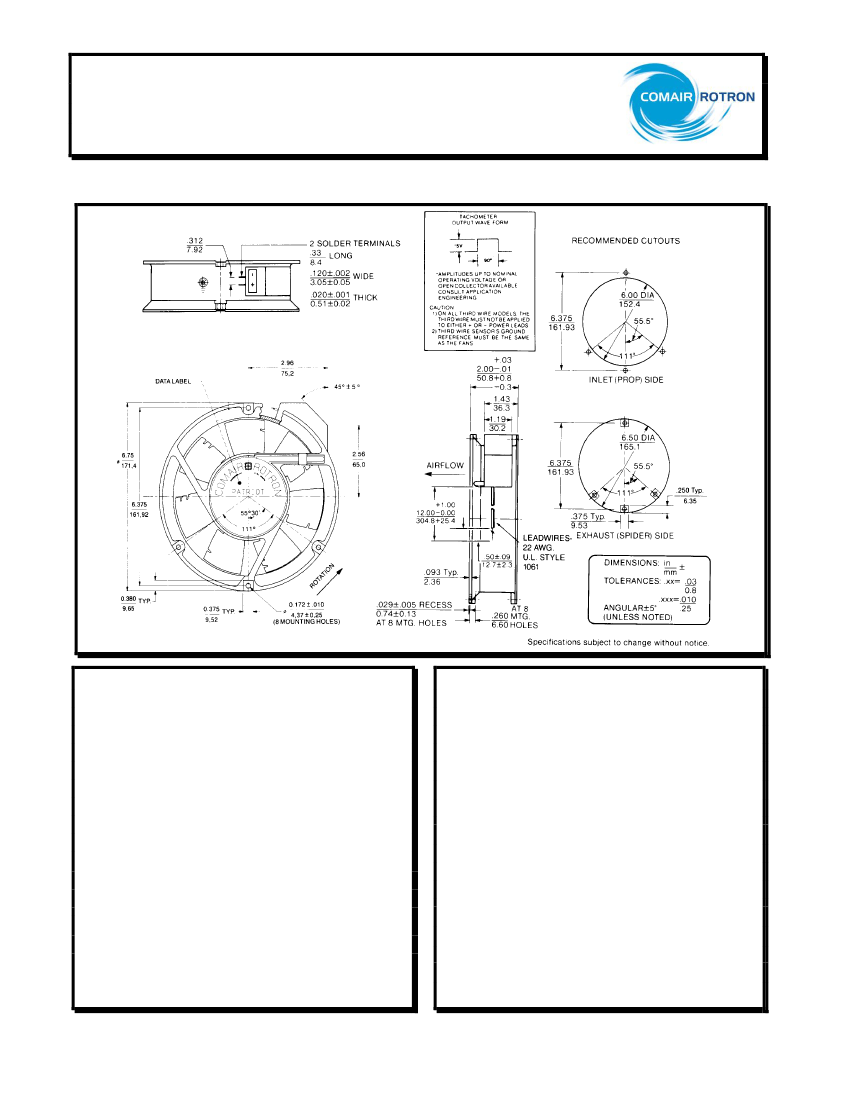

Mechanical Drawing:

Motor:

Nominal Voltage

Operating Voltage Range

Nominal Running Current

Locked Rotor Current

Running Power

Average Speed

Bearings

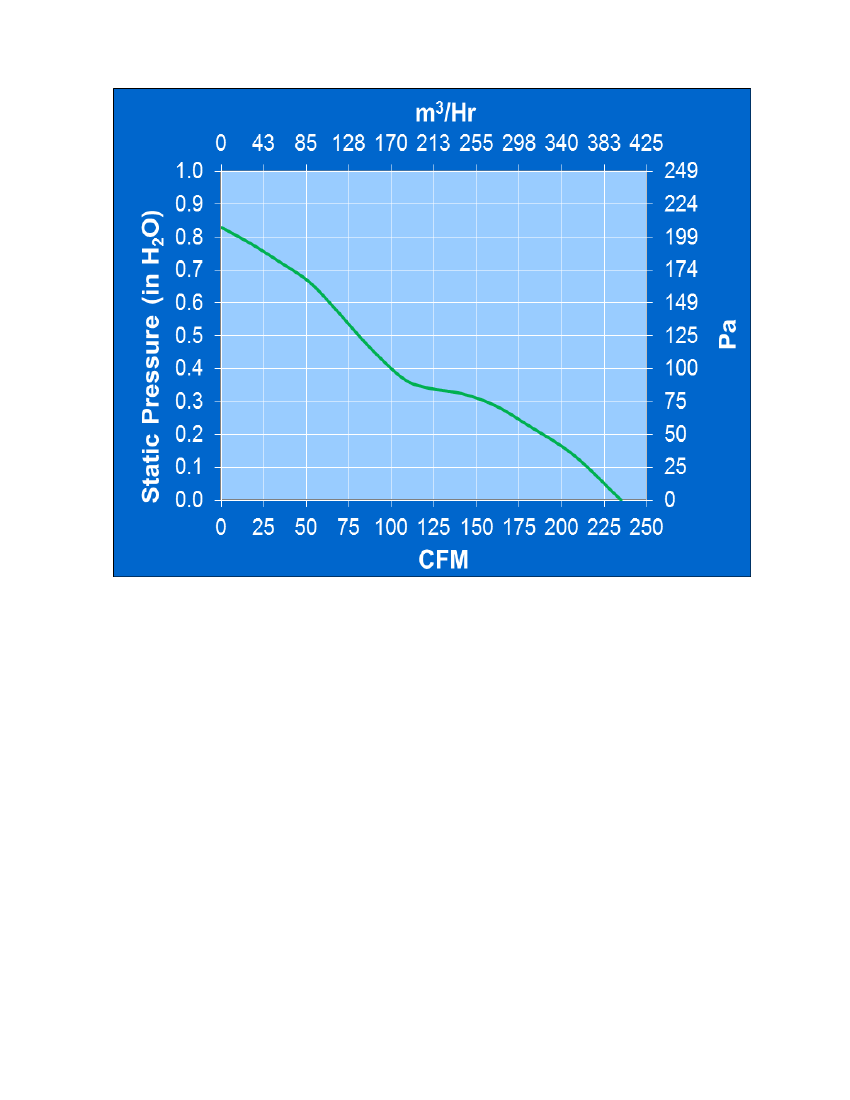

Air Flow

Acoustic

= 48 vdc

= 36 – 60 vdc

= 0.46 amps

= 1.00 amps

= 22.1 watts

= 3400 RPM

= Ball

= 235 CFM

= 54.3 dBA

Additional Features:

Brushless DC Motor

Polarity Protected

Locked Rotor Protection

Automatic Restart Capability

Operating Temperature:

Storage Temperature:

Environmental Protection:

-10C to 70C

-40C to 85C

Type 3(IP68)

Termination:

12” Lead wires, AWG 22, UL 1061

Red

= Power (+)

Black = Return (-)

Construction:

Venturi: Single piece, die-cast aluminum, Black

Propeller: Plastic, Black, UL 94V-0

Life Expectancy:

This fan is designed for continuous duty life of

58,000 hours at 70C.

Agency Approvals:

UL, CUL，CE
