1525694 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1525694

1525694: DescriptionCABLE 5POS; CategoryThe connector The connector; File Size110KB，5 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

1525694 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1525694	-	-	View	Buy Now

1525694 Overview

CABLE 5POS

1525694 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	PHOENIX CONTACT
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Is Samacsys	N
Other features	SHIELDED
Back shell type	SOLID
Body/casing type	SOCKET
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ZINC
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	1525694
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Total number of contacts	5
Base Number Matches	1

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/pi/products/1525694

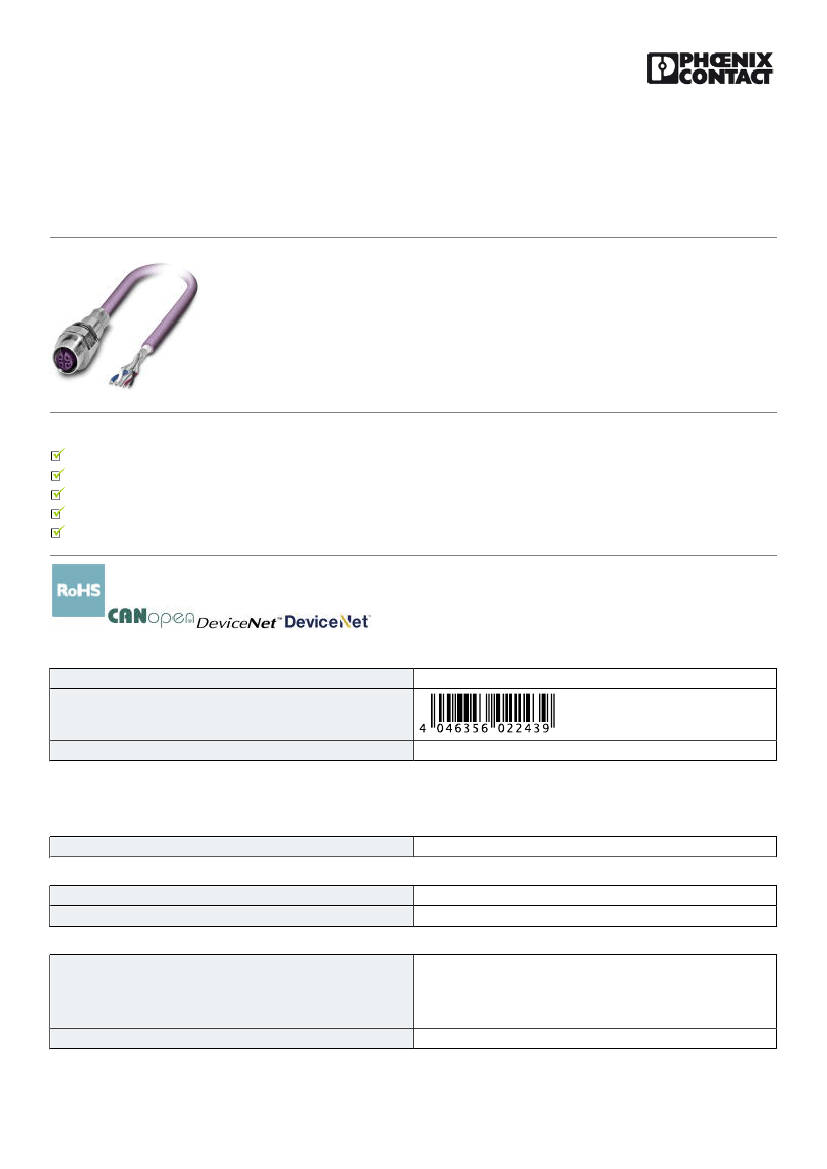

Bus system flat-type plug - SACCEC-M12FS-5CON-M16/

2,0-920 - 1525694

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Bus system flush-type socket, DeviceNet/CANopen, 5-pos., M12, shielded, A-coded, front/screw mounting,

with M16 thread, can be positioned, with 2 m bus cable, 2 x 0.2 mm²; 2 x 0.32 mm²

Your advantages

Pre-assembled with cables in various standard lengths for immediate use

Customer-specific assemblies and cable lengths can be supplied

Sealed on the cable side for optimum tightness of seal

Cable designs for all common networks and fieldbuses

For high transmission safety: shield connection to the housing with optional EMC nut

Key Commercial Data

Packing unit

GTIN

4046356022439

1 pc

Technical data

Dimensions

Length of cable

Ambient conditions

Ambient temperature (operation)

Degree of protection

-25 °C ... 85 °C (Plug / socket)

IP67

General

Note

The electrical and mechanical data specified assume that the connector

pair is correctly locked and mounted. If the connector is unlocked and if

there is a danger of contamination, the connector must be sealed using

a protective cap > IP54. Influences arising from litz wires, cables or PCB

assembly must also be taken into consideration.

10/23/2018 Page 1 / 5

Rated current at 40°C
