17001197A Overview

FAN DC IP68 PQD24U3E2X-E3

17001197A Parametric

Parameter Name	Attribute value
Voltage - Rated	24VDC
size/dimensions	Round - 171.4mm diameter
width	50.80mm
airflow	332.0 CFM (9.30m³/min)
static pressure	-
Bearing type	ball
Fan type	Tube shaft type
characteristic	Automatic restart, rotor lock protection, PWM control, speed sensor (tachometer)
noise	64.0 dB（A）
Power (W)	40.8W
RPM	4830 RPM
Termination	4 leads
Intrusion protection	IP68 - dust and water resistant
Operating temperature	14 ~ 158°F （-10 ~ 70°C）
Approval	CE，cUL，UL
weight	-
Rated current	1.70A
voltage range	16 ~ 32VDC
Material - Frame	aluminum
Material - Blade	Polycarbonate (PC)
Service life at different temperatures	58,000 hours at 70°C

Preview

Download Datasheet

View All

SPECIFICATIONS

Model Number:

Part Number:

PQD24U3E2X-E3

17001197A

Version: 00

Jun 12, 2018

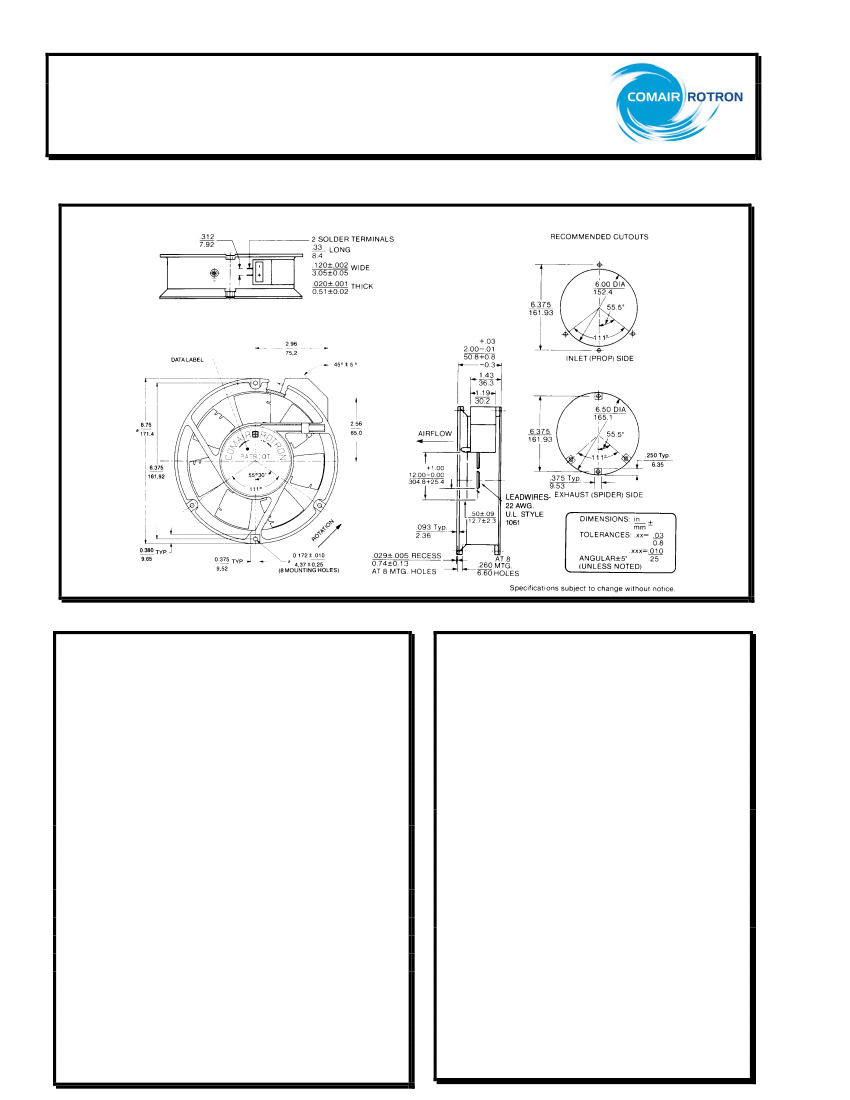

Mechanical Drawing:

Motor:

Nominal Voltage

Operating Voltage Range

Nominal Running Current

Locked Rotor Current

Running Power

Average Speed

Bearings

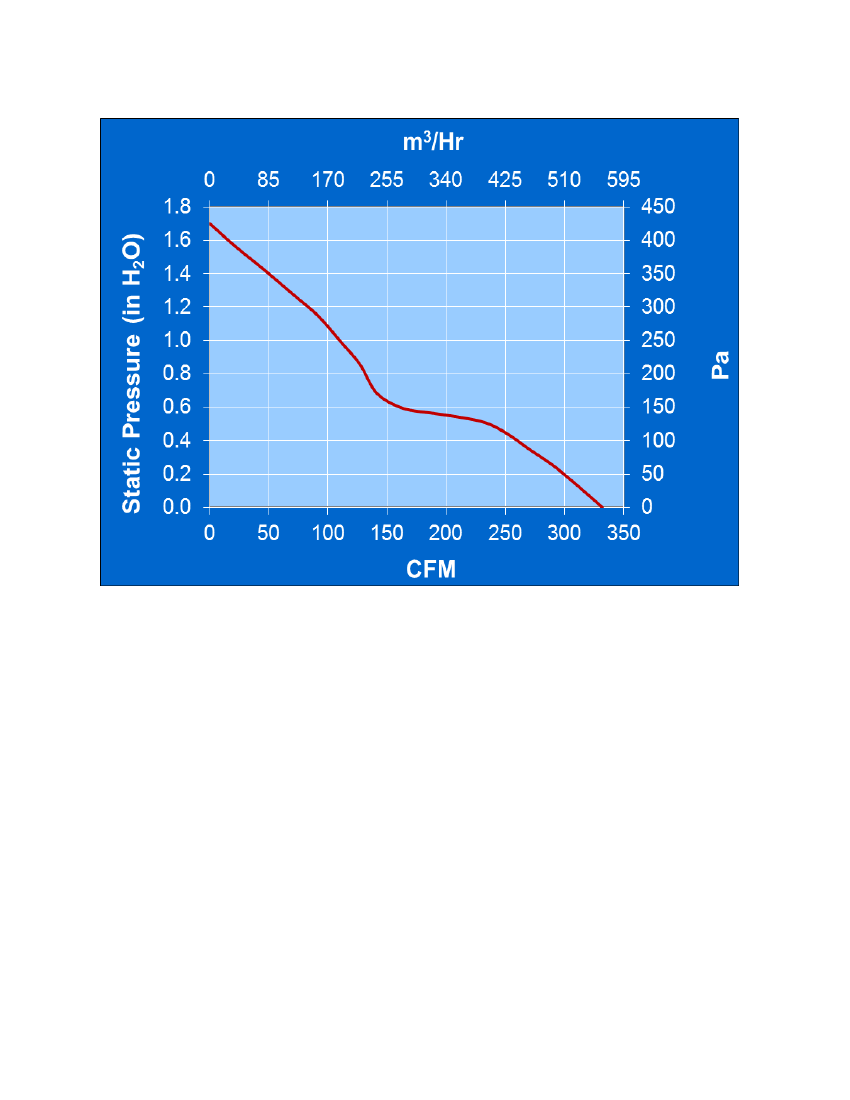

Air Flow

Acoustic

= 24 VDC

= 16 - 32 VDC

= 1.70amps

= 3.5A

= 40.8 watts

= 4830 RPM

= Ball

= 332 CFM

= 64 dBA

Additional Features:

Brushless DC Motor

Soft Start Inrush Current

Electronic Locked Rotor Protection

Polarity Protected

Automatic Restart Capability

Operating Temperature:

-10C to 70C

Storage Temperature:

-40C to 85

Environmental Protection:

Type 3(IP68)

Tachometer Specifications:

Output:

Open Collector

Ic:

20 mA. Max

Vcc:

32 VDC Max.

Pulses per Revolution: 2

Isolated:

Construction:

Venturi: Die-Cast Aluminum, Black

Propeller: Polycarbonate, Black, UL 94V-0

Life Expectancy:

This fan is designed for continuous duty life of 58,000

hours at 70C.

Speed Control:

PWM: 200 ~ 2 KHz, Open Collector

<10% Duty: Off

10%~95% Duty: Linear Ramp

>95% Duty or Open Lead Wire: Full Speed

Termination:

12”±1”(304.8±25.4mm) 22AWG UL1061 Leadwires

Red

= Power(+)

Black

= Return(-)

Blue/White = Tach output

Yellow

= PWM control

Agency Approvals:

UL，CUL ,CE
