Junction Boxes
Pushbutton EnclosurEs
Spec-00010
e
763.422.2211
763.422.2600
Mild steel
Junction Boxes
PushButton enclosures

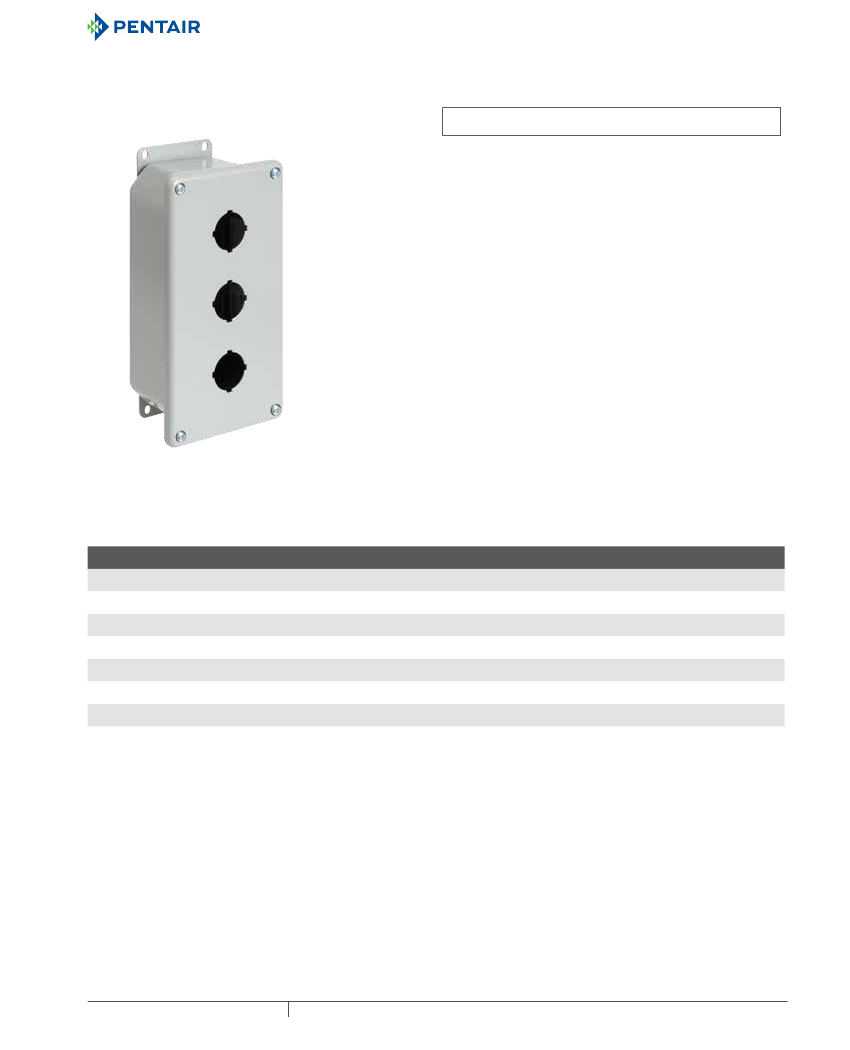

deep pushButton enclosures, type 12
industry stAndArds
UL 508A Listed; Type 12, 13; File No. E61997
cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997
NEMA/EEMAC Type 12, 13
CSA File Number 42186: Type 12
IEC 60529, IP65
Designed for pushbuttons and switches, the extra depth of these
enclosures accommodates additional pushbutton contact blocks.
ApplicAtion
speciFicAtions
•
•
•
•
•
•
•
•
•
•
14 gauge steel
Seams continuously welded and ground smooth
Captivated cover screws thread into sealed wells
Bonding provision on cover
Grounding stud on body
Oil-resistant gasket
Enclosures with more than one column of pushbutton holes have
internal detachable hinge to hold cover open during wiring
External welded-on mounting brackets for easy installation
Factory stamped 4-way pushbutton holes
22.5-mm size holes
ANSI 61 gray polyester powder paint inside and out
See also Accessories.
Industrial Corrosion Inhibitors
HOL-SEALERS Hole Seals
Tamper-Resistant Screws
Bulletin: pB1
Finish
Accessories
Standard Product
Catalog Number
E1PBGXM
E2PBGXM
E3PBGXM
E4PBGXM
E6PBGXM
E9PBGXM
E12PBGXM

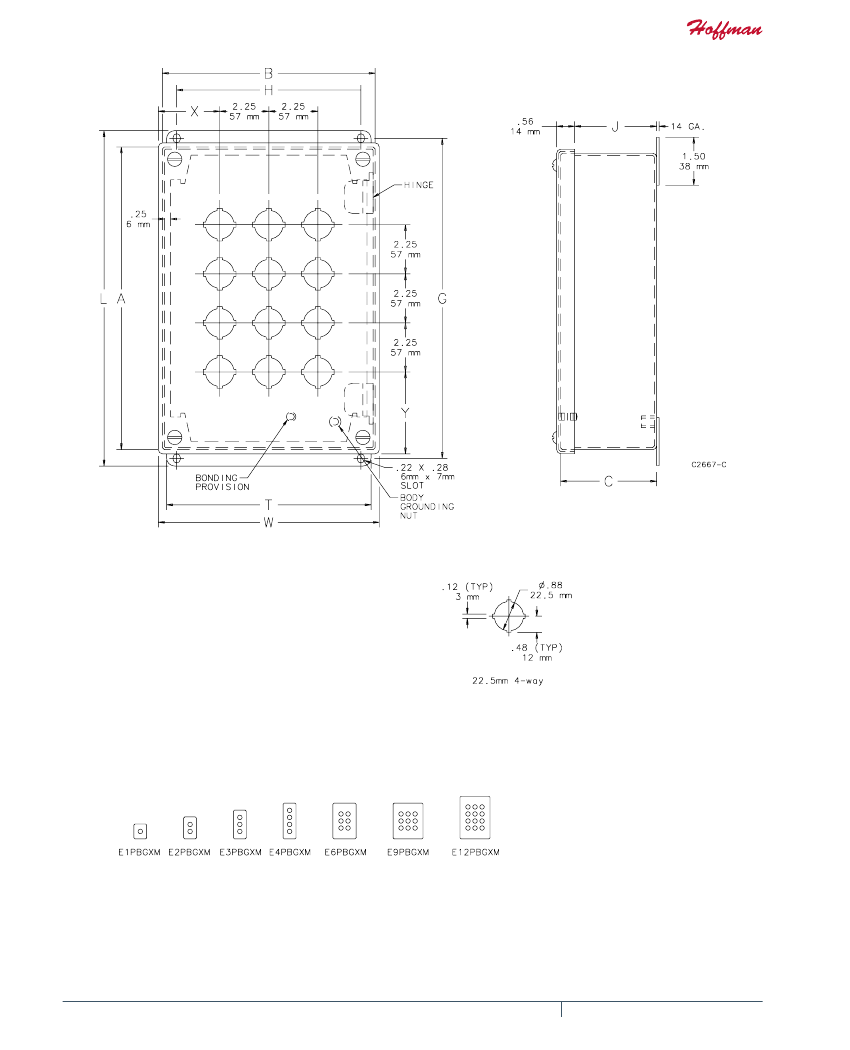

AxBxC in./mm
3.25 x 2.75 x 3.50
83 x 70 x 89
5.12 x 2.75 x 3.50
130 x 70 x 89
7.25 x 2.75 x 3.50
184 x 70 x 89
9.50 x 2.75 x 3.50
241 x 70 x 89
8.50 x 5.00 x 4.25
216 x 127 x 108
8.50 x 7.25 x 4.25
216 x 184 x 108
10.38 x 7.25 x 4.25
264 x 184 x 108
Number of Holes
1
2
3
4
6
9
12
Mounting G x H
in./mm
3.75 x 1.88
95 x 48
5.62 x 1.88
143 x 48
7.75 x 1.88
197 x 48
10.00 x 1.88
254 x 48
9.00 x 4.12
229 x 105
9.00 x 5.63
229 x 162
10.88 x 5.63
276 x 162
Overall L x W
in./mm
4.25 x 2.97
108 x 75
6.12 x 2.97
155 x 75
8.25 x 2.97
210 x 75
10.50 x 2.97
267 x 75
9.50 x 5.22
241 x 133
9.50 x 7.47
241 x 190
11.38 x 7.47
289 x 190
J
in./mm
3.09
78
3.09
78
3.09
78
3.09
78
3.84
98
3.84
98
3.84
98
T
in./mm
2.50
64
2.50
64
2.50
64
2.50
64
4.75
121
6.25
159
6.25
159
X
in./mm
1.48
38
1.48
38
1.48
38
1.48
38
1.48
38
1.48
38
1.48
38
Y
in./mm
1.73
44
1.55
39
1.48
38
1.48
38
2.11
54
2.11
54
1.92
49
1
Mild steel
SUBJECT TO CHANGE WITHOUT NOTICE
EQUIPMENT PROTECTION
Spec-00010 E
