Sensor/actuator box - SACB-4/ 4-L- 5,0PUR SCO P - 1452576
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)

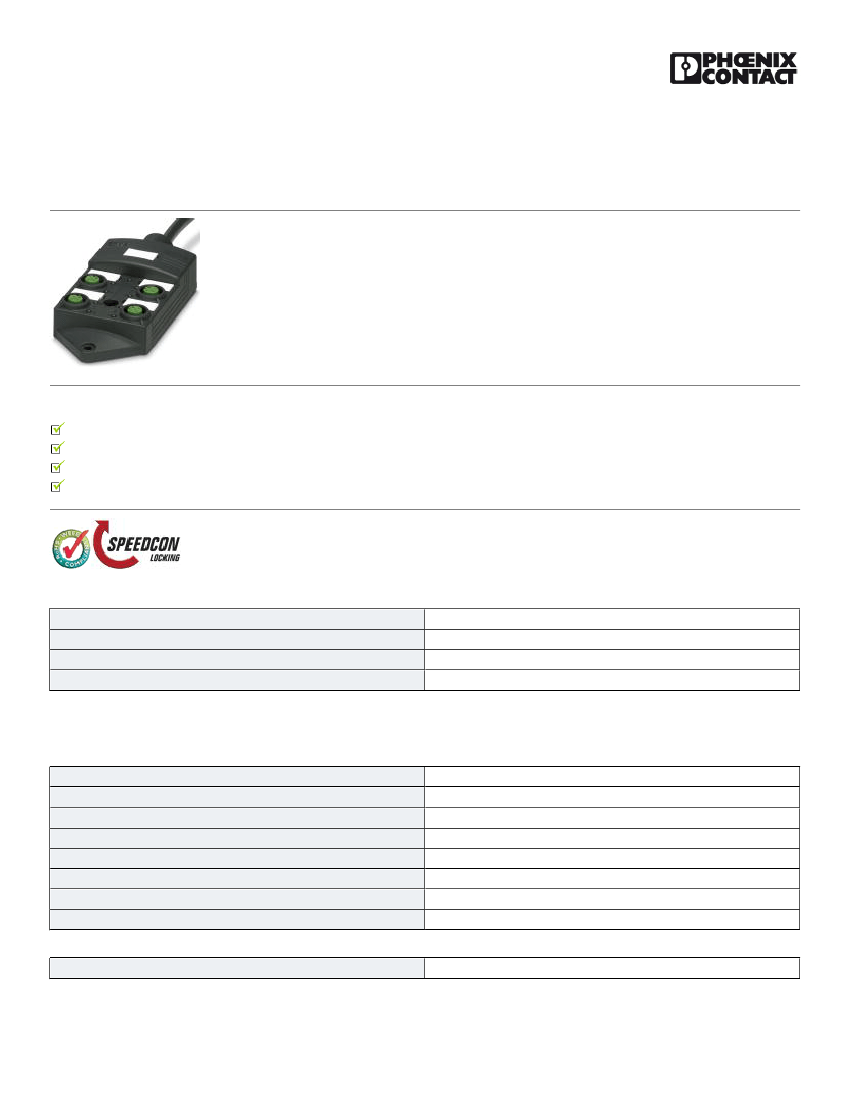

Sensor/actuator box, Connection method: M12-SPEEDCON-socket Plastic, Number of slots: 4, Number of
positions: 4, Slot assignment: Single, Status indication: Yes, pnp; Master cable connection: Fixed connection
180°, PUR/PVC, Cable length: 5 m, Shielding: No
Product Features
Safety in the field, thanks to molded housing and high degree of protection
Flexible, distributed bundling of signals in one master cable
Convenient: increased machine availability thanks to quick and easy diagnostics
Save time, thanks to installation with SPEEDCON fast locking system
Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 PCE
520.0 GRM
85444290
Poland
Technical data
General
Rated voltage
Max. operating voltage U
max
Current carrying capacity per I/O signal
Current carrying capacity per slot
Total rated current
Number of positions
Number of slots
Sensor/actuator connection system
24 V DC
30 V DC
2A
4A
12 A
4
4
M12-SPEEDCON-socket
Ambient conditions
Degree of protection
IP65
11/26/13 Page 1 / 7
https://www.phoenixcontact.com/us/products/1452576
Sensor/actuator box - SACB-4/ 4-L- 5,0PUR SCO P - 1452576
Technical data
Ambient conditions
IP67
Ambient temperature (operation)
-25 °C ... 80 °C
-40 °C ... 90 °C (for fixed installation)
-5 °C ... 80 °C (for flexible installation)
Local diagnostics function
Local diagnostics
Supply voltage Green LED
Status display I/O Yellow LED
Master cable connection data
Connection method
Length of cable
Tightening torque slot sensor/actuator cable
Fixed connection
5m
0.4 Nm
Insulation material
Housing material
Material of the moulding mass
Contact material
Contact surface material
Contact carrier material
Material of threaded sleeve
Material, O-ring
PBT
PUR
Cu alloy
Gold-plated
PA
PBT
NBR
Pin assignment
Slot/position = Wire color or connection
1 / 4 (A) = WH
2 / 4 (A) = GN
3 / 4 (A) = YE
4 / 4 (A) = GY
1-4 / 1 (+ 24 V) = BN
1-4 / 3 (0 V) = BU
1-4 / 5 (PE) = GN/YE
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
UL AWM style
Conductor cross section
AWG signal line
PUR/PVC black
PUR
LiYY11Y-HF
20549
4x 0.34 mm² (signal line)
3x 0.75 mm² (power line)
22
11/26/13 Page 2 / 7
https://www.phoenixcontact.com/us/products/1452576
Sensor/actuator box - SACB-4/ 4-L- 5,0PUR SCO P - 1452576
Technical data
Cable
AWG power supply
Conductor structure signal line
Conductor structure, voltage supply
Core diameter including insulation
Thickness, insulation
Overall twist
External sheath, color
External cable diameter D
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Cable weight
Outer sheath, material
Material, inner sheath
Material conductor insulation
Conductor material
Nominal voltage, cable
Test voltage, cable
Special properties
Flame resistance
Resistance to oil
Other resistance
Ambient temperature (operation)
18
19x 0.15 mm
42x 0.15 mm
1.3 mm ±0.1 mm (signal line)
1.8 mm ±0.1 mm (power line)
≥ 0.15 mm (Inner sheath)
≥ 0.38 mm (Outer cable sheath)
Wires twisted in layers
Black RAL 9005
6.9 mm ± 0.2 mm
7.5 x D
10 x D
1500000
69 mm
2m
2 m/s
77.9 kg/km
PUR
PVC
PVC
Bare Cu litz wires
300 V
2000 V
Silicone-free
DIN EN 50265
As per VDE 0472 Part 803
Highly resistant to acids, alkaline solutions and solvents
-40 °C ... 90 °C (cable, fixed installation)
-5 °C ... 80 °C (cable, flexible installation)
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
27140815
27140815
27143423
27143423
11/26/13 Page 3 / 7
https://www.phoenixcontact.com/us/products/1452576
Sensor/actuator box - SACB-4/ 4-L- 5,0PUR SCO P - 1452576
Classifications
eCl@ss
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27279219
27279219
27279219
ETIM
ETIM 4.0
ETIM 5.0
EC002585
EC002585
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31261501
31261501
31261501
31261501
31261501
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / GOST / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
Nominal voltage UN
24 V
11/26/13 Page 4 / 7
https://www.phoenixcontact.com/us/products/1452576
Sensor/actuator box - SACB-4/ 4-L- 5,0PUR SCO P - 1452576
Approvals
cUL Recognized
Nominal voltage UN
24 V
GOST
cULus Recognized
Accessories
Accessories
Device marking

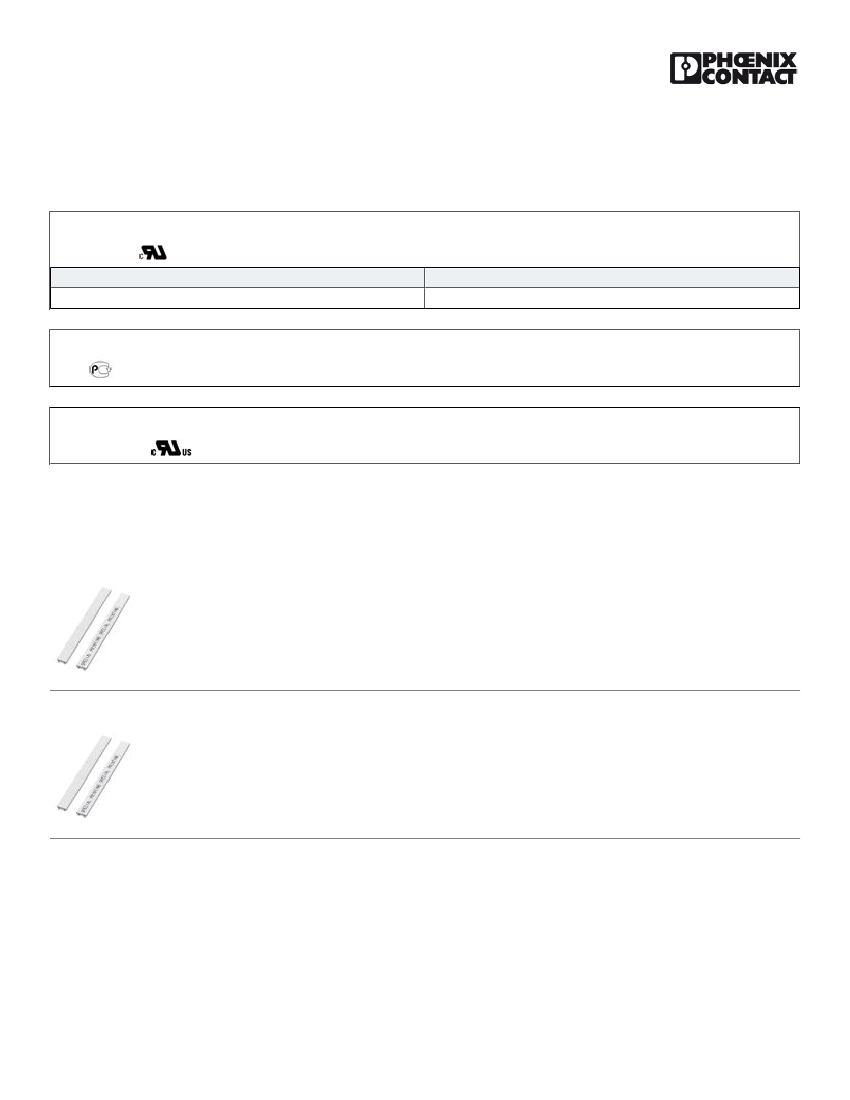

Contactor marker – zack marker strip - SS-ZB 17,5 WH - 0804963
Contactor marker – zack marker strip, Strip, white, Unlabeled, Can be labeled with: Plotter, Mounting type: Snap into flat
marker groove, Lettering field: 17.5 x 8 mm
Contactor marker – zack marker strip - SS-ZB 17,5 YE - 0804976
Contactor marker – zack marker strip, Strip, yellow, Unlabeled, Can be labeled with: Plotter, Mounting type: Snap into flat
marker groove, Lettering field: 17.5 x 8 mm
Labeled device marker
