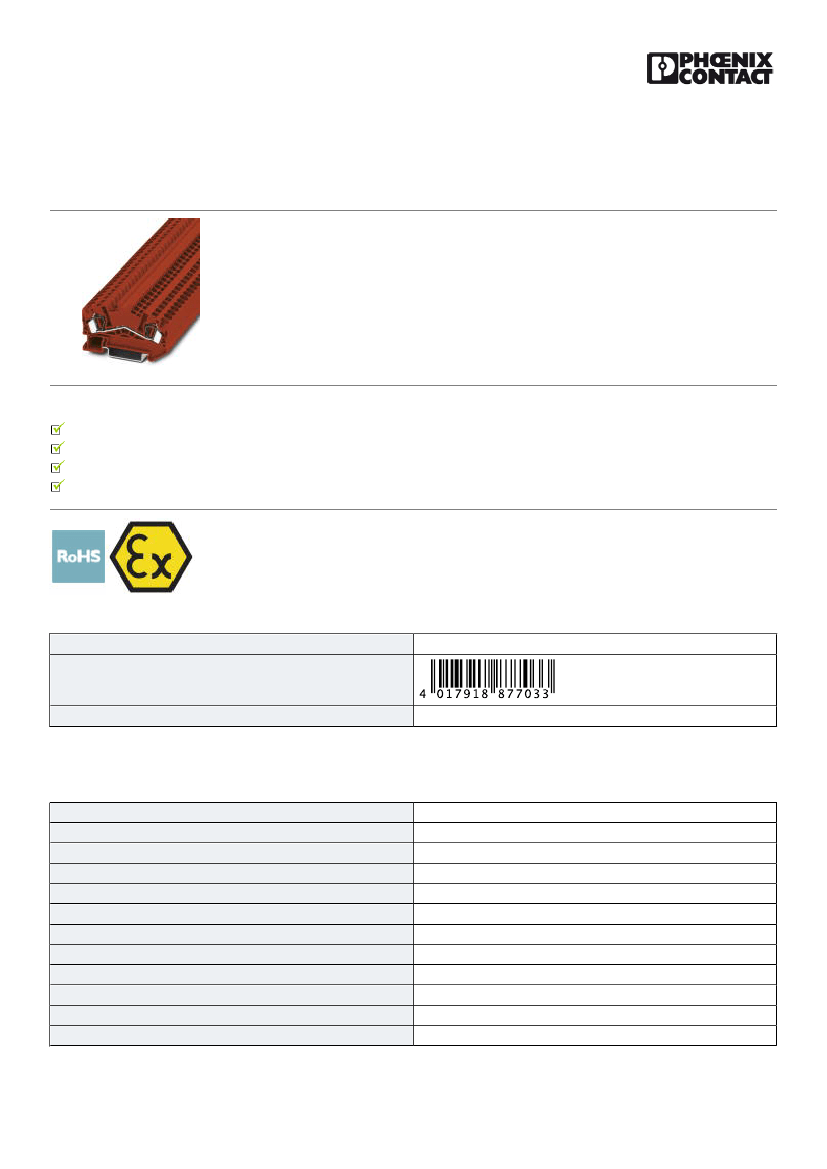

Feed-through terminal block - STS 4 RD - 3037494
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, connection method: Spring-cage
connection, number of connections: 2, cross section:0.08 mm² - 6 mm², AWG: 28 - 10, width: 6.2 mm, color:
red, mounting type: NS 35/7,5, NS 35/15
Your advantages
User-friendly wiring thanks to front connection
Angled conductor entry for use in flat terminal boxes
Large space saving when used in concealed wiring systems
Feed-through terminal blocks with 2, 3 or 4 connections have the same shape
Key Commercial Data
Packing unit
GTIN
GTIN
4017918877033
50 pc
Technical data
General
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum power dissipation for nominal condition
1
2
1
4 mm²
red
PA
V0
8 kV
3
III
I
1.02 W
10/23/2018 Page 1 / 5
https://www.phoenixcontact.com/pi/products/3037494
Feed-through terminal block - STS 4 RD - 3037494
Technical data
General
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
38 A (with 6 mm² conductor cross section)
32 A
800 V
Yes
Dimensions
Width
End cover width
Length
Height NS 35/7,5
Height NS 35/15
6.2 mm
2.2 mm
64.5 mm
43 mm
50.5 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Stripping length
Internal cylindrical gage
Spring-cage connection
IEC 60947-7-1
0.08 mm²
6 mm²
28
10
0.08 mm²
4 mm²
28
12
0.14 mm²
0.14 mm²
4 mm²
0.5 mm²
1 mm²
IEC/EN 60079-7
0.2 mm²
6 mm²
24
10
0.2 mm²
4 mm²
10 mm
A4
Conductor cross section flexible, with ferrule without plastic sleeve max. 4 mm²
Standards and Regulations
Connection in acc. with standard
CSA
10/23/2018 Page 2 / 5
https://www.phoenixcontact.com/pi/products/3037494
Feed-through terminal block - STS 4 RD - 3037494
Technical data
Standards and Regulations
IEC 60947-7-1
Flammability rating according to UL 94
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
Approvals
Approvals
Approvals
CSA / UL Recognized / VDE Gutachten mit Fertigungsüberwachung / cUL Recognized / IECEE CB Scheme / DNV GL / EAC / KR / cULus
Recognized
Ex Approvals
ATEX / IECEx / EAC Ex
Approval details
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
B
600 V
30 A
28-10
http://www.csagroup.org/services-industries/product-listing/
C
600 V
30 A
28-10
13631
UL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
B
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
600 V
30 A
28-10
FILE E 60425
600 V
30 A
28-10
10/23/2018 Page 3 / 5
https://www.phoenixcontact.com/pi/products/3037494
Feed-through terminal block - STS 4 RD - 3037494
Approvals
VDE Gutachten mit
Fertigungsüberwachung
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www2.vde.com/de/Institut/Online-Service/
VDE-gepruefteProdukte/Seiten/Online-Suche.aspx
800 V
32 A
0.2-4.0
40009034
cUL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
B
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
600 V
30 A
28-10
FILE E 60425
600 V
30 A
28-10
IECEE CB Scheme
Nominal voltage UN
mm²/AWG/kcmil
DNV GL
4
http://www.iecee.org/
DE1-51420
800 V
http://exchange.dnv.com/tari/
TAE00001CS
EAC
RU C-
DE.A*30.B.01742
KR
http://www.krs.co.kr/eng/main/main.aspx
HMB36894-EL001
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
10/23/2018 Page 4 / 5
https://www.phoenixcontact.com/pi/products/3037494
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
10/23/2018 Page 5 / 5
