HM2P09PKE125GFLF datasheet, PDF

Datasheet> All Categories > The connector> HM2P09PKE125GFLF

HM2P09PKE125GFLF: DescriptionCONN HEADER 55POS TYPE C VERT; CategoryThe connector; File Size127KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

HM2P09PKE125GFLF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HM2P09PKE125GFLF	-	-	View	Buy Now

HM2P09PKE125GFLF Overview

CONN HEADER 55POS TYPE C VERT

HM2P09PKE125GFLF Parametric

Parameter Name	Attribute value
Connector type	Connector, male pin
Connector style	C 11
Number of pins	66 (55 + 11 ground)
Number of pins loaded	all
spacing	0.079"（2.00mm）
Number of rows	5 + 1
Installation type	Through hole
Termination	Press fit
Connector usage	-
Contact plating	gold
Contact plating thickness	flash
Rated current	1.5A
Rated voltage	750Vrms
Operating temperature	-55°C ~ 125°C
characteristic	board guide

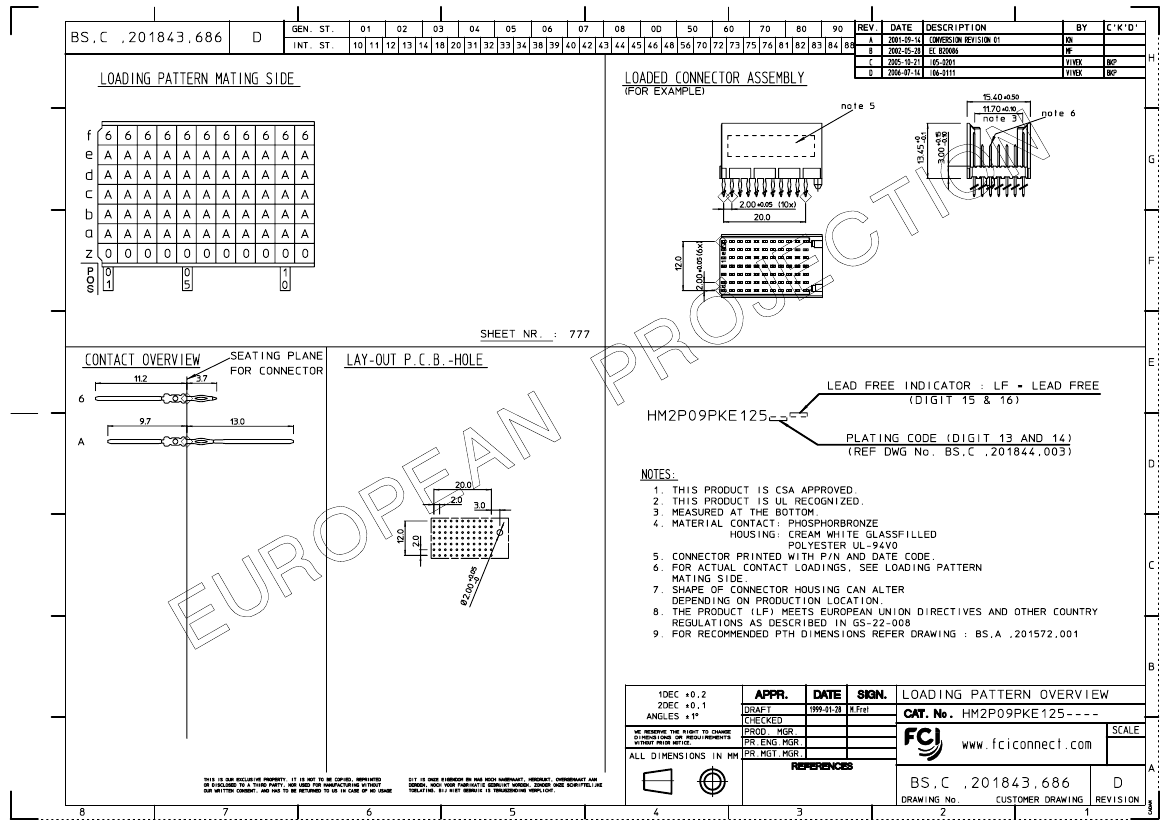

Preview

Download Datasheet

View All

PDM: Rev:D

STATUS:

Released

Printed: Dec 02, 2007

HM2P09PKE125GFLF Related Products

	HM2P09PKE125GFLF	HM2P09PKE125GF	HM2P09PKE125GLLF	HM2P09PKE125GL	HM2P09PKE125GCLF	HM2P09PKE125GC
Description	CONN HEADER 55POS TYPE C VERT	CONN HEADER 55POS TYPE C VERT	Board Connector, 66 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 66 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 66 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 66 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal
Connector type	Connector, male pin	Connector, male pin	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Installation type	Through hole	Through hole	BOARD	BOARD	BOARD	BOARD
Reach Compliance Code	-	-	compliant	compliant	compli	compliant
Other features	-	-	11 GROUND SHIELD CONTACTS AVAILABLE IN 1 ROW	11 GROUND SHIELD CONTACTS AVAILABLE IN 1 ROW	11 GROUND SHIELD CONTACTS AVAILABLE IN 1 ROW	11 GROUND SHIELD CONTACTS AVAILABLE IN 1 ROW
Contact to complete cooperation	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	-	-	MATTE TIN	TIN LEAD	MATTE TIN	TIN LEAD
Contact point gender	-	-	MALE	MALE	MALE	MALE
DIN compliance	-	-	NO	NO	NO	NO
Filter function	-	-	NO	NO	NO	NO
IEC compliance	-	-	NO	NO	NO	NO
JESD-609 code	-	-	e3	e0	e3	e0
MIL compliance	-	-	NO	NO	NO	NO
Manufacturer's serial number	-	-	HM2	HM2	HM2	HM2
Mixed contacts	-	-	NO	NO	NO	NO
Installation method	-	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of rows loaded	-	-	6	6	6	6
Options	-	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	-	-	2 mm	2 mm	2 mm	2 mm
Termination type	-	-	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	-	-	66	66	66	66
UL Flammability Code	-	-	94V-0	94V-0	94V-0	94V-0
