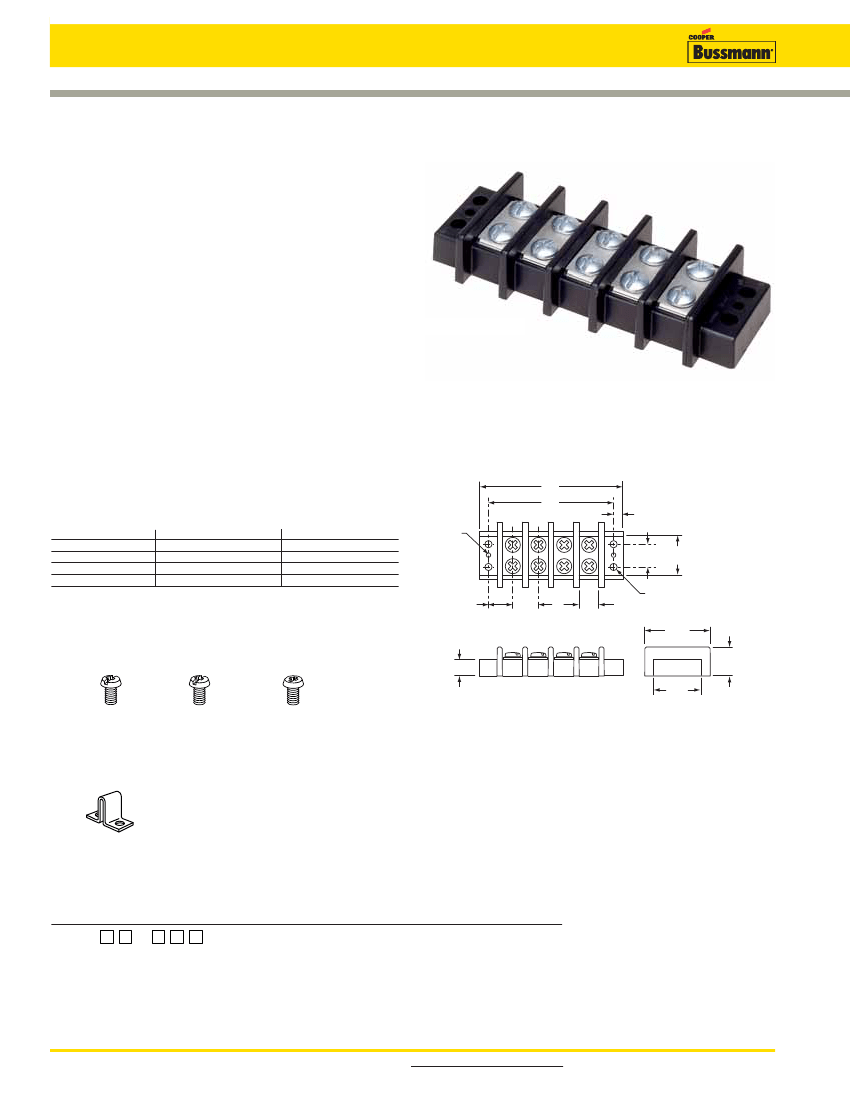

Connectors
Double Row Terminal Blocks
Series TB400
Specifications
Description:
Double row terminal blocks.
Ratings:
Volts: — 600V
Amps: — 75A
Center Spacing:
0.687” or 11/16” (17.45mm)
Wire Range:
#6-14 AWG Cu
Screw Size:
#10-32 philslot screws
Torque Rating:
20 lb-in.
Distance Between Barriers:
0.56” (14.3mm)
Mounting:
#10 screws
Operating Temperature:
130°C (266°F) max., -40°C (-40°F)
min.
Material:
Molded base: Black, UL rated 94V0 thermoplastic
Terminal plating: Tin over brass; Screws: zinc-plated steel
Breakdown Voltage:
7500V
Agency Information:
UL File E62622, CSA File 47235; IEC
Compliance; CE Certified
Dimensions - in
Poles
02
03
04
05
A
2.51
3.20
3.89
4.58
B
2.06
2.75
3.44
4.13
Poles
06
07
08
09
A
5.26
5.95
6.64
7.33
B
4.81
5.50
6.19
6.88
Poles
10
11
12
A
8.01
8.70
9.39
B
7.56
8.25
8.94
TB400-05
TB400 - in (mm)
A
B
0.22
(5.6)
0.15 dia.
(3.8)
0.625
(15.9)
1.12
(28.4)
1” = 25.4mm.
0.687
(17.4)
0.687
(17.4)
0.562
(14.3)
0.22 dia. (5.6)
1.81
(46.0)
Screw Options
0.46 (11.7)
1.34
(34.0)
0.76
(19.3)
B
Brass Philslot
Nickel-Plated
ST
Stainless Steel
Philslot
STR
Stainless Steel
Phillips (recess)
Hardware Options
OJ14: Closed over barrier
Catalog Number Build-A-Code
Series
TB400 –
02 to 12
Blank = Steel philslot, zinc-plated
00 = Screws shipped bulk
B = Brass philslot, nickel-plated
ST = Stainless steel, philslot
STR = Stainless steel, phillips (recess)
Not available
0J14† - Jumper over barrier
Poles
Screw Options
Marking
Hardware Options
†Contact factory for pole configuration.
320
For more information, visit www.cooperbussmann.com
