861-13-014-30-002000 datasheet, PDF

Datasheet> All Categories > The connector> 861-13-014-30-002000

861-13-014-30-002000: DescriptionCONN SKT SNG GW; CategoryThe connector; File Size624KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

861-13-014-30-002000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	861-13-014-30-002000	-	-	View	Buy Now

861-13-014-30-002000 Overview

CONN SKT SNG GW

861-13-014-30-002000 Parametric

Parameter Name	Attribute value
Connector type	socket
Contact type	female socket
style	board to board
Number of pins	14
Number of pins loaded	all
Spacing - Mating	0.039"（1.00mm）
Number of rows	1
Line spacing - patching	-
Installation type	surface mount
Termination	welding
Fastening type	push-pull
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	30.0µin（0.76µm）
Insulation color	black
Insulation height	0.149"（3.78mm）
Contact length - terminal	-
Operating temperature	-55°C ~ 125°C
Material flammability rating	UL94 V-0
Contact Surface Preparation - Column	gold
Joint stack height	-
Intrusion protection	-
characteristic	-
Rated current	3A
Rated voltage	-
application	-
Insulation Materials	Polydimethylcyclohexyl terephthalate (PCT), polyester
Contact shape	round
Contact material	copper beryllium
Contact Surface Treatment Thickness - Column	10.0µin（0.25µm）

Preview

Download Datasheet

View All

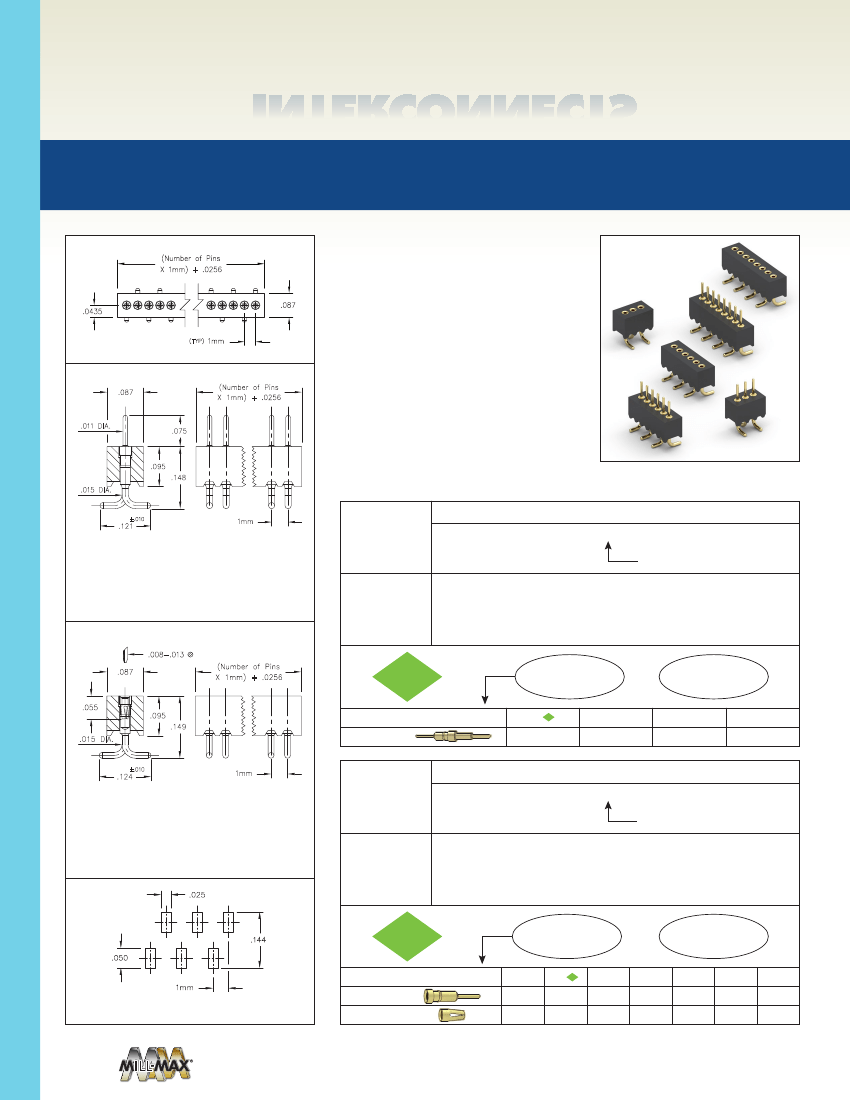

INTERCONNECTS

SERIES 860 & 861 • 1mm

GRID SURFACE MOUNT

GULL WING HEADERS & SOCKETS • SINGLE ROW STRIPS

•

Series 860 surface mount gull wing headers

(Number of Pins

X 1mm) + .0256

have .011” dia. pluggable pins for Surface

Mount soldering to the P.C.B. (MM #3039). See

page 208 for details

uses MM #0439 receptacles that accept pin

diameters from .008”-.013”. See page 156 for

details

contact rated at 2 amps. See page 250

for details

suitable for all soldering operations

.0435

.087

•

Series 861 surface mount gull wing sockets

(TYP)

1mm

.087

(Number of Pins

X 1mm) + .0256

•

Receptacles use Hi-Rel, 3-finger BeCu #04

.011 DIA.

.075

•

Insulators are high temperature thermoplastic,

.095

.148

.015 DIA.

ORDERING INFORMATION

1mm

.121

±.010

Series 860...002

Single Row Surface Mount Header

860-10-0_ _-30-002000

03-26

Coplanarity .005”. For pin counts >20 positions,

consult Technical Support.

FIG. 1

Specify number of pins

FIG. 1

.008-.013

.087

(Number of Pins

X 1mm) + .0256

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

μ”

For

Electrical, Mechanical

& Enviromental Data,

See page 264

.055

.095

.149

SPECIFY PLATING CODE XX=

Pin Plating

1mm

.015 DIA.

.124

±.010

Series 861...002

Single Row Surface Mount Socket

861-13-0_ _-30-002000

03-26

Coplanarity .005”. For pin counts >20 positions,

consult Technical Support.

FIG. 2

Specify number of pins

PAGE 33.1 | INTERCONNECTS

FIG. 2

.025

.144

.050

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

μ”

For

Electrical, Mechanical

& Enviromental Data,

See page 264

1mm

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

Footprint

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
