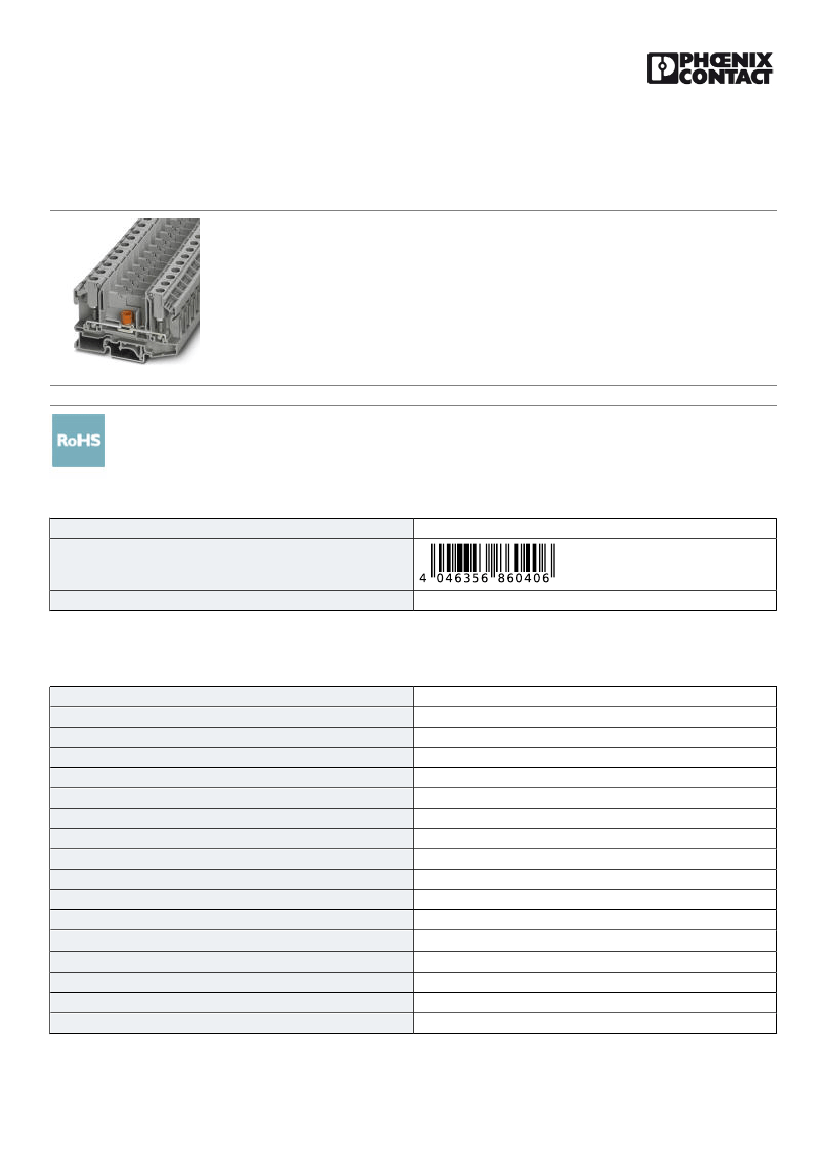

Disconnect terminal block - OTTA 6-T/SB-P/P - 3001269
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Disconnect terminal block, With test socket screws for insertion of test plugs, nom. voltage: 1000 V, nominal
current: 41 A, connection method: Bolt connection, length: 79.2 mm, width: 11 mm, color: gray, mounting: NS
35/7,5, NS 35/15, NS 32, nom. voltage: 1000 V
Key Commercial Data
Packing unit
GTIN
GTIN
4046356860406
50 pc
Technical data
General
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
Maximum power dissipation for nominal condition
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
Result of surge voltage test
Surge voltage test setpoint
1
2
1
6 mm²
gray
PA
V0
8 kV
3
III
1.31 W
41 A (with 6 mm² conductor cross section)
41 A
1000 V (the nominal voltage applies to insulated cable lugs)
Yes
Test passed
9.8 kV
10/22/2018 Page 1 / 5
https://www.phoenixcontact.com/pi/products/3001269
Disconnect terminal block - OTTA 6-T/SB-P/P - 3001269
Technical data
General
Result of power-frequency withstand voltage test
Power frequency withstand voltage setpoint
Result of the test for mechanical stability of terminal points (5 x
conductor connection)
Result of tight fit on support
Tight fit on carrier
Setpoint
Result of voltage-drop test
Requirements, voltage drop
Result of temperature-rise test
Short circuit stability result
Conductor cross section short circuit testing
Short-time current
Result of thermal test
Proof of thermal characteristics (needle flame) effective duration
Oscillation, broadband noise test result
Test specification, oscillation, broadband noise
Test spectrum
Test frequency
ASD level
Acceleration
Test duration per axis
Test directions
Shock test result
Test specification, shock test
Shock form
Acceleration
Number of shocks per direction
Test directions
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Test passed
2.2 kV
Test passed
Test passed
NS 32/NS 35
5N
Test passed
≤ 6,4 mV
Test passed
Test passed
6 mm²
0.72 kA
Test passed
30 s
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Service life test category 2, bogie-mounted
f
1
= 5 Hz to f
2
= 250 Hz
6.12 (m/s ) /Hz
3.12 g
5h
X-, Y- and Z-axis
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Half-sine
5g
3
X-, Y- and Z-axis (pos. and neg.)
130 °C
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
10/22/2018 Page 2 / 5
2 2
https://www.phoenixcontact.com/pi/products/3001269
Disconnect terminal block - OTTA 6-T/SB-P/P - 3001269
Technical data
General
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
End cover width
Length
Height NS 35/7,5
Height NS 35/15
Height NS 32
11 mm
1.5 mm
79.2 mm
52 mm
59.5 mm
57 mm
Connection data
Note
Connection method
Connection in acc. with standard
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Cable lug connection according to standard
Min. cross section for cable lug connection
Max. cross section for cable lug connection
Hole diameter, min.
Cable lug width, max.
Bolt diameter
Cable lug connection according to standard
Min. cross section for cable lug connection
Max. cross section for cable lug connection
Hole diameter, min.
Cable lug width, max.
Bolt diameter
Screw thread
Tightening torque, min
Tightening torque max
Connection bolts
Bolt connection
IEC 60947-7-1
0.1 mm²
6 mm²
26
10
DIN 46234
0.1 mm²
6 mm²
4.3 mm
9.6 mm
4 mm
DIN 46237
0.5 mm²
2.5 mm²
4.3 mm
9.6 mm
4 mm
M4
1.5 Nm
1.8 Nm
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CUL
IEC 60947-7-1
V0
10/22/2018 Page 3 / 5
https://www.phoenixcontact.com/pi/products/3001269
Disconnect terminal block - OTTA 6-T/SB-P/P - 3001269
Technical data
Standards and Regulations
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings

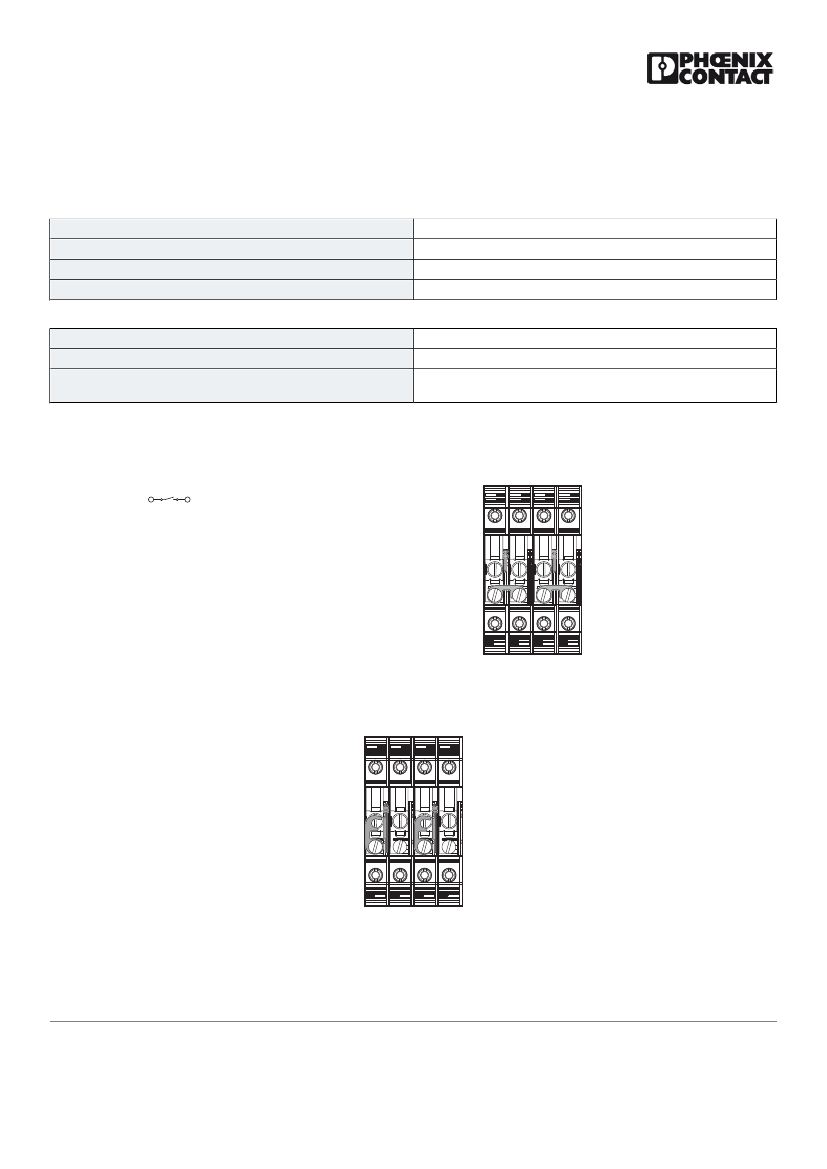

Circuit diagram
Schematic diagram
Closed switching jumpers
Schematic diagram
Open switching jumpers
Approvals
Approvals
10/22/2018 Page 4 / 5
https://www.phoenixcontact.com/pi/products/3001269
Disconnect terminal block - OTTA 6-T/SB-P/P - 3001269
Approvals
Approvals
UL Recognized / cUL Recognized / EAC / cULus Recognized
Ex Approvals
Approval details
UL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
B
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
600 V
30 A
NA-NA
FILE E 60425
600 V
30 A
NA-NA
cUL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
B
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
600 V
30 A
NA-NA
FILE E 60425
600 V
30 A
NA-NA
EAC
EAC-Zulassung
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
10/22/2018 Page 5 / 5
