303W3CSXX56K40X datasheet, PDF

Datasheet> All Categories > The connector> 303W3CSXX56K40X

303W3CSXX56K40X: DescriptionCONN D-SUB RCPT 3POS R/A SOLDER; CategoryThe connector; File Size251KB，1 Pages; ManufacturerCONEC; Websitehttp://www.conec.com; Environmental Compliance

Download Datasheet Parametric View All

303W3CSXX56K40X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	303W3CSXX56K40X	-	-	View	Buy Now

303W3CSXX56K40X Overview

CONN D-SUB RCPT 3POS R/A SOLDER

303W3CSXX56K40X Parametric

Parameter Name	Attribute value
Connector style	D-Sub, combined
Connector type	Sockets, female sockets and male pins
Number of pins	3 (power supply)
Number of rows	1
Housing size, connector layout	2（DA，A）- 3W3
Contact type	power
Installation type	Board edge, through hole, right angle
Flange characteristics	Body base/shell (4-40)
Termination	welding
characteristic	Plate lock, mounting bracket
Housing material, plating	Steel, tinned
Contact plating	gold
Contact plating thickness	30.0µin（0.76µm）
Intrusion protection	-
Material flammability rating	UL94 V-0
Rated current	20A
Operating temperature	-
Rated voltage	-
color	green
Contact shape	-
Shell material	Polybutylene terephthalate (PBT), glass fiber reinforced
Wire gauge	-
Contact material	copper alloy
Braking device interval	0.459"（11.65mm）

Preview

Download Datasheet

View All

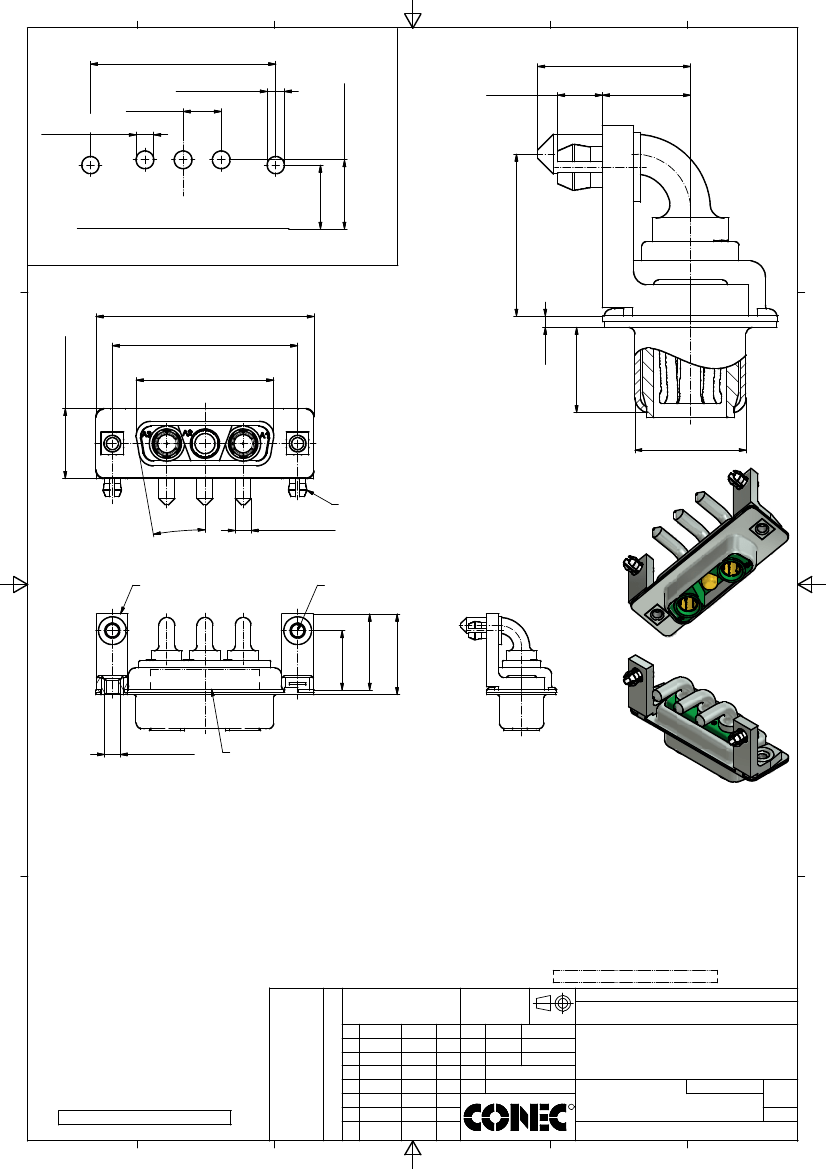

33,32

+ 0,13

- 0,12

12,45

0,1

3,1

0,1

(2x)

0,3

3,2

0,2

6,35

0,3

6,86

0,1

3,2

0,1

(3x)

(5:1)

11,5

P.C.B. EDGE

P.C.B. HOLE DRILLINGS

( P.C.B. TOP SIDE )

39,22

+0,3

- 0,46

12,6

+ 0,33

- 0,43

33,32

+ 0,13

- 0,12

24,74

+0,05

- 0,2

6,13

+ 0,17

- 0,08

0,8

11,65

0,3

+ 0,23

0,02

10°

2,85 (3x)

PCB-SNAP

METAL BRACKET

PRESS FOR FIXING ON PCB

13,7 max.

10,7

0,2

303W3CSXX56K40X

CONEC ABC

14,5

4-40 UNC

SEE NOTE 8

NOTES:

1. METALSHELLS: STEEL; min. 315µin TIN over 40-80µin NICKEL

2. INSULATOR: PBT GF UL 94 V-0; GREEN

3. HIGH POWER CONTACTS 20A: COPPER ALLOY

PLATING MATING AREA: 30µin HARD GOLD over min. 50µin NICKEL

PLATING TERMINATION SIDE: 160-240µin TIN over 80µin NICKEL

FEMALE CONTACT ON POS. A1 + A3; MALE CONTACT ON POS. A2

4. METAL BRACKET: ZINC DIE CAST; 300µin COPPER/40-120µin NICKEL/120-200µin TIN

5. THREADED INSERT: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL

6. PCB-SNAP: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL

PCB-HOLE:

3.1

0,1; PCB THICKNESS 1.6mm

7. MAXIMUM TORQUE VALUE FOR THREAD: 6 in.LB

8. CONNECTOR IS PART MARKED: 303W3CSXX56K40X CONEC ABC

THIS DRAWING MAY NOT BE COPIED OR

REPRODUCED IN ANY WAY, AND MAY NOT

BE PASSED ON TO A THIRD PARTY WITHOUT

WRITTEN PERMISSION.

OWNERSHIP AND COPYRIGHT OF CONEC GmbH

DO NOT ALTER CAD DRAWING BY HAND

tolerance

dim. in mm

date

drawn

15.12.10

appd.

15.12.10

norm

d-old

scale:

material:

name

2:1 (5:1)

SEE NOTES

title:

Henneboel

Koch

D-SUB COM. FEMALE 90°

3W3CS

with threaded insert, metal bracket and snap

dwg no:

Inventor 10

DIN-

Directive 2002/95/EC RoHS compliant

Origin

13K1A3524

part no:

sh:

rev. description

date

name

303W3CSXX56K40X
