SP2526
Low ESR Cap. Compatible Positive Voltage Regulators
DESCRIPTION
The SP2526 family is a positive voltage linear
regulators, low power consumption, high voltage,
manufactured using CMOS technology. The SP2526
family provides large currents with a low dropout
voltage. The SP2526 consists of current limiter circuit,
driver transistor, precision reference voltage and error
correction circuit.
The SP2526 family is compatible with low ESR
capacitors. The current limiter's feedback circuit also
operates as a short protect for the output current
limiter. The SOT-23-3L / SOT-323 / SOT-353
packages are available for portable electronic
equipment.
FEATURES
Maximum Output Current 250mA (3.3V type)
Dropout Voltage 140mV @ 100mA (3.3V type)
Maximum Operating Voltage 7.0V
Output Voltage :
1.5V ; 1.8V ; 2.5V ; 3.0V ; 3.1V ; 3.3V
Highly Accurate ± 2%
Low Power Consumption 1.0μA (TYP.)
Ultra Small Pb-Free Packages
Low ESR capacitor ceramic compatible
APPLICATIONS
Battery Power Equipment
Cellular Phone
Digital Cameras
Computer Disk Drivers
Portable games
Communication tools
PIN CONFIGURATION
SOT-23-3L
SOT-323 ( V
OUT
= 1.5 V )
SOT-353
PART MARKING
SOT-23-3L
SOT-323 ( V
OUT
= 1.5 V )
SOT-353
2006/07/5
Ver.1
Page 1
SP2526
Low ESR Cap. Compatible Positive Voltage Regulators
APPLCATION CIRCUIT
PIN DESCRIPTION
SOT-23-3L
1
2
3
SOT-323
1
2
3
SOT-353
4
5
2
Symbol
V
SS
V
OUT
V
IN
Description
Ground
Voltage
Voltage
Output
Input
ORDERING INFORMATION
( X : Voltage Code ; Y : Year Code ; W: Week Code )
Part Number
Package
Part Marking
SP2526XS23RG
SOT-23-3L
6XYW
SP2526XS35RG
SOT-353
6XYW
SP2526AS32RG
SOT-323
6AYW
※
Week Code : A ~ Z ( 1 ~ 26 ) ; a ~ z ( 27 ~ 52 )
※
SP2526XS23RG : Tape Reel ; Pb – Free
※
SP2526XS35RG : Tape Reel ; Pb – Free
※
SP2526AS32RG : Tape Reel ; Pb – Free
VOLTAGE CODE INFORMATION
Voltage Code
(X)
A
D
K
P
Q
S
Output Voltage
(V)
1.5
1.8
2.5
3.0
3.1
3.3
2006/07/5
Ver.1
Page 2
SP2526
Low ESR Cap. Compatible Positive Voltage Regulators
BLOCK DIAGRAM
TEST CIRCUIT
Circuit 1 :
Circuit 2 :
ABSOULTE MAXIMUM RATINGS
(T
A
=25
℃
Unless otherwise specified)
Parameter
Input Voltage
Output Current
Output Voltage
Thermal Resistance
Power Dissipation
Operation Junction Temperature Range
Storage Temperature Range
Ө
JA
P
D
Symbol
V
IN
I
OUT
V
OUT
SOT-23-3L
SOT-323
SOT-353
SOT-23-3L
SOT-323
SOT-353
T
J
T
STG
Value
7
500
VSS-0.3 ~ VIN+0.3
120
105
105
1250
330
950
-40 ~ +85
-55 ~ +125
Unit
V
mA
mA
℃
/W
mW
℃
℃
2006/07/5
Ver.1
Page 3
SP2526
Low ESR Cap. Compatible Positive Voltage Regulators
ELECTRICAL CHARACTERISTICS
(T
A
=25℃ , Unless otherwise specified)
Parameter
Output Voltage
Maximum Output Current
Load Regulation
Dropout Voltage
Supply Current
Line Regulations
Input Voltage
Ripple-Rejection
Output Voltage
Temperature
Characteristics
Short Current
Conditions
I
OUT
= 30mA
V
IN
=5V
V
IN
=V
OUT
+1.0 V
△
V
OUT
1mA
≦
I
OUT
≦
100mA
Vdif 1
I
OUT
=30mA
Vdif 2
I
OUT
=100mA
I
DD
V
IN
=5V
V
OUT
/
V
OUT (T)
+0.5V≦V
IN
≦5.5V
(
△V
IN
– V
OUT
) I
OUT
= 30mA
V
IN
V
IN
=V
OUT
+1.0V，f=1 kHz
|PSRR|
V
rip
=0.5V
rms
, I
OUT
=60 mA
△
V
OUT
/
I
OUT
=30mA
(
△
T
opr
– V
OUT
) -40℃≦T
opr
≦85℃
Ishort
V
IN
=V
OUT
+1.5V, V
OUT
=V
SS
Symbol
V
OUT(E)
I
OUT
Min.
x 0.98
E-1
Typ.
V
OUT(T)
Max.
x 1.02
V
OUT(T)
x 1%
E-2
E-3
3.0
0.30
7
40
±100
E-4
Unit
V
mA
mV
mV
mV
uA
%/V
V
dB
2.0
0.15
1.8
ppm/℃
mA
(NOTE 1) V
OUT(T)
= Specified Output Voltage
(NOTE 2) V
OUT(E)
= Effective Output Voltage (le. The output voltage when "V
OUT(T)
+1.0V" is provided at the V
IN
pin while maintaining a certain I
OUT
value.)
(NOTE 3) Vdif = {V
IN 1
(NOTE5) + V
OUT 1
(NOTE4)}
(NOTE 4) V
OUT1
= A voltage equal to 98% of the Output Voltage whenever an amply stabilized I
OUT
{V
OUT(T)
+
1.0V} is input.
(NOTE 5) V
IN 1
= The Input Voltage when V
OUT 1
appears as Input Voltage is gradually decreased.
(NOTE 6) Unless otherwise stated, V
IN
= V
OUT(T)
+1.0V
ELECTRICAL CHARACTERISTICS LIST
(T
A
=25
℃
, Unless otherwise specified)
V
OUT
(
T
A
=25℃
)
1.5
1.8
2.5
3.0
3.1
3.3
V
OUT
(2%)
Min
1.470
1.764
2.450
2.940
3.038
3.234
Max
1.530
1.836
2.550
3.060
3.162
3.366
E-1
I
OUT
Min
200
250
250
250
250
250
E-2
Vdif 1
Typ
350
90
65
40
40
35
Max
500
150
120
100
100
100
Typ
750
250
200
150
150
140
E-3
Vdif 1
Max
850
350
300
200
200
200
E-4
Ishort
Typ
155
130
115
80
80
80
2006/07/5
Ver.1
Page 4
SP2526
Low ESR Cap. Compatible Positive Voltage Regulators

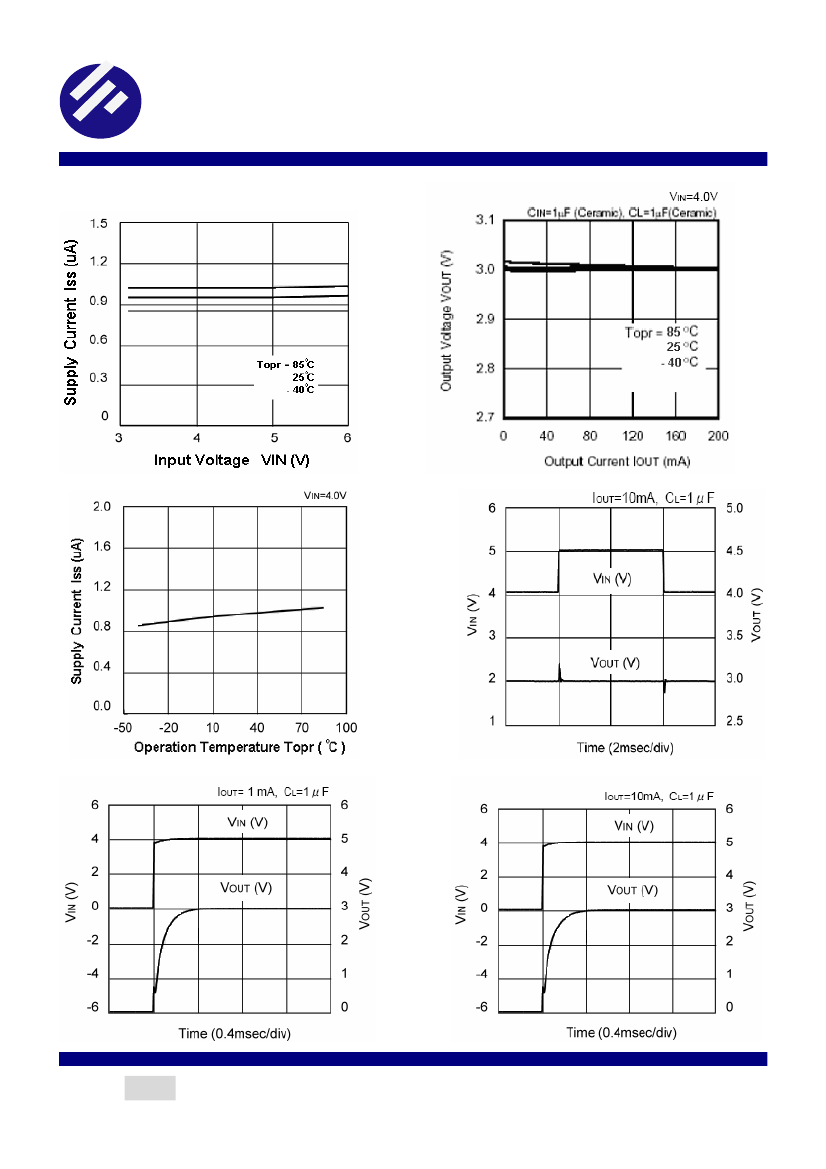

PERFORMANCE CHARACTERISTICS ( Voltage Code = Z ; 3.0V )
2006/07/5
Ver.1
Page 5
