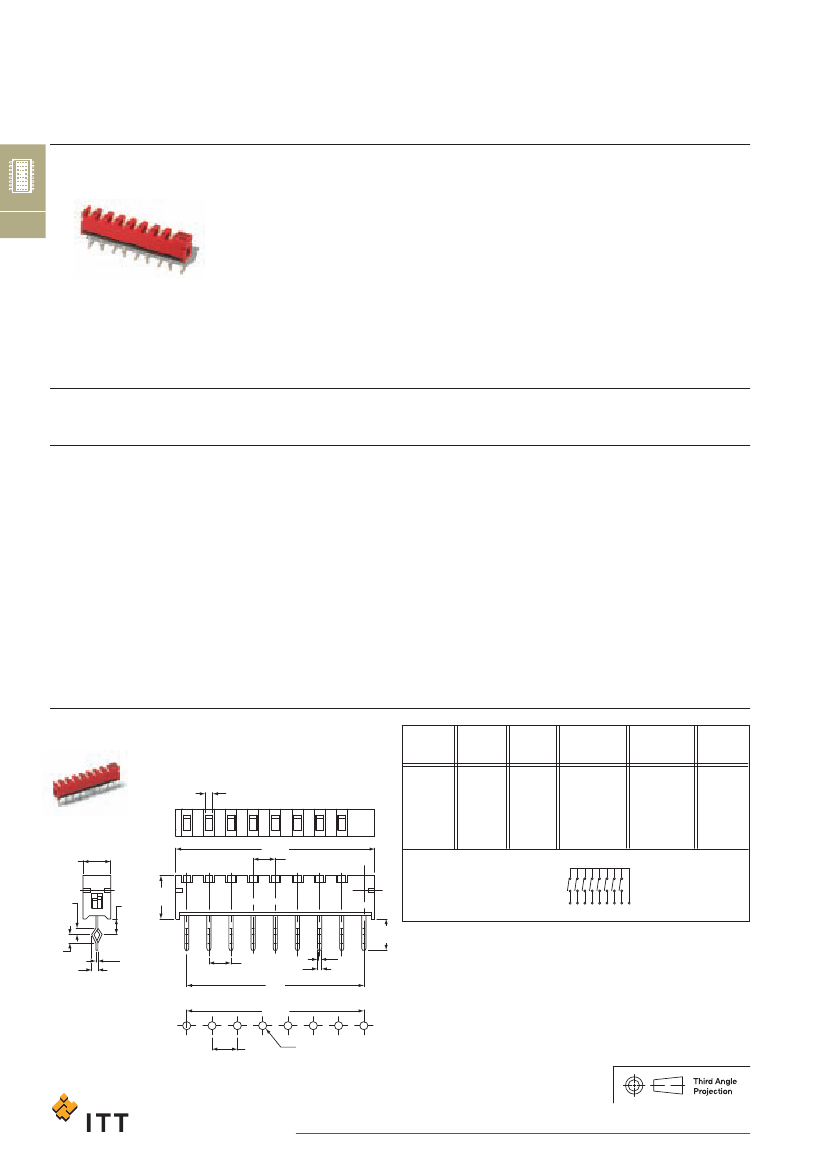

C&K SP Series
Single In-line Package Switches
Features/Benefits
•
Thin Single In-line Packaging saves
Typical Applications
•
Address switch for industrial
controls
•
Logic switching for computers
and peripherals
•
Function controlling for
numerous applications
I
DIP
•
•
•
•
PCB space
Retention feature holds part to PCB
prior to soldering
Available in vertical or right angle
models
High pressure contact system
does not require tape sealing
RoHS compliant - options available
How To Order
Complete part numbers for SP Series standard profile SIP Switches are shown on pages I-18 thru I-19.
Specifications
CONTACT RATING:
Carry: 100 mA
Switching: 10 mA
MECHANICAL AND ELECTRICAL LIFE: 1,000 cycles min.
CONTACT RESISTANCE: 50 MΩ max. @ 20 V DC 10mA.
INSULATION RESISTANCE: 100 MΩ min. @ 100 V DC.
DIELECTRIC STRENGTH: 1 minute @ 300 V AC.
CAPACITANCE: 5pF max. between adjacent terminals.
OPERATING TEMPERATURE: -20°C to 85°C.
STORAGE TEMPERATURE: -40°C to 85°C.
OPERATING FORCE: 800 grams max.
SOLDERABILITY: Dip & look solderability testing per C&K spec.
#448. Unplated edges of terminals permitted.
PACKAGING: Switches supplied in rigid dispensing tubes in full-
tube quantities only, this may affect order quantity. Numbers of
switches per tube varies with model.
Materials
HOUSING AND COVER: PBT resin (UL94V-0).
RoHS, Version PPS (UL94V-0).
ACTUATOR: 4/6 Nylon (UL 94V-0).
MOVABLE CONTACT: Beryllium copper alloy, gold over nickel plate.
FIXED CONTACT: Copper alloy, nickel minimum plated.
CLIP: Tin plated phosphor bronze wire. Phosphor bronze, nickel
minimum plated.
NOTE:
For the latest information regarding RoHS compliance, please go to:
www.ittcannon.com/rohs.
Note:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.

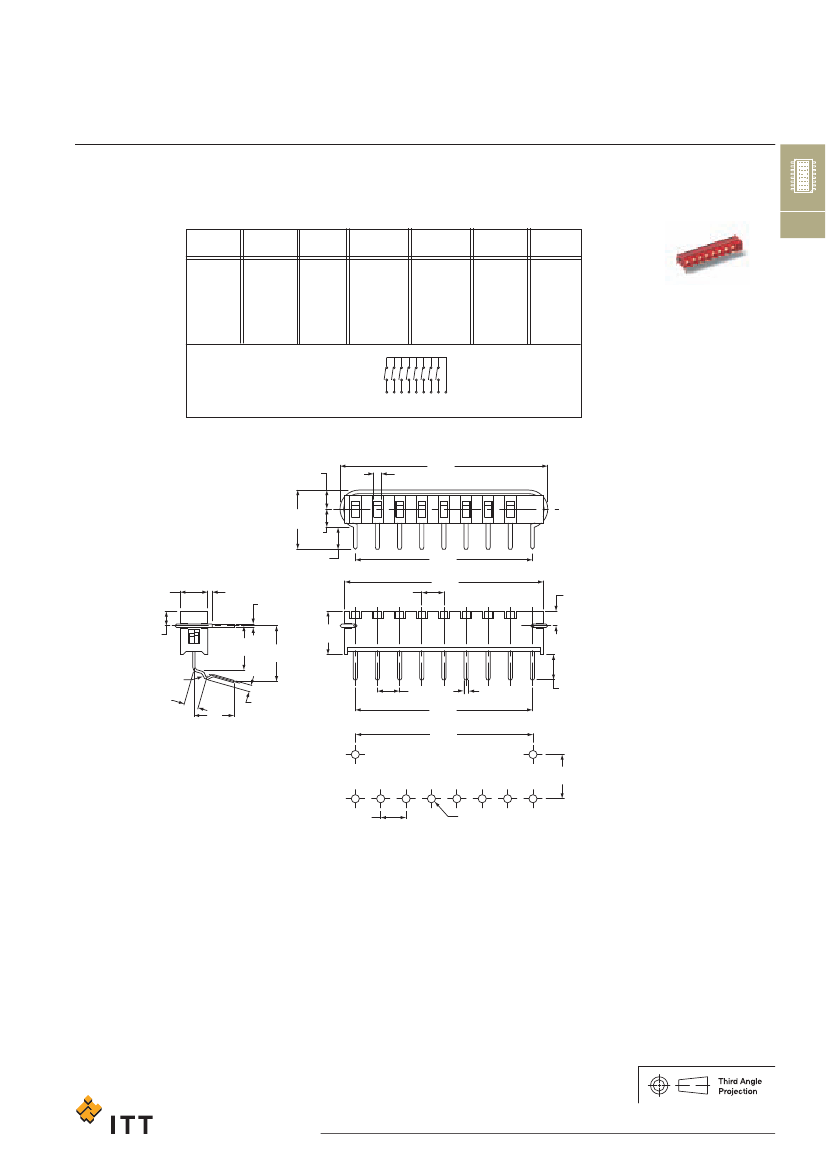

Vertical
ROHS
PART
NUMBER
TIN LEAD
PART
NUMBER
NO. POS.
2
4
6
8
10
DIM. ‘A’
.298 (7,58)
.498 (12,66)
.698 (17,74)
.898 (22,82)
1.098 (27,9)
DIM. ‘B’
.200 (5,08)
.400 (10,16)
.600 (15,24)
.800 (20,32)
1.000 (25,40)
QUANITY
PER TUBE
60
35
25
20
15
.035
(0,89)
SP08
1
2
3
4
5
6
7
8
SP02B
SP04B
SP06B
SP08B
SP10B
Schematic
SP02
SP04
SP06
SP08
SP10
.125
(3,18)
.196
(4,99)
DIM 'A'
.100
(2,54)
.028
(0,71)
.070
(1,79)
SPST
.141
(3,6)
.039
(0,99)
.028
(0,71)
.009
(0,25)
.100
(2,54)
.800
(20,32)
.020
(0,50)
.012
(0,30)
DIM 'B'
.100
(2,54)
Ø.032 TYP.
(0,81)
Dimensions are shown: Inch (mm )
Specifications and dimensions subject to change
I-18
www.ittcannon.com
