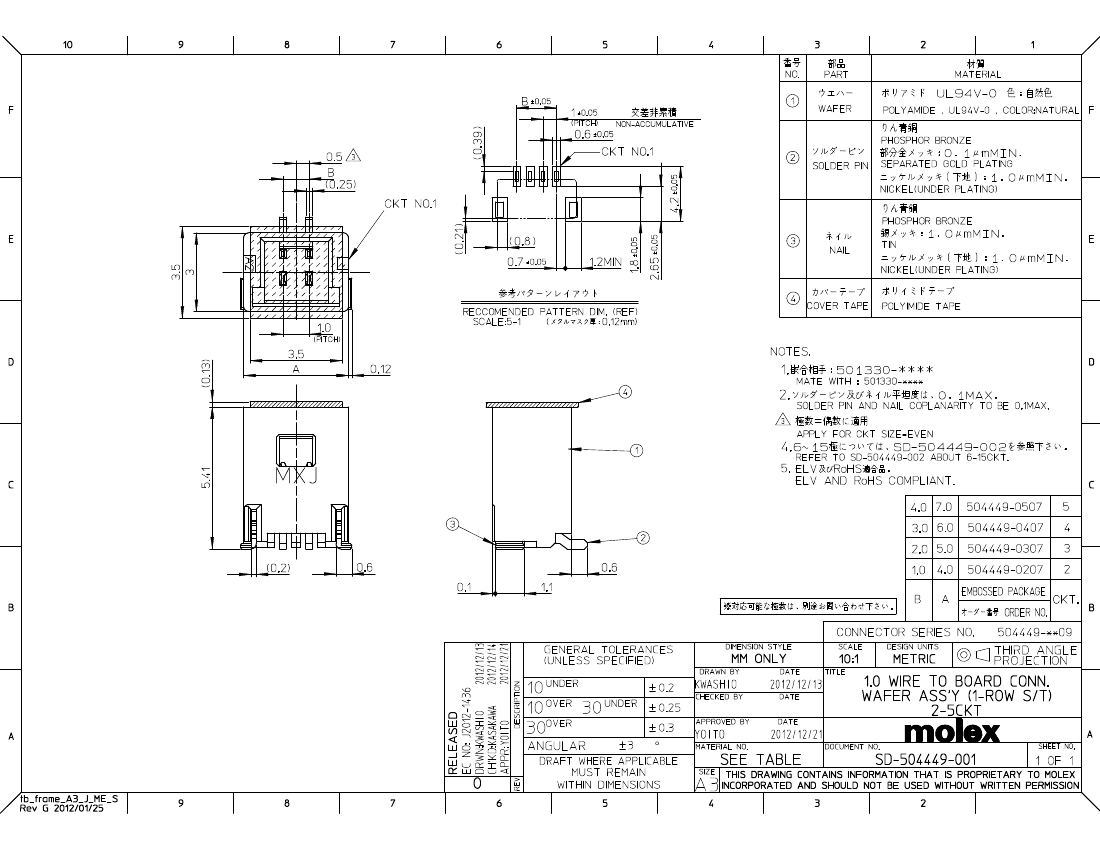

Preview

5044490507: DescriptionCONN HEADER 5POS 1MM VERT SMD; CategoryThe connector; File Size198KB，3 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

5044490507 Overview

CONN HEADER 5POS 1MM VERT SMD

5044490507 Parametric

Parameter Name	Attribute value
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.039"（1.00mm）
Number of pins	5
Number of rows	1
Line spacing - patching	-
Number of pins loaded	all
style	Board to cable/wire
shield	Covered - 4 walls
Installation type	surface mount
Termination	welding
Fastening type	latch holder
Contact Length - Mating	-
Contact length - terminal	-
Overall contact length	-
Insulation height	0.213"（5.40mm）
Contact shape	Square
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	1.00µin（0.025µm）
Contact Surface Preparation - Column	-
Contact material	Phosphor bronze
Insulation Materials	Polyamide (PA), nylon
characteristic	Pick and place, weld hold
Operating temperature	-
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	natural
Rated current	-
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	-
application	automotive, general, industrial

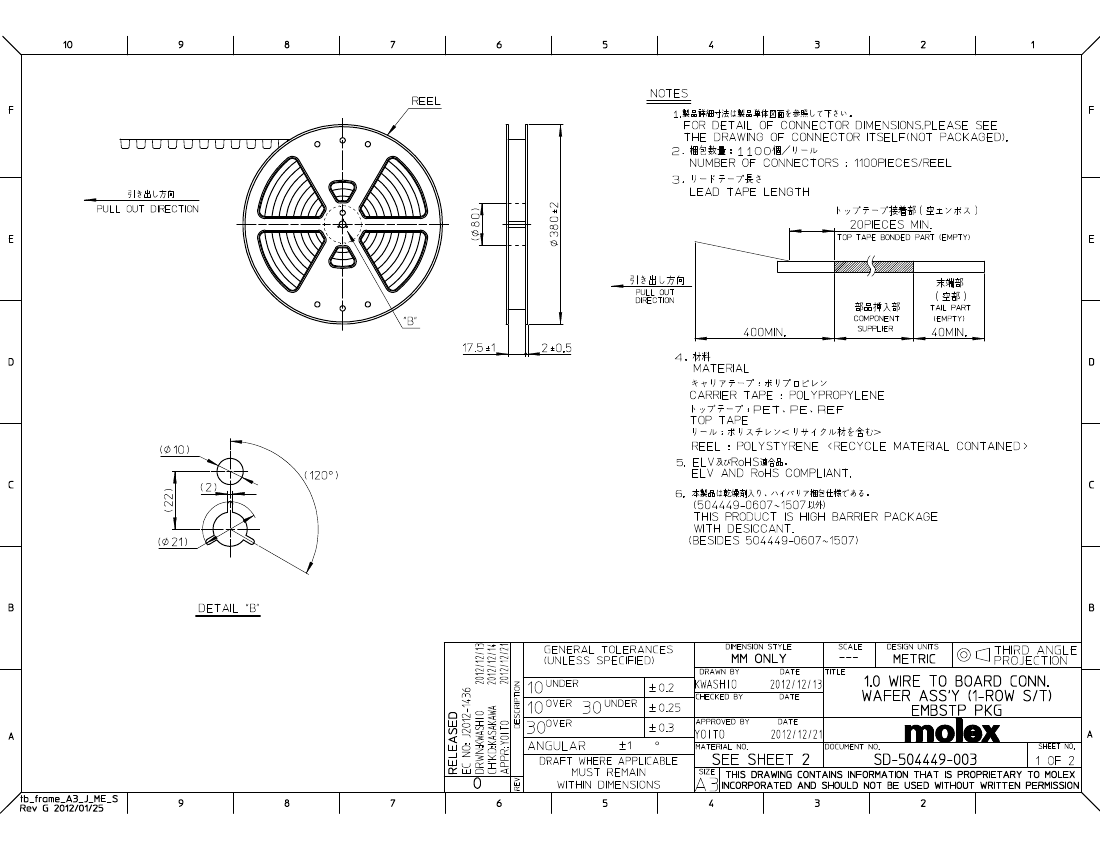

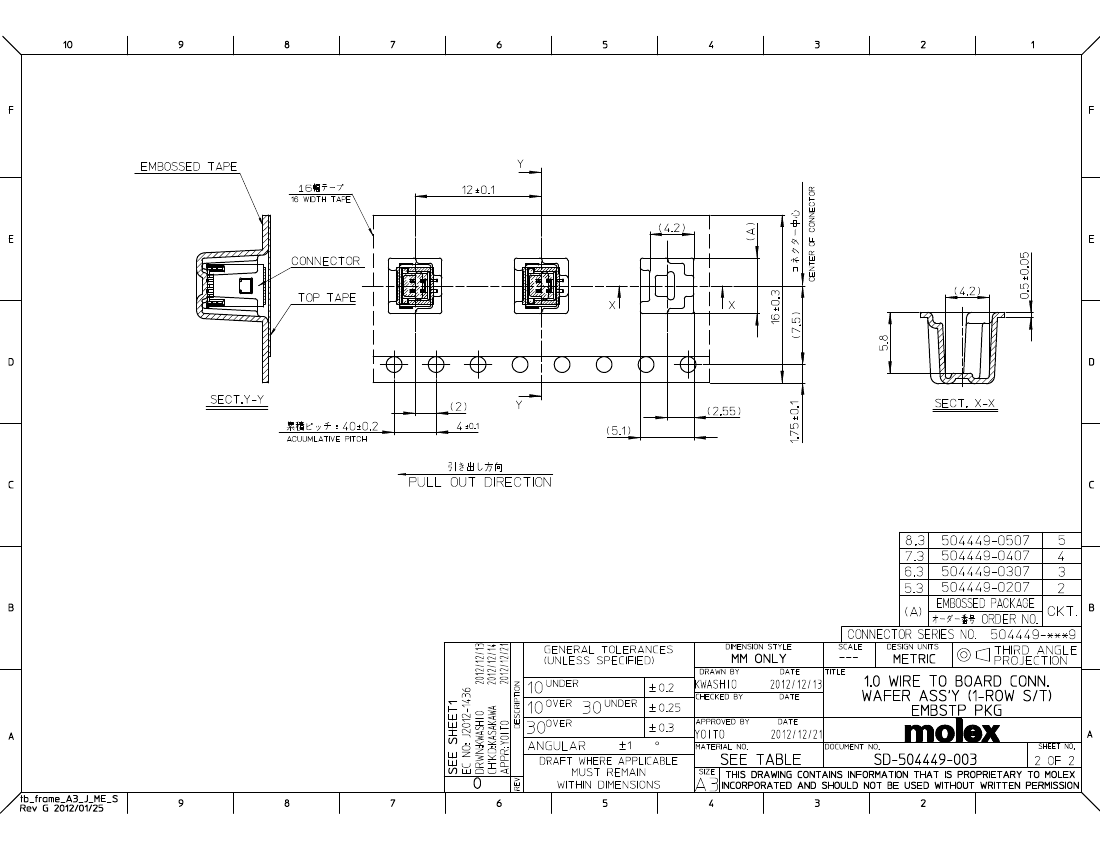

Preview

Download Datasheet

View All

5044490507 Related Products

	5044490507	5044490307	5044490407	5044490207
Description	CONN HEADER 5POS 1MM VERT SMD	CONN HEADER 3POS 1MM VERT SMD	CONN HEADER 4POS 1MM VERT SMD	CONN HEADER 2POS 1MM VERT SMD
Connector type	Connector	Connector	Connector	Connector
Contact type	Male pin	Male pin	Male pin	Male pin
Spacing - Mating	0.039"（1.00mm）	0.039"（1.00mm）	0.039"（1.00mm）	0.039"（1.00mm）
Number of pins	5	3	4	2
Number of rows	1	1	1	1
Number of pins loaded	all	all	all	all
style	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire
shield	Covered - 4 walls	Covered - 4 walls	Covered - 4 walls	Covered - 4 walls
Installation type	surface mount	surface mount	surface mount	surface mount
Termination	welding	welding	welding	welding
Fastening type	latch holder	latch holder	latch holder	latch holder
Insulation height	0.213"（5.40mm）	0.213"（5.40mm）	0.213"（5.40mm）	0.213"（5.40mm）
Contact shape	Square	Square	Square	Square
Contact surface treatment - mating	gold	gold	gold	gold
Contact Surface Treatment Thickness - Mating	1.00µin（0.025µm）	1.00µin（0.025µm）	1.00µin（0.025µm）	1.00µin（0.025µm）
Contact material	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze
Insulation Materials	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon
characteristic	Pick and place, weld hold	Pick and place, weld hold	Pick and place, weld hold	Pick and place, weld hold
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation color	natural	natural	natural	natural
application	automotive, general, industrial	automotive, general, industrial	automotive, general, industrial	automotive, general, industrial
