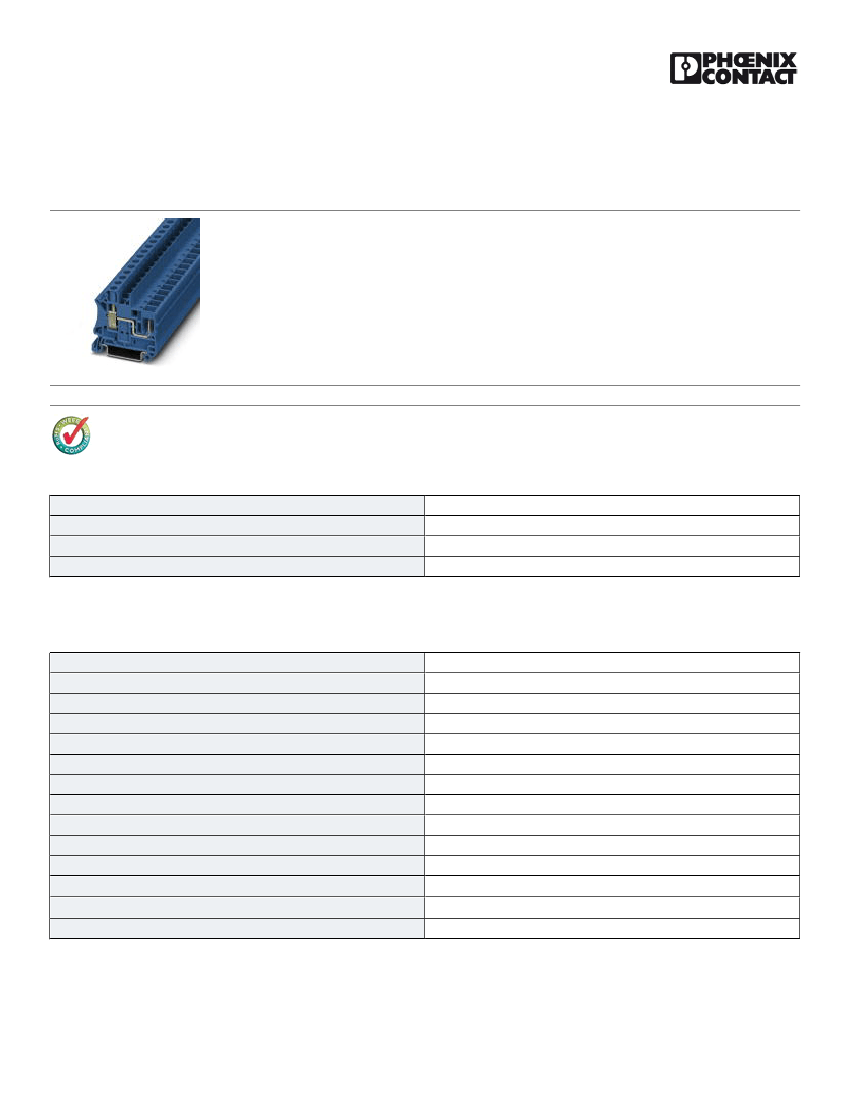

Feed-through terminal block - UT 6/1P BU - 3060542
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Feed-through terminal block, Connection method: Pluggable screw terminal block, Cross section: 0.2 mm² - 10
mm², AWG: 24 - 8, Width: 8.2 mm, Color: blue, Mounting type: NS 35/7,5, NS 35/15
Key commercial data
Packing unit
Minimum order quantity
Custom tariff number
Country of origin
11
50 1
85369010
China
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Open side panel
1
2
blue
PA
V0
41 A (with 6 mm² conductor cross section)
8 kV
3
III
I
IEC 61984
41 A
1000 V
ja
Dimensions
01.11.2013 Page 1 / 18
https://www.phoenixcontact.com/us/products/3060542
Feed-through terminal block - UT 6/1P BU - 3060542
Technical data
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
8.2 mm
49.1 mm
47.5 mm
55 mm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded min.
Conductor cross section stranded max.
Min. AWG conductor cross section, stranded
Max. AWG conductor cross section, stranded
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
0.2 mm²
10 mm²
24
8
0.2 mm²
10 mm²
24
8
0.25 mm²
6 mm²
0.25 mm²
6 mm²
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
4 mm²
sleeve, max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
Connection method
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
0.25 mm²
1.5 mm²
Pluggable screw terminal block
10 mm
A5
M4
1.5 Nm
1.8 Nm
01.11.2013 Page 2 / 18
https://www.phoenixcontact.com/us/products/3060542
Feed-through terminal block - UT 6/1P BU - 3060542
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27141117
27141117
27141120
27141120
27141120
27141120
27141120
ETIM
ETIM 4.0
ETIM 5.0
EC000897
EC000897
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
Approvals
VDE Gutachten mit Fertigungsüberwachung / IECEE CB Scheme / UL Recognized / cUL Recognized / CSA / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
01.11.2013 Page 3 / 18
https://www.phoenixcontact.com/us/products/3060542
Feed-through terminal block - UT 6/1P BU - 3060542
Approvals
VDE Gutachten mit Fertigungsüberwachung
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
0.2-10
41 A
1000 V
IECEE CB Scheme
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
0.2-10
41 A
1000 V
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
24-8
40 A
600 V
C
24-8
40 A
600 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
24-8
40 A
600 V
C
24-8
40 A
600 V
CSA
mm²/AWG/kcmil
Nominal current IN
B
24-8
50 A
C
24-8
50 A
01.11.2013 Page 4 / 18
https://www.phoenixcontact.com/us/products/3060542
Feed-through terminal block - UT 6/1P BU - 3060542
Approvals
Nominal voltage UN
B
600 V
C
600 V
cULus Recognized
Accessories
Accessories

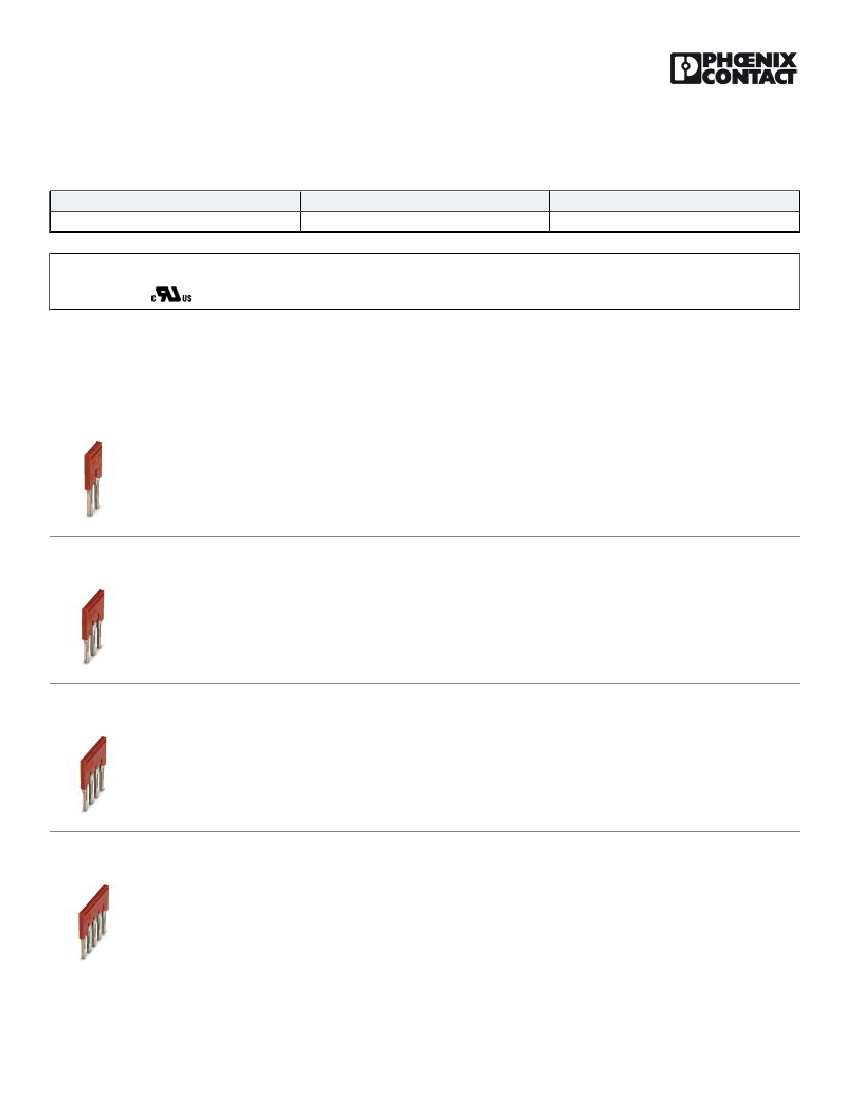

Bridge
Plug-in bridge - FBS 2-8 - 3030284
Plug-in bridge, Number of positions: 2, Color: red
Plug-in bridge - FBS 3-8 - 3030297
Plug-in bridge, Number of positions: 3, Color: red
Plug-in bridge - FBS 4-8 - 3030307
Plug-in bridge, Number of positions: 4, Color: red
Plug-in bridge - FBS 5-8 - 3030310
Plug-in bridge, Number of positions: 5, Color: red
