Printed-circuit board connector - GMSTB 2,5 HCV/ 6-ST-7,62-LR - 1812791
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

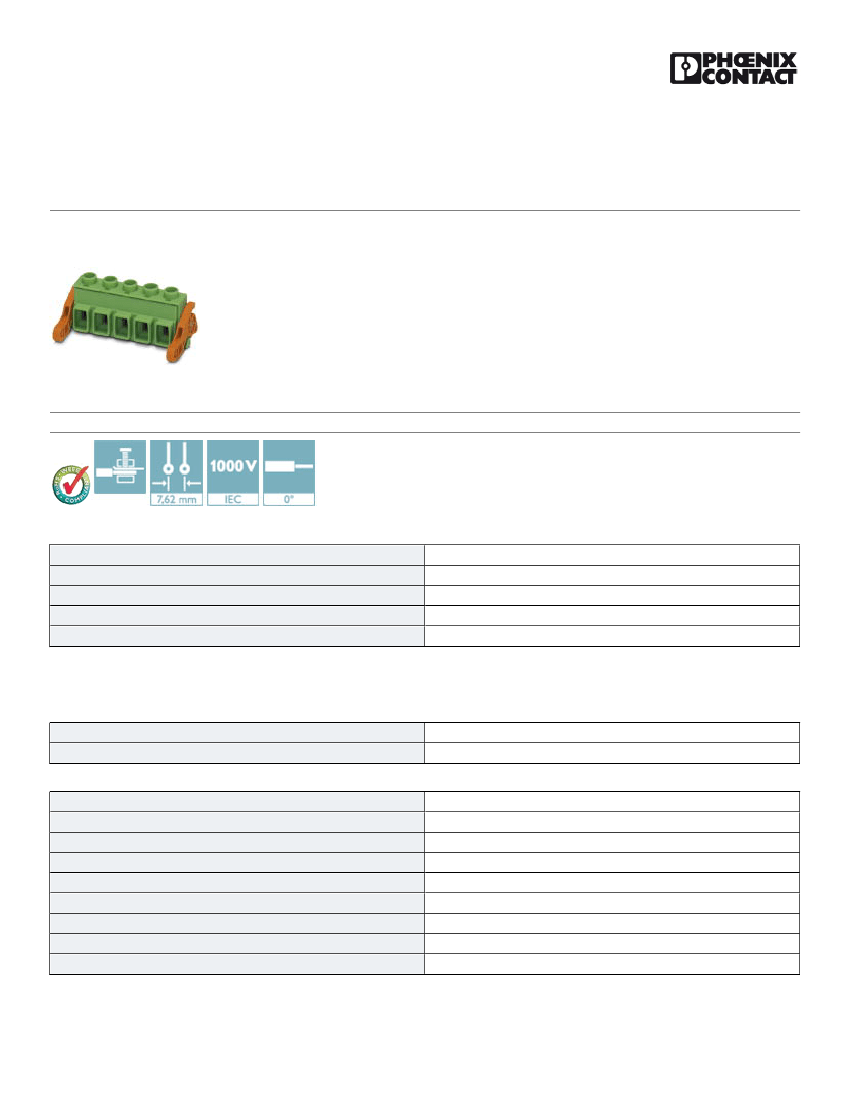

Plug component, Nominal current: 16 A, Rated voltage (III/2): 1000 V, Number of positions: 6, Pitch: 7.62 mm,
Connection method: Screw connection with tension sleeve, Color: green, Contact surface: Tin
The figure shows a 5-pos. version of
the product
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
50 pc
12.8 g
85366990
Germany
Technical data
Dimensions
Pitch
Dimension a
7.62 mm
38.1 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
GMSTB 2,5 HCV/..-ST-LR
I
8 kV
8 kV
8 kV
1000 V
1000 V
1000 V
EN-VDE
04/12/2016 Page 1 / 5
https://www.phoenixcontact.com/us/products/1812791
Printed-circuit board connector - GMSTB 2,5 HCV/ 6-ST-7,62-LR - 1812791
Technical data
General
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Flammability rating according to UL 94
Internal cylindrical gage
Stripping length
Number of positions
Screw thread
Tightening torque, min
Tightening torque max
16 A
2.5 mm²
16 A
PA
V0
A3
8 mm
6
M3
0.5 Nm
0.6 Nm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.25 mm²
2.5 mm²
0.25 mm²
2.5 mm²
24
12
0.2 mm²
1 mm²
0.2 mm²
1.5 mm²
0.25 mm²
1 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
1 mm²
sleeve, max.
Minimum AWG according to UL/CUL
Maximum AWG according to UL/CUL
30
12
Standards and Regulations
Connection in acc. with standard
EN-VDE
04/12/2016 Page 2 / 5
https://www.phoenixcontact.com/us/products/1812791
Printed-circuit board connector - GMSTB 2,5 HCV/ 6-ST-7,62-LR - 1812791
Technical data
Standards and Regulations
CUL
Flammability rating according to UL 94
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
272607xx
27260701
27260701
27141190
27260704
27440402
27440309
27440309
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002638
EC002638
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211810
39121409
39121409
39121409
39121409
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / EAC / EAC / cULus Recognized
Ex Approvals
04/12/2016 Page 3 / 5
https://www.phoenixcontact.com/us/products/1812791
Printed-circuit board connector - GMSTB 2,5 HCV/ 6-ST-7,62-LR - 1812791
Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
30-12
18.5 A
600 V
C
30-12
18.5 A
600 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
30-12
18.5 A
600 V
C
30-12
18.5 A
600 V
EAC
EAC
cULus Recognized
Drawings
04/12/2016 Page 4 / 5
https://www.phoenixcontact.com/us/products/1812791
Printed-circuit board connector - GMSTB 2,5 HCV/ 6-ST-7,62-LR - 1812791

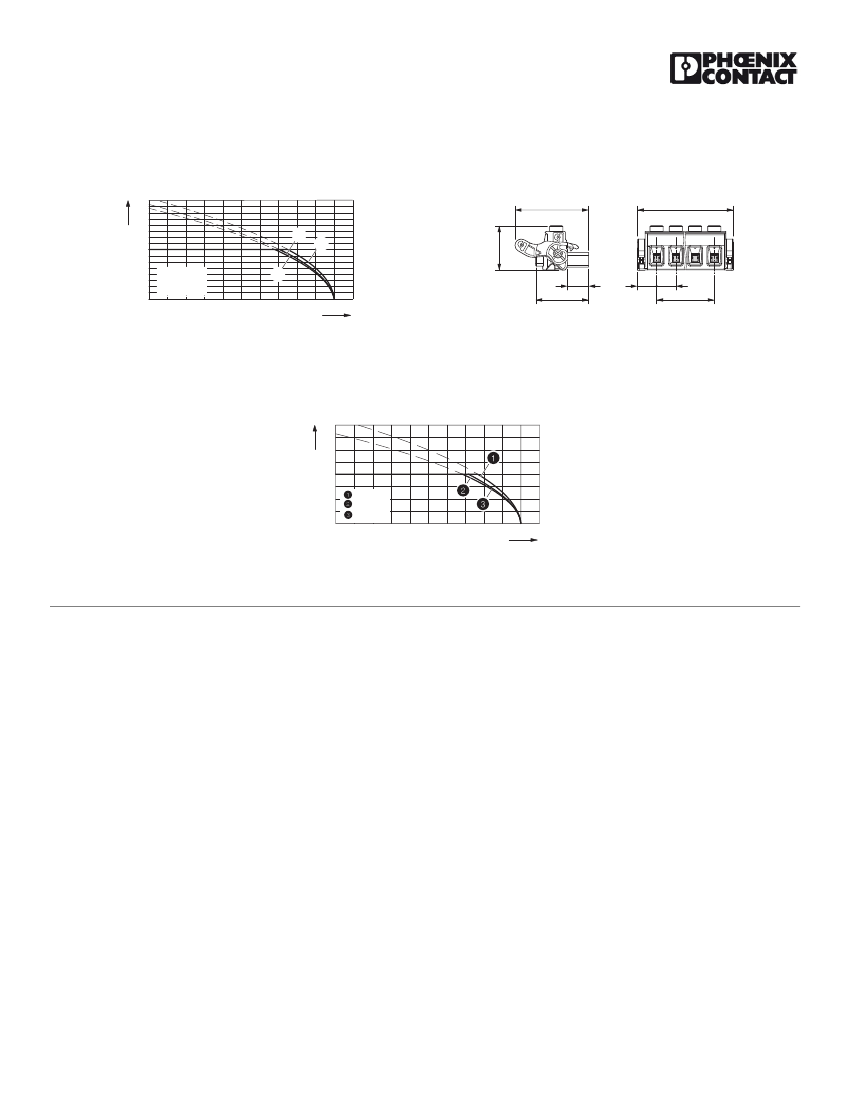

Diagram
32
28
24
20
16
12
8
4
0
0
Dimensional drawing
29,1
a+15,22
Current strength [A]
= 2-pos.
= 5-pos.
= 12-pos.
20
40
60
80
100
17,5
8,3
21
Ambient temperature [°C]
7,61 7,62
a
Derating curve for: GMSTB 2,5 HCV/...-ST-7,62 with GMSTBA 2,5 HC/...-
G-7,62
Diagram
32
28
24
20
16
12
8
4
0
0
Current strength [A]
= 2-pos.
= 5-pos.
= 12-pos.
20
40
60
80
100
Ambient temperature [°C]
Type: GMSTB 2.5 HCV/...-ST-7.62(-LR) with GMSTBVA 2.5 HC/...-G-7.62(-LR)
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
04/12/2016 Page 5 / 5
