5036601010 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 5036601010

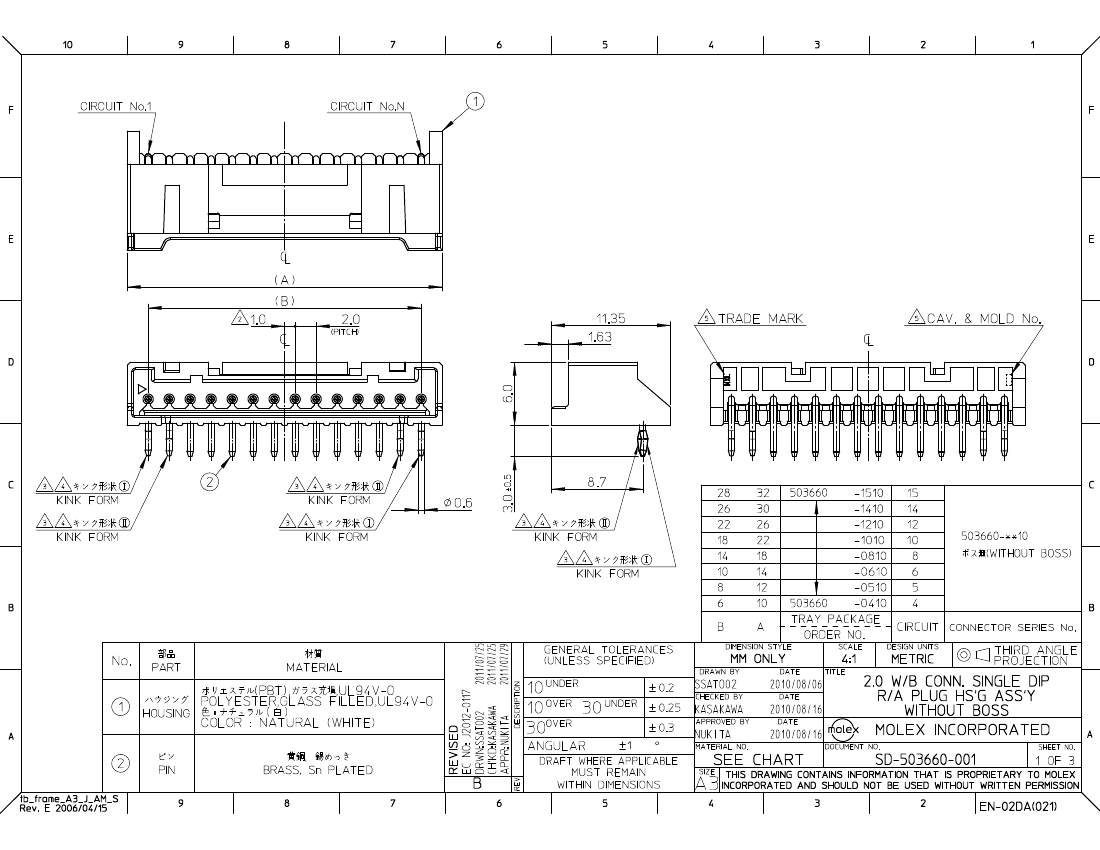

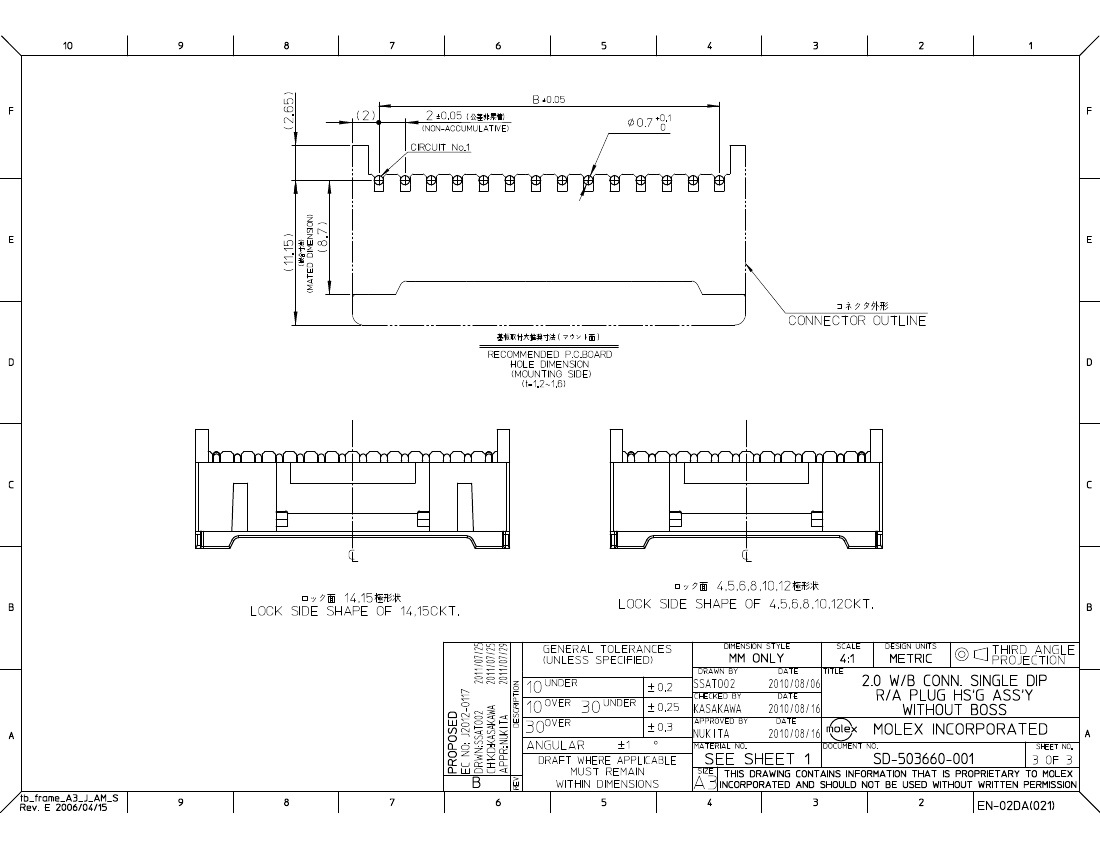

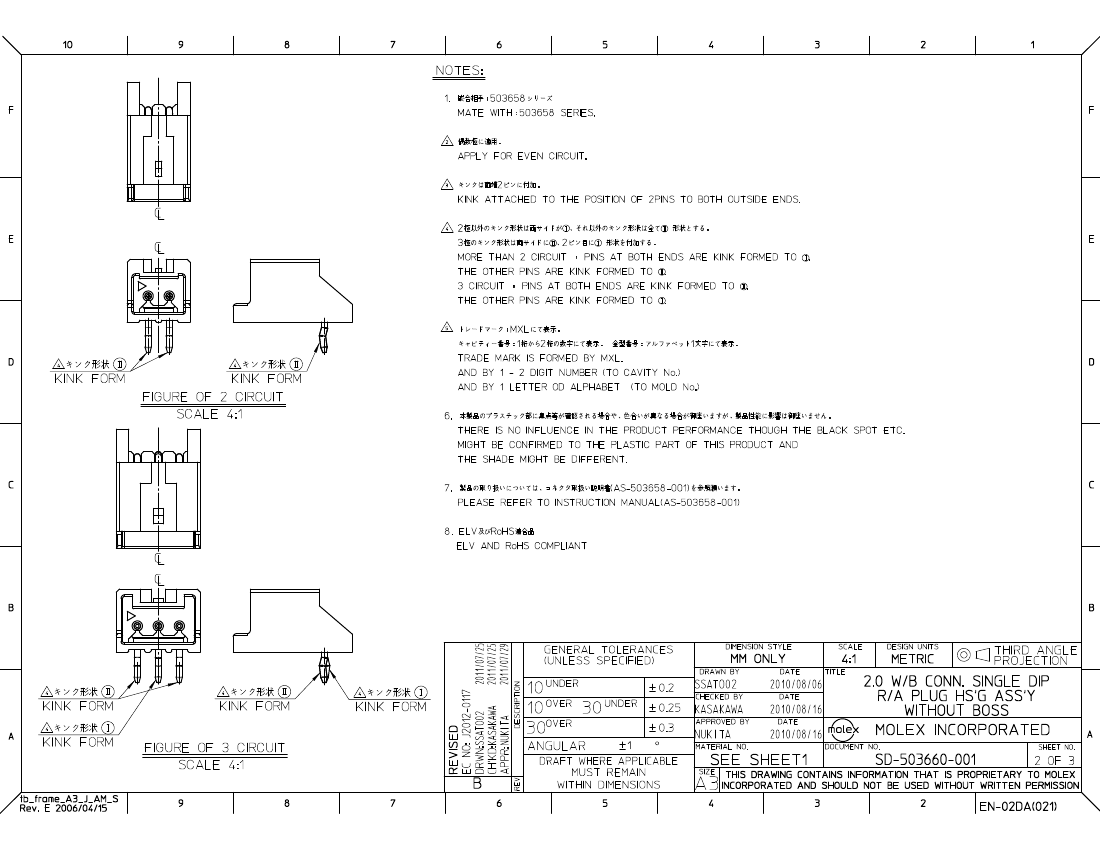

Preview

5036601010: Description20WB SINGLE DIP RA PLUG HSG ASSY; CategoryThe connector; File Size218KB，3 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

5036601010 Overview

20WB SINGLE DIP RA PLUG HSG ASSY

5036601010 Parametric

Parameter Name	Attribute value
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.079"（2.00mm）
Number of pins	10
Number of rows	1
Line spacing - patching	-
Number of pins loaded	all
style	Board to cable/wire
shield	Covered - 4 walls
Installation type	Through hole, right angle
Termination	Kink pins, solder
Fastening type	latch holder
Contact Length - Mating	-
Contact length - terminal	0.118"（3.00mm）
Overall contact length	-
Insulation height	0.236"（6.00mm）
Contact shape	round
Contact surface treatment - mating	tin
Contact Surface Treatment Thickness - Mating	-
Contact Surface Preparation - Column	tin
Contact material	brass
Insulation Materials	Polybutylene terephthalate (PBT), glass fiber reinforced
characteristic	-
Operating temperature	-
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	natural
Rated current	-
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	-
application	-

Preview

Download Datasheet

View All

5036601010 Related Products

	5036601010	5036600410	5036600810	5036601510
Description	20WB SINGLE DIP RA PLUG HSG ASSY	SINGLE DIP RA PLUG HSG ASSY	20WB SINGLE DIP RA PLUG HSG ASSY	20WB SINGLE DIP RA PLUG HSG ASSY
Connector type	Connector	Connector	Connector	Connector
Contact type	Male pin	Male pin	Male pin	Male pin
Spacing - Mating	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）
Number of pins	10	4	8	15
Number of rows	1	1	1	1
Number of pins loaded	all	all	all	all
style	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire
shield	Covered - 4 walls	Covered - 4 walls	Covered - 4 walls	Covered - 4 walls
Installation type	Through hole, right angle	Through hole, right angle	Through hole, right angle	Through hole, right angle
Termination	Kink pins, solder	Kink pins, solder	Kink pins, solder	Kink pins, solder
Fastening type	latch holder	latch holder	latch holder	latch holder
Contact length - terminal	0.118"（3.00mm）	0.118"（3.00mm）	0.118"（3.00mm）	0.118"（3.00mm）
Insulation height	0.236"（6.00mm）	0.236"（6.00mm）	0.236"（6.00mm）	0.236"（6.00mm）
Contact shape	round	round	round	round
Contact surface treatment - mating	tin	tin	tin	tin
Contact Surface Preparation - Column	tin	tin	tin	tin
Contact material	brass	brass	brass	brass
Insulation Materials	Polybutylene terephthalate (PBT), glass fiber reinforced	Polybutylene terephthalate (PBT), glass fiber reinforced	Polybutylene terephthalate (PBT), glass fiber reinforced	Polybutylene terephthalate (PBT), glass fiber reinforced
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation color	natural	natural	natural	natural
