51448-XX001 Overview

HDR PWRBLADE

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	HOLE .112-.124
body width	0.585 inch
subject depth	0.855 inch
body length	2.45 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH (60) OVER PALLADIUM NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	51448
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	57
UL Flammability Code	94V-0

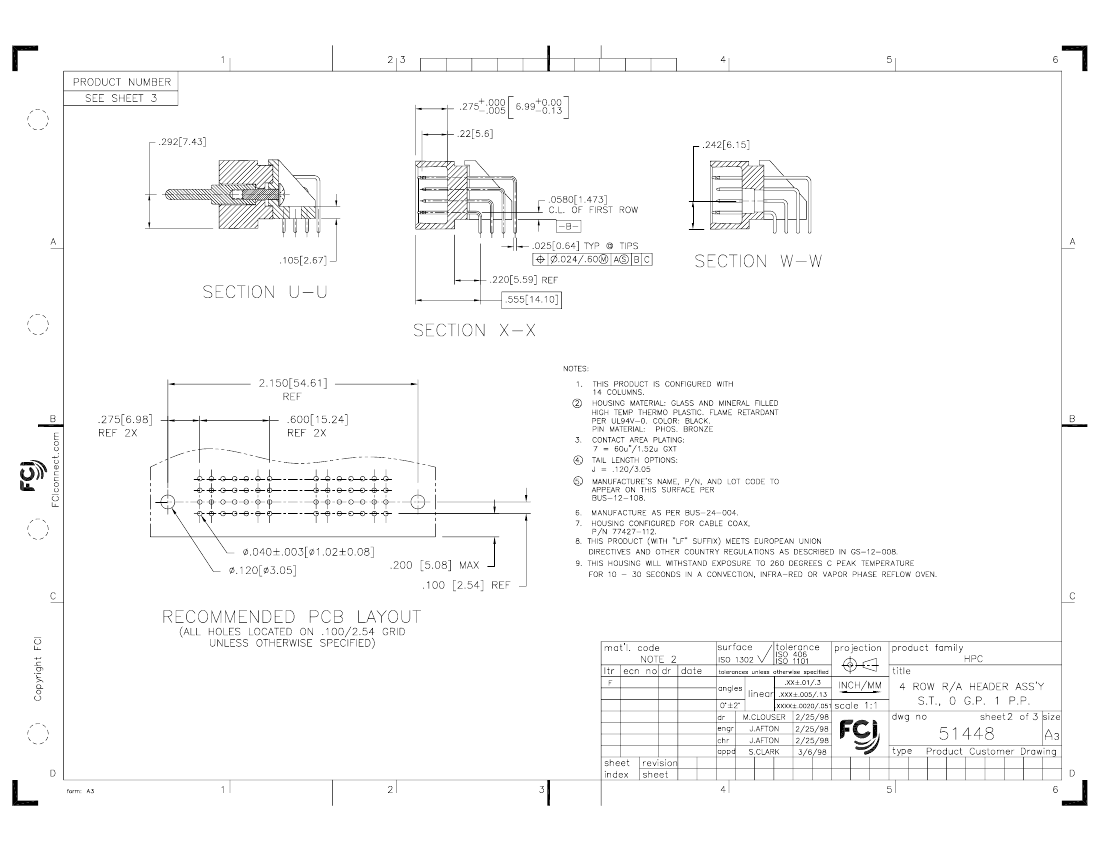

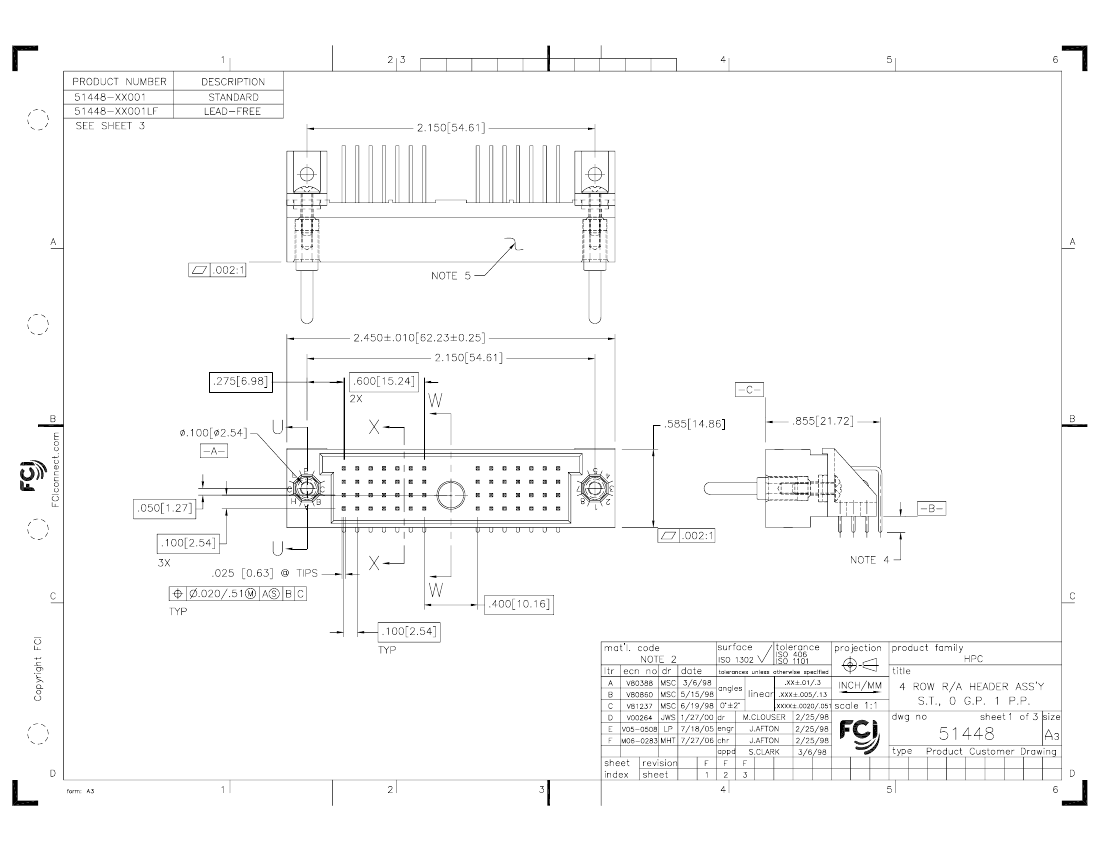

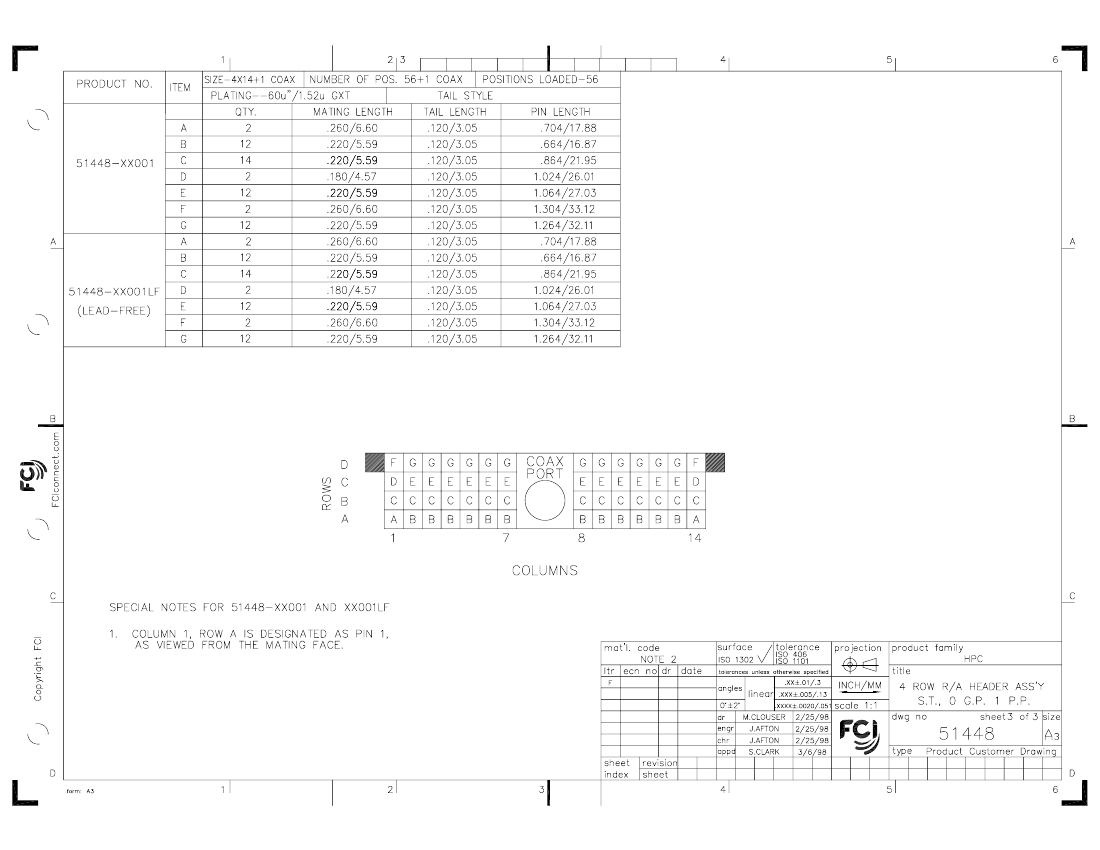

PDM: Rev:F

STATUS:

Released

Printed: May 14, 2011

.

	51448-XX001	51448-XX001LF
Description	HDR PWRBLADE	Board Connector, 57 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Black Insulator, Receptacle, LEAD FREE
Maker	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Board mount options	HOLE .112-.124	HOLE .112-.124
body width	0.585 inch	0.585 inch
subject depth	0.855 inch	0.855 inch
body length	2.45 inch	2.45 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH (60) OVER PALLADIUM NICKEL	NOT SPECIFIED
Contact point gender	MALE	MALE
Contact material	PHOSPHOR BRONZE	NOT SPECIFIED
Contact style	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
Insulator color	BLACK	BLACK
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
MIL compliance	NO	NO
Mixed contacts	YES	YES
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
Number of rows loaded	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.12 inch	0.12 inch
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Total number of contacts	57	57
UL Flammability Code	94V-0	94V-0
