D'Sub connectors - Stamped and Formed Contacts
STRAIGHT PCB TERMINATION
STANDARD and HIGH DENSITY
CHARACTERISTICS
• Connectors according to: MIL C24308 - NFC 93425-HE5
Materials and Platings
Shells
Insulator
Pin contacts
Steel
Glass-filled thermoplastic, UL 94V- 0
Brass, selected gold in mating area;
2.54µm (100 µ") min.tin on
termination area over 1.27µm
(50µ") min.nickel
Phosphor bronze, selected gold in
mating area;2.54µ(100µ") min.tin
on termination area over 1.27µm
(50µ") min.nickel
Brass, 2.54µm (100µ") min.nickel plated
Brass, 2.54µm (100µ") min.nickel plated
Brass, 2.54µm (100µ") min.nickel plated
(removable)
Socket contact
Rear insert
Boardlock
Screwlock

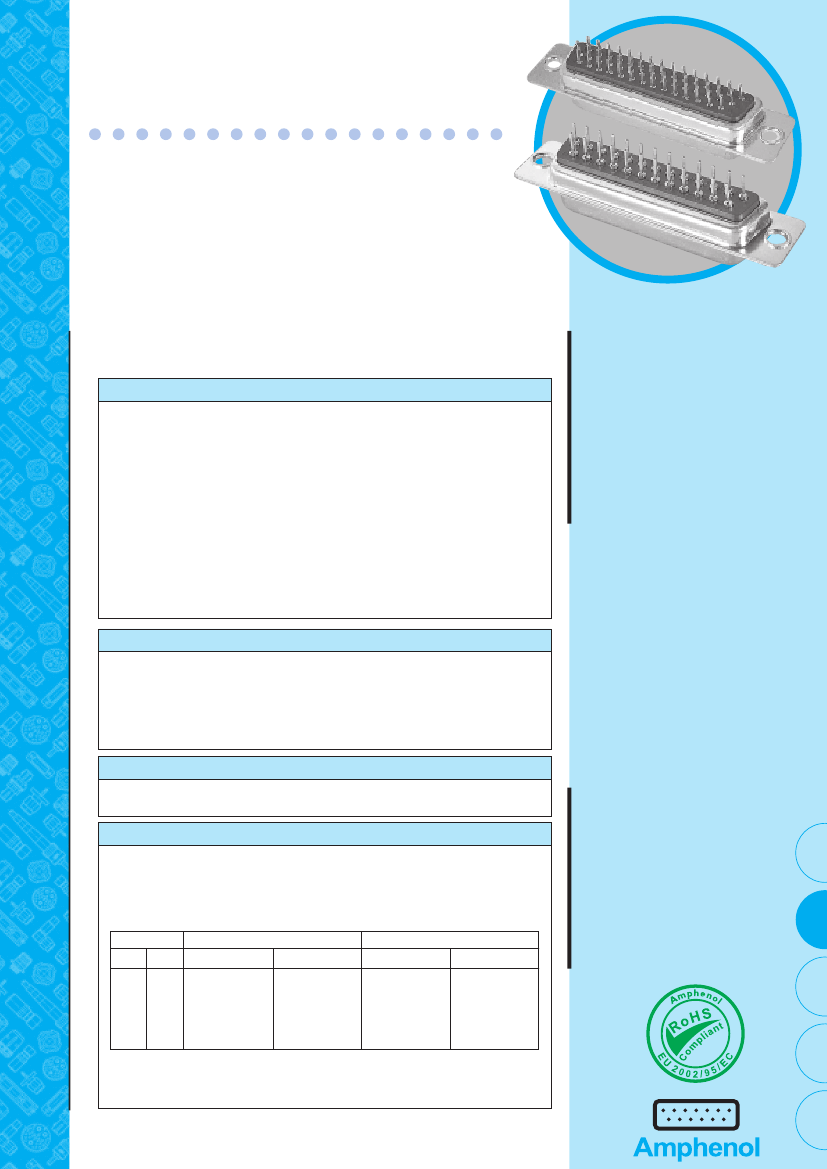

DESCRIPTION
APPLICATIONS
Specifications
The Amphenol "SD"
series features precision
formed contacts, and
insulator with closed
entry contacts cavities.
This series gives you
Amphenol's high
standards of quality and
reliability to meet all of
your commercial
requirements.
Electrical Data
Current rating
Voltage rating
Withstanding voltage
Insulation resistance
Contact resistance
Standard Density:5A
High Density:3A
250V AC/ rms 50Hz
1000V AC/rms 50Hz for one minute
1000MΩ at 500V DC
20mΩ max
Economical
straight PCB
mount connectors
Climatic Data
Operating temperature
-55°C to +125°C
Salt spray
24 hours
• Industrial
• Telecom
• Any industry standard
I / O connections
Mechanical Data
Single contact insertion force
Single contact withdrawal force
Mating and unmating force
Unit: kg ( lb)
No. of Cts
SD HD
9
15
25
37
50
15
26
44
62
78
SD
Mate (max) Unmate (min)
3.05 (6.74)
5.09 (11.24)
8.44 (18.66)
12.51 (27.65)
14.65 (32.38)
0.36 (0.79)
0.46 (1.01)
0.81 (1.8)
1.1 (2.47)
1.6 (3.56)
HD
Mate (max) Unmate (min)
3.81 (8.42)
5.95 (13.16)
9.26 (20.46)
13.48 (29.78)
15.82 (34.96)
0.52 (1.14)
1.05 (2.32)
1.37 (3.02)
1.76 (3.88)
2.02 (4.46)
0.54kg (1.19lb) max
SD : 0.06kg (0.13lb) min
HD : 0.02kg (0.044lb) min
Standard plating thickness
• gold flash
• 0.381µm (15µ") gold
• 0.76 µm (30µ") gold
SD / E6

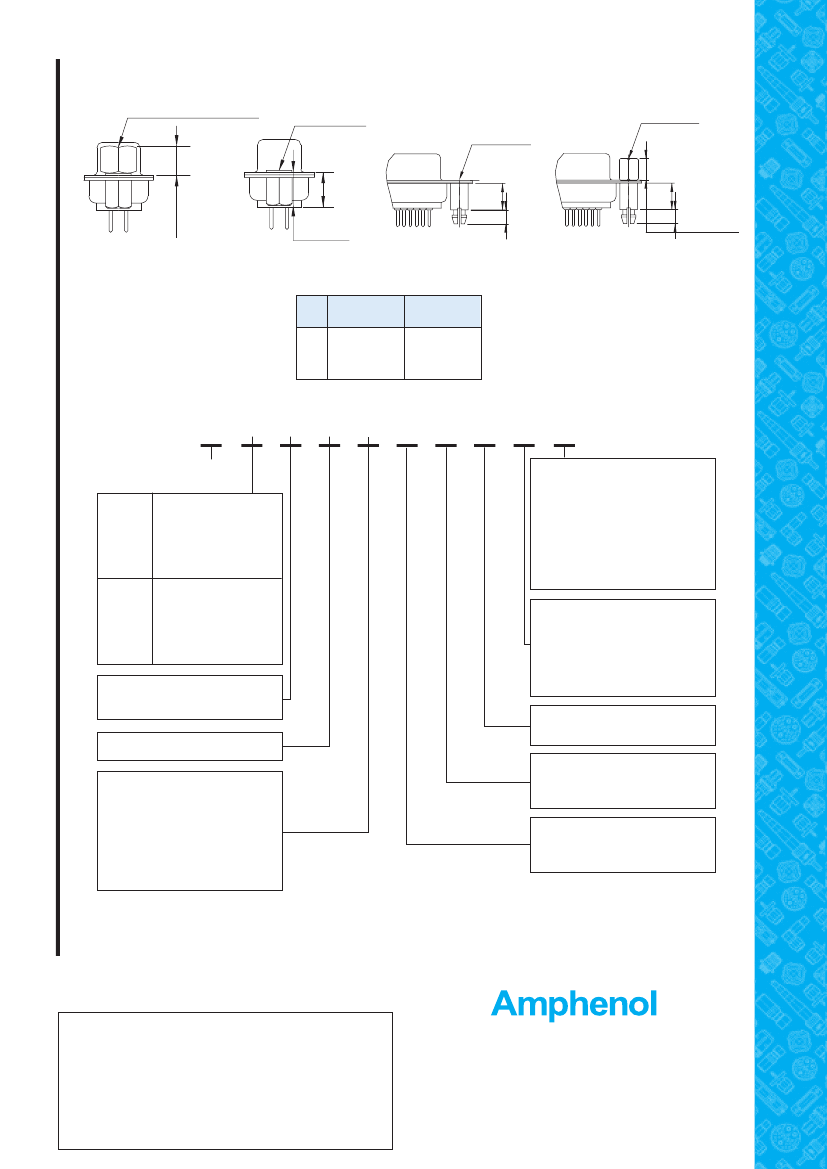

HOW TO ORDER
Panel mounting option
M3 or # 4-40 screwlock
M3 or # 4-40
H = # 4-40
G = M3
5.0 (.197)
J
H = # 4-40
G = M3
Ｘ
Ｙ
Ｘ
Ｙ
4.8 (.189)
5.9 (.232)
Threaded Rear Insert
RM5
RM8
X
Y
J
6.0(.236)
4.2(.165)
6.2(.244)
RM5 Standoff Boardlock
RM5G
RM8G
12.7(.500)
3.2(.126)
11.8(.465)
Front Female Screwlock
RM8 Standoff Boardlock
How to order
L
RoHS Compliant
... ... ... ... ... ... OL2 ... C309
plating option:
valid only for
0.76µm (30µ")
part numbers to be written
as follow:
or
77...................C309
717.................C309
The information given in this document are as a guideline only. We reserve the right to modify our products in any way we deem necessary. Any duplication is prohibited, unless approved in writing.
E13/B
gold
flash
77: tinned shell
for receptable
717: tinned shell
+ dimples
for plug
177: tinned shell
for receptable
777: tinned shell
+ dimples
for plug
0.4µm
(15µ")
SD : standard density
HD : high density
shell size: E, A, B, C, D
mounting type:
H = rear insert 4-40
G = rear insert M3
H,G must also be used
to specify the threading
of RM5 or RM8
grounding tabs.
grounding tabs:
no digit
= standard rivet
3.05mm
RM5
= retention clip
RM8
= retention clip
+ front screwlock
Termination
Straight for PCB
contact type:
P
= pin
S
= socket
configuration:
SD
: 9,15,25,37,50
HD
: 15,26,44,62,78
For special request, please consult factory
Do not hesitate to contact us for further information
