51752-009: DescriptionPWRBLADE V/T LF REC; CategoryThe connector The connector; File Size238KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

51752-009 Overview

PWRBLADE V/T LF REC

51752-009 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Board mount options	SPLIT BOARD LOCK
body width	0.47 inch
subject depth	0.5 inch
body length	2.6 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD (100) OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	51752
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	18
UL Flammability Code	94V-0
Evacuation force-minimum value	.17792 N
Base Number Matches	1

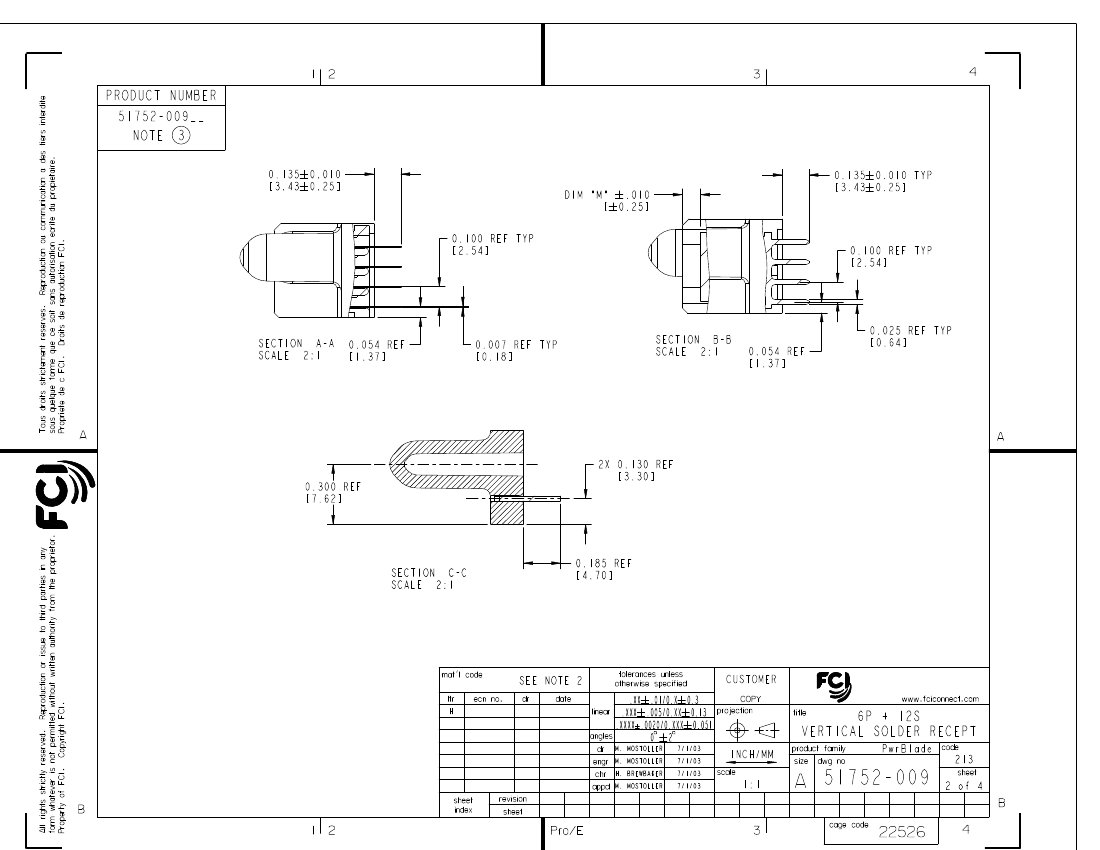

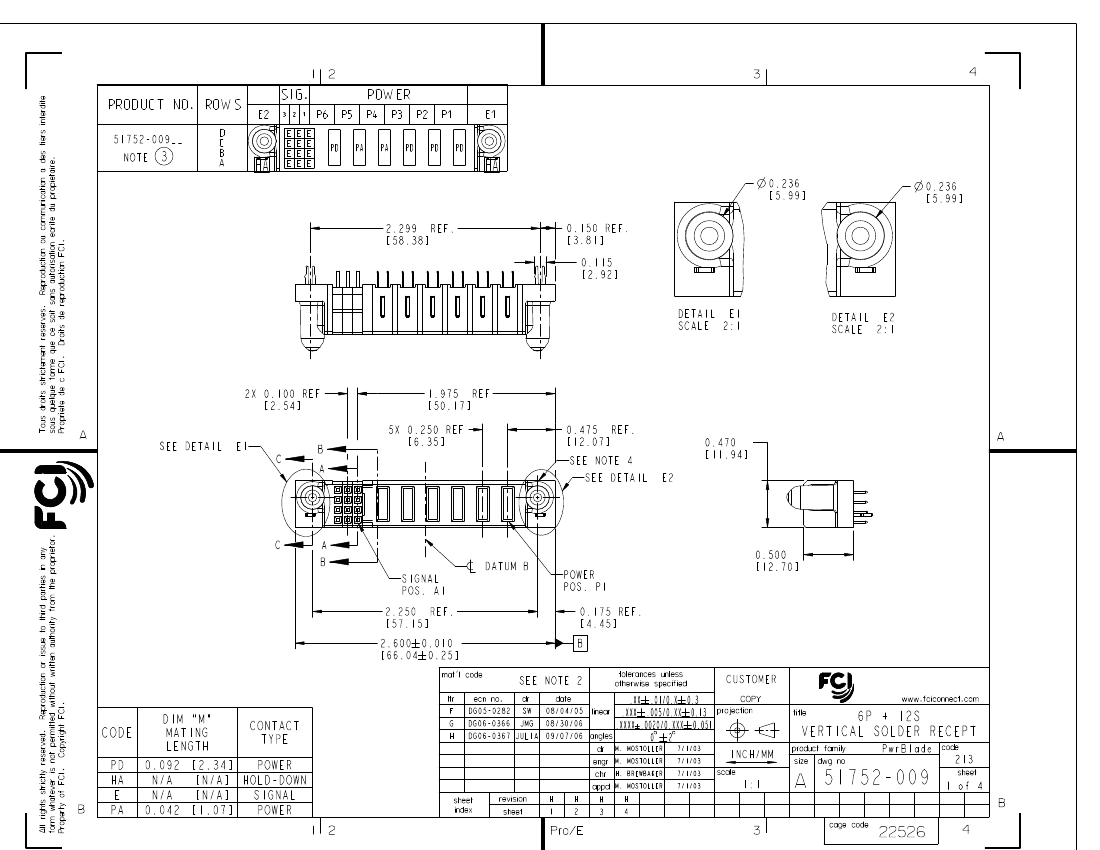

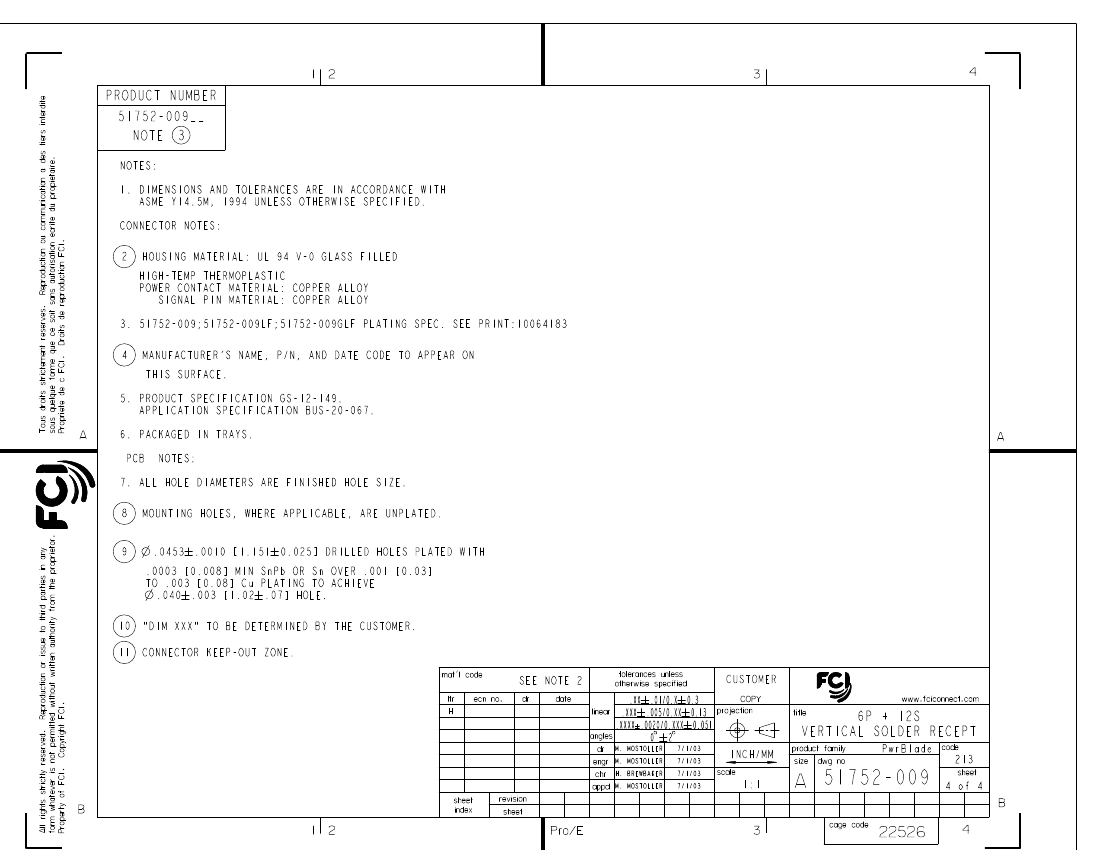

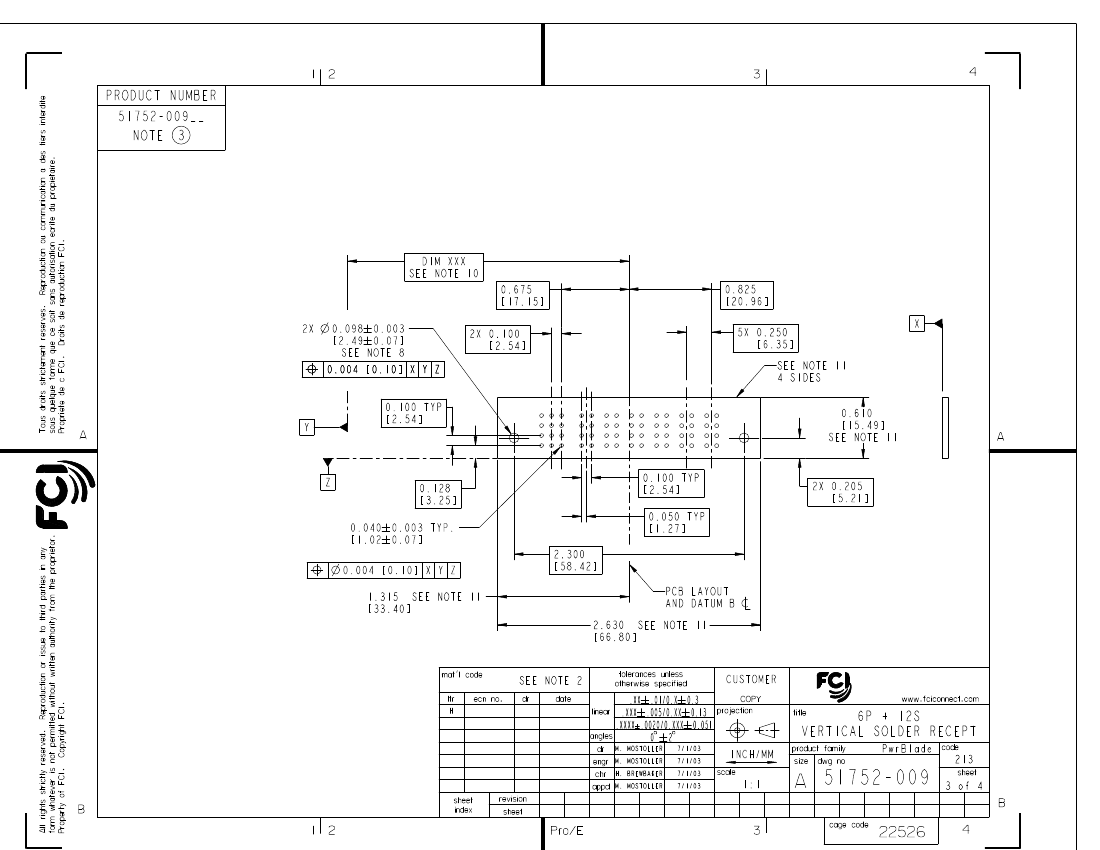

Preview

Download Datasheet

View All

PDM: Rev:H

STATUS:

Released

Printed: Dec 20, 2010

.

51752-009 Related Products

	51752-009	51752-009LF	51752-009GLF
Description	PWRBLADE V/T LF REC	PWRBLADE V/T LF REC	Board Connector, 18 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Receptacle, LEAD FREE
Is it lead-free?	Contains lead	Lead free	Lead free
Is it Rohs certified?	incompatible	conform to	conform to
Maker	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD (100) OVER NICKEL	TIN (78) OVER NICKEL	GOLD (5) OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
JESD-609 code	e0	e3	e4
MIL compliance	NO	NO	NO
Manufacturer's serial number	51752	51752	51752
Mixed contacts	YES	YES	YES
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	18	18	18
UL Flammability Code	94V-0	94V-0	94V-0
Base Number Matches	1	1	1
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK	-
body width	0.47 inch	0.47 inch	-
subject depth	0.5 inch	0.5 inch	-
body length	2.6 inch	2.6 inch	-
Contact resistance	20 mΩ	20 mΩ	-
Contact style	HYBRID	HYBRID	-
Dielectric withstand voltage	2500VDC V	2500VDC V	-
Durability	200 Cycles	200 Cycles	-
maximum insertion force	.973 N	.973 N	-
Insulation resistance	500000000 Ω	500000000 Ω	-
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	-
Installation option 1	LOCKING	LOCKING	-
Number of connectors	ONE	ONE	-
Maximum operating temperature	125 °C	125 °C	-
Minimum operating temperature	-55 °C	-55 °C	-
Rated current (signal)	3 A	3 A	-
Guideline	UL	UL	-
reliability	COMMERCIAL	COMMERCIAL	-
Terminal length	0.135 inch	0.135 inch	-
Evacuation force-minimum value	.17792 N	.17792 N	-
package instruction	-	LEAD FREE	LEAD FREE
