TOP 2000 6 s 12 min Part number 88225011
Multi-function
Multi-range
Mono-voltage
1 timed changeover + 1 instantaneous contact
Elapsed time can be saved mechanically in the event of a break in supply
Progress of a cycle displayed
Housing for DIN rail mounting
Part numbers
Type
88 225 011
6 s 12 min
Functions
Multi-function : 2 - 3 - 4
Relay outputs
1 timed changeover 5 A1 instantaneous
Voltage
220 →240 V AC
Specifications
Precision limit error
Repetition accuracy
Reset time
Timed two-pole
Instantaneous single pole
Thermal rating
Rating (cos
φ =
0.41) 10
4
operations
Voltage variation at maximum temperature of 55
o
C
according to IEC 255 100
Absorbed power-motor
Operating factor
Operating temperature range (°C)
Storage temperature range (°C)
Environmental protection Tropicalised to IEC 68-2-10
Vibration withstand on 3 axes (Veritas standard)
Dielectric test voltage according to IEC 255 5 or VDE 0435
Insulation according to standard VDE 0110 group C
Protection Housing
Degree of terminal protection
Conformity to standards NFC 45250 - VDE 0110 - 0435 -
0660 or ICE 255 - 1 - 00
Connection : By screws in front face with self-lifting
grips
Terminal capacity Single-wire
Terminal capacity : Multi-wire with self-crimping ferrules
Mounting by screw
Mounting : on symmetrical DIN rail 35 mm (EN 50002)
Weight (g)
±2 % (±5 % / 6 s)
±1,5 % (±4 % / 6 s)
0,20 s
1
1
6,3 A
5 A - 230 V
24 V +10 % - 42 V -15 % - 48 V +10 % - 110 V -20 % - 127 V 0 % - 220 V -20 % - 240 V 0 %
3 VA cos
μ 0,7
100 %
-10 →+55 °C
-20 →+70 °C
4 G - 55 Hz
1000 V - Un ≤ 60 V
2000 V - Un > 60 V
380 V AC - 440 V DC
IP 40
IP 10
(1-2) x 0,75 - 2,5 mm
2
(1-2) x 0,75 - 2,5 mm
2
2 x M5
185
Accessories
Accessories
*** TRADUCTION MANQUANTE ***
*** TRADUCTION MANQUANTE ***
Code
84 861 501
84 861 503
Dimensions (mm)
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
www.crouzet.com
N
o
Legend
With memory
Without memory

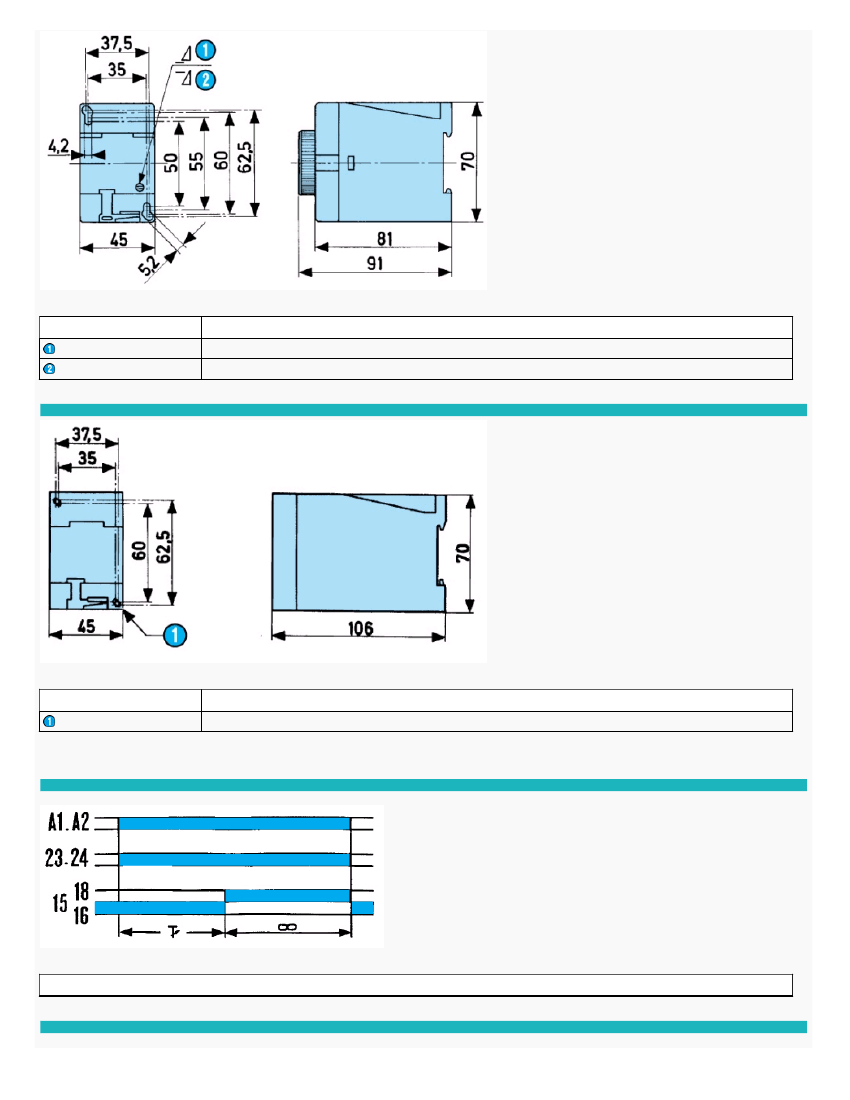

Dimensions (mm)
N
o
Legend
Fixing holes Ø 5
Curves
Function 2
Function n°2
Curves
Function 3
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
www.crouzet.com
Function n°3
Curves
Function 4
Function n°4

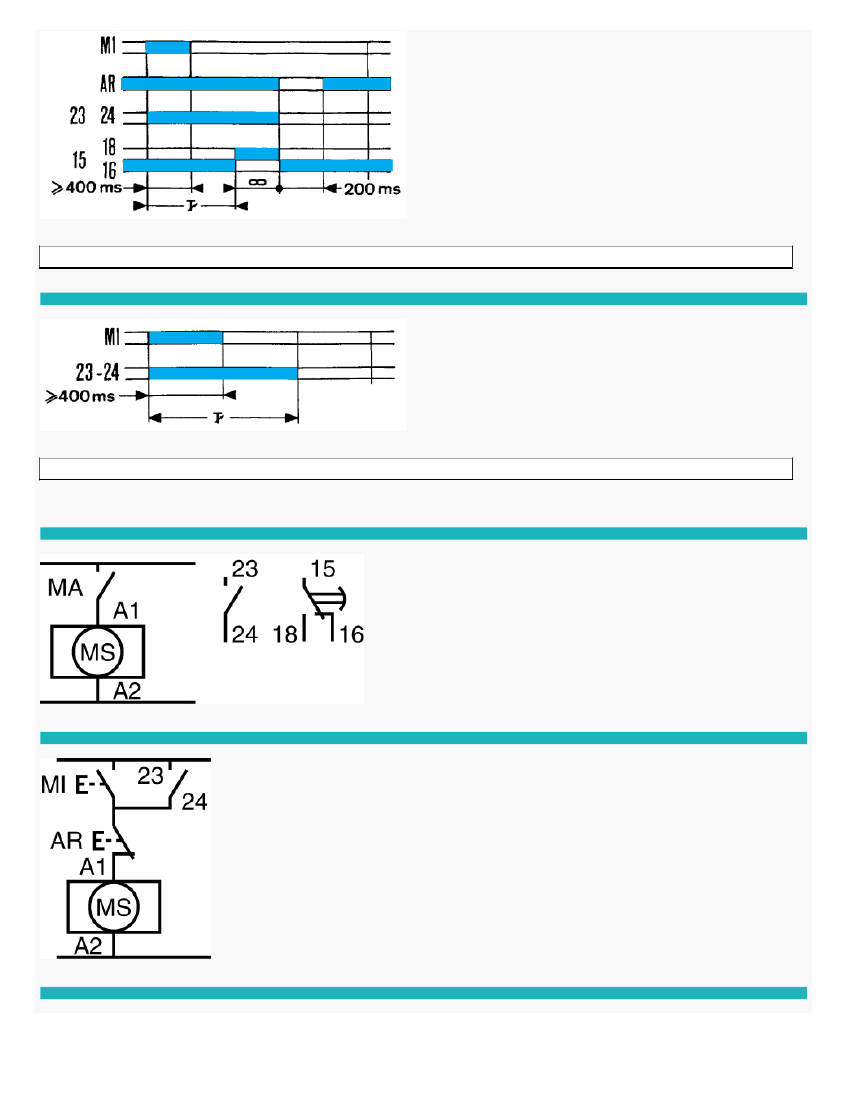

Connections
Function 2
Connections
Function 3
Connections
Function 4
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
www.crouzet.com
On energisation, chance of contact bounce on instantaneous contact for 250 ms
Connections

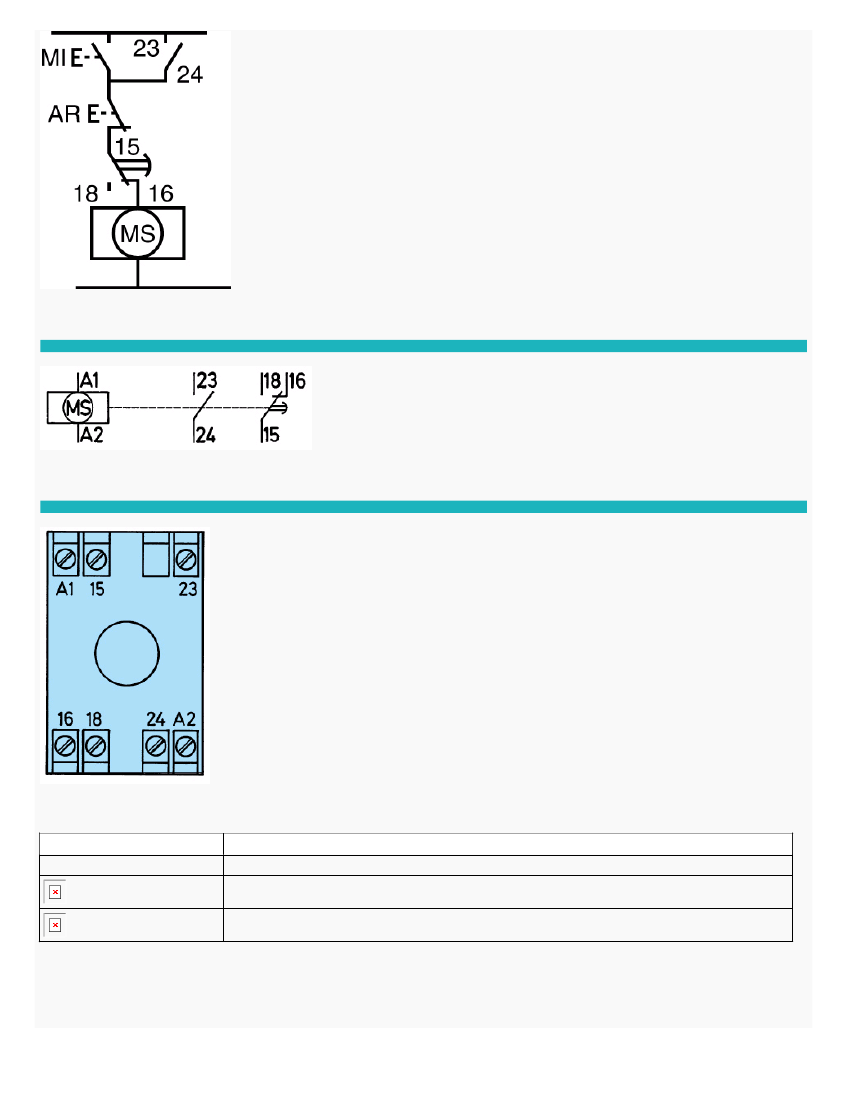

Internal layout
On energisation, chance of contact bounce on instantaneous contact for 250 ms
Connections
Terminal identification
TRADOS Empty Field
N
o
Legend
A1 - A2 Supply
Timed contact
Instantaneous contact
