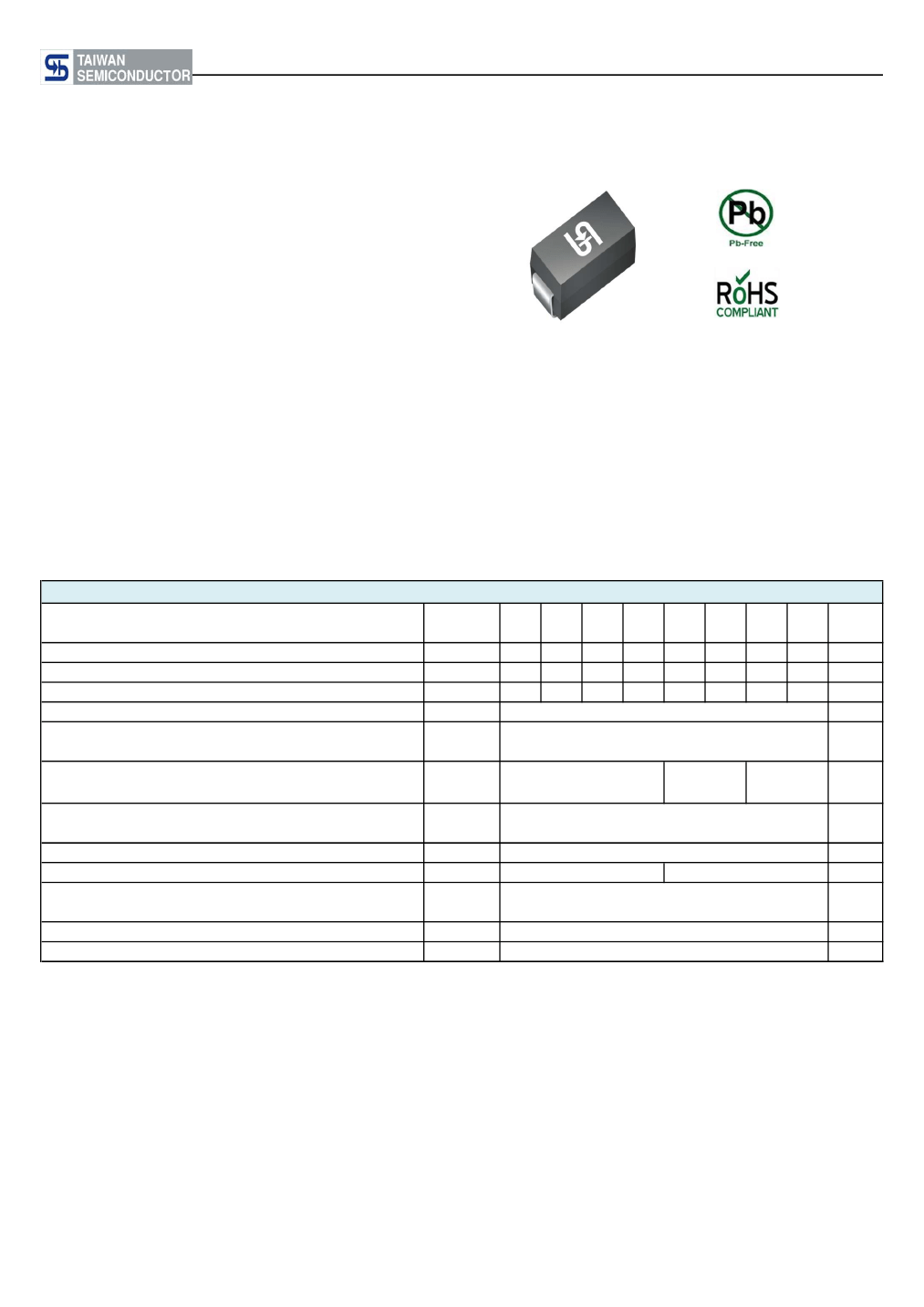

1A, 50V - 600V Surface Mount Super Fast Rectifiers
FEATURES
- Glass passivated junction chip
- Ideal for automated placement
- Super fast recovery time for high efficiency
- Built-in strain relief
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
DO-214AC (SMA)
MECHANICAL DATA
Case:
DO-214AC (SMA)
Molding compound, UL flammability classification rating 94V-0
Moisture sensitivity level: level 1, per J-STD-020
Part No. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
Indicated by cathode band
Weight:
0.06 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@1A
Maximum reverse current @ rated V
R
Maximum reverse recovery time (Note 2)
Typical junction capacitance (Note 3)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied V
R
=4.0 Volts
T
J
=25°C
T
J
=125°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
t
rr
C
J
R
θJL
R
θJA
T
J
T
STG
16
35
85
- 55 to +150
- 55 to +150
0.95
5
100
35
18
ES
1A
50
35
50
ES
1B
100
70
100
ES
1C
150
105
150
ES
1D
200
140
200
1
30
1.3
1.7
ES
1F
300
210
300
ES
1G
400
280
400
ES
1H
500
350
500
ES
1J
600
420
600
UNIT
V
V
V
A
A
V
μA
ns
pF
°C/W
°C
°C
Document Number: DS_D1411076
Version: M15
ES1A - ES1J
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
PART NO.
SUFFIX
PACKING
CODE
R3
R2
ES1x
(Note 1)
H
M2
F3
F2
F4
N/A
E3
E2
G
PACKING CODE
SUFFIX
SMA
SMA
SMA
Folded SMA
Folded SMA
Folded SMA
Clip SMA
Clip SMA
1,800 / 7" Plastic reel
7,500 / 13" Paper reel
7,500 / 13" Plastic reel
1,800 / 7" Plastic reel
7,500 / 13" Paper reel
7,500 / 13" Plastic reel
1,800 / 7" Plastic reel
7,500 / 13" Plastic reel
PACKAGE
PACKING
Note 1: "x" defines voltage from 50V (ES1A) to 600V (ES1J)
EXAMPLE
PREFERRED
PART NO.
ES1JHR3G
PART NO.
ES1J
PART NO.
SUFFIX
H
PACKING CODE
R3
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound

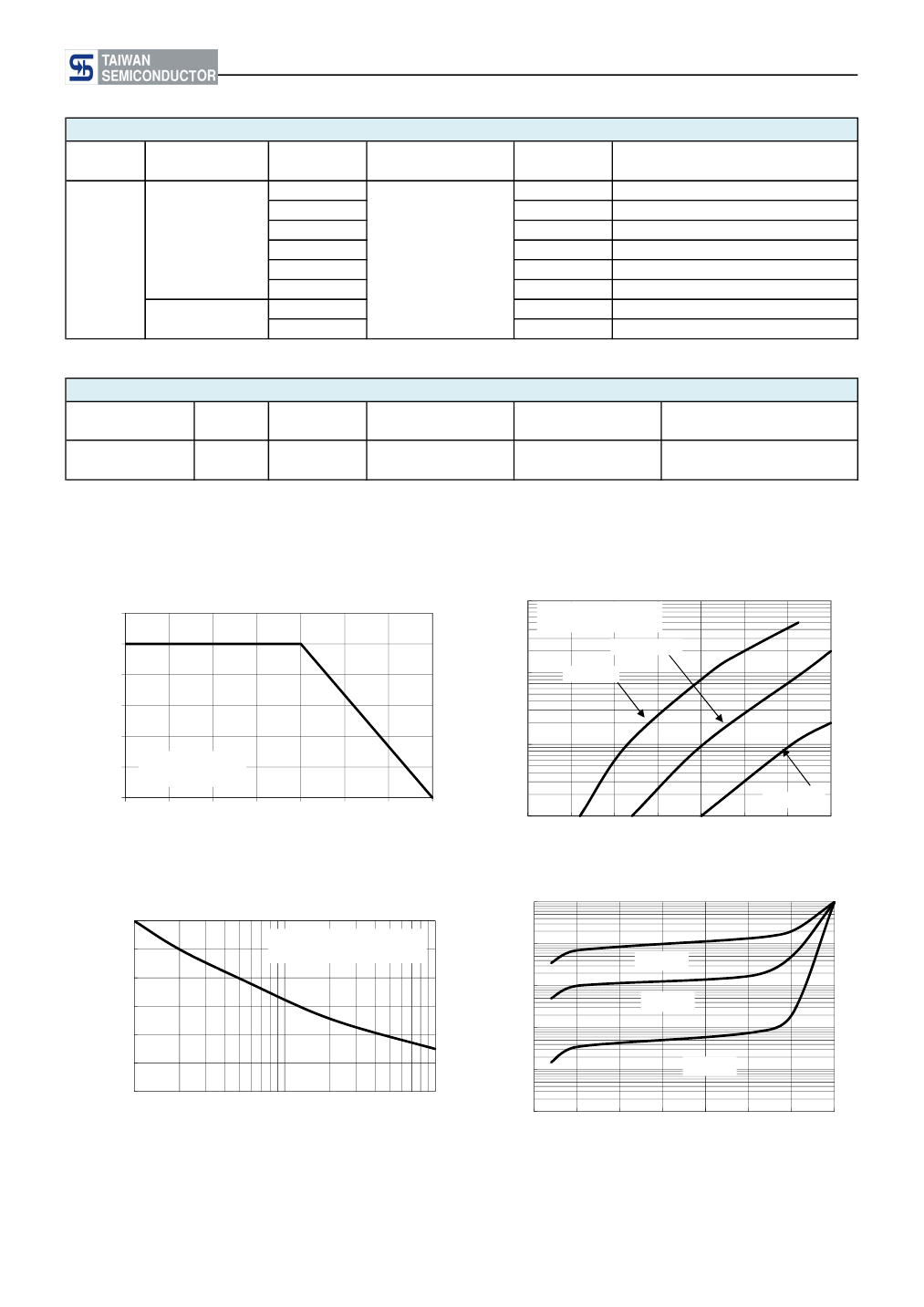

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
FIG.1 MAXIMUM FORWARD CURRENT
DERATING CURVE
INSTANTANEOUS FORWARD CURRENT (A)
1.2
AVERAGE FORWARD CURRENT (A)
1
0.8
0.6
0.4
0.2
0
80
90
100
110
120
130
140
150
LEAD TEMPERATURE (
°
C)
RESISTER OR
INDUCTIVE LOAD
FIG. 2 TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
100
Pulse Width=300μs
1% Duty Cycle
ES1F-1G
10
ES1A-D
1
ES1H-1J
0.1
0.4
0.6
0.8
1
1.2
1.4
FORWARD VOLTAGE (V)
1.6
1.8
PEAK FORWARD SURGE CURRENT
(A)
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD PEAK
SURGE CURRENT
INSTANTANEOUS REVERSE CURRENT
(μA)
30
25
20
15
10
5
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
8.3ms Single Half Sine Wave
1000
FIG. 4 TYPICAL REVERSE CHARACTERISTICS
100
T
J
=125°C
10
T
J
=75°C
1
0.1
T
J
=25°C
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Document Number: DS_D1411076
Version: M15
ES1A - ES1J
Taiwan Semiconductor
FIG. 5 TYPICAL JUNCTION CAPACITANCE
100
JUNCTION CAPACITANCE (pF)
ES1F-J
10
ES1A-D
f=1.0MHz
Vsig=50mVp-p
1
0.1
1
10
100
REVERSE VOLTAGE (V)

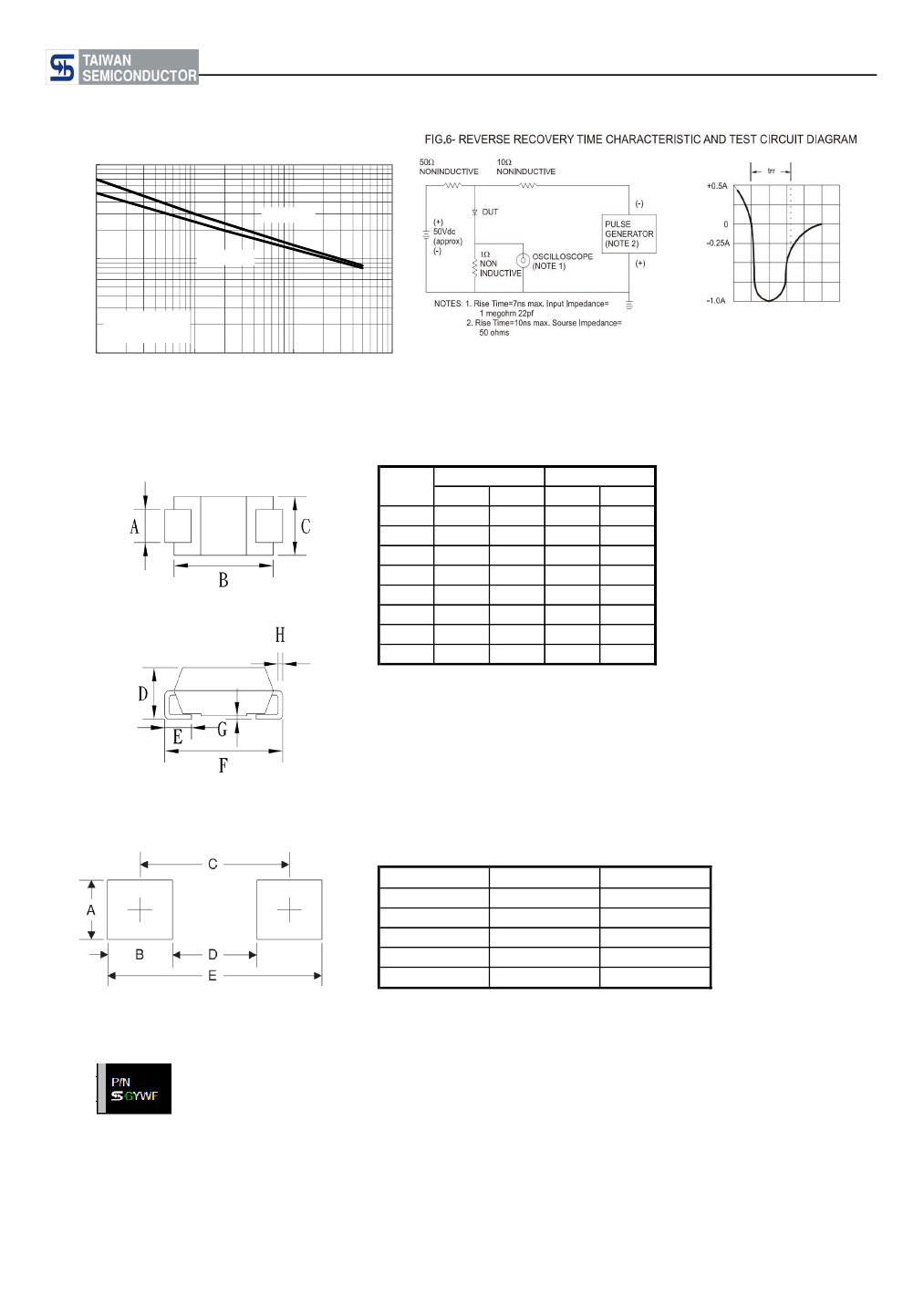

PACKAGE OUTLINE DIMENSIONS
DO-214AC (SMA)
DIM.
A
B
C
D
E
F
G
H
Unit (mm)
Min
1.27
4.06
2.29
1.99
0.90
4.95
0.10
0.15
Max
1.58
4.60
2.83
2.50
1.41
5.33
0.20
0.31
Unit (inch)
Min
0.050
0.160
0.090
0.078
0.035
0.195
0.004
0.006
Max
0.062
0.181
0.111
0.098
0.056
0.210
0.008
0.012
SUGGESTED PAD LAYOUT
Symbol
A
B
C
D
E
Unit (mm)
1.68
1.52
3.93
2.41
5.45
Unit (inch)
0.066
0.060
0.155
0.095
0.215
MARKING DIAGRAM
P/N =
G=
YW =
F=
Specific Device Code
Green Compound
Date Code
Factory Code
Document Number: DS_D1411076
Version: L14
