RB520S-30LP
•
•
Small surface mounting type
Epoxy meets UL 94 V-0 flammability rating
Moisture Sensitivity Level 1
Lead Free Finish/RoHS Compliant ("P" Suffix designates
RoHS Compliant. See ordering information)
Marking:E
Halogen
free available upon request by adding suffix "-HF"
100 mA
Schottky Rectifier
30 Volts
SOD-882
D
Maximum Ratings
Symbol
V
R
I
O
I
FSM
T
J
T
STG
Rating
DC Reverse Voltage
Mean Rectifying Current
Peak Forward Surge Current*
Junction Temperature
Storage Temperature
Rating
30
100
0.5
125
-40 to +125
UnitUnit
V
mA
A
B
A
C
L
H
Electrical Characteristics @ 25
O
C Unless Otherwise Specified
Symbol
Parameter
Forward Voltage
(I
F
=10mAdc)
Reverse Current
(V
R
=10Vdc)
Min
Typ
Max
Units
F
G
E
V
F
I
R
---
---
---
---
0.45
0.5
Vdc
_
µAdc
DIM
A
B
C
D
E
F
G
H
L
+
DIMENSIONS
INCHES
MM
MIN
MAX
MIN
MAX
0.018
0.022
0.45
0.55
0.000
0.003
0.01
0.07
0.019REF.
0.470REF.
0.037
0.041
0.95
1.05
0.022
0.026
0.55
0.65
0.017 REF.
0.420 REF.
0.011
0.015
0.27
0.37
0.001 REF.
0.030 REF.
0.013
0.017
0.34
0.44
NOTE
Suggested Solder
Pad Layout
(mm)
www.mccsemi.com
Revision:
D
1 of
3
2013/01/01
MCC

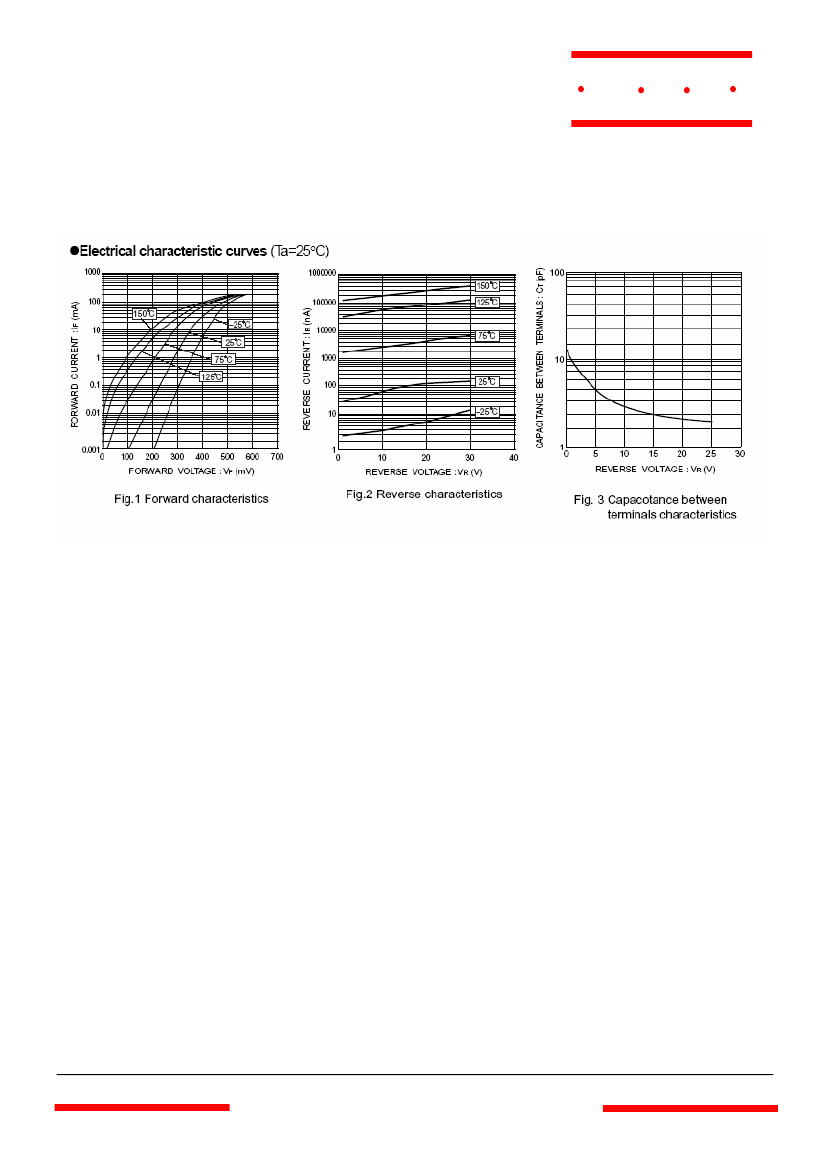

Typical Characteristics
TM
Micro Commercial Components
www.mccsemi.com
Revision: D
2
of
3
2013/01/01
MCC
Micro Commercial Components
TM
Ordering Information :
Device
Part Number-TP
Note : Adding "-HF" suffix for halogen free, eg. Part Number-TP-HF
Packing
Tape&Reel:
10Kpcs/Reel
