NX2520SG-19.2M-EXS00A-CS04340 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> NX2520SG-19.2M-EXS00A-CS04340

Preview

NX2520SG-19.2M-EXS00A-CS04340: DescriptionCRYSTAL 19.2MHZ 7PF WTHRM SMD; CategoryPassive components; File Size108KB，1 Pages; ManufacturerNDK; Websitehttp://www.ndk.com/en/; Environmental Compliance

Download Datasheet Parametric Compare View All

NX2520SG-19.2M-EXS00A-CS04340 Overview

CRYSTAL 19.2MHZ 7PF WTHRM SMD

NX2520SG-19.2M-EXS00A-CS04340 Parametric

Parameter Name	Attribute value
type	MHz crystal
frequency	19.2MHz
frequency stability	±12ppm
frequency tolerance	±10ppm
load capacitance	7pF
ESR (equivalent series resistance)	70 Ohms
Operating mode	basic harmony
Operating temperature	-30°C ~ 105°C
grade	-
Installation type	surface mount
Package/casing	4-SMD, no leads
size/dimensions	0.098" long x 0.079" wide (2.50mm x 2.00mm)
Height - Installation (maximum)	0.035"（0.90mm）

NX2520SG-19.2M-EXS00A-CS04340 Preview

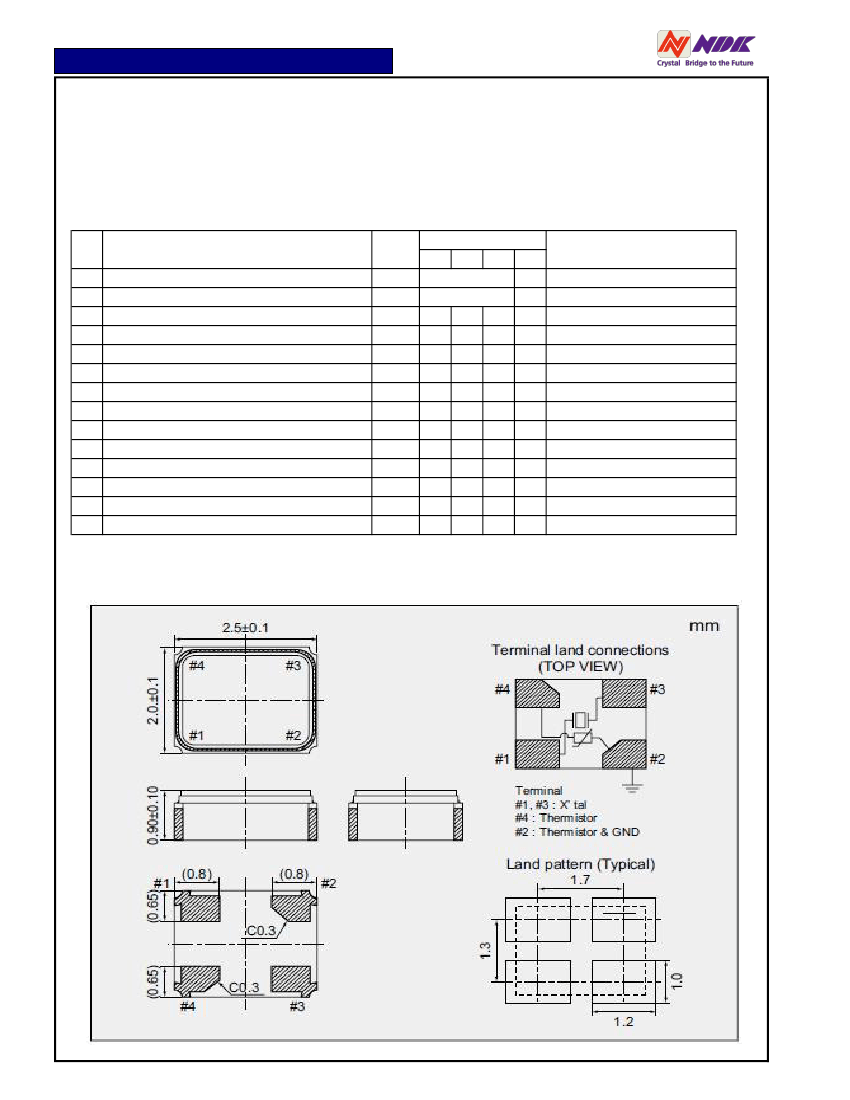

Specification of Quartz Crystal Units

1 NDK Part Number

2 Chipset Maker

3 Application

4 Chipset Name

5 NDK Specification Number

6 Type

7 Electrical Characteristics

Parameters

1

2

3

4

5

6

7

8

9

10

11

12

13

14

Nominal Frequency (fnom)

Overtone order

Frequency tolerance

Frequency versus temperature characteristics *1.

Equivalent Series Resistance

Load capacitance

Level of drive

Shunt Capacitance

Motional Capacitance

Motional Inductance

Insulation resistance

Operating temperature range

Storage temperature range

Air-tightness

*1. The reference temperature shall be +30°C

*2. When terminal to terminal and terminal to cover were applied at DC100V ±15V.

11

Dimension

NX2520SG-19.2M-EXS00A-CS04340

Qualcomm

Connectivity (NB-IOT, Modem for mobile)

MDM9206,MDM9207, Snapdragon series

EXS00A-CS04340

NX2520SG

Electrical Spec.

min

typ max Units

19.200

Fundamental

-10

-12

-

7

10

MHz

-

+10 ppm at +30°C

+12 ppm at -30 to +85°C

70

-

100

Ω

mW

SYM.

fnom

-

Rr

CL

-

C0

C1

L1

-

Notes

IEC -Network Series

pF IEC -PI-Network

pF

fF

-15%

0.85

+15%

-15%

2.2

+15%

-15%

31.2

+15%

mH

500

-30

-40

-

105

Ω

°C

*2

1.1×10^-9

Pa m^3/s

Helium leak detector

AUGUST.09.2014

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

NX2520SG-19.2M-EXS00A-CS04340 Related Products

	NX2520SG-19.2M-EXS00A-CS04340	NX2520SG-EXS00A-CS04340-19.2M	EXS00A-CS04340
Description	CRYSTAL 19.2MHZ 7PF WTHRM SMD		Equivalent series resistance (ESR): 70Ω Main frequency: 19.2MHz Frequency tolerance: ±10ppm Load capacitance value: 7pF
frequency tolerance	±10ppm	-	±10ppm
Operating temperature	-30°C ~ 105°C	-	-30℃ ~ +105℃
