REVISION Y
DO NOT
SCALE FROM
THIS PRINT

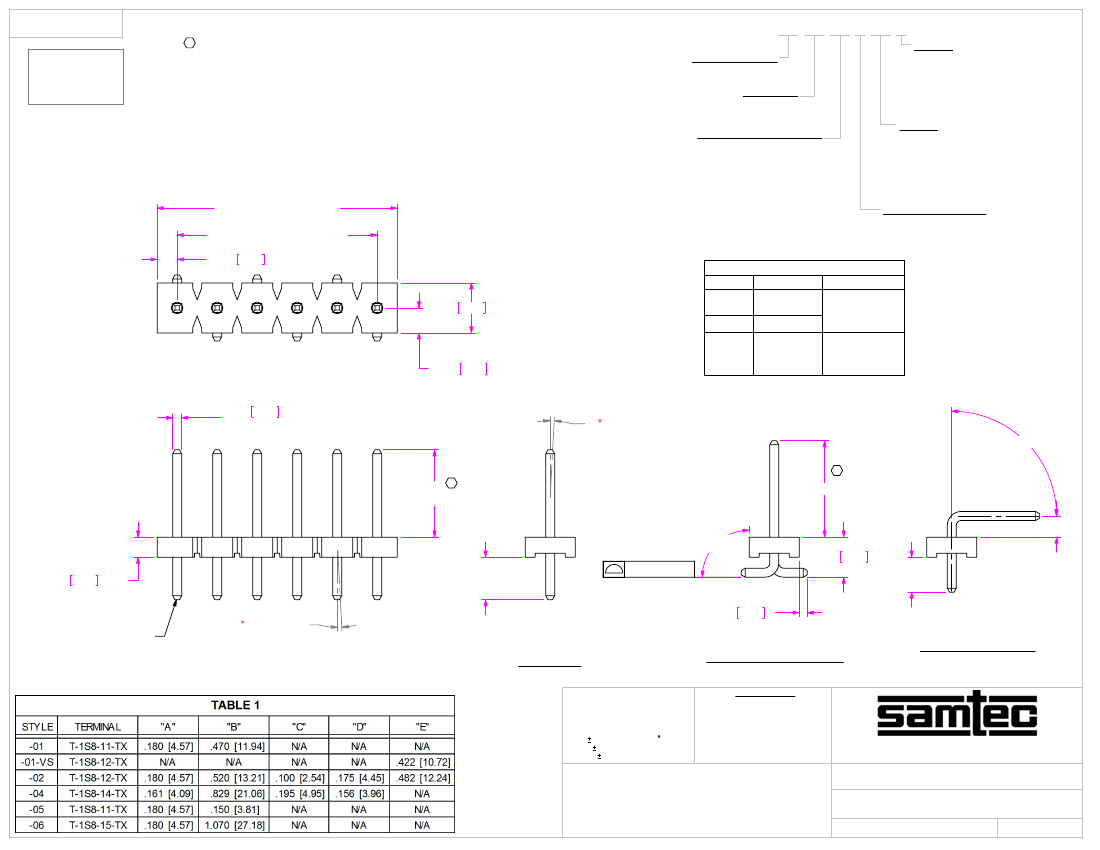

NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MAXIMUM HEIGHT VARIATION BETWEEN ANY TWO PINS: .005[0.13]
3. MAXIMUM PIN ROTATION IN BODY: 2°
4. TAILS TO BE SHEARED TO ACHIEVE DIMENSIONAL CALLOUT ±.010[0.25]
5. MINIMUM PUSHOUT FORCE: 3 LBS.
6. MAXIMUM ALLOWABLE BURR: .0015[0.038]
7. THROUGH HOLES (-S & -RA) ARE TO BE BULK PACKAGED.
8. SURFACE MOUNT (-VS) IS TO BE PACKAGED AS FOLLOWS:
POSITIONS -04 THRU -20 ARE TO BE TUBE PACKAGED;
POSITION -02 TO BE LAYER PACKAGED,
-03 POSITION TO BE TUBE OR LAYER PACKAGED.
9. MAXIMUM CUT FLASH: .020[0.51]
10. COPLANARITY (-VS); POSITIONS -02 THRU -15: .008[0.20],
POSITIONS -16 THRU -20: .010[0.25]
(No OF POS X .20[5.1])
(No OF POS-1)X.200[5.08]
.100 2.54 REF
HPM-XX-XX-XX-X-XX-X
No OF POSITIONS
-01 THRU -20
LEAD STYLE
SEE TABLE 1
PLATING SPECIFICATIONS
-T:
MATTE TIN CONTACT
AND TAIL
-TM:MATTE
TIN CONTACT
AND TAIL
OPTION
-P: PICK PLACE PAD
(USE PPP-47)
(-VS ONLY, 3 POS MIN,
NOT AVAILABLE IN -05
LEAD STYLE)
OPTION
-RA: RIGHT ANGLE POST
(-02 & -04 LEAD STYLE ONLY)
-VS: VERTICAL SURFACE MOUNT
(-01 & -02 LEAD STYLE ONLY)
(2 POSITION MINIMUM)
ROW SPECIFICATION
-S: SINGLE
SEE TABLE 2
TABLE 2
BODY
FSW-20-200
FSW-20-200
HFSW-20-200
FORM
.250 6.35 REF
T/H
RA
VS
.125 3.18 REF
MATERIAL
BLACK, PBT,
UL 94 VO
NATURAL, LCP,
UL 94 VO
.045 1.14
SQ REF
2 MAX SWAY
(EITHER DIRECTION)
C
90°
"B"
(SEE NOTE 2)
C
"E"
"C"
.200 5.08
"D" REF
.04 1.02
+4°
90°
- 0°
.100 2.54 REF
"A" REF
(SEE NOTE 4 & 6 FOR
-05 LEAD STYLE)
2 MAX SWAY
(EITHER DIRECTION)
SEE NOTE 10
T-1S8-XX-XX
-S: SINGLE
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
-VS: SURFACE MOUNT
-01 & -02 ONLY
*
PROPRIETARY NOTE
*
-RA: RIGHT ANGLE
-02 & -04 ONLY
.XX: .01 [0.3]
2
.XXX: .005 [0.13]
.XXXX: .0020 [0.051]
ANGLES
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
BODY: SEE TABLE 2
TERMINAL: CDA7025
GRADE TL02
MAX BOW ALLOWED: .003 IN/IN
F:\DWG\MISC\MKTG\HPM-XX-XX-XX-X-XX-X-MKT.SLDDRW
.200 HIGH POWER BLOCK, ASM
HPM-XX-XX-XX-X-XX-X
08/21/98
SHEET
1
OF
2
BY:
BURRES
REVISION Y
NOTE:
"R"=No OF POS X .200[5.08] REF
"S"= {("R" -.450[11.43])/2}±.020[.51]
"G"= POST HEIGHT +.050[1.27] REF
"R"
"S"
"G"
"E"
"B"
.300 7.62 REF
.213±.010
(SEE NOTES 4 & 6)
.450 11.43
REF
PPP-47
-P: PICK & PLACE PAD OPTION
(-VS ONLY, 3 POS MIN)
(NOT AVAILABLE IN -05 LEAD STYLE)
IN-PROCESS
-VS
IN-PROCESS
-RA
PT-1-24-01-67
TP-13
20
PT-1-24-01-67
01
TP-13
-VS
-VS-P

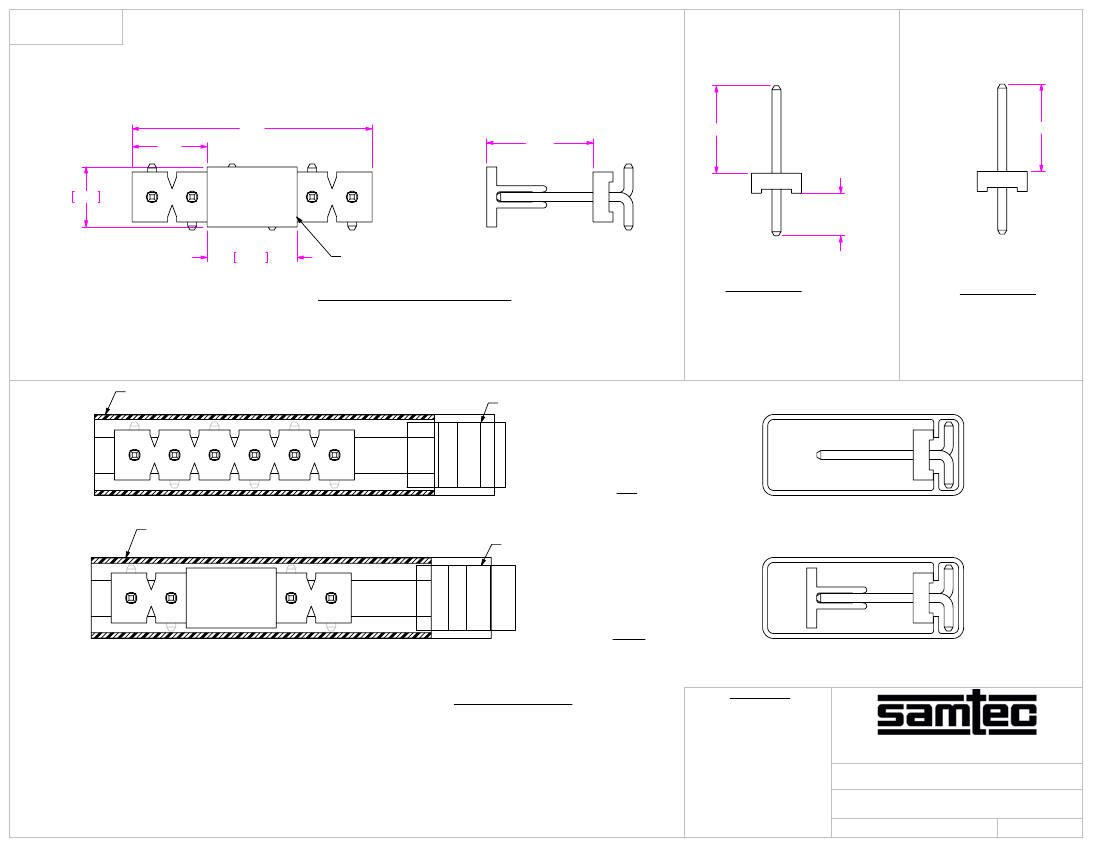

PACKAGING VIEW
(SEE NOTE 7 & 8)
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
.200 HIGH POWER BLOCK, ASM
HPM-XX-XX-XX-X-XX-X
08/21/98
SHEET
2
OF
2
F:\DWG\MISC\MKTG\HPM-XX-XX-XX-X-XX-X-MKT.SLDDRW
BY:
BURRES
