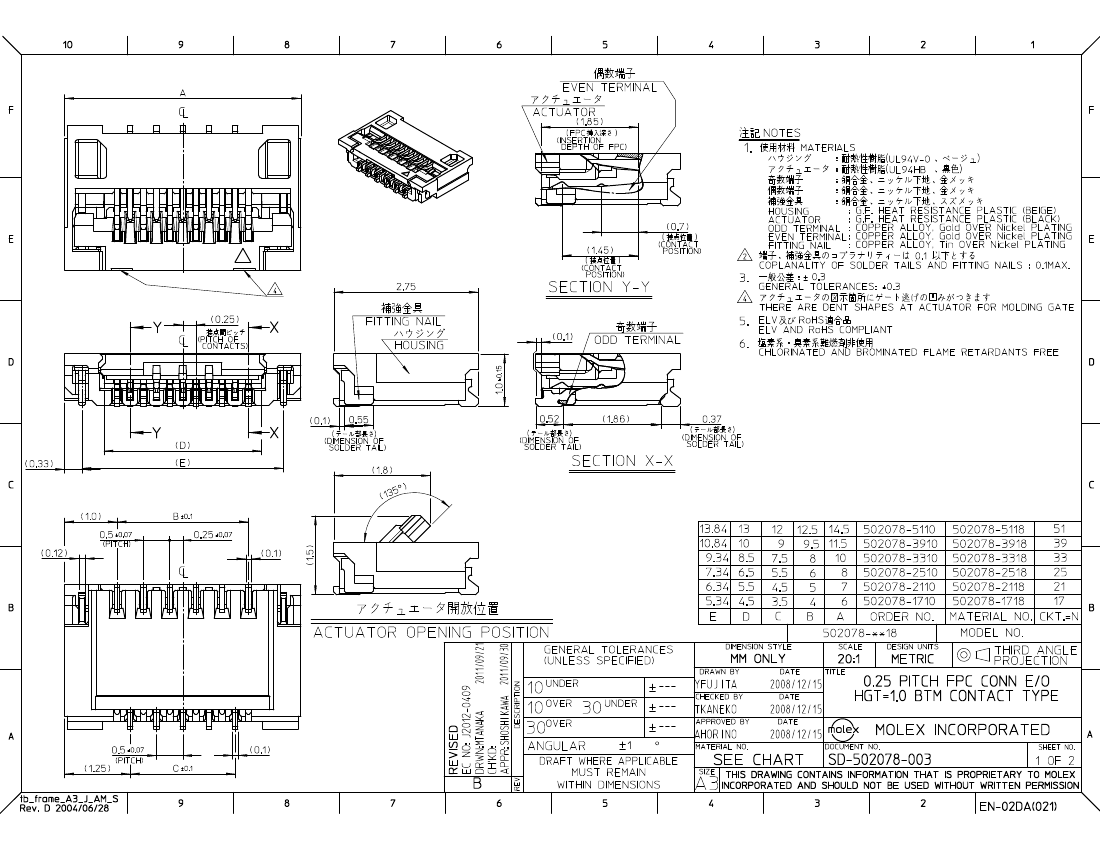

Preview

5020783310: DescriptionCONN FPC BOTTOM 33POS 0.25MM R/A; CategoryThe connector; File Size440KB，4 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

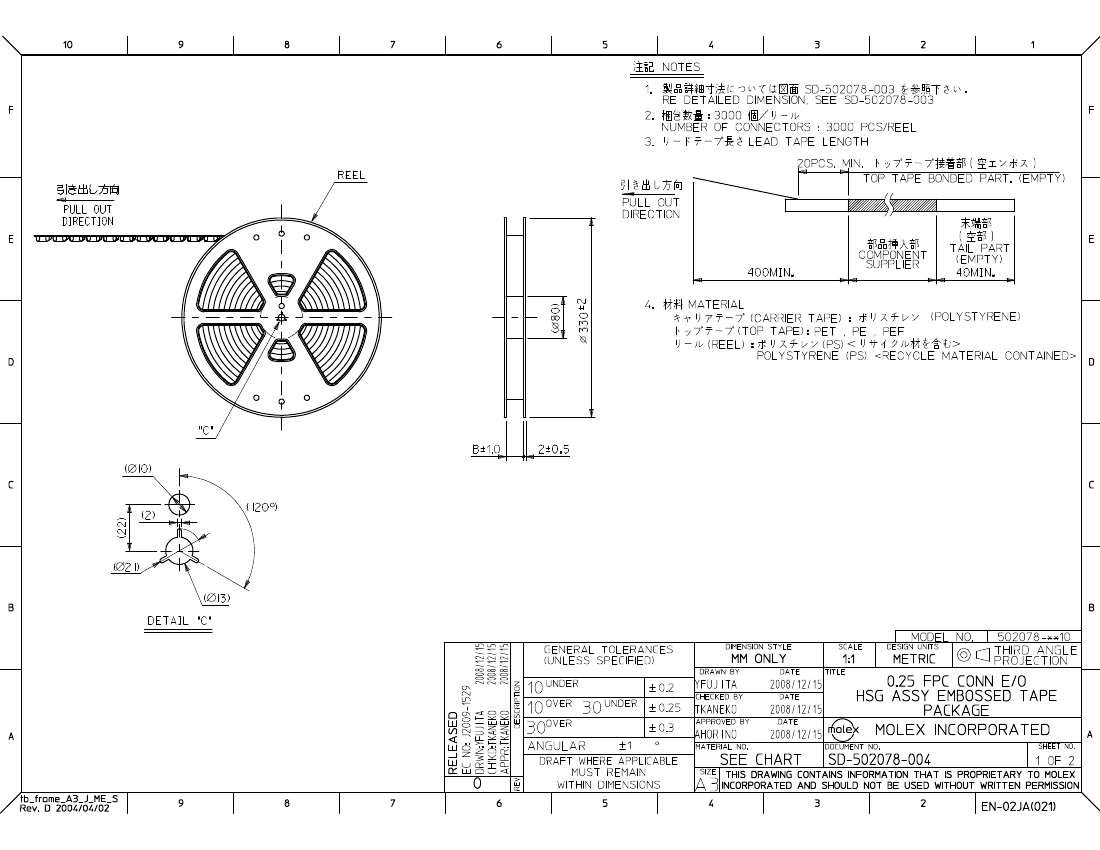

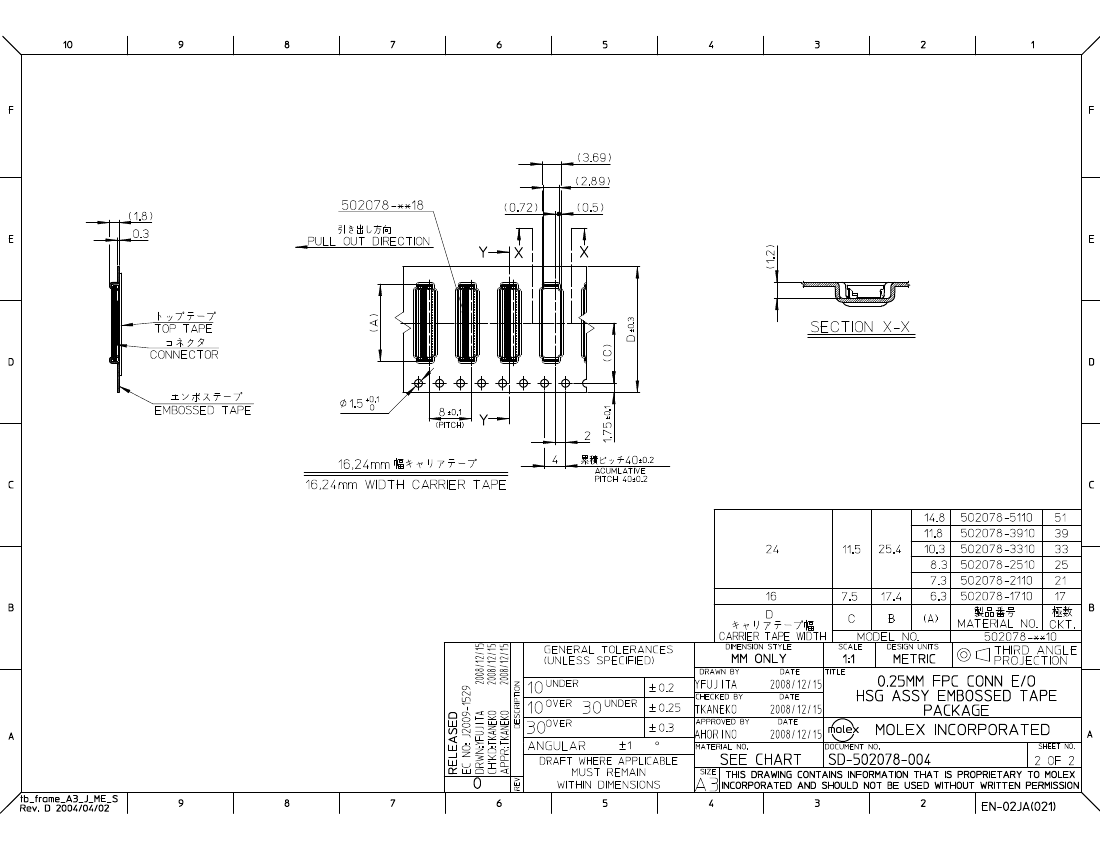

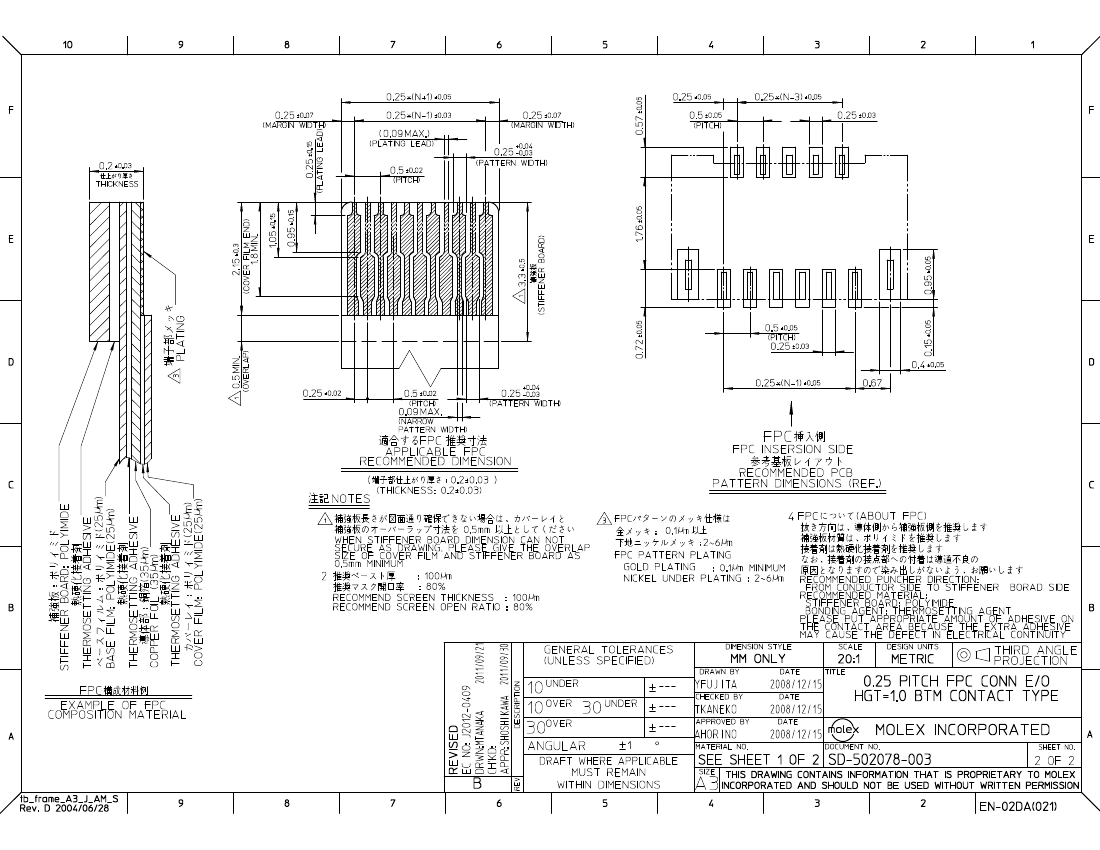

5020783310 Overview

CONN FPC BOTTOM 33POS 0.25MM R/A

5020783310 Parametric

Parameter Name	Attribute value
Flat flexible type	FPC
Installation type	Surface mount, right angle
Connector/contact type	contact, bottom
Number of pins	33
spacing	0.010"（0.25mm）
Termination	welding
FFC, FCB thickness	0.20mm
board height	0.039"（1.00mm）
Lock function	trigger lock
Cable end type	tapered
Contact material	copper alloy
Contact plating	gold
Shell material	plastic, fiberglass reinforced
Actuator material	plastic, fiberglass reinforced
characteristic	-
Rated voltage	50V
Operating temperature	-20°C ~ 85°C
Material flammability rating	UL94 V-0，UL94 HB
Rated current	0.2A
Contact plating thickness	-
Shell color	beige
Actuator color	black
Number of patches	10

Preview

Download Datasheet

View All

5020783310 Related Products

	5020783310	5020782110	5020785110	5020781710	502078-2510
Description	CONN FPC BOTTOM 33POS 0.25MM R/A	CONN FPC BOTTOM 21POS 0.25MM R/A	CONN FPC BOTTOM 51POS 0.25MM R/A	CONN FPC BOTTOM 17POS 0.25MM R/A	CONN FPC BOTTOM 25POS 0.25MM R/A
Flat flexible type	FPC	FPC	FPC	FPC	FPC
Installation type	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle
Connector/contact type	contact, bottom	contact, bottom	contact, bottom	contact, bottom	contact, bottom
Number of pins	33	21	51	17	25
spacing	0.010"（0.25mm）	0.010"（0.25mm）	0.010"（0.25mm）	0.010"（0.25mm）	0.010"（0.25mm）
Termination	welding	welding	welding	welding	welding
FFC, FCB thickness	0.20mm	0.20mm	0.20mm	0.20mm	0.20mm
board height	0.039"（1.00mm）	0.039"（1.00mm）	0.039"（1.00mm）	0.039"（1.00mm）	0.039"（1.00mm）
Lock function	trigger lock	trigger lock	trigger lock	trigger lock	trigger lock
Cable end type	tapered	tapered	tapered	tapered	tapered
Contact material	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy
Contact plating	gold	gold	gold	gold	gold
Shell material	plastic, fiberglass reinforced	plastic, fiberglass reinforced	plastic, fiberglass reinforced	plastic, fiberglass reinforced	plastic, fiberglass reinforced
Actuator material	plastic, fiberglass reinforced	plastic, fiberglass reinforced	plastic, fiberglass reinforced	plastic, fiberglass reinforced	plastic, fiberglass reinforced
Rated voltage	50V	50V	50V	50V	50V
Operating temperature	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C
Material flammability rating	UL94 V-0，UL94 HB	UL94 V-0，UL94 HB	UL94 V-0，UL94 HB	UL94 V-0，UL94 HB	UL94 V-0，UL94 HB
Rated current	0.2A	0.2A	0.2A	0.2A	0.2A
Shell color	beige	beige	beige	beige	beige
Actuator color	black	black	black	black	black
Number of patches	10	10	10	10	10
