Datasheet> All Categories > The connector> 31249102

Preview

31249102: DescriptionSCREW TYPE TERMINAL BLOCK, PLUG,; CategoryThe connector; File Size289KB，5 Pages; ManufacturerMETZ CONNECT USA Inc.; Environmental Compliance

Download Datasheet Parametric Compare View All

31249102 Overview

SCREW TYPE TERMINAL BLOCK, PLUG,

31249102 Parametric

Parameter Name	Attribute value
type	plug, female socket
Number of pins	2
Number of pins per level	2
Number of levels	1
spacing	0.200"（5.08mm）
Needle seat direction	-
Plug entrance	180°
Terminal type	Screws - Lift Cage Clamp
Installation type	free hanging
Current - IEC	-
Current - UL	16A
Voltage - UL	300V
Wire Gauge or Range - AWG	12-28 AWG
Wire gauge or range - mm²	0.08-2.5mm²
color	black
Operating temperature	-40°C ~ 105°C
Contact mating surface treatment	tin
characteristic	Fixed lock (non-wire side)
Material flammability rating	UL94 V-0
Intrusion protection	-
Screw size	M3
Torque - Screws	0.51 Nm（4.5 Lb-In）
Wire stripping length	-
Contact material	copper tin
Shell material	Polyamide (PA66), Nylon 6/6
Contact tail length	-
Insulation height	0.610"（15.49mm）

31249102 Preview

Data Sheet

RP016xxVBLC

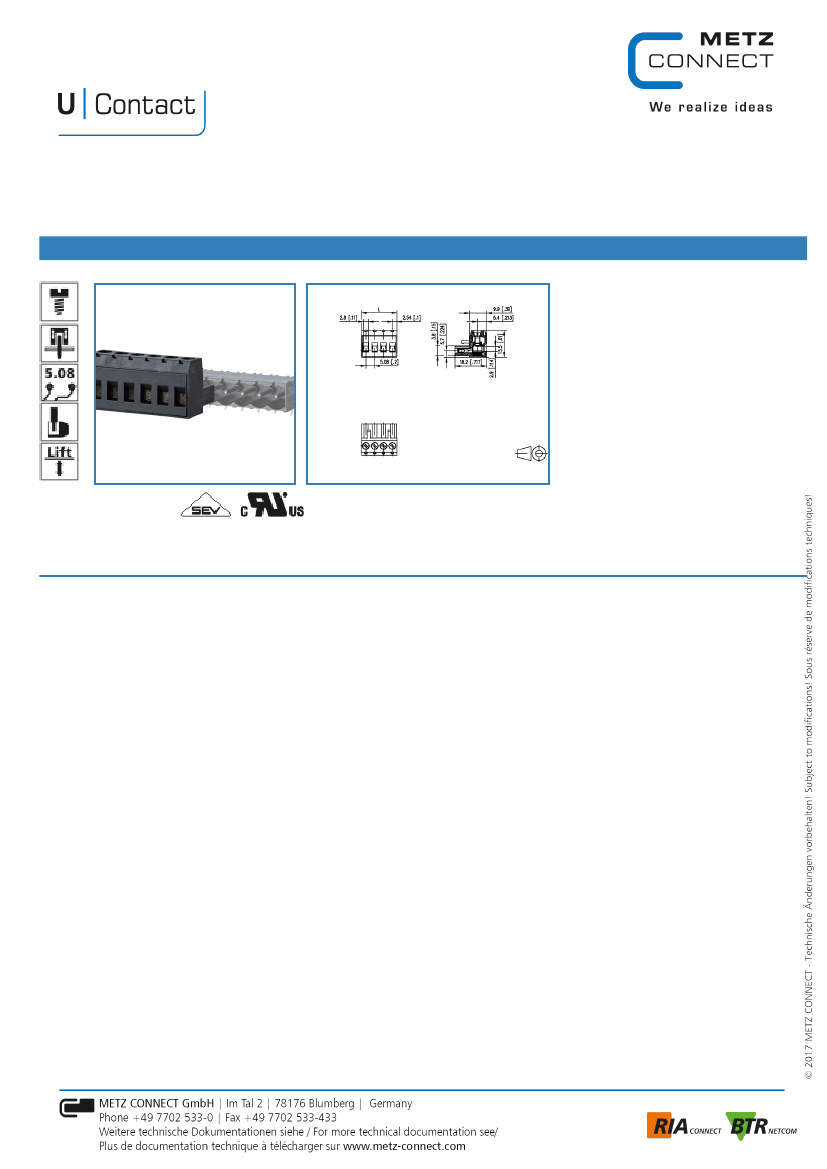

Illustration

Page 1/5

P/N

312491xx

xx=number of poles

2017/05/04

see enlarged drawing at the end of the document

Product specification

• screw type terminal block, pluggable

• centerline 5.08 mm, direction of connection vertical 0°

• lift system, fittable without loss of poles

• color black

• wire entry codeable side perpendicular to plug direction

Data Sheet

RP016xxVBLC

Technical Data

General Data

Tightening torque SEV

Tightening torque UL

min. number of poles

max. number of poles

Insulating material class

clearance/creepage dist.

protection category

Overvoltage category

Pollution degree

Rated voltage

Rated test voltage

0.5 Nm

4.5 lb-in

2

24

CTI 600

3.6 mm

IP 20

III

3

160.0 V

2.5 kV

III

2

400.0 V

2.5 kV

II

2

400.0 V

2.5 kV

Page 2/5

P/N

312491xx

xx=number of poles

2017/05/04

Connection data

Rated wiring solid wire

Rated wiring stranded wire

0.08 - 2.5 mm² / AWG 28 - 12

Approvals

extended wiring UL

2 AWG 16-18, or 1 AWG 16 stranded with 1 AWG 18 solid, or 1 AWG 16

stranded with 1 AWG 18 stranded

300 / 16 / 28 - 12

13.5 A / 320 V / 4 kV / 3 / IEC 61984 /

0.08 - 2.5 mm²

V / A / AWG

Material

insulating material

flammability class

contact material

Glow-Wire Flammability GWFI

Glow-Wire Flammability GWIT

contact surface

terminal body material

terminal body surface

PA66

V0

CuSn

960

775

Sn

CuZn

Ni

Data Sheet

RP016xxVBLC

screw surface

screw thread

Zn Cr(VI)-frei/free

M3

Page 3/5

P/N

312491xx

xx=number of poles

2017/05/04

Climatic properties

upper limit temperature

lower limit temperature

105 °C

-40 °C

General

Tolerance

ISO 2768 -mH

Data Sheet

RP016xxVBLC

Matching Part

P/N

311781

314781

312921

312901

312301

312291

312201

312191

311791

314791

Product name

PR066xxHBBN Typ 178

PR066xxHBEC Typ 478

PT106xxHGDN Typ 292

PT106xxVGDN Typ 290

PT116xxHBBN Typ 230

PT116xxHBEC Typ 229

PT116xxVBBN Typ 220

PT116xxVBEC Typ 219

PR066xxVBBN Typ 179

PR066xxVBEC Typ 479

Page 4/5

P/N

312491xx

xx=number of poles

2017/05/04

Accessories

P/N

700025-01-9

Product name

700025

Data Sheet

RP016xxVBLC

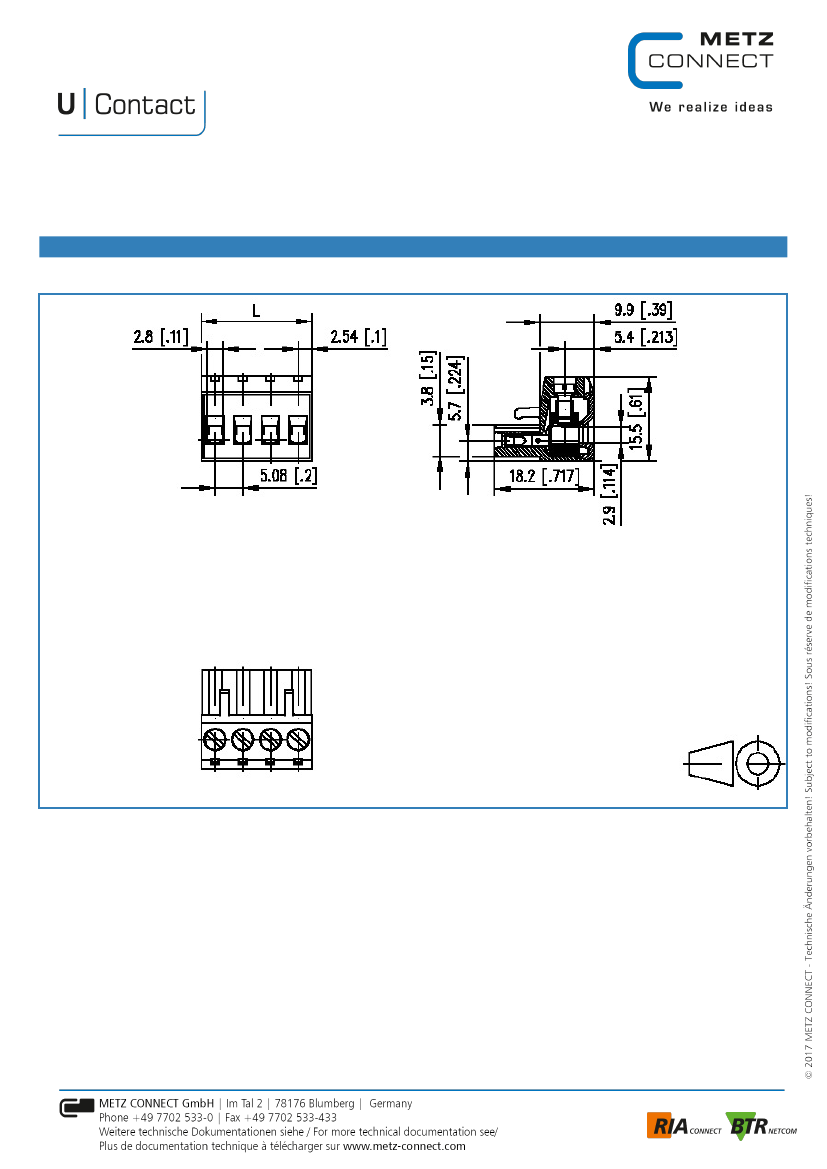

Illustration

Drawing

Page 5/5

P/N

312491xx

xx=number of poles

2017/05/04

L=(pole size - 1) x centerline + 5.08 [0.2]

Powered by TCPDF (www.tcpdf.org)

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

31249102 Related Products

	31249102	31249103	31249104	31249106
Description	SCREW TYPE TERMINAL BLOCK, PLUG,	SCREW TYPE TERMINAL BLOCK, PLUG,	SCREW TYPE TERMINAL BLOCK, PLUG,	SCREW TYPE TERMINAL BLOCK, PLUG,
type	plug, female socket	plug, female socket	plug, female socket	plug, female socket
Number of pins	2	3	4	6
Number of pins per level	2	3	4	6
Number of levels	1	1	1	1
spacing	0.200"（5.08mm）	0.200"（5.08mm）	0.200"（5.08mm）	0.200"（5.08mm）
Plug entrance	180°	180°	180°	180°
Terminal type	Screws - Lift Cage Clamp	Screws - Lift Cage Clamp	Screws - Lift Cage Clamp	Screws - Lift Cage Clamp
Installation type	free hanging	free hanging	free hanging	free hanging
Current - UL	16A	16A	16A	16A
Voltage - UL	300V	300V	300V	300V
Wire Gauge or Range - AWG	12-28 AWG	12-28 AWG	12-28 AWG	12-28 AWG
Wire gauge or range - mm²	0.08-2.5mm²	0.08-2.5mm²	0.08-2.5mm²	0.08-2.5mm²
color	black	black	black	black
Operating temperature	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Contact mating surface treatment	tin	tin	tin	tin
characteristic	Fixed lock (non-wire side)	Fixed lock (non-wire side)	Fixed lock (non-wire side)	Fixed lock (non-wire side)
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Screw size	M3	M3	M3	M3
Torque - Screws	0.51 Nm（4.5 Lb-In）	0.51 Nm（4.5 Lb-In）	0.51 Nm（4.5 Lb-In）	0.51 Nm（4.5 Lb-In）
Contact material	copper tin	copper alloy	copper tin	copper tin
Shell material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Insulation height	0.610"（15.49mm）	0.610"（15.49mm）	0.610"（15.49mm）	0.610"（15.49mm）
