ABC2-16.000MHZ-4-T datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ABC2-16.000MHZ-4-T

ABC2-16.000MHZ-4-T: DescriptionCRYSTAL 16.0000MHZ 18PF SMD; CategoryPassive components Crystal/resonator; File Size108KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ABC2-16.000MHZ-4-T Overview

CRYSTAL 16.0000MHZ 18PF SMD

ABC2-16.000MHZ-4-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
Other features	AT-CUT; TR, 13 INCH
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.003%
frequency tolerance	30 ppm
load capacitance	18 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	16 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L11.8XB5.5XH2.0 (mm)/L0.465XB0.217XH0.079 (inch)
Series resistance	30 Ω
surface mount	YES

Preview

Download Datasheet

View All

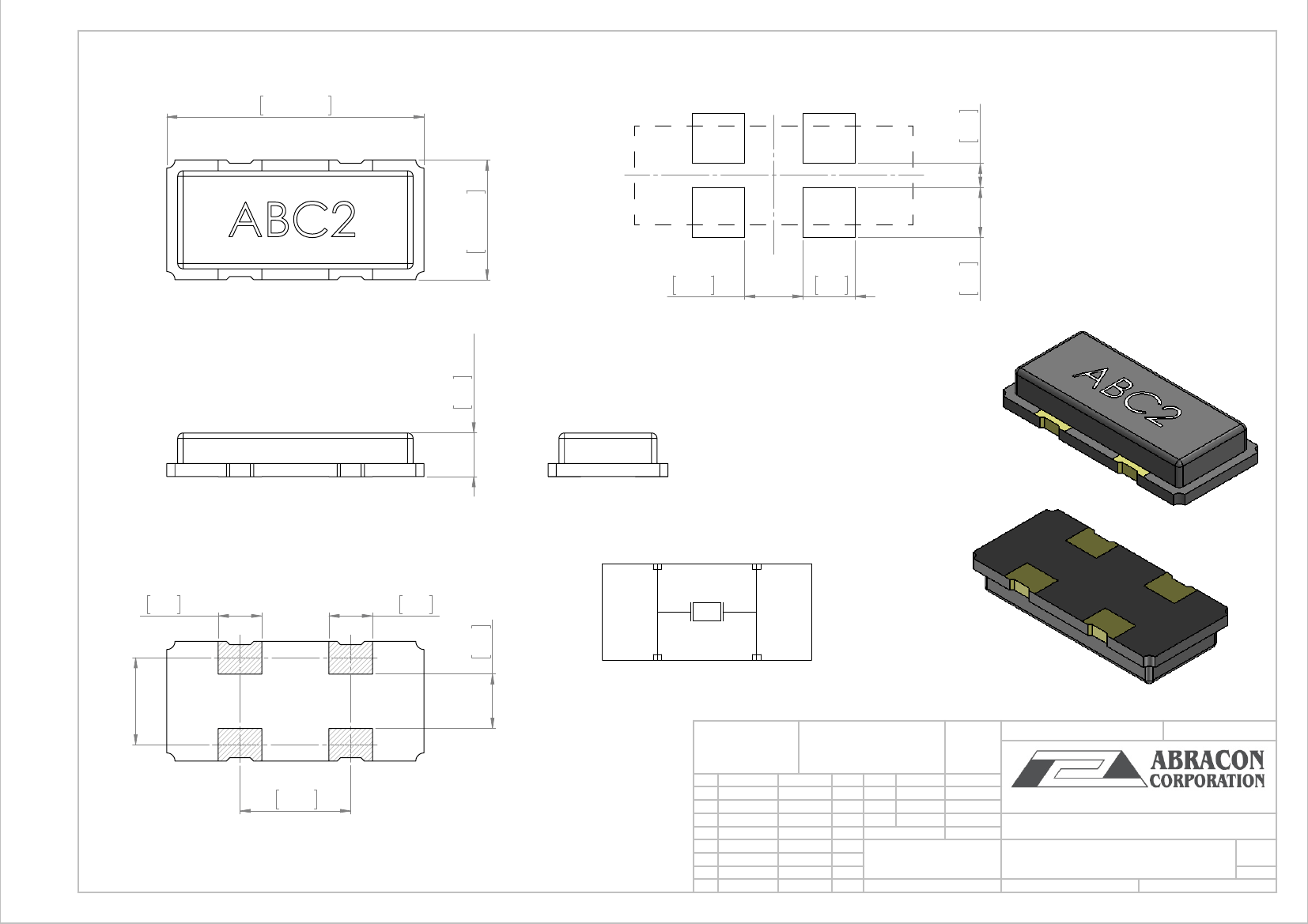

0.217±0.012

5.5±0.3

0.079 MAX

2.0

0.106

2.68

0.09

2.4

Sealing Method = Glass Sealing

0.079

2.0

0.079

2.0

0.1

2.5

0.15

[3.8]

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN MM

SURFACE FINISH:

TOLERANCES:

LINEAR:

ANGULAR:

NAME

DRAWN

CHK'D

APPV'D

MFG

Q.A

MATERIAL:

DWG NO.

SAAZVAT

XXXXXX

FINISH:

0.09

2.3

DEBUR AND

BREAK SHARP

EDGES

0.04

1.1

0.465±0.020

11.8±0.5

Recommended Land Pattern

DO NOT SCALE DRAWING

REVISION

0.200

5.08

SIGNATURE

DATE

30332 Esperanza, Rancho Santa margarita, California 92688

TITLE:

Crystal

ABC2

SHEET 1 OF 1

WEIGHT:

SCALE:7:1
