31157104 datasheet, PDF - EEWORLD Datasheet

31157104: DescriptionSCREW TYPE TERMINAL BLOCK, PLUG,; CategoryThe connector; File Size361KB，6 Pages; ManufacturerMETZ CONNECT USA Inc.; Environmental Compliance

Download Datasheet Parametric Compare View All

31157104 Overview

SCREW TYPE TERMINAL BLOCK, PLUG,

Parameter Name	Attribute value
type	Plug without shroud
Number of pins	4
Number of pins per level	4
Number of levels	1
spacing	0.197"（5.00mm）
Needle seat direction	-
Plug entrance	90° and 180°
Terminal type	Screws - leaf springs, wire guards
Installation type	Panel mount, snap-in
Current - IEC	-
Current - UL	5A
Voltage - UL	300V
Wire Gauge or Range - AWG	14-28 AWG
Wire gauge or range - mm²	0.08-2.5mm²
color	black
Operating temperature	-40°C ~ 105°C
Contact mating surface treatment	tin
characteristic	-
Material flammability rating	UL94 V-0
Intrusion protection	-
Screw size	M3
Torque - Screws	0.5 Nm（4.4 Lb-In）
Wire stripping length	-
Contact material	copper tin
Shell material	Polyamide (PA66), Nylon 6/6
Contact tail length	-
Insulation height	-

Data Sheet

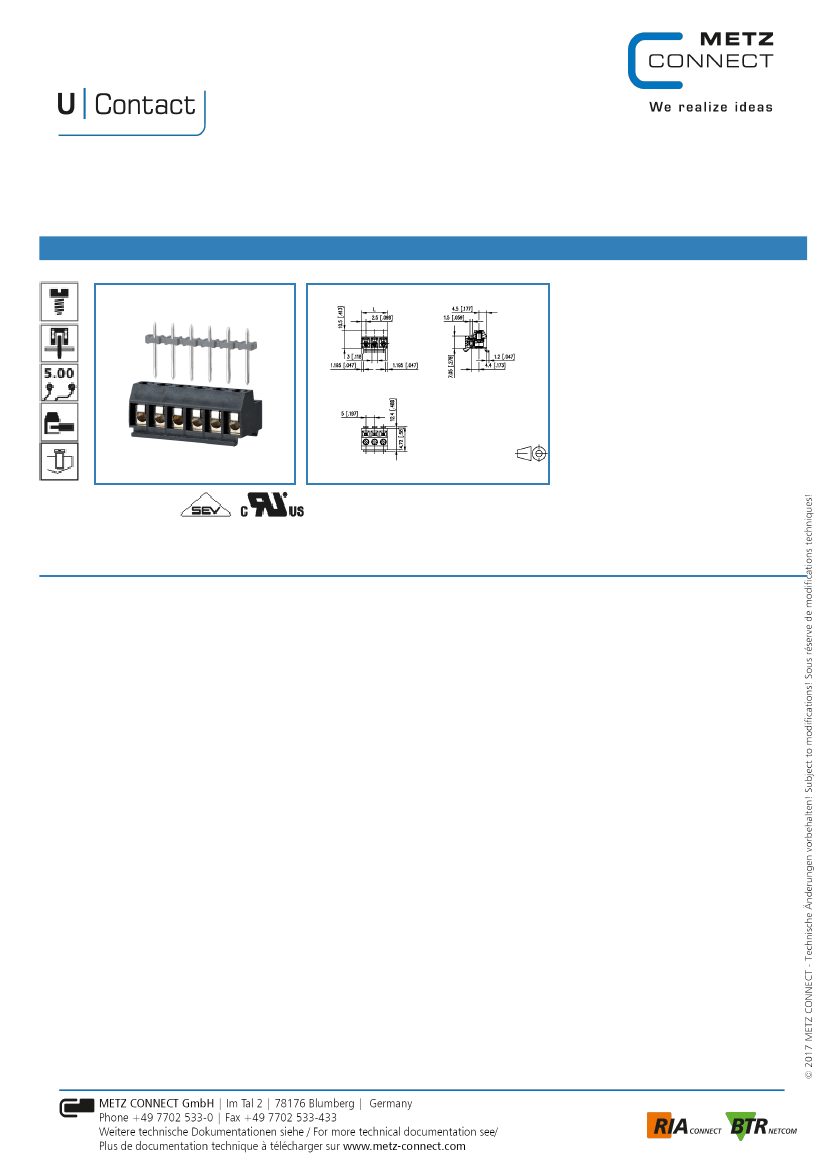

RP095xxRBWC

Illustration

Page 1/6

P/N

311571xx

xx=number of poles

2017/05/04

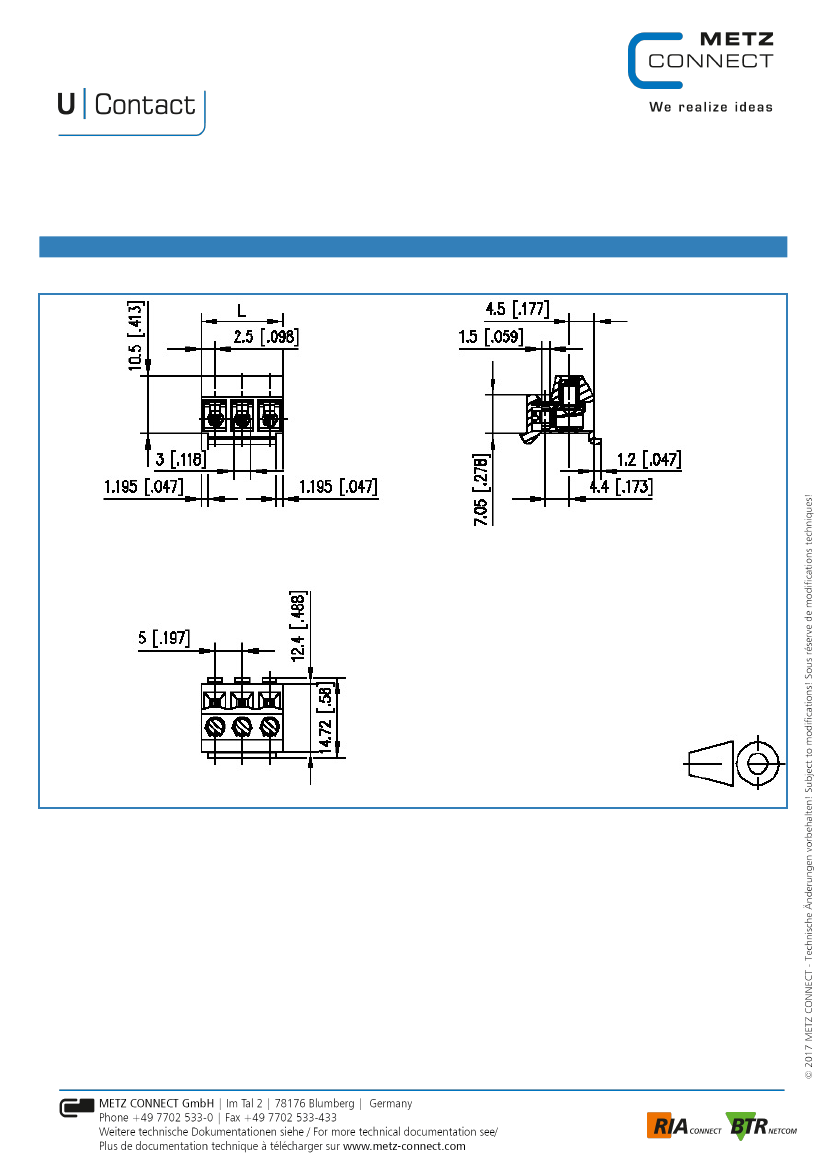

see enlarged drawing at the end of the document

Product specification

• screw type terminal block, pluggable

• centerline 5.00 mm, direction of connection 90°

• wire protector, fittable without loss of poles

• color black

• pluggable, top side pin insertion, snap-in technique for mounting into a housing

	31157104	31157102	31157103	31157106
Description	SCREW TYPE TERMINAL BLOCK, PLUG,	SCREW TYPE TERMINAL BLOCK, PLUG,	SCREW TYPE TERMINAL BLOCK, PLUG,	SCREW TYPE TERMINAL BLOCK, PLUG,
type	Plug without shroud	Plug without shroud	Plug without shroud	Plug without shroud
Number of pins	4	2	3	6
Number of pins per level	4	2	3	6
Number of levels	1	1	1	1
spacing	0.197"（5.00mm）	0.197"（5.00mm）	0.197"（5.00mm）	0.197"（5.00mm）
Plug entrance	90° and 180°	90° and 180°	90° and 180°	90° and 180°
Terminal type	Screws - leaf springs, wire guards	Screws - leaf springs, wire guards	Screws - leaf springs, wire guards	Screws - leaf springs, wire guards
Installation type	Panel mount, snap-in	Panel mount, snap-in	Panel mount, snap-in	Panel mount, snap-in
Current - UL	5A	5A	5A	5A
Voltage - UL	300V	300V	300V	300V
Wire Gauge or Range - AWG	14-28 AWG	14-28 AWG	14-28 AWG	14-28 AWG
Wire gauge or range - mm²	0.08-2.5mm²	0.08-2.5mm²	0.08-2.5mm²	0.08-2.5mm²
color	black	black	black	black
Operating temperature	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Contact mating surface treatment	tin	tin	tin	tin
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Screw size	M3	M3	M3	M3
Torque - Screws	0.5 Nm（4.4 Lb-In）	0.5 Nm（4.4 Lb-In）	0.5 Nm（4.4 Lb-In）	0.5 Nm（4.4 Lb-In）
Contact material	copper tin	copper alloy	copper tin	copper tin
Shell material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
