Feed-through terminal block - PT 2,5/S-QUATTRO CUS - 3211027
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Feed-through terminal block, with widened marking grooves for TMT... Materials, Connection method: Push-in
connection, Cross section: 0.14 mm² - 2.5 mm², AWG: 26 - 12, Width: 5.2 mm, Height: 35.3 mm, Color: gray,
Mounting type: NS 35/7,5, NS 35/15
The figure shows a similar product
Why buy this product
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring
of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 STK
50 STK
7.200 g
85369010
China
Technical data
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
General
Number of levels
Number of connections
Potentials
Nominal cross section
Color
1
4
1
2.5 mm²
gray
09/30/2016 Page 1 / 19
https://www.phoenixcontact.com/us/products/3211027
Feed-through terminal block - PT 2,5/S-QUATTRO CUS - 3211027
Technical data
General
Insulating material
Flammability rating according to UL 94
Area of application
PA
V0
Machine building
Plant engineering
Process industry
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum load current
6 kV
3
III
I
22 A (at a conductor cross section of 2.5 mm²; it must not be exceeded by
the total current.)
24 A (rigid when four 2.5 mm² cables are connected)
Nominal current I
N
Nominal voltage U
N
Open side panel
Shock protection test specification
Back of the hand protection
Finger protection
Result of surge voltage test
Surge voltage test setpoint
Result of power-frequency withstand voltage test
Power frequency withstand voltage setpoint
Result of the test for mechanical stability of terminal points (5 x conductor
connection)
Result of bending test
Bending test rotation speed
Bending test turns
Bending test conductor cross section/weight
17.5 A
500 V
Yes
DIN EN 50274 (VDE 0660-514):2002-11
guaranteed
guaranteed
Test passed
7.3 kV
Test passed
1.89 kV
Test passed
Test passed
10 rpm
135
0.14 mm² / 0.2 kg
1.5 mm² / 0.4 kg
2.5 mm² / 0.7 kg
Tensile test result
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Result of tight fit on support
Test passed
0.14 mm²
10 N
1.5 mm²
40 N
2.5 mm²
50 N
Test passed
09/30/2016 Page 2 / 19
https://www.phoenixcontact.com/us/products/3211027
Feed-through terminal block - PT 2,5/S-QUATTRO CUS - 3211027
Technical data
General
Tight fit on carrier
Setpoint
Result of voltage-drop test
Requirements, voltage drop
Result of temperature-rise test
Short circuit stability result
Conductor cross section short circuit testing
Short-time current
Conductor cross section short circuit testing
Short-time current
Result of aging test
Ageing test for screwless modular terminal block temperature cycles
Result of thermal test
Proof of thermal characteristics (needle flame) effective duration
Oscillation, broadband noise test result
Test specification, oscillation, broadband noise
Test spectrum
Test frequency
ASD level
Acceleration
Test duration per axis
Test directions
Shock test result
Test specification, shock test
Shock form
Acceleration
Shock duration
Number of shocks per direction
Test directions
Relative insulation material temperature index (Elec., UL 746 B)
Static insulating material application in cold
NS 35
1N
Test passed
≤ 3.2 mV
Test passed
Test passed
1.5 mm²
0.18 kA
2.5 mm²
0.3 kA
Test passed
192
Test passed
30 s
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Service life test category 2, bogie mounted
f
1
= 5 Hz to f
2
= 250 Hz
6.12 (m/s ) /Hz
3.12 g
5h
X-, Y- and Z-axis
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Half-sine
30g
18 ms
3
X-, Y- and Z-axis (pos. and neg.)
130 °C
-60 °C
2 2
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 130 °C
Dimensions
Width
End cover width
Length
5.2 mm
2.2 mm
48.6 mm
09/30/2016 Page 3 / 19
https://www.phoenixcontact.com/us/products/3211027
Feed-through terminal block - PT 2,5/S-QUATTRO CUS - 3211027
Technical data
Dimensions
Height
Height NS 35/7,5
Height NS 35/15
35.3 mm
36.7 mm
44.2 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Internal cylindrical gage
Push-in connection
IEC 60947-7-1
0.14 mm²
2.5 mm²
26
12
0.14 mm²
1.5 mm²
26
16
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
26
12
A2
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 60947-7-1
V0
Drawings
Circuit diagram
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
27141121
27141121
27141120
09/30/2016 Page 4 / 19
https://www.phoenixcontact.com/us/products/3211027
Feed-through terminal block - PT 2,5/S-QUATTRO CUS - 3211027
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27141120
27141120
27141120
27141120
27141120
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000897
EC000897
EC000897
EC000897
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410

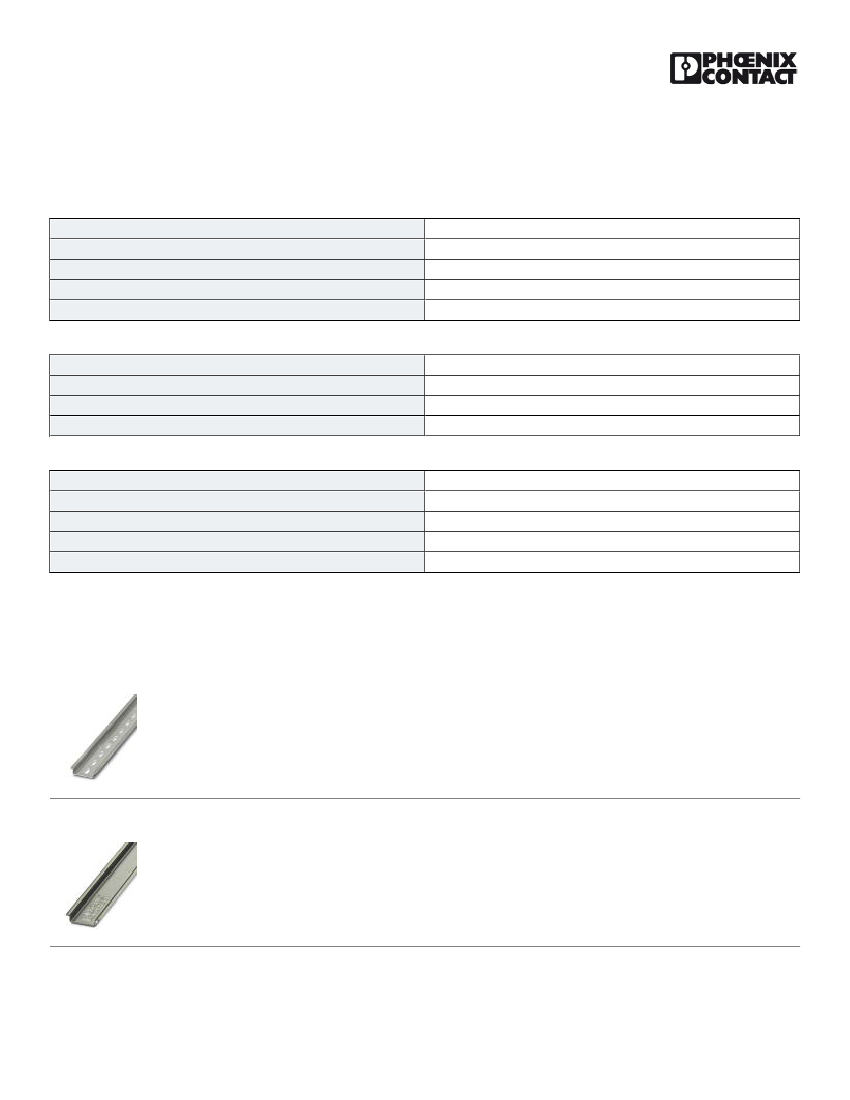

Accessories
Accessories
DIN rail
DIN rail perforated - NS 35/ 7,5 PERF 2000MM - 0801733
DIN rail, material: steel galvanized and passivated with a thick layer, perforated, height 7.5 mm, width 35 mm, length:
2000 mm
DIN rail, unperforated - NS 35/ 7,5 UNPERF 2000MM - 0801681
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35 mm, length: 2 m
09/30/2016 Page 5 / 19
