3744A-2: DescriptionBANANA JACK/SPADE LUG #4-6 RED; CategoryThe connector; File Size52KB，1 Pages; ManufacturerPomona Electronics

Download Datasheet Parametric Compare View All

3744A-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3744A-2	-	-	View	Buy Now

3744A-2 Overview

BANANA JACK/SPADE LUG #4-6 RED

3744A-2 Parametric

Parameter Name	Attribute value
Convert from (adapter side)	spade lug
Convert to (adapter side)	banana jack
characteristic	-
color	red

Preview

Download Datasheet

View All

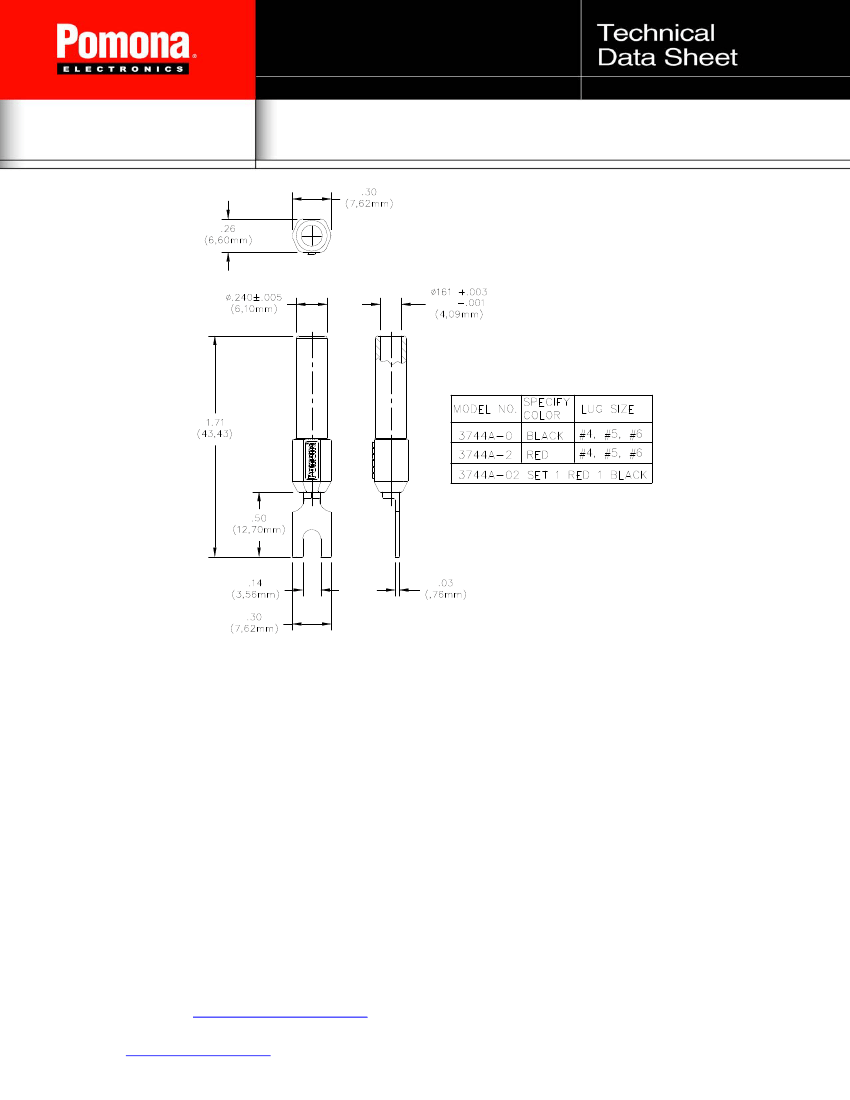

Model 3744A

Spade Lug to Banana Jack

MATERIALS:

End:

Banana Jack

Material: Brass per QQ-B-626, Alloy 360, ½ Hard.

Finish: Nickel plated per Q-N-290, Class 2, 200/300 microinches.

Insulation: Polypropylene (Fire Retardant) molded to Banana Jack Body. Color: See Tab Block.

Marking: “POMONA”

2 End:

Spade Lug

Material: Copper.

Finish: Electro-tin plated.

RATINGS:

Operating Temperature:

+50º C (+122º F) Max.

Operating Voltage:

5000 VDC

Current:

15 Amperes

ORDERING INFORMATION:

See table above

Sales: 800-490-2361

Technical Support:

technicalsupport@pomonatest.com

Fax: 425-446-5844

Europe:

31-(0) 40 2675 150

International:

425-446-5500

Where to Buy:

www.pomonaelectronics.com

USA:

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),

.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.

Specifications are subject to change without notice. Registered trademarks are

the property of their respective companies.

D1093974 Rev. 102

Page 1 of 1

3744A-2 Related Products

	3744A-2	3744A-02	3744A-0
Description	BANANA JACK/SPADE LUG #4-6 RED	BANA JACK/SPADE LUG#4-6 1BLK/RED	BANANA JACK/SPADE LUG #4-6 BLK
Convert from (adapter side)	spade lug	spade lug	spade lug
Convert to (adapter side)	banana jack	banana jack	banana jack
color	red	Black Red	black
