PHYSICAL INFRASTRUCTURE SYSTEMS

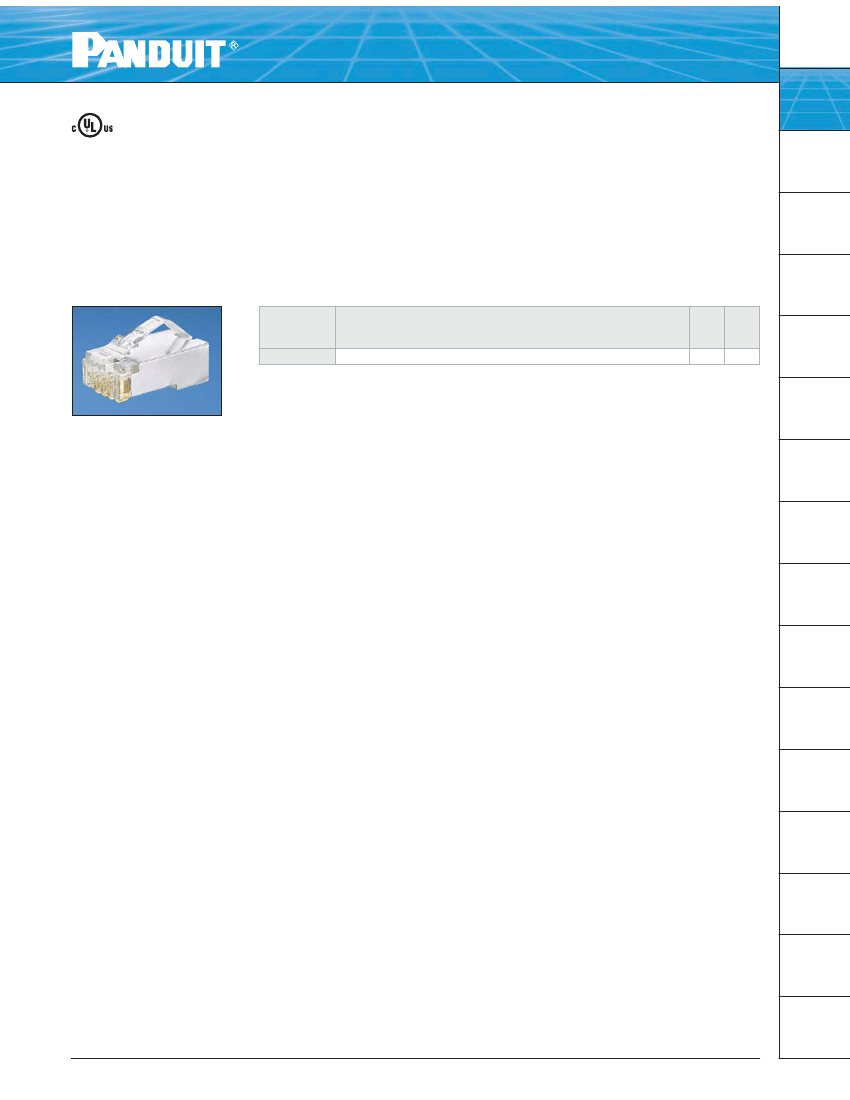

Pan-Plug
®
Category 5e Shielded Modular Plug
• Meets all applicable ANSI/TIA-968-A requirements and
exceeds IEC 60603-7 specifications
• Meet requirements of IEEE 802.3af and IEEE 802.3at for
PoE applications
• Used in STPCH series patch cords providing
Category 5e performance
• Patented tangle-free latch prevents snags and provides
easy release saving time on frequent moves, adds,
and changes
• Simplified termination requires no loading bar, guide ramp
facilitates easy conductor insertion and termination
• Contacts plated with 50 microinches of gold for superior
performance
• Shielded plug housing provides conductive path
for grounding
• Terminates 24 – 26 AWG 100 ohm stranded or solid
shielded cable with max. conductor insulation diameter
of 0.040 in.
Std. Std.
Pkg. Ctn.
Qty. Qty.
100 1000
A.
System
Overview
B.
Copper
Systems
C.
Fiber
Optic
Systems
D.
Power
over
Ethernet
E.
Zone
Cabling
Part Number
Part Description
MPS588-C
8-position, 8-wire shielded modular plug.
F.
Wireless
To ensure optimal performance, Panduit recommends use with other Panduit Category 5e components.
MPT5-8A crimp tool required for termination, available on page B.93
of SA-NCCB51.
G.
Outlets
H.
Media
Distribution
I.
Physical
Infrastructure
Management
J.
Overhead &
Underfloor
Routing
K.
Surface
Raceway
L.
Cabinets,
Racks &
Cable
Management
M.
Grounding &
Bonding
N.
Industrial
O.
Labeling &
Identification
P.
Cable
Management
Accessories
Q.
Index
www.panduit.com
For service and technical support, call 866-405-6654 (outside the U.S. and Canada, see
catalog
back cover).
B.47
