Introduction
The V Series™ LED Array products deliver high quality light in a compact and cost-effective solid-state lighting package.
These chip on board (CoB) arrays can be efficiently driven at twice the nominal drive current, enabling design flexibility not
previously possible. This high flux density light source is designed to support a wide range of high quality, low cost directional
luminaires and replacement lamps for commercial and residential applications.
The V10 LED array is available in a variety of electrical, CCT and CRI combinations providing substantial design flexibility and
energy efficiencies.
Lighting system designs incorporating these LED arrays deliver increased system level efficacy and longer service life. Typical
applications include, replacement lamps, and task, accent, spot, track, wide area, security, wall pack and down lights.
Bridgelux Décor Series is our state of the art color line designed specifically for premium applications, producing unmatched
LED light quality with brilliant color-rendering options and offer pleasing and inspiring lighting palettes. Bridgelux Décor
Series color points are available on Vero® SE Series, Vero® Series, V Series™ and H Series™.
Décor Series Class A
is based on human response testing, providing color points with a combined GAI and CRI metric.
Décor Series™ Ultra
products provide a high CRI of 97 and a minimum R9 value of 93, which emphasizes the reds and color
tones to which the human eye is most receptive - perfect for the most luxurious retail shops and world renowned museums.
Décor Series Ultra is designed as a replacement for halogen.
Décor Series™ Street and Landmark
is designed to be a direct replacement for high pressure sodium lamps.
Décor Series™ Showcase
is the optimal solution for replacing ceramic metal halide lamps, incorporating the same pure white
light with enhanced spectrum coverage and higher efficacy.
Features
Benefits
•
Efficacy of 155 lm/W typical
• Compact high flux density light source
• Uniform high quality illumination
• Minimum 65, 70, 80 and 90 and 95 CRI options
• Streamlined thermal path
• ENERGY STAR® / ANSI compliant color binning
structure with 2, 3 and 4 SDCM options
• More energy efficient than incandescent, halogen
and fluorescent lamps
• Low voltage DC operation
• Instant light with unlimited dimming
• V
f
bin code backside marking
• Enhanced optical control
• Clean white light without pixilation
• High quality true color reproduction
• Significantly reduced thermal resistance and
increased operating temperatures
• Uniform consistent white light
• Lower operating costs
• Easy to use with daylight and motion detectors to
enable increased energy savings
• Reduced maintenance costs
• Environmentally friendly, no disposal issue

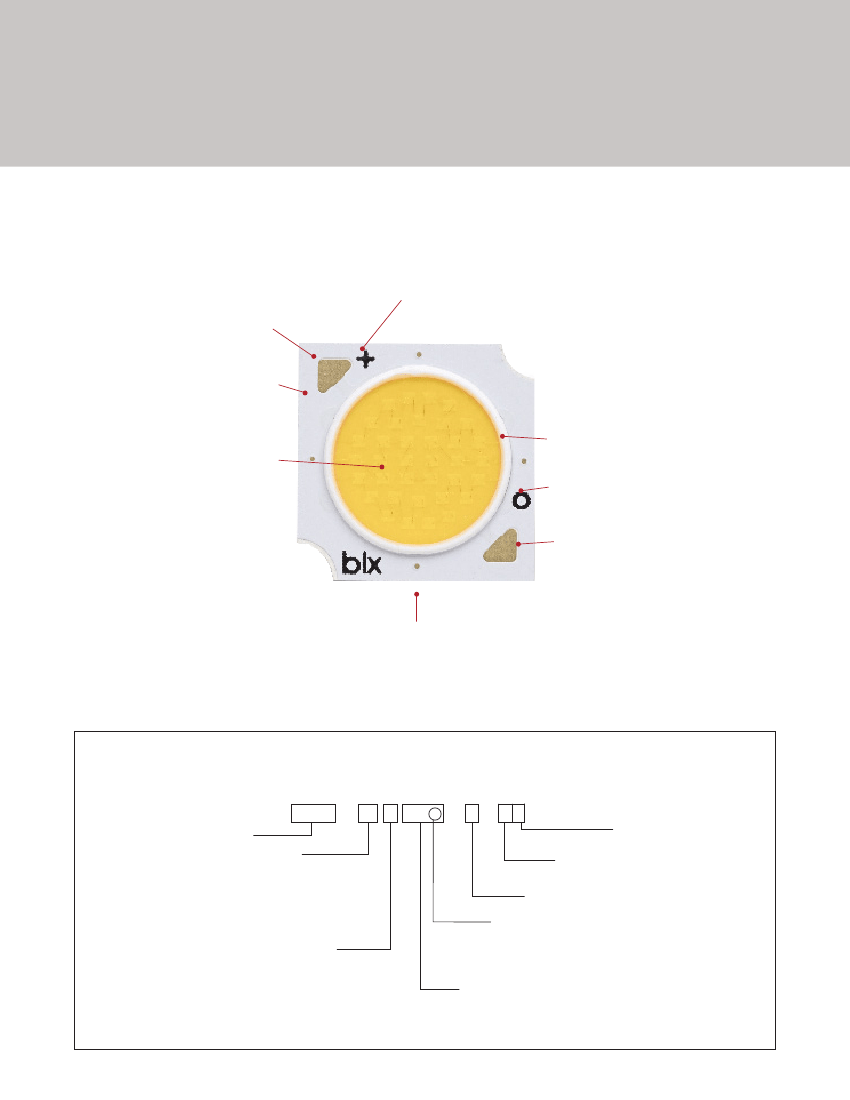

V Series
Product Feature Map
Bridgelux arrays are fully engineered devices that
provide consistent thermal and optical performance on an
engineered mechanical platform. The V Series arrays are
the most compact chip-on-board devices across all of
Bridgelux’s LED Array products. The arrays incorporate
several features to simplify design integration and
assembly. Please visit www.bridgelux.com for more
information on the V Series family of products.
Polarity symbols
Designed to comply with global
safety standards for creepage
and clearance distances
Fully engineered substrate
for consistent thermal, mechanical
and optical properties
White ring around LES
Yellow phosphor Light
Emitting Surface (LES)
Case Temperature (T
c
) Measurement Point
Solder Pads
Note: Part number and lot codes are scribed on back of array
Product Nomenclature
The part number designation for Bridgelux V Series LED arrays is explained as follows:
1 2 3 4
56
7
8 9 10 11
–
12
– 13 14
BXRE – 30 E 100 0 – C – 7 3
Product Family
Nominal CCT
20 = 2,000K
27 = 2,700K
30 = 3,000K
35 = 3,500K
40 = 4,000K
50 = 5,000K
57 = 5,700K
65 = 6,500K
Gen. 7
CCT Bin Options
2 = 2 SDCM
3 = 3 SDCM
4 = 4 SDCM
Array Configuration
Color Targeting Designator
0 = Cold Targeted
1 = Hot Targeted
C = Décor Series Showcase Target
Flux Indicator
100x = 1000 lm
CRI
B = 65 CRI min.
C = 70 CRI min.
E = 80 CRI min.
G = 90 CRI min.
H = 97 CRI typ.
A = Class A
2
Product Selection Guide
The following product configurations are available:
Table 1:
Selection Guide, Pulsed Measurement Data (T
j
= T
c
= 25°C)
Part Number
BXRE-20B1000-B-73
BXRE-27E1000-B-7x
BXRE-27E1000-C-7x
BXRE-27G1000-B-7x
BXRE-27G1000-C-7x
BXRE-27H1000-B-7x
BXRE-30E1000-B-7x
BXRE-30E1000-C-7x
BXRE-30G1000-B-7x
BXRE-30G1000-C-7x
BXRE-30G100C-B-73
BXRE-30G100C-C-73
BXRE-30A1001-B-73
8,9
BXRE-30A1001-C-73
8,9
Nominal
CCT
1
(K)
2000
2700
2700
2700
2700
2700
3000
3000
3000
3000
3000
3000
3000
3000
3000
3500
3500
3500
3500
3500
3500
4000
4000
4000
4000
5000
5000
5000
5000
5000
5000
5700
CRI
2
65
80
80
90
90
97
80
80
90
90
90
90
93
93
97
80
80
90
90
93
93
80
80
90
90
70
70
80
80
90
90
70
Nominal Drive
Current
3
(mA)
270
270
360
270
360
270
270
360
270
360
270
360
270
360
270
270
360
270
360
270
360
270
360
270
360
270
360
270
360
270
360
270
Typical Pulsed
Flux
4,5,6
T
c
= 25ºC
(lm)
1372
1394
1858
1161
1548
1006
1452
1936
1210
1613
1123
1497
1090
1453
1084
1500
2000
1248
1665
1175
1566
1510
2013
1297
1729
1655
2207
1558
2078
1316
1755
1597
Minimum
Pulsed Flux
6,7
T
c
= 25ºC
(lm)
1208
1226
1635
1022
1363
886
1277
1703
1065
1419
988
1317
959
1279
954
1320
1760
1099
1465
1034
1378
1329
1771
1141
1522
1456
1942
1371
1828
1158
1544
1405
Typical V
f
(V)
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
34.8
Typical
Power
(W)
9.4
9.4
12.5
9.4
12.5
9.4
9.4
12.5
9.4
12.5
9.4
12.5
9.4
12.5
9.4
9.4
12.5
9.4
12.5
9.4
12.5
9.4
12.5
9.4
12.5
9.4
12.5
9.4
12.5
9.4
12.5
9.4
Typical
Efficacy
(lm/W)
145
148
148
124
124
107
155
155
129
129
119
119
116
116
115
160
160
133
133
125
125
161
161
138
138
176
176
166
166
140
140
170
BXRE-30H1000-B-7x
BXRE-35E1000-B-7x
BXRE-35E1000-C-7x
BXRE-35G1000-B-7x
BXRE-35G1000-C-7x
BXRE-35A1001-B-73
8,9
BXRE-35A1001-C-73
8,9
BXRE-40E1000-B-7x
BXRE-40E1000-C-7x
BXRE-40G1000-B-7x
BXRE-40G1000-C-7x
BXRE-50C1001-B-7x
BXRE-50C1001-C-7x
BXRE-50E1001-B-7x
BXRE-50E1001-C-7x
BXRE-50G1001-B-7x
BXRE-50G1001-C-7x
BXRE-57C1001-B-7x
Notes for Table 1:
1. Nominal CCT as defined by ANSI C78.377-2011. Products with a CCT of 5000K-6500K are hot targeted to T
c
= 85°C.
2. CRI values are typical for Decor Series Ultra and Decor Series Class A products. CRI values are minimums for all other products. Minimum R9 value
for 80 CRI products is 0, the minimum R9 values for 90 CRI products is 50, the minimum R9 values for 97 CRI products is 93. Bridgelux maintains a ± 3
tolerance on R9 values.
3. Drive current is referred to as nominal drive current.
4. Products tested under pulsed condition (10ms pulse width) at nominal test current where T
j
(junction temperature) = T
c
(case temperature) = 25°C.
5. Typical performance values are provided as a reference only and are not a guarantee of performance.
6. Bridgelux maintains a ±7% tolerance on flux measurements.
7. Minimum flux values at the nominal test current are guaranteed by 100% test.
8. Nominal CCT is defined by the Lighting Research Center’s Class A definition. The center of the Class A color bin is on the corresponding isothermal line.
9. GAI value is 80. To help ensure optimal fixture level performance, GAI is measured at the fixture level, on axis, at a case temperature of 70°C. GAI may
vary depending on fixture design and performance.
3
